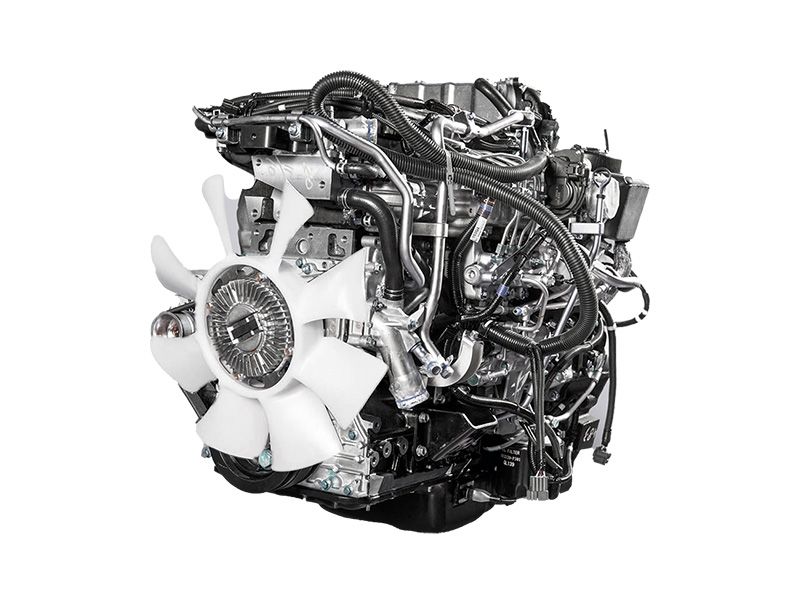

4KH1

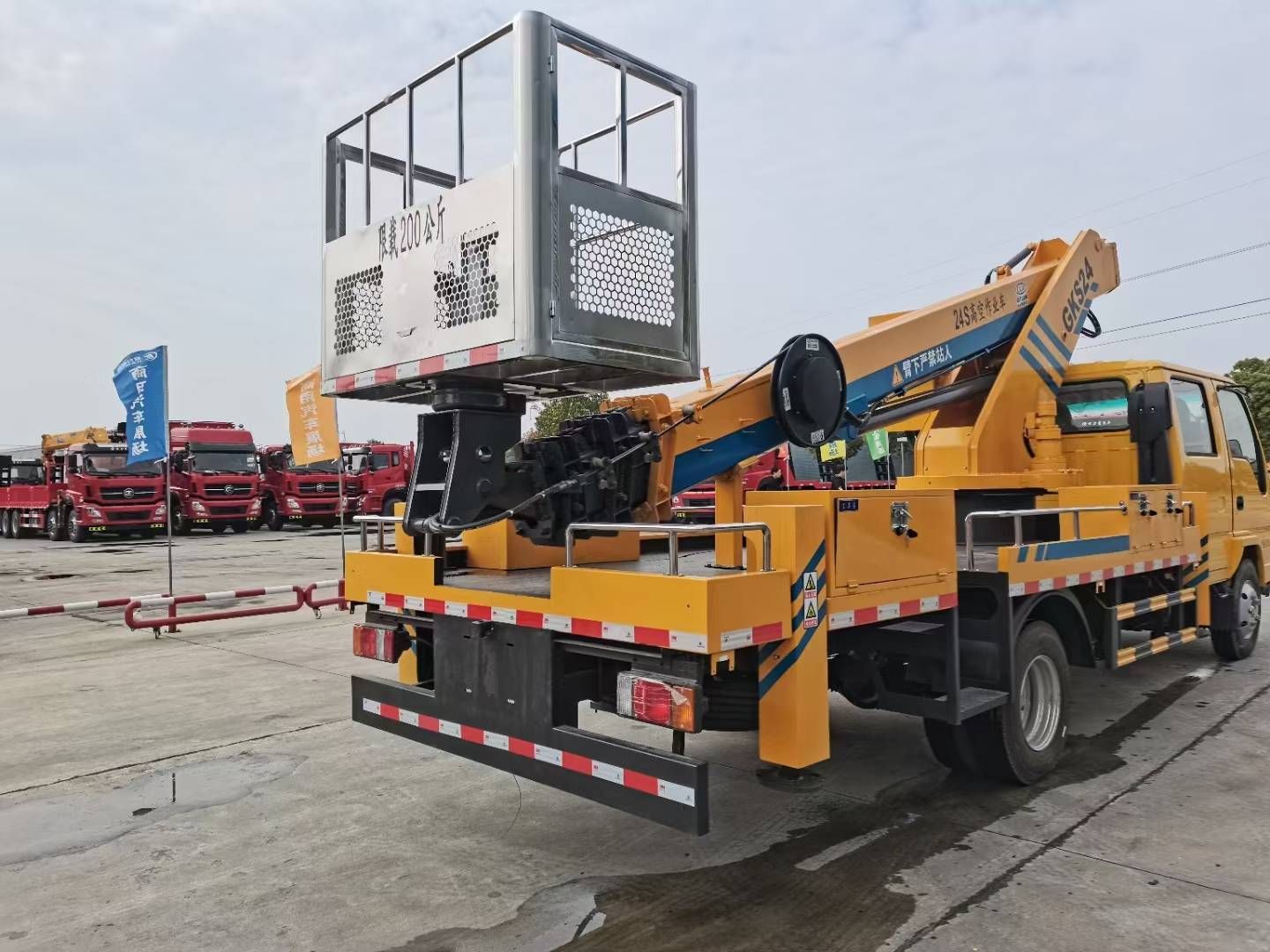

Pressure gauge
details show

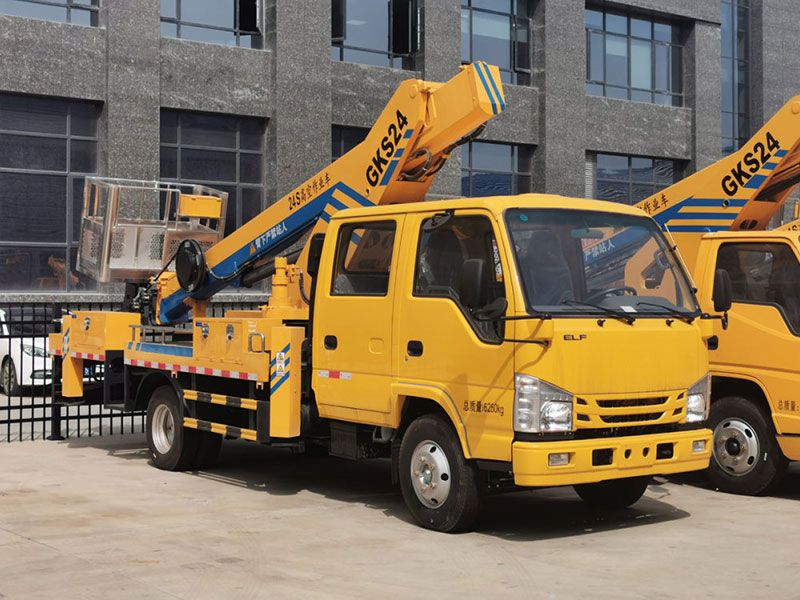

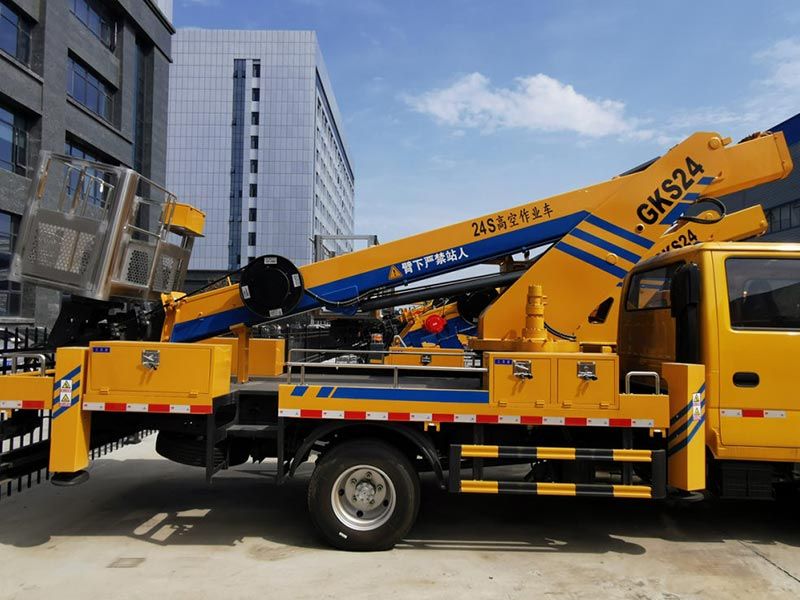

| 22m 24m 26m 18m 20m ISUZU NPR Hydraulic Telescopic Boom lift Truck Mounted Aerial Work Platform truck | |||
| Chassis brand | ISUZU | Chassis Model | NPR |
| Work capacity | 24 meters | Truck model | PT5090GGK |
| Engine power | 120 HP | Axle drive | 4x2 |
| Gear box | Isuzu MSB5S | Remarks | Double cabin, A/C |
| Overall dimensions | 6400X2500X2920mm | Wheel base | 4500mm |
| Chassis Manufacturer | ISUZU | ||
| Cab | Configuration | NPR Double cab,air conditionerallowable 3 passengers | |
| Color | Yellow.other color is optional | ||
| Engine | Model | 4KH1 | |
| Emission | Euro 5 | ||
| Rated power | 120hp | ||
| Displacement | 2999ml | ||
| Tire | Size | 7.00R16 Tire, With one spare tyre | |
| Number | 6+1 nos | ||
| Front axle | 3 tons | ||
| Rear axle | 4 tons | ||
| Transmissions | MSB 5 speed transmission, 5 speed forward 1 reverse | ||
| Technical Parameters | |||
| Working condition | Maximum operating height | 24m | |
| Max operating range | 18.6m | ||
| Max range at max height | 11.8m | ||
| Max height at max range | 9.6m | ||
| Rotation | 360° | ||

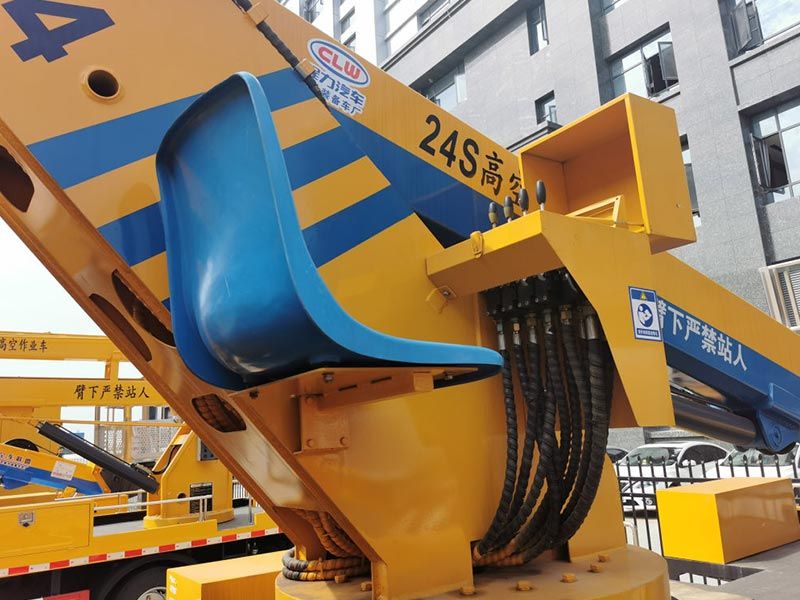

| Boom Type | 5Sections telescopic boom | ||

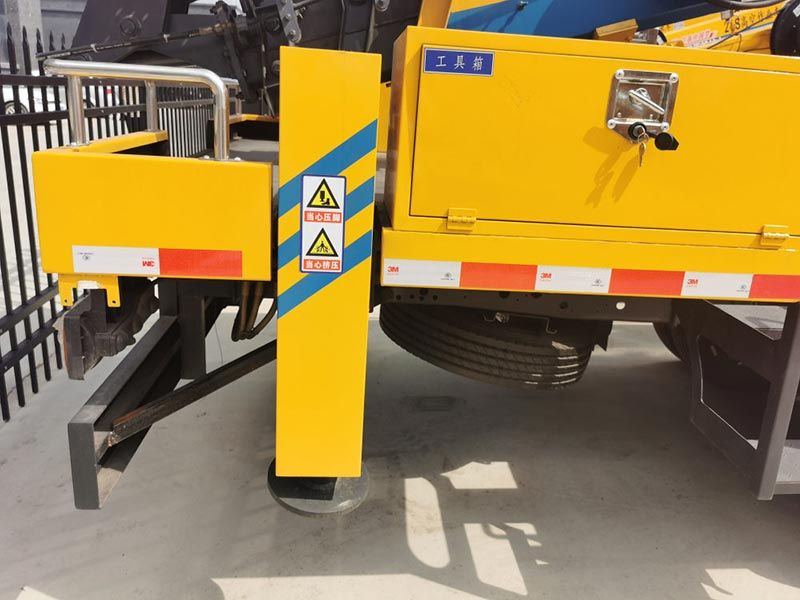

| Outrigger type | Outrigger type | Front V Rear H type. Controlled independently | |
| Outrigger span (Vertical x | Vertical | 5370.5385mm | |
| horizontal) | horizontal | 4975, 5195mm | |
| Rear Outrigger flash lights | 2pcs | ||

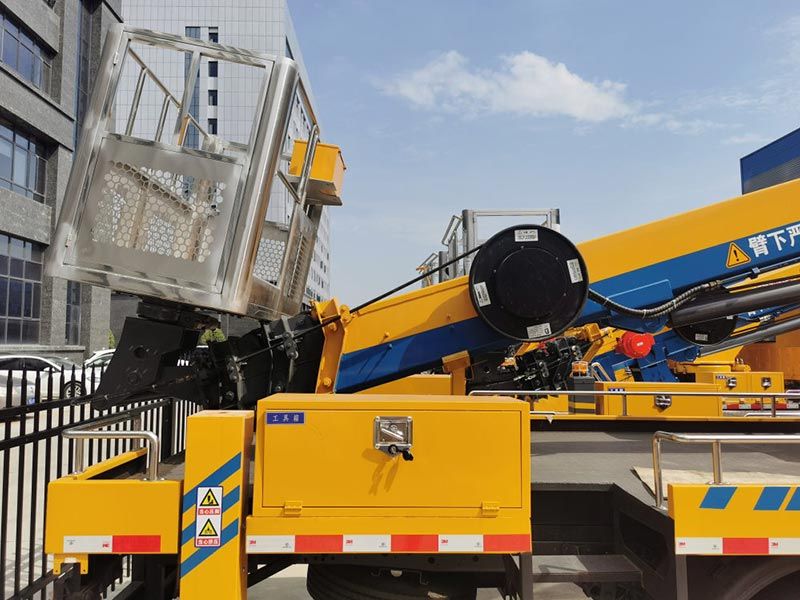

| Basket | Rated loading weight | 220kgs | |
| L*W*H(mm) | 1500x700x1150 | ||
| Bucket material | Stainless steel fence and antiskid platform. | ||
| Operation system | Operation | Electrical operation of working platform and ground remote control. | |
| Control system | Load sensitive proportional system can realize double actiorsynchronization and stepless speed regulation | ||
| Power take-off system | Pneumatic operation | ||
| Leveling system | Hydraulic automatic leveling | ||
