The ISUzU truck-mounted crane, also named lSUzU boom crane truck,lSUzU truck with crane, is a special vehicle used for cargo loading, unlbading andtransportation. it is usually equipped with a crane and transport devices that can transpor the cargo to the destination afer loading it.
ISUZU GIGA boom crane trucks are widely used in loistics, construcion,road construction, rescue and other felds. it can quicky load and unlbad goods,improvetranspontation eficiency,reduce labor costs, and can operate in complex environments. in addiion, 1SUZU truck with cranes can also be used for rescue andemergency operations, such as quickly transporting relief supplies and equipment after natural disasters such as earthguakes and floods

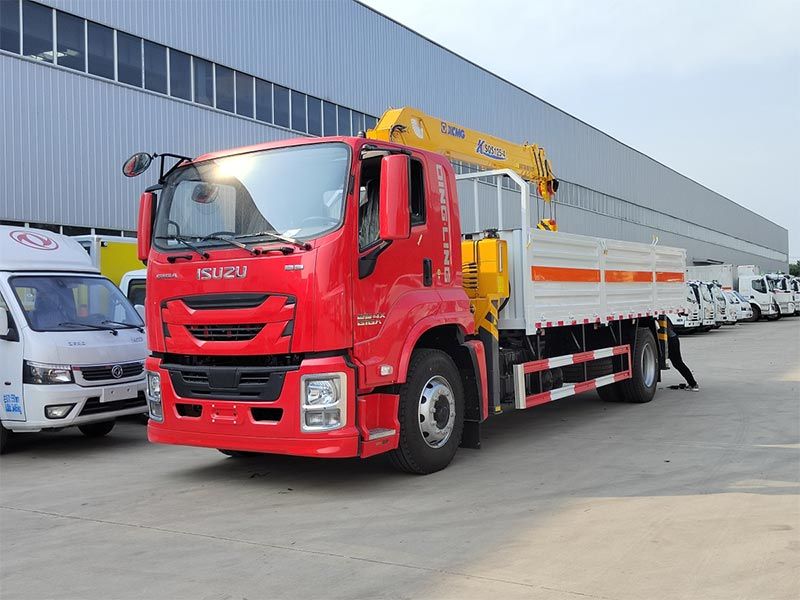

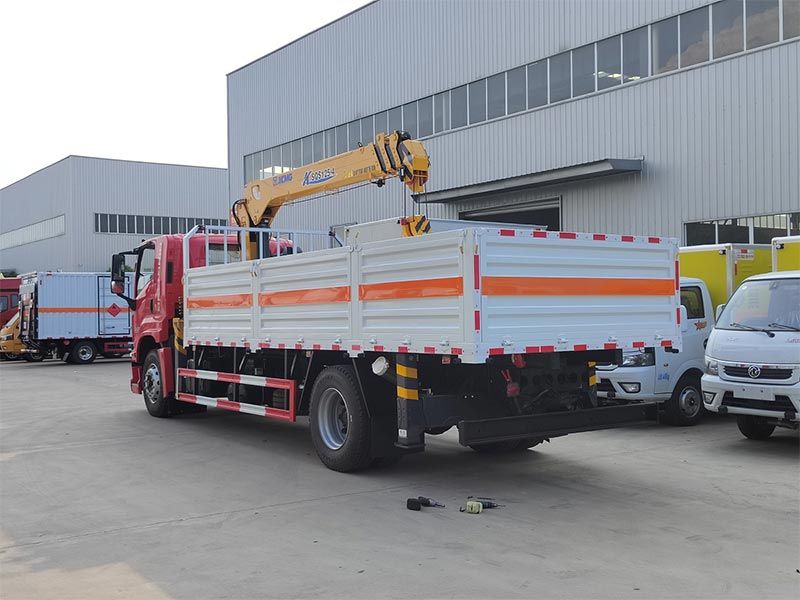

details show
| Product model | PT5050JSQ | |
| Driving type | 4×2， left hand drive | |
| Engine | Brand | ISUZU |
| Model | 6UZ1-TCG61 | |
| Type | 6-cylinder, in-line, turbocharged and intercooled | |
| Maximum output | 380HP (279KW) | |
| Maximum torque | 1800 Nm | |
| Rated speed | 2000 rpm | |
| Displacement | 9839 ml | |
| Transmission | Brand | FAST |
| Type | 12 speed, 12 forwards and 2 reverse, manual | |
| Axle | Front | 7500 kg loading capacity |
| Rear | 13000 kg loading capacity | |
| Chassis | Frame | U-profile parallel ladder frame and reinforced subframe, all cold riveted cross members, manganese steel |
| Front suspension | leaf spring | |
| Rear suspension | leaf spring | |
| Fuel tank | 400 L capacity with locking cap | |
| Wheels & Tyres | Tire size | 295/80R22.5 |
| Number | 6+1 pcs | |
| Cabin | Type | Single cab, with sleeper, A/C, ABS |
| Seats | 2 | |
| Dimensions mm | Wheel base | 4600 mm |
| Overall length | 9000 mm | |
| Overall width | 2500 mm | |
| Overall height | 3750 mm | |
| Cargo box dimension | 5000×2500X550 mm | |
| Parameter of Crane | Brand | XCMG |
| Model | KSQS125-4 | |
| Max lifting capacity | 5000 KG | |
| Max lifting moment | 12.5 KN.M | |
| Recommended power | 18 KW | |
| Max oil flow of hydraulic system | 40 L/M | |
| Max pressure of hydraulic system | 22 Mpa | |
| Oil tank capacity | 90 L | |
| Crane weight | 2230 KG | |
| Rotation angle | 360 degree | |
| Installation space | 900 mm | |
| Weight kg | Gross vehicle weight | 22000 kg |
| Curb weight | 12500 kg | |
| Rated Loading Capacity | 10000 kg | |
