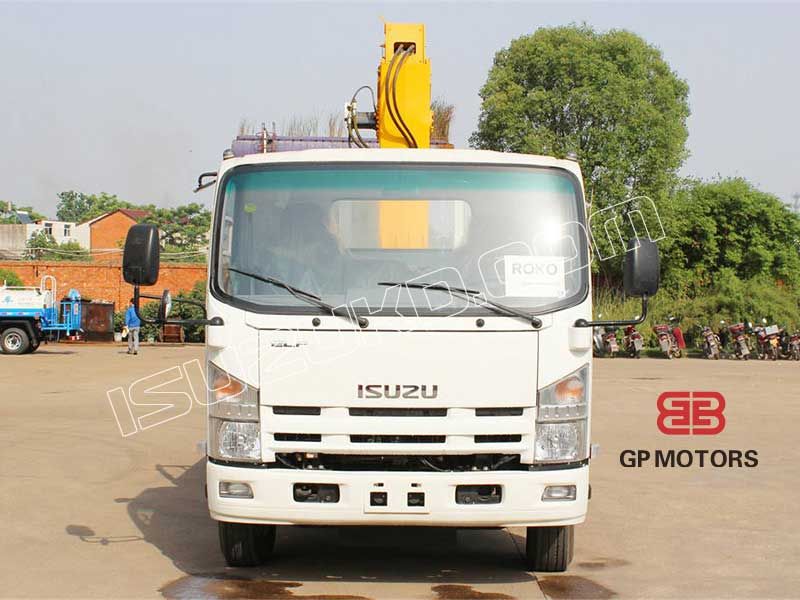

ISUZU NPR Chassis
Built on lSUZU NPR chassis, whichhas a comfortable cabin.

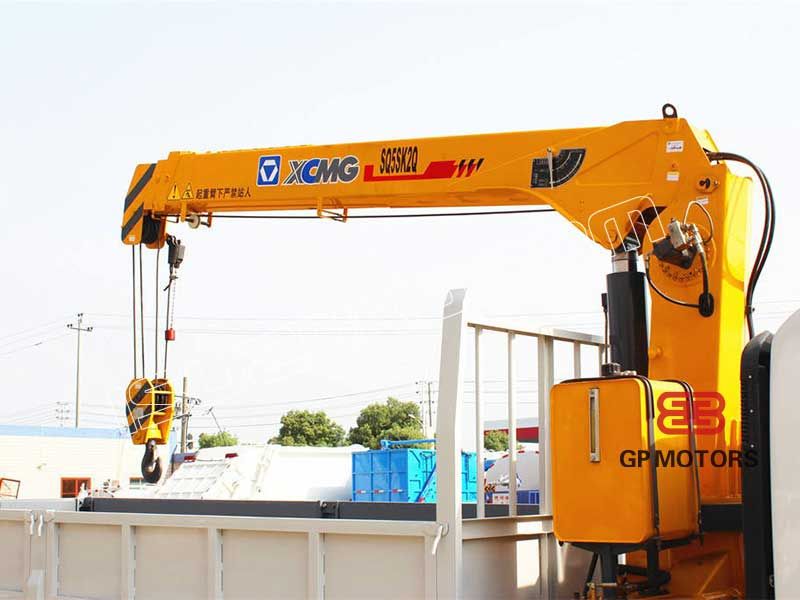

XCMG Crane
The lSUZU crane truck is equippedwith China famous brand XCMG boom crane
details show
| ISUZU truck with crane specifications | |||
| Overall dimensions | 7000x2250x2850(mm) | Cargo box dimensions | 4000x2200x450(mm) |
| Gross vehicle weight | 11,000 kg | Rated Load capacity | 5000 kg |
| Chassis specifications | |||
| Chassis Brand | ISUZU | Color | White or optional |
| Engine | Fuel Type | Diesel | |
| Horse power | 141kW/190HP | ||
| Displacement | 5193ml | ||
| Engine Type | 4 cylinders in line, water cooling,intercooled, turbocharged | ||
| Emission Standard | Euro V | ||
| Wheel Base(mm) | 3815 | Driving type | 4x2 |
| Type & Size of Tyre | 235175R17.5(6+1pcs) | Air Conditional | Heating and cooling air conditioning |
| Cab | Single-row tilted cab | Gear Box | ISUZU MLD 6 speed forward with 1 reverse, manua! |
| Brake | Air brake | Steering Wheel | Left Hand Drive with power-assisted |
| Crane specifications | |||
| Crane model | SQ5SK3Q | Crane weight | 2230 kg |
| Max. lifting weight | 5000 kg | Max. working height | 11.2 m |
| Max oil flow of hydraulic system | 40 L/min | Rated pressure of hydraulic system | 22 Mpa |
| Oil tank capacity | 90 L | Installation space | 900 mm |
| Max. working radius | 11 m | Max lifting Moment | 12.5 TM |

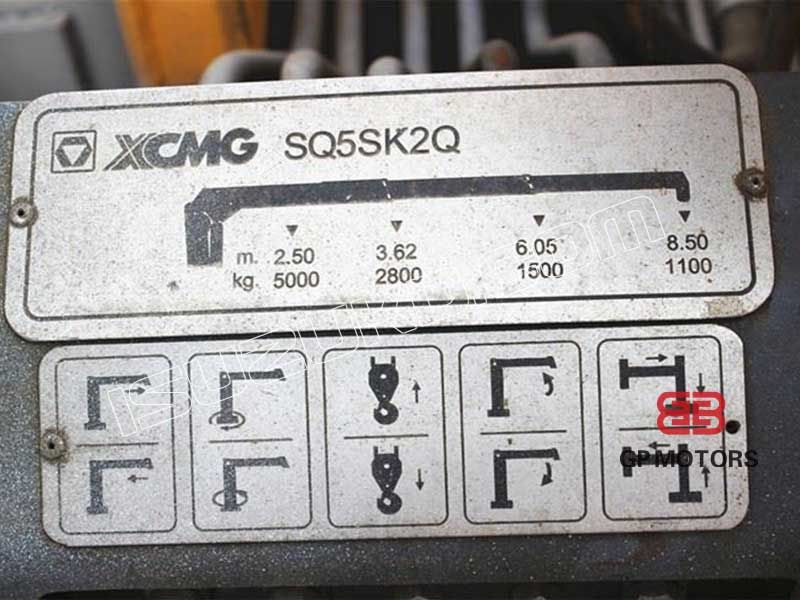

| Lifting capacity/working radius | Lifting capacity(kg) | working radius(m) | |
| 5000 | 2.5 | ||
| 2800 | 3.62 | ||
| 1500 | 6.05 | ||
| 1100 | 8.6 | ||
| 400 | 11 | ||
| Rotation angle | 360°. all rotation | Boom | 4 sections |
