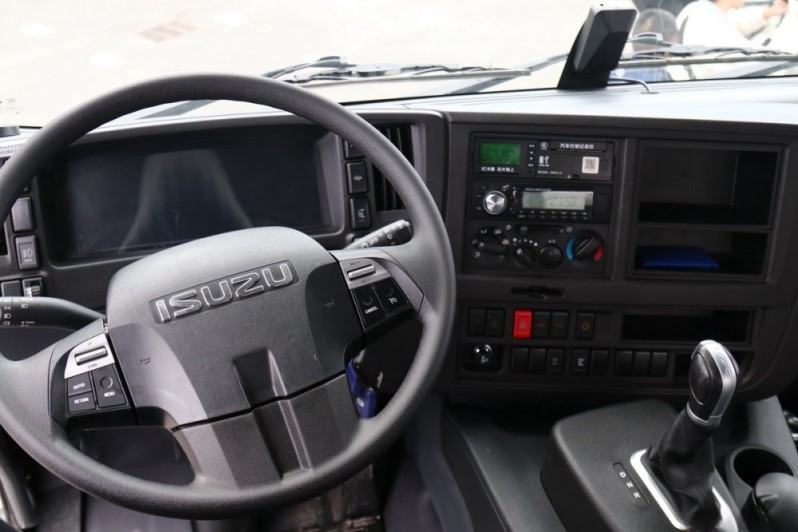

Cabina
The most spacious and comfortable cab on the market with Japanese design and style.
Body application
SPECIFICATIONS
| Chassis Model: | QL4250BEVEWPH | |
| Vehicle Parameters | Overall Dimension(L x W x H): | 7310×2540×3350(mm) |
| Front/Rear Wheel Distance: | 2065/1875/1875mm | |
| Front/Rear Suspension: | 1370/770(mm) | |
| Curb Weight: | 10180kg | |
| GVW: | 25000kg | |
| Axle Loads: | 7000/18000/18000kg | |
| Wheelbase: | 3800+1370 mm | |
| Semi-Trailer GVW: | 38690kg | |
| Drive Type: | Motor Direct Driving | |
| Driving otor | Model No.: | TZ410XS-LKM2001 |
| Type: | PMSM | |
| Rated/Peak Power: | 240/360kw | |
| Battery | Type/Brand: | LFP/CTAL |
| Driving Range: | 300km | |
| Capacity: | 281.91kwh | |
| Cabin | Front Seat: | 2 |
| Tractor | Leaf Spring: | 7/10 |
| Approach/Departure angle: | 14/42° | |
| Tires: | 11(Including spare parts) | |
| Tire Model: | 12R22.5 18PR | |
| Standard Configuration | Power Steering | |
| AC | ||
| ABS | ||
DIMENSIONS
