Manufacturer | Qingling Trucks | |
Item | QINGLING NQR Water Tank Fire Truck | |
Brand | QINGLING | |
Model | PT02XF | |
Production Time | 40 days | |
Truck Chassis | ||
Specification | Overall dimensions | 5990*2200*2850 mm |
Gross weight | 7,300 kg | |
Kerb weight | 4,100 kg | |
Wheelbase | 3360 mm | |
Driving type | 4*2 | |
Chassis model | QINGLING 600P Light-duty | |
Tire size | 7.00R16 | |
Passengers in cab | 6 | |
Engine | Engine model | 4KH1CN5HS |
Type of fuel | Diesel | |
Power | 130HP | |
Gearbox | MSB 5-shift gearbox | |
Upper Structure | ||
Water Tanker performance | Tank Capacity | 2,000L |
Tank Material | 4 mm carbon steel with hexagonal design, both inside and outside antiseptic treatment | |

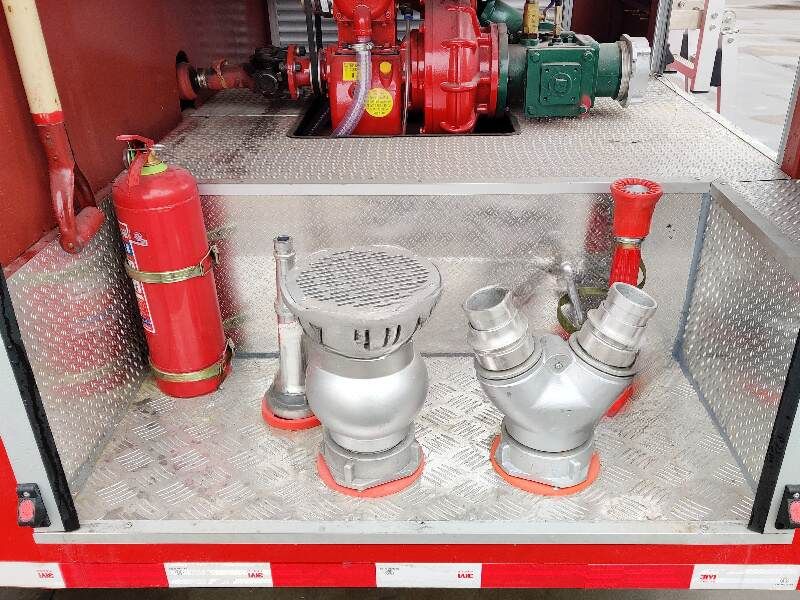

Fire Pump | Top Chinese brand | |
Model: CB10/30 | ||
Pressure (Mpa): 1.0 | ||
Flow Rate: 30L/s | ||

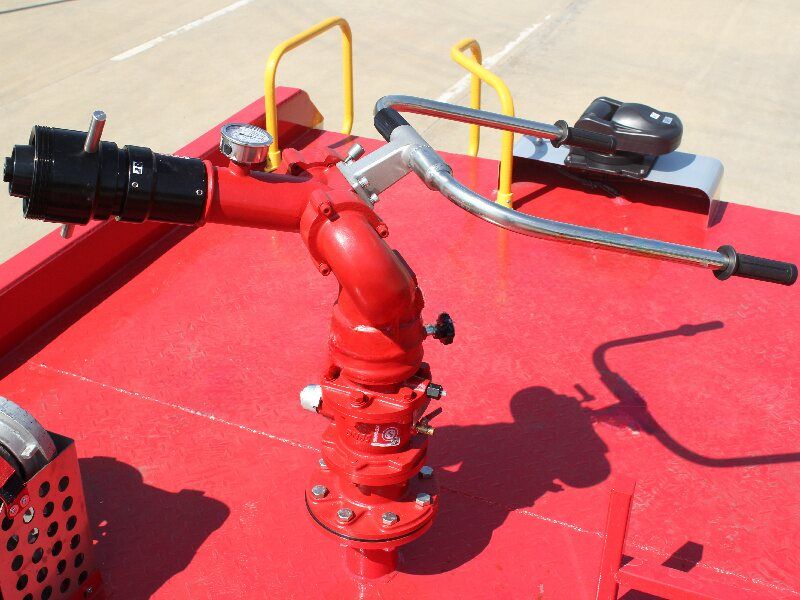

Fire Monitor | Top Chinese brand | |
Model: PS30 | ||
Flow Rate: 30L/s | ||
Water Jetting Distance≥50m | ||
Electric Alarm | Standard equipped | |
Pillow Light | Equipped on top of cabinet with siren | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |

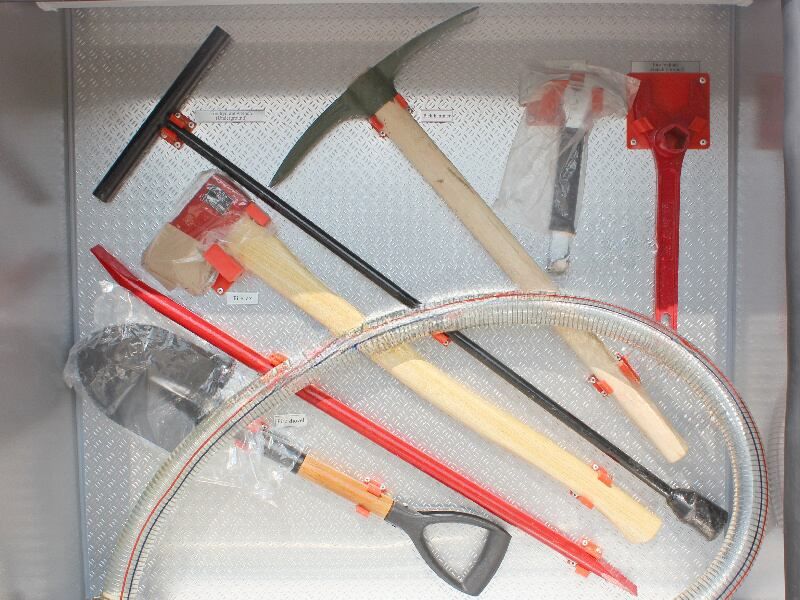

Factory standard | “U” shape Sub Frame, Safety protection, Sandwich PTO, Working Lamp, Fire Pump, Fire Monitor, Full Fire Fighting Equipment, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Stainless steel tank optional 2, Foam tank, dry powder tank system optional 3, Front towing system optional | |
