6HK1-TCG61
Driving Type :4X2
Engine Power :240
Capacity :15 Tons
Body application
SPECIFICATIONS
Manufacturer | Qingling Trucks | |

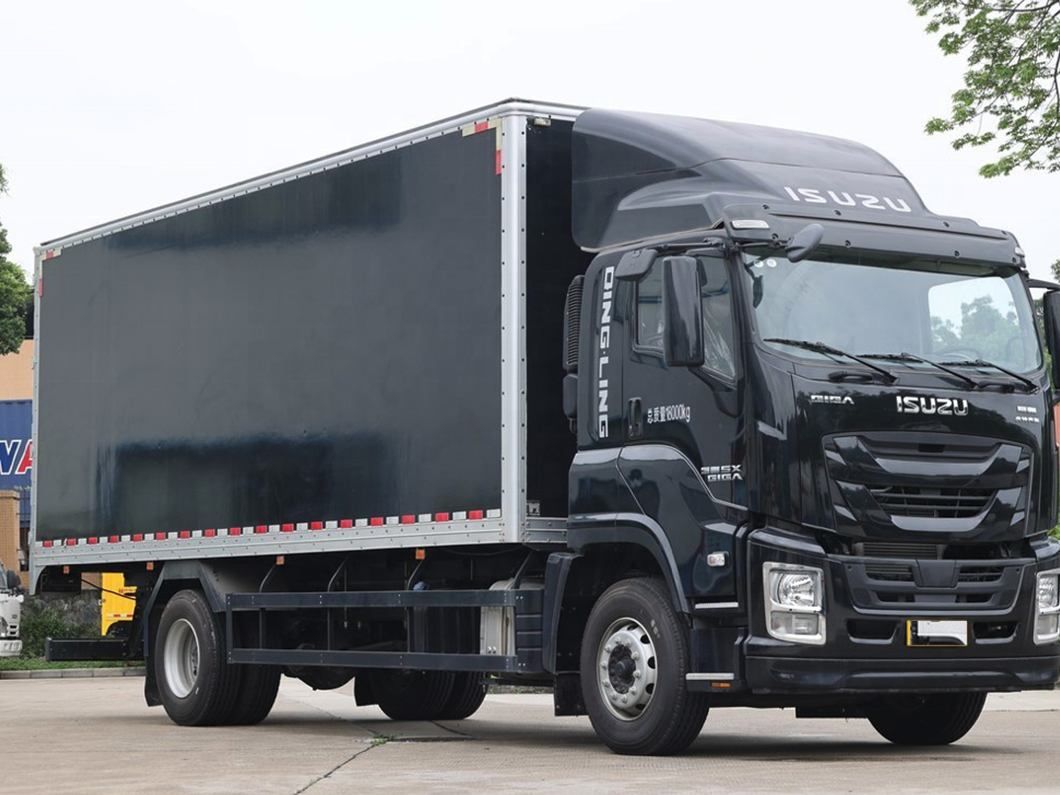

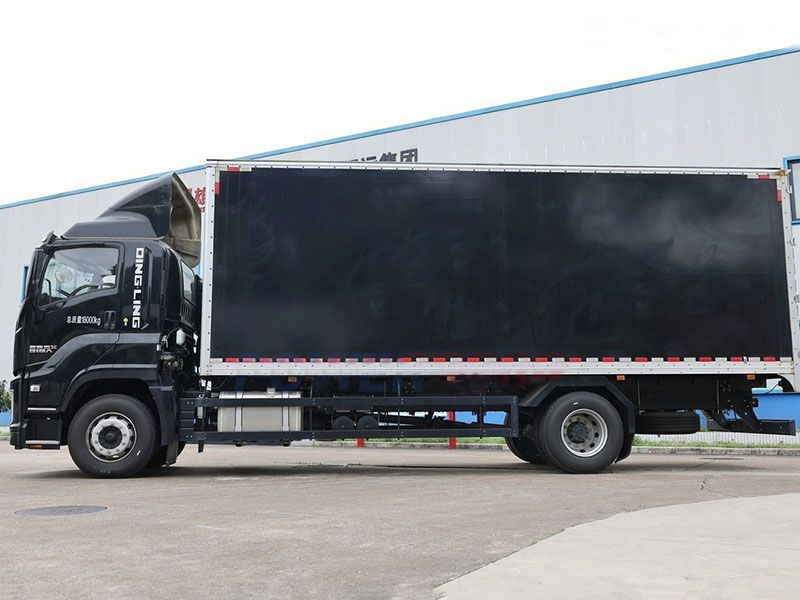

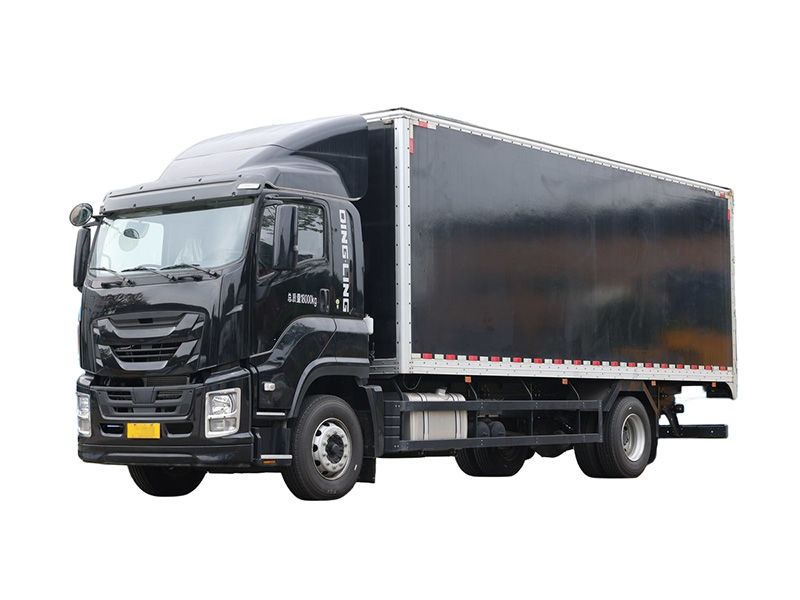

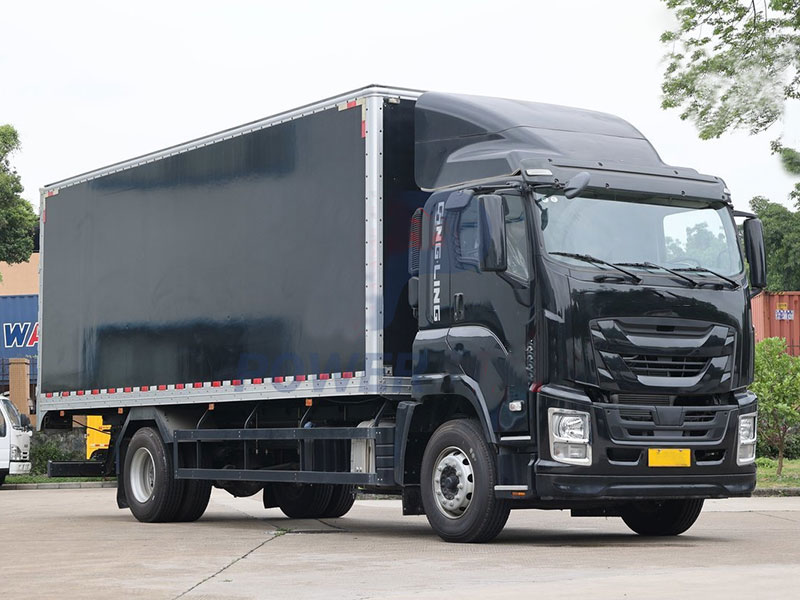

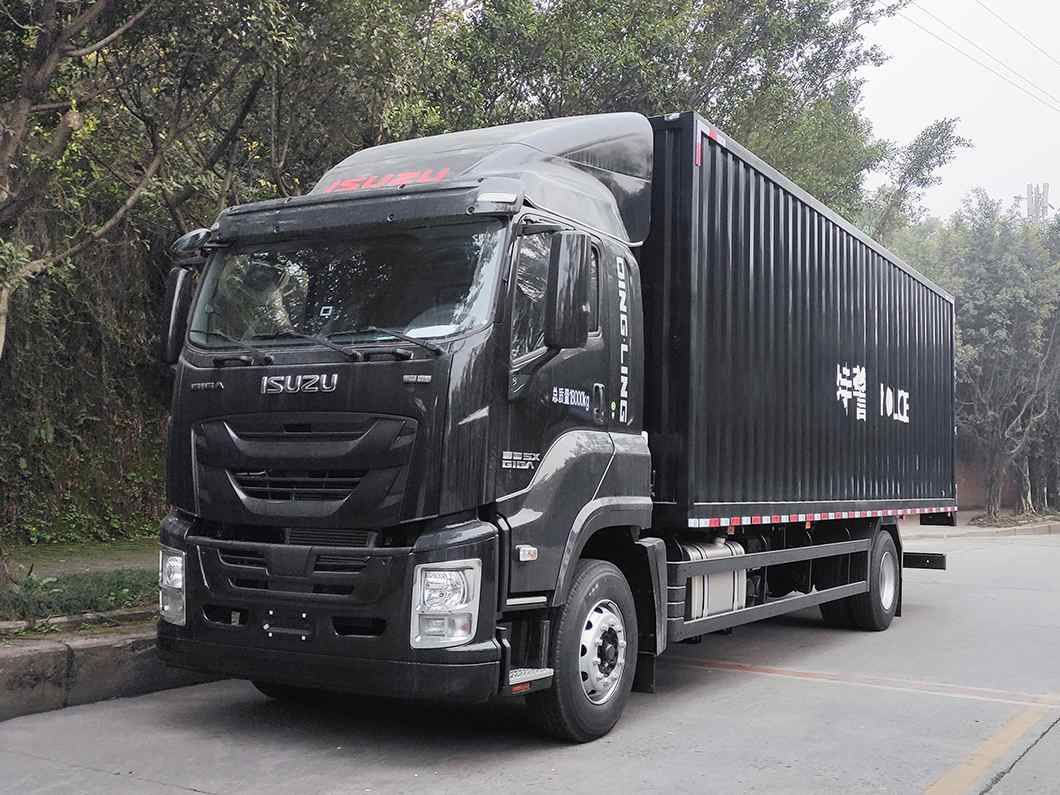

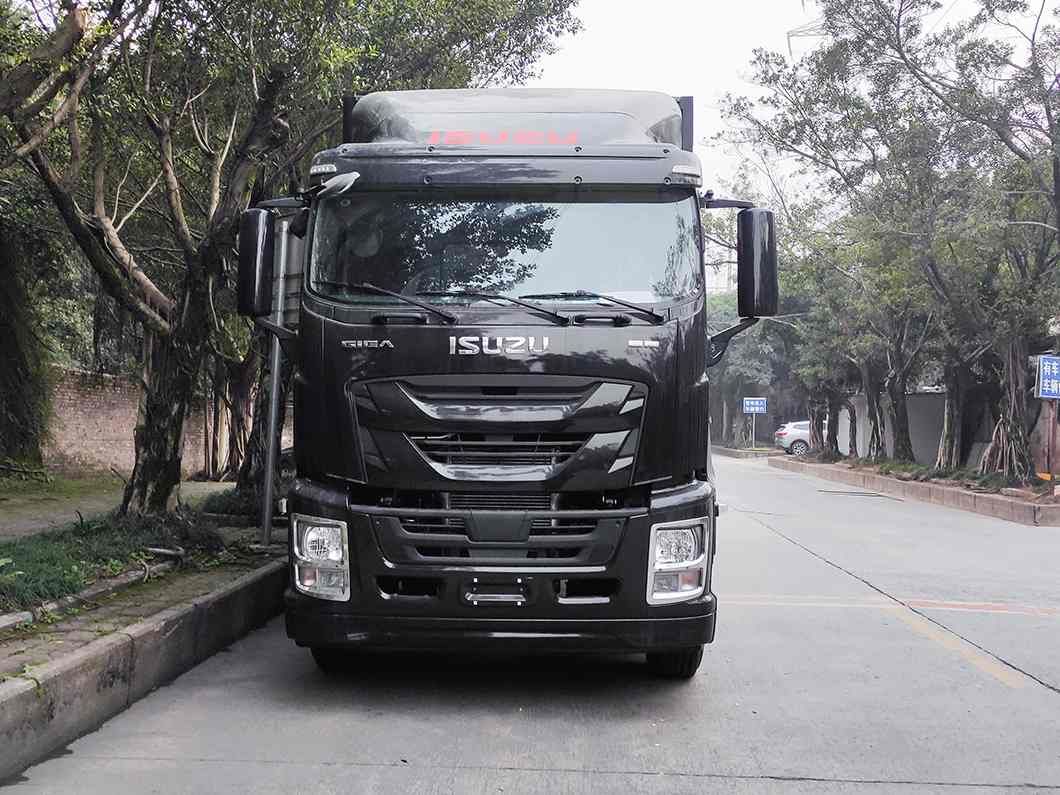

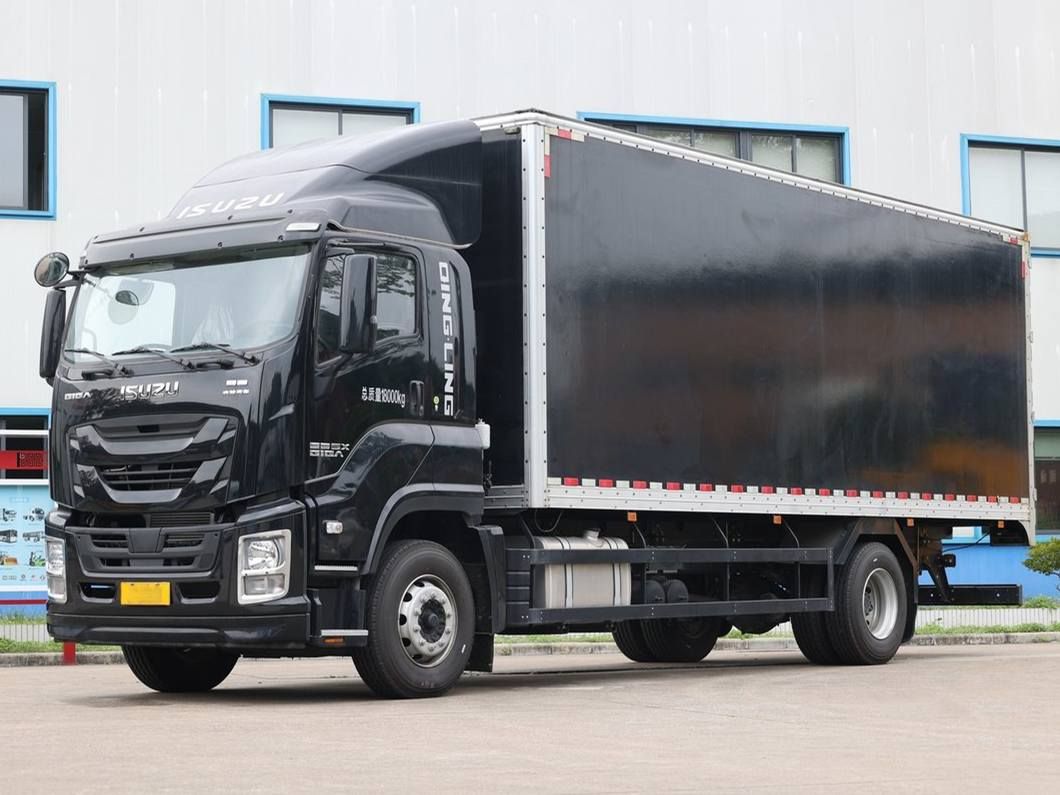

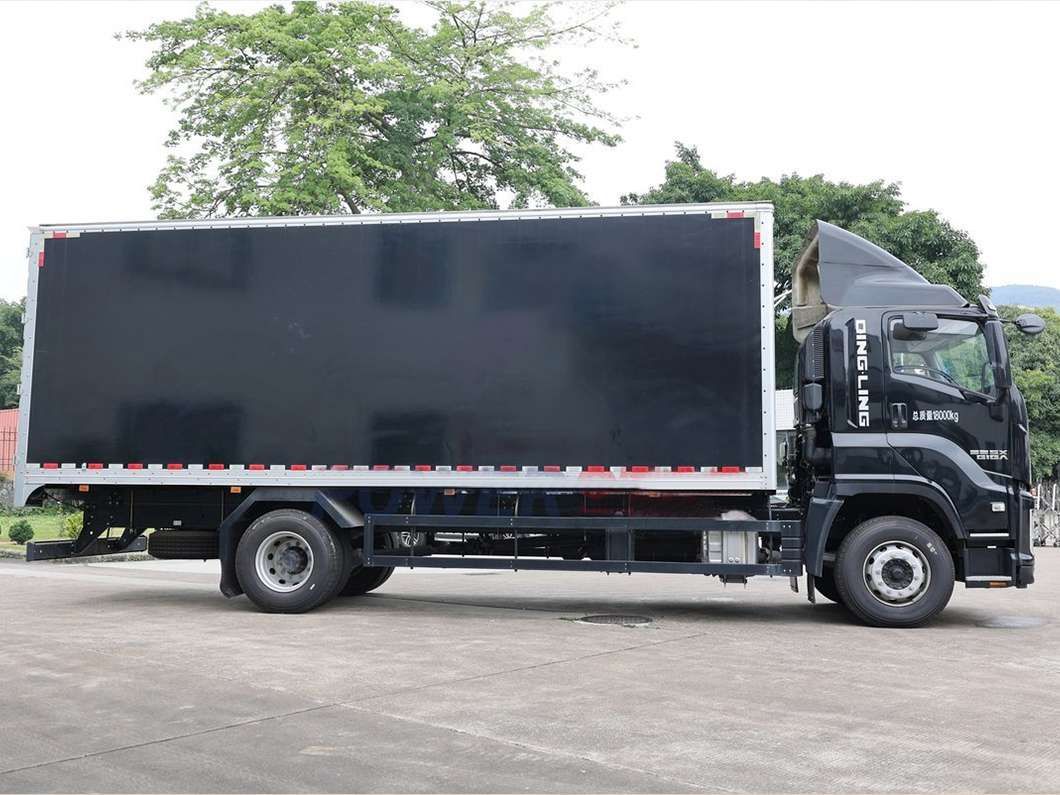

Item | QINGLING GIGA van truck | |
Brand | ISUZU | |
Model | PT18XC | |
Production Time | 35 days | |
Truck Chassis | ||
Specification | Overall dimensions | 8900*2600*3700 mm |
Gross weight | 18,000 kg | |
Kerb weight | 8,200 kg | |
Wheelbase | 6300 mm | |
Driving type | 4*2 | |
Chassis model | QINGLING GIGA heavy-duty | |
Tire size | 295/80R22.5 | |
Passengers in cab | 3 | |
Engine | Engine model | 6HK1-TCG61 |
42Type of fuel | Diesel | |
Power | 240 HP | |

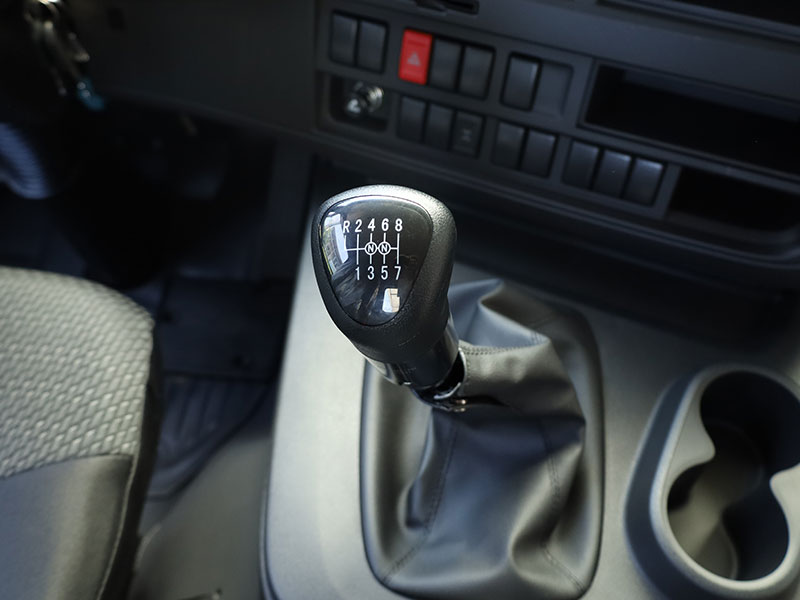

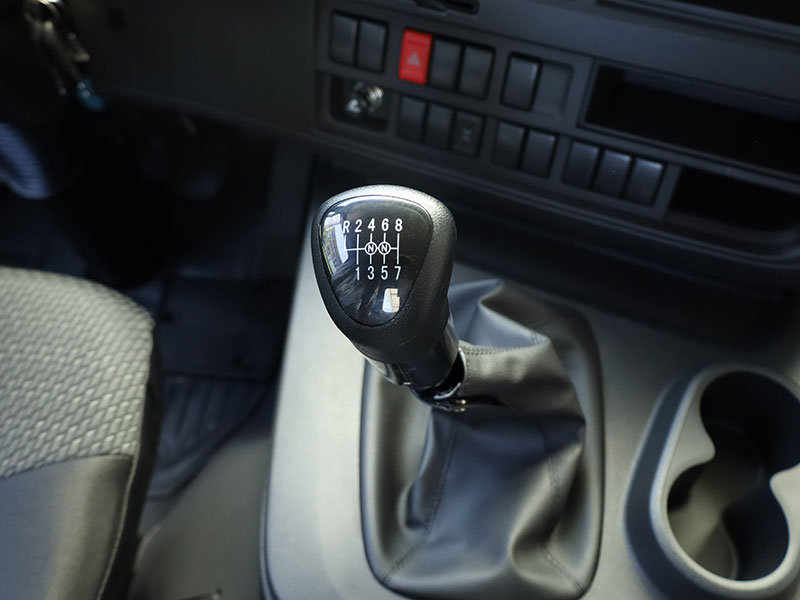

Gearbox | FAST 8-shift gearbox | |
Upper Structure | ||
Boom Crane performance | Dump box size | 6500x2400x2300 |
Loading capcity | 15 tons | |
Body material | High performance carbon steel | |
Plate thickness | Side 4mm, bottom 5mm | |
Control | Manual | |
Rear door | Double open | |
Side door | optional | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Stainless steel body 2, Hydraulic lifting tailboard 3, Working camera can be equipped | |
