4KH1-TCG40
4 cylinders in line,
turbo charging, inter cooling,
high pressure common-rail diesel injection system,
liquid-cooled engine
Body application
SPECIFICATIONS
| Model No. | |||
| QL1075A1HAY | QL1073A1KAY | ||
| Wheelbase | |||
| (mm) | 3360 | 3815 | |
| Drive Type | |||
| 4 × 2 | |||
| Weight&Capacities | |||
| GVW | (kg) | 7275 | 7495 |
| Curb Weight | (kg) | 2160 | 2210 |
| Max. Pay Load | (kg) | 5115 | |

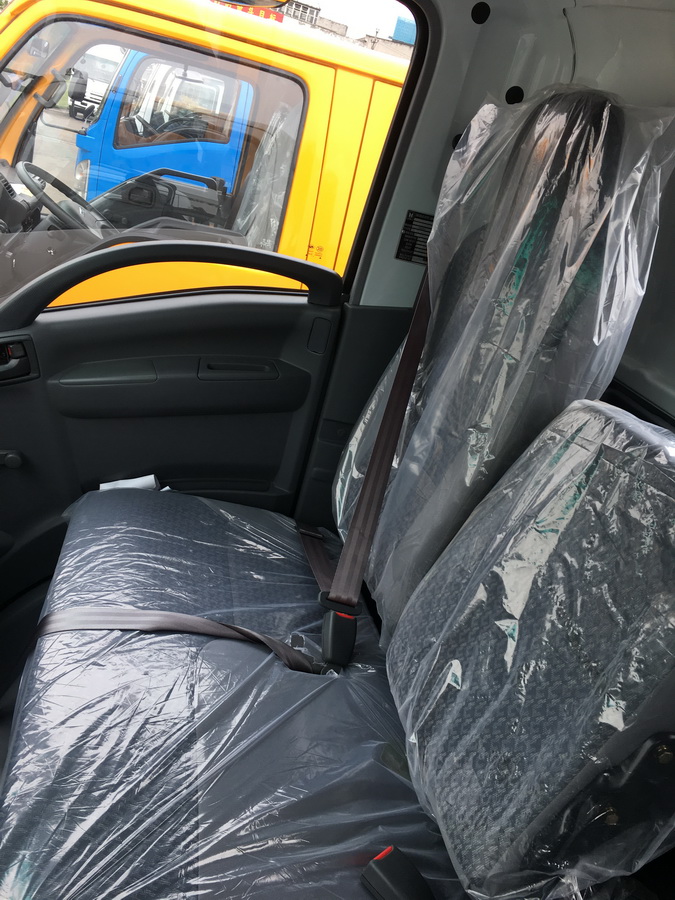

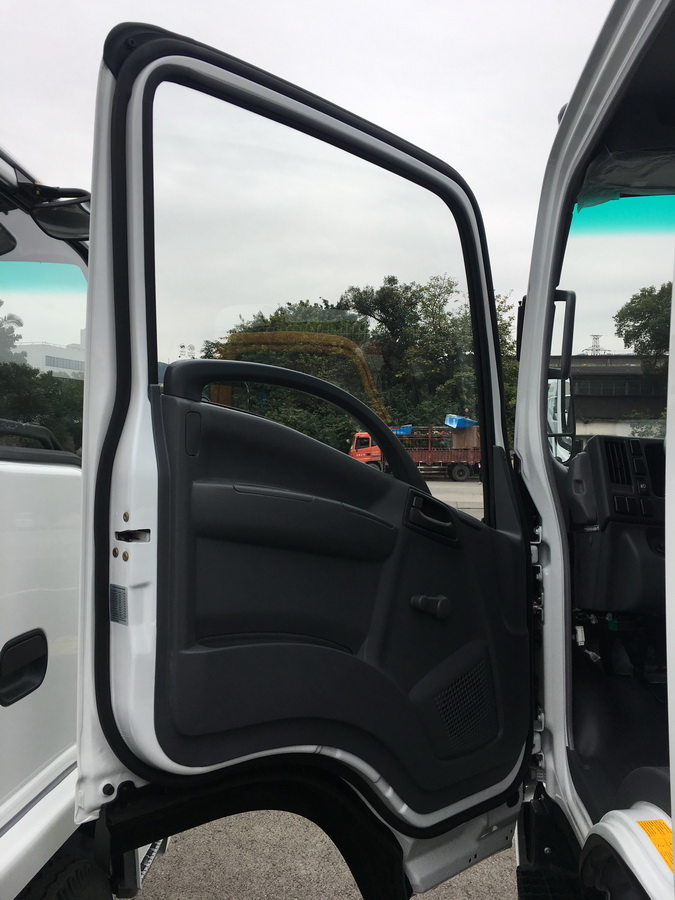

| Cabin | |||
| Type | Single | ||
| Driver & Passenger | 1+2 | ||
| Engine | |||
| Model | 4KH1-TCG40 | ||
| Type | 4 cylinders in line, turbo charging, inter cooling, high presure common-rail diesel injection system, liquid-cooled engine | ||
| Emission Standard | Euro IV | ||
| Displacement | (L) | 2.999 | |
| Rated Power (kw/rpm) | 88(120hp)/2900 | ||
| Max. Torque (N.m/rpm) | 220/1700 | ||
| Transmission | |||
| Model | manual,MSB-5SM, (5 forward+1 reverse) | ||
| Gear Ratio | 5.594/2.814/1.660/1.000/0.794/ R:5.334 | ||
| Final Gear Ratio | |||
| Clutch | |||
| Type | dry single plate with cushioning spring, vacuum control | ||
| Axle Load | |||
| Front (type) | reverse Elliot "I" beam | ||
| Front | (T) | 2.5 | |

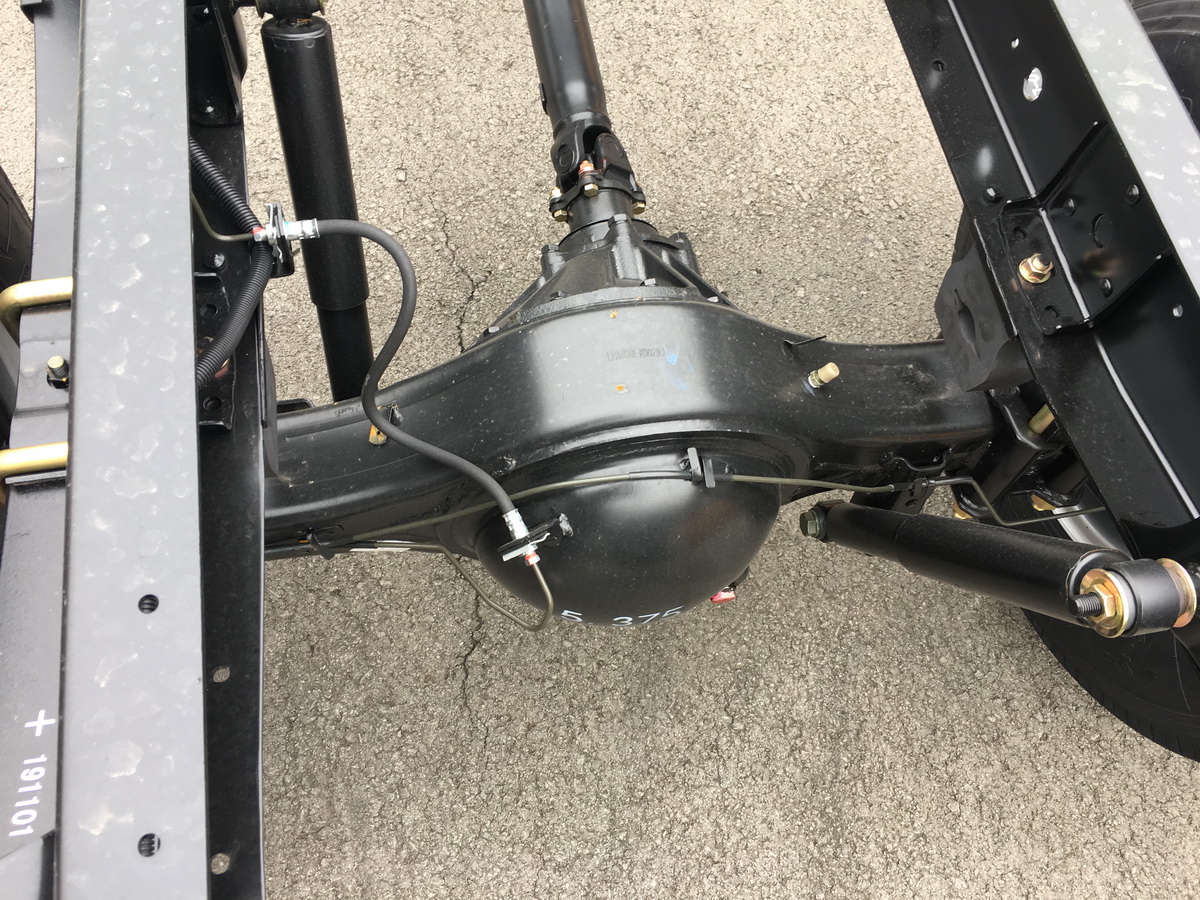

| Rear (type) | Banjo,full floating type | ||
| Rear | (T) | 4.8 | 4.8 |

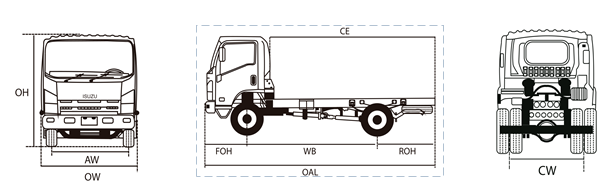

DIMENSIONS
| Wheelbase WB | (mm) | 3360 | 3815 |
| Overall Length OAL | (mm) | 5995 | 6805 |
| Overall Width OW | (mm) | 2020 | 2020 |
| Overall Height OH | (mm) | 2260 | 2300 |
| Front Overhang FOH | (mm) | 1110 | 1110 |
| Rear Overhang ROH | (mm) | 1525 | 1880 |
| Front Tread AW | (mm) | 1685 | 1685 |
| Rear Tread CW | (mm) | 1525 | 1525 |
| Remark: | |||
| 1. ● means standard configuration. 2. All above information is for reference only, and will be updated timely without notice; 3. The listed models are part of the full products range, any special request will be available on request. | |||
