product description

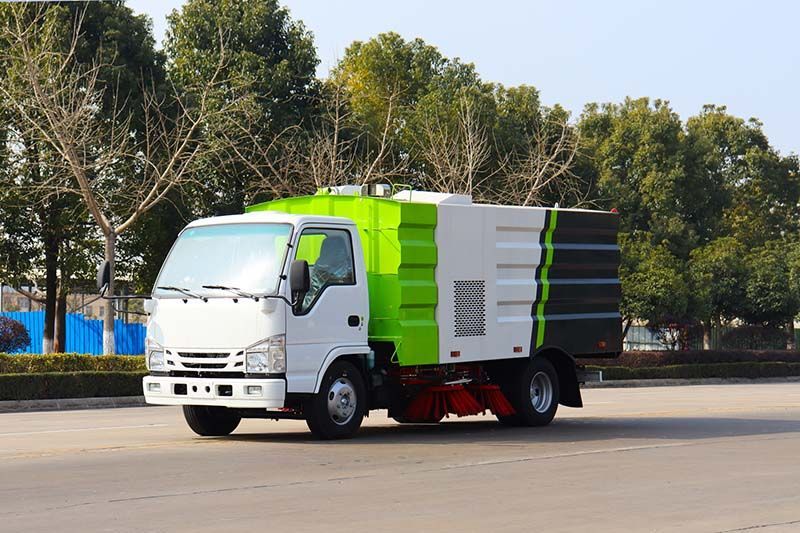

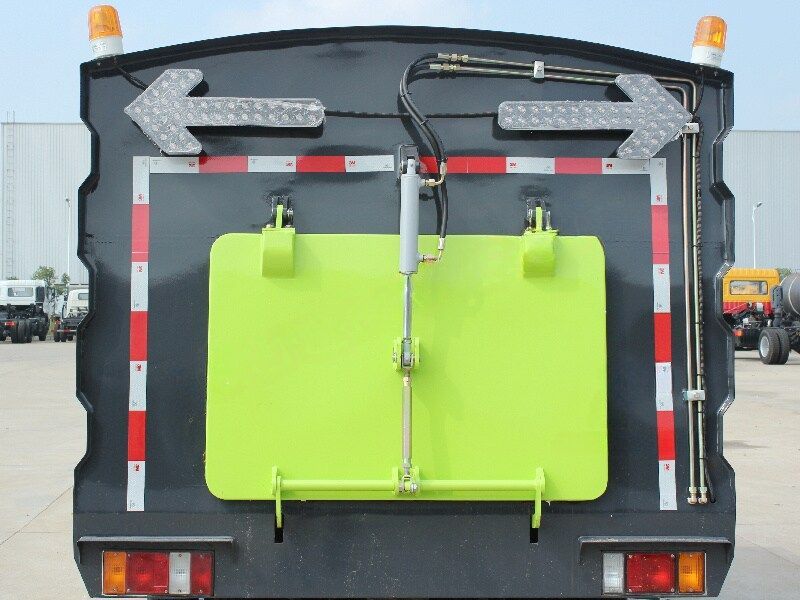

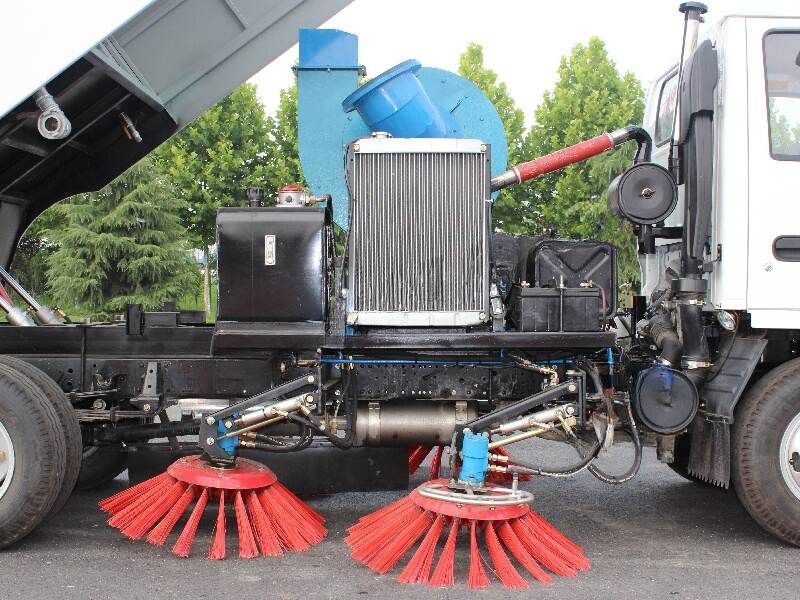

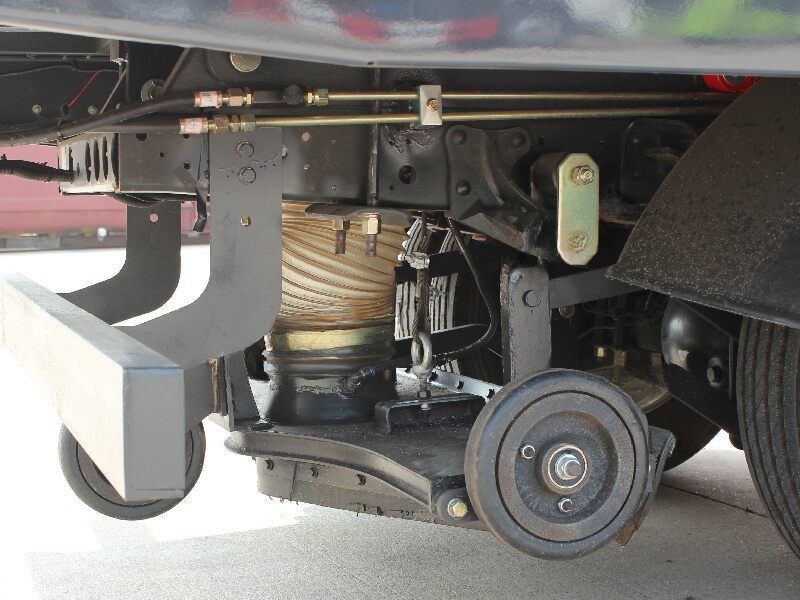

Customized Qingling mini ELF / 100P road truck for hot sale, Qingling 100P 4*2 drive 6 wheeler truck chassis, 4KH1CN5LS engine with 98HP, MSB 5-shift gear box, square-shape sweeper body 4000 Liters dust bin and 1000 Liters clean water bin, Import hydraulic motor with 4 sweeper plate, each side two sets, rear vacuum suction plate with roller, painting and logos as required.

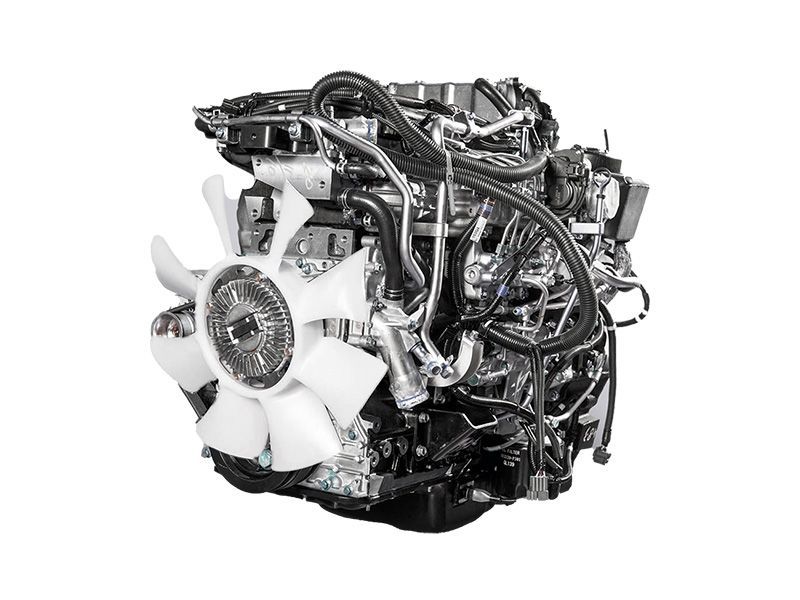

4KH1CN5LS engine, no overhaul within 100,000 km

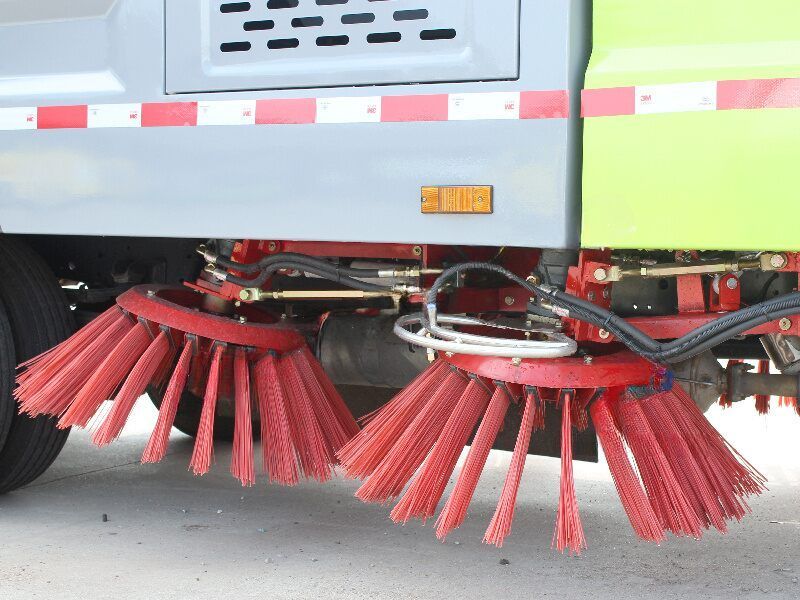

Road Sweeper with water spraying nozzles, driving by USA technology hydraulic motor, durable quality
Manufacturer | Qingling Trucks | |
Item | QINGLING mini ELF Road Sweeper Truck | |
Brand | QINGLING | |
Model | PT05TSL | |
Production Time | 25 days | |
Truck Chassis | ||
Specification | Overall dimensions | 5995*2000*2650 mm |
Gross weight | 7,300 kg | |
Kerb weight | 4,200 kg | |
Wheelbase | 3,360 mm | |
Driving type | 4*2 | |
Chassis model | QINGLING 100P Light-duty | |
Tire size | 7.00-16 | |
Passengers in cab | 3 | |
Engine | Engine model | 4KH1CN5LS |
Type of fuel | Diesel | |
Power | 98HP | |
Gearbox | MSB 5-shift gearbox | |
Upper Structure | ||
Sweeper Body performance | Dust Tank | 4 CBM |
Water Tank | 1000 Liters | |
Tank Material | 4mm stainless steel material | |
Auxiliary Engine | Isuzu Technolgy auxiliary engine with 77HP | |

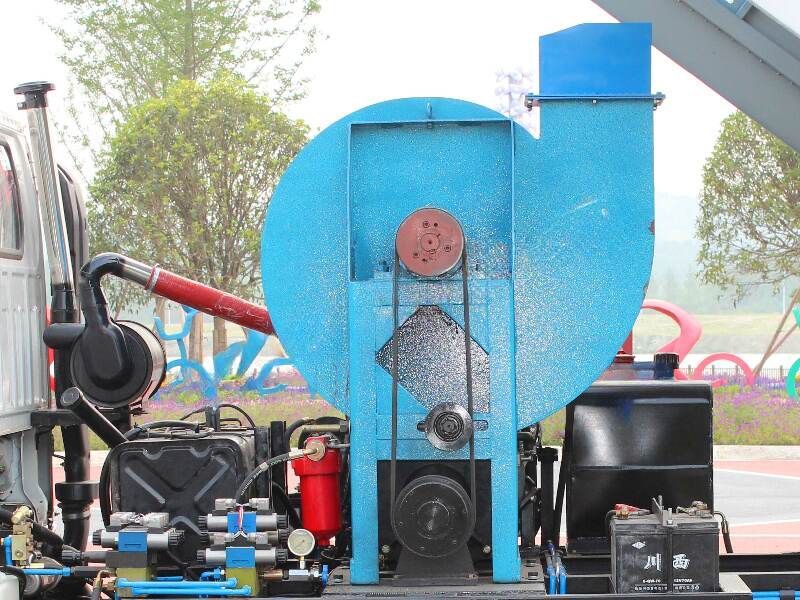

Fan System | Super Powerful Fan System | |
Sweeping Width | 2.8-3 m | |
Working Speed | 3-20 km/h | |
Max. Sweeping | 65000㎡/h | |
Control System | Electric Hydraulic control | |

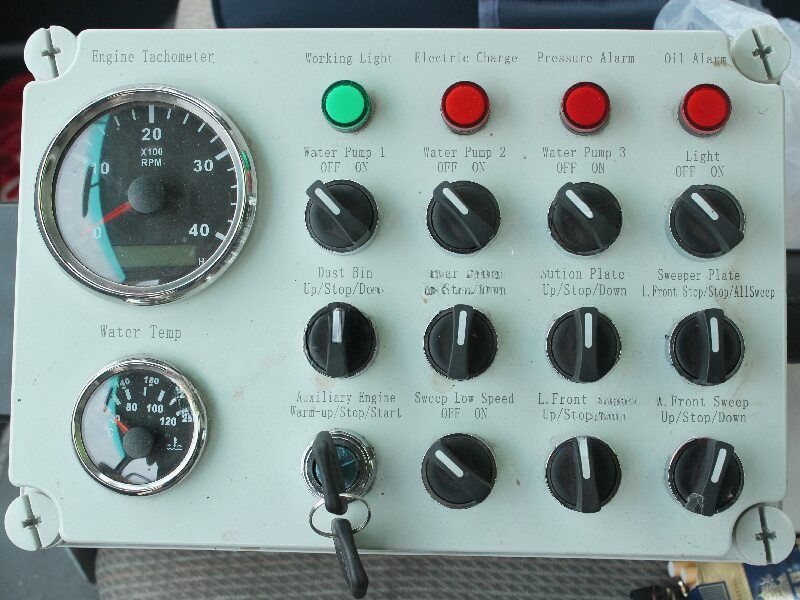

Control Panel | English or Your language | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Back Alarm and Camera can be equipped 2, Italy/USA brand Hydraulic Motor can be optional 3, Front snowing sweeping device can be optional | |
