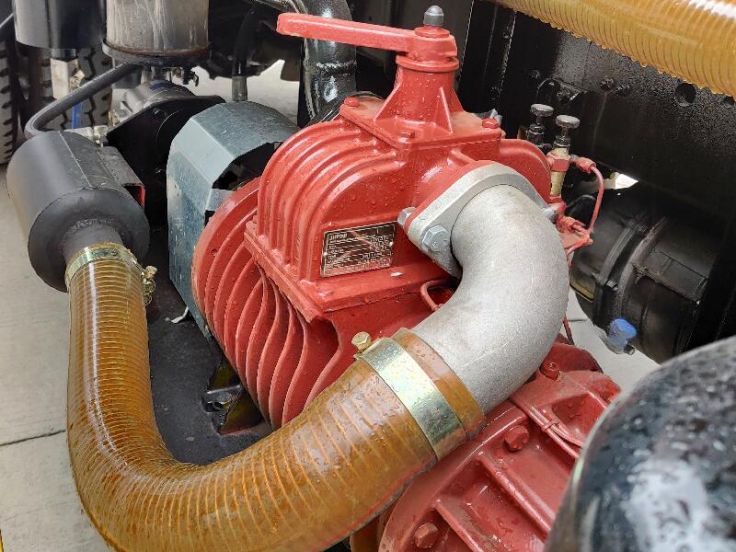

Original ltaly JUROP vacuum pump
Original Italy JUROP vacuum pump, durable and good performance
Body application
SPECIFICATIONS
| Manufacturer | Qingling Trucks |

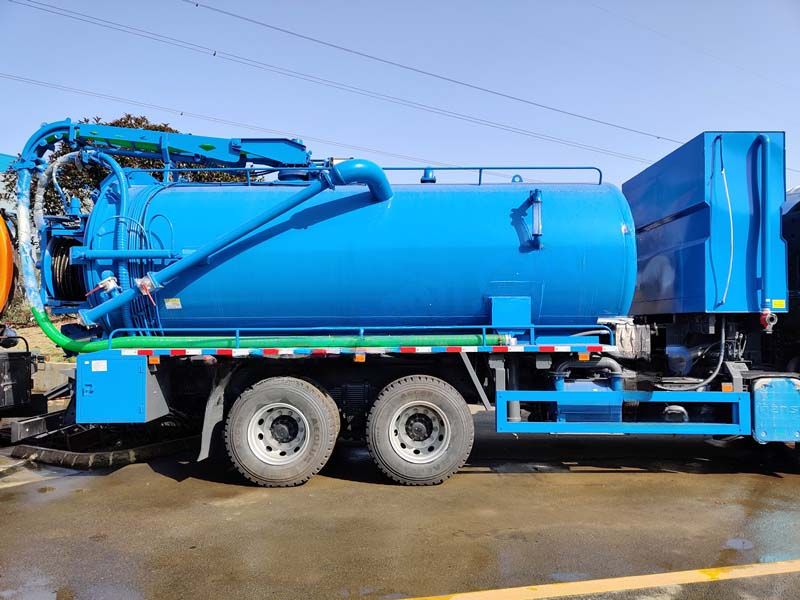

| Item | QINGLING GIGA Septic Vacuum Pump Jetting Tanker Truck |
| Water tank | |
| Material | SS304 steel |
| Capacity(CBM) | 3 |
| Thickness(mm) | 4 |
| Protection | 1)overflow、2)Too low level、3)No water |
| Sewage tank | |
| Material | Q345 steel |
| Volume(CBM) | 12 |
| Thickness | 6 |
| Design pressure | 100% vacuum |
| Working pressure | -0.92 |
| Drain valve | 4 inch |
| safety | Anti overflow system |
| Lifting cylinder | Front lifting system , 50 degree working angle |
| Lock | Hydraulic |
| sealing | Robber |
| single plunger pressure pump | |
| Type | three-throw ram pump |
| Manufacturer | Pratissoli ltaly |
| Model | MW40 |
| Flow capacity(L/MIN) | 212 |
| Pressure(bar) | 190(adjustable） |
| Power | 85 KW |
| Stroke | 18 tims/min |
| Driven device | Mesh and separate by main control panel |
| Tank body protection | 1)too low ater: 2)water density protection; 3) anti frozenprotection |
| Pressure control | 0-190 |
| Meshing control | Pneumatic control |
| Vacuum pump | |
| Manufacturer | JUROP |
| Model | PNI06D |
| Air flow CBM/H | 910 |
| Vacuum | -0.92 |
| Max rotation speed RPM | 1200 |
| Driven device | Mesh and separate by main control panel |
| Pump protection | 1)Vacuum protection;2)air filtration protection |
| Sewage suction cooling | 2"cooling pipe, level controlled by 2"valve |
| Boom | |
| Function | front back、up down、 left right rotating |
| Stretch length/mm | 1350 |
| Horizontal rotating angle | 270 degree |
| Materia | Stainless steel .rubber |
| Suction pipe diameter Suction head Cleaning wheel | 4 inch |
| High pressure pipe/m | 60 M( italy ) |
| Diameter | 19MM |
| control | hydraulic |
| Horizontal rotating angle | 90 degree |
| High pressure nozzle | Mushroom type 10 series |
| Light | Head rotating light |
| Truck rear part light | |
| Emergency protection | Emergency protection on the truck cabin channel |
| Chassis | |
| Truck model | ISUZU GlGA cabin chassis |
| Engine | |
| Model | ISUZU Engine |
| Type | Diesel ,6-cycle, 6 cylinder in line,water cooled |
| Max output power | 308/1600 |
| Maxtorque(N.m/rpm) | 1200 |
| Displacement (ml) | 16 |
| Emission standard | Euro 5 |
| Transmission& Clutch | |
| Model | FAST 12-shift |
| Type | 12 Forward and 2 Reverse Speed |
| Gearshift | Manual (Mechanical） |
| Clutch | 430mm Dry and Double Plate Clutch |
| Front Axle | |
| Type | GlGA famous diecasting l-beam |
| Suspension type | Multiple leaf main springs |
| Capacity | 7000 kgs |
| Rear Axle | |
| Type | Casting iron, Axles |
| Suspension type | Multi leaf spring. |
| Capacity(kg） | 13000x2 |
| Rear axle ratio | 3.93 |
| Type | Forward control, all steel welded construction, cabin Painting.Radio |
| Seat | 3 seats |
| Air conditioner system | Manual control |
| Tire size | 12.00-20-18PR |
| No. of Tire | 10+1 |
| Electric System | |
| System voltage | 24v, Negative earth |
| Batteries(v/Ah) | 24/200 |
| steering system | |
| Type of steering gear | Recirculating ball and screw type |
| Adjustment of wheel | Tilt and telescopic |
| Steering wheel position | Left hand drive |
| Fuel capacity | |
| Tank capacity(L | 380 |
