product description
Highly integrated of "comfort" and "efficiency", focusing on "relieve fatigue driving", realizing a comfortable driving environment.

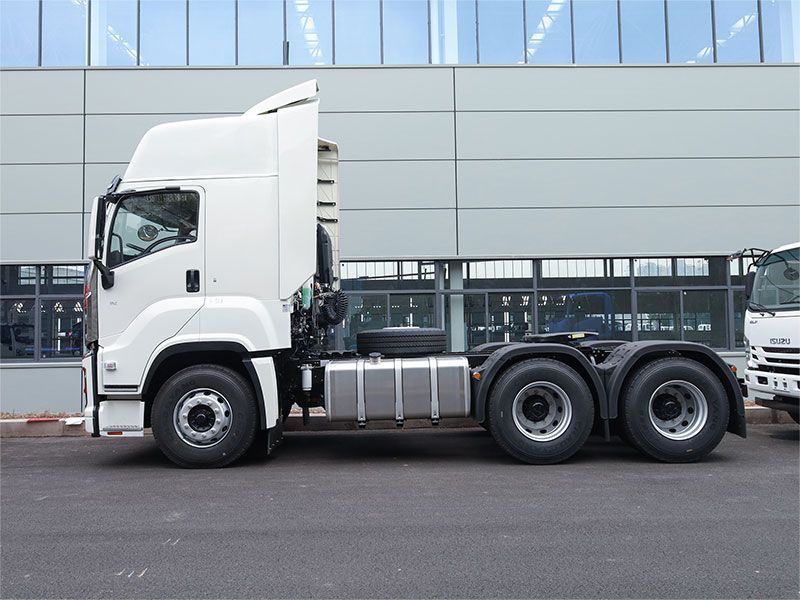

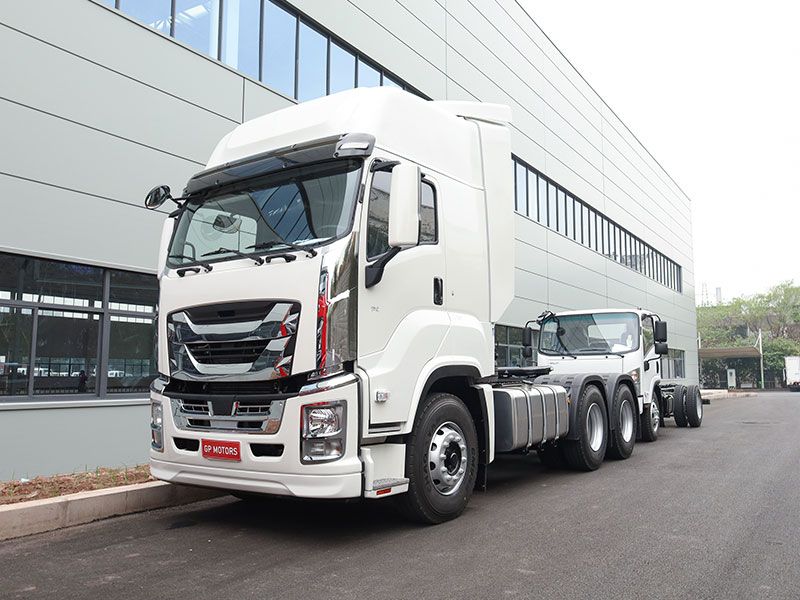

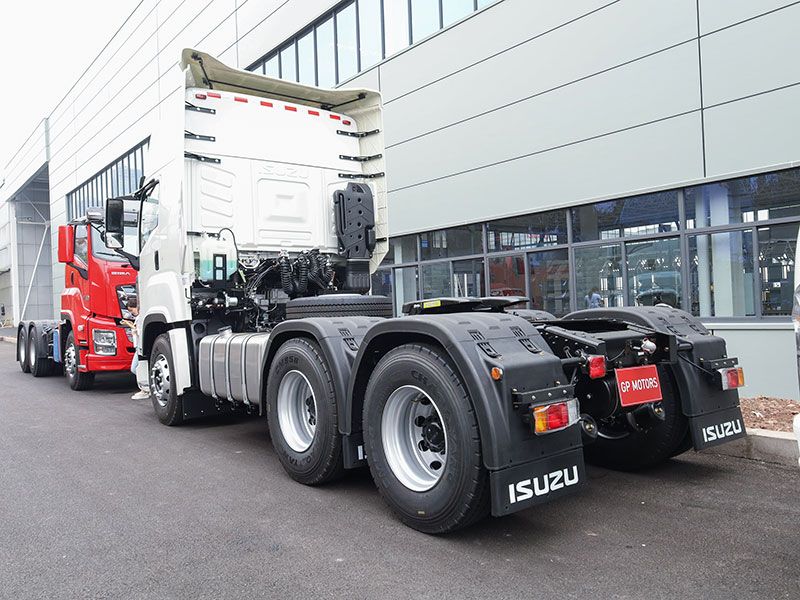

Euro 5 emission ISUZU GIGA 10 wheel trucks sale for Peru
ISUZU 6W or 6UZ diesel engine Pursuing fuel consumption performance of high requently used practica rotational speed zone, from supercharging to Cooling and fuel injection, to pursue reducing the fuel costs to the fullest.
Euro 5 emission ISUZU GIGA 10 wheel trucks sale for Peru
ISUZU 6W or 6UZ diesel engine Pursuing fuel consumption performance of high requently used practica rotational speed zone, from supercharging to Cooling and fuel injection, to pursue reducing the fuel costs to the fullest.
Model NO. | ||||
QL4250U2NDZ D15YZ | QL4250W1NDZ D16YZ | QL4250W2NCZ D17YZ | ||
Wheelbase | ||||
mm | 3385+1370 | |||
Wheelbase in total | mm | 4755 | ||
Drive type | ||||
6x4 | ||||
Weight& Capacity | ||||
GVW | kg | 24900 | 24900 | 25000 |
GCW | 48900 | 48900 | 49000 | |
Kurb weight | kg | 8850 | 9100 | 9280 |
Front axle load(chassis) | kg | 4730 | 4920 | 5030 |
Rear axle load(chassis) | kg | 4120 | 4180 | 4250 |
Front axle load(whole vehicle) | kg | 6900 | 6900 | 7000 |
Rear axle load(whole vehicle) | kg | 18000 | 18000 | 18000 |
Towing weight | kg | 39920 | 39670 | 39590 |
Saddle loading capacity | kg | 15920 | 15670 | 15590 |
Trailer axle loading (3 axles) | kg | 24000 | 24000 | 24000 |
Power density（>5） | kg | 5.7 | 6.3 | 6.9 |
Cabin | ||||
Cabin | 1.5 cabin | 1.5 cabin ,High roof | 1.5 cabin ,High roof | |
Passenger No. | 2 | |||
Seats | Air suspension | |||
Cabin | Air suspension | |||
Steering system | ||||
Type | Power steering | |||
Toe-in | 0±1 | 0±1 | 0±1 | |
Wheel camber ° | 0°30′ | 0°30′ | 0°30′ | |
Kingpin Caste | 2°±50′ | 2°±50′ | 2°±50′ | |
kingpin inclination angle | 7°30′ | 7°30′ | 7°30′ | |
Type | six-cylinder In-line, water-cooled, direct-injection, high-pressure common rail, supercharged and inter-cooled diesel engine | |||
Model | 6UZ1-TCG50 | 6WG1-TCG52 | 6WG1-TCG51 | |
Rated power | KW/hp | 279/380 | 309/420 | 338/460 |
Max. Net power | KW | 278 | 308 | 337 |
Max.torque. | kgf.m(N.m) | 180(1765) | 210(2060) | 210(2060) |
Emission | EURO V | |||
Exhaust device | SCR | |||
Transmission | ||||
Model | 16S2030TO | 16S2230TO | ||
Ratio | 13.8/11.54/9.49/7.93/6.53/5.46/4.57/3.82/3.02/2.53/2.08/1.74/1.43/1.2/1/0.84，R12.92/R10.8 | |||
Axle load | ||||
Front axle | Model | F075 | F075 | F075 |
Rated loading capacity | kg | 7500 | 7500 | 7500 |
Rear axle | Model | RT210 | RT210 | RT210 |
Main reducer gear diameter | 17.5" | 17.5" | 17.5" | |
Rated loading capacity | 21000kg | 21000kg | 21000kg | |
Final reduction ration | 3.909，Optional:3.07,3.21、3.42、3.7 | |||
Frame | ||||
Chassis | Cross dimensions | 950-850×285t=7 | ||
Suspension | ||||
Front leaf spring | Type | Few leaf spring | ||
NO. | 4 | |||
Rear leaf spring | Type | Few leaf spring | ||
NO. | 4 | |||
Fuel system | ||||
Fuel type | diesel | |||
Fuel tank capacity | 600L | |||
Brake | ||||
Front brake size | φ410×160，S-CAM | |||
Rear brake size | φ410×220，S-CAM | |||
Auxiliary brake | Exhaust brake | |||
Parking brake | Spring stored energy,act on rear wheel | |||
Tire&rim | ||||
Tire | 315/80R22.5 16PR | 315/80R22.5 16PR | 12R22.5 18PR | |
Rim | 9.00×22.5 | |||
Electrical system | ||||
Battery | 24V-120A | |||
Alternator | 24V-60A | |||
Performance | ||||
Max.speed | km/h | 110 | 110 | 98 |
Approach/departure angle | ° | 17/42 | 17/42 | 17/42 |
| mm | 1295 | 1295 | 1295 |
Turning radius | <
| |||
