product description
Highly integrated of "comfort" and "efficiency", focusing on "relieve fatigue driving", realizing a comfortable driving environment.
Half-surrounded aircraft cockpit designing
Reasonable allocation of switch partitions according to use frequency
Multifunctional 4-inches liquid crystal display which pursues"easily watching and understanding
Multifunctional steering wheel
Shoulder strap integrated air suspension seat

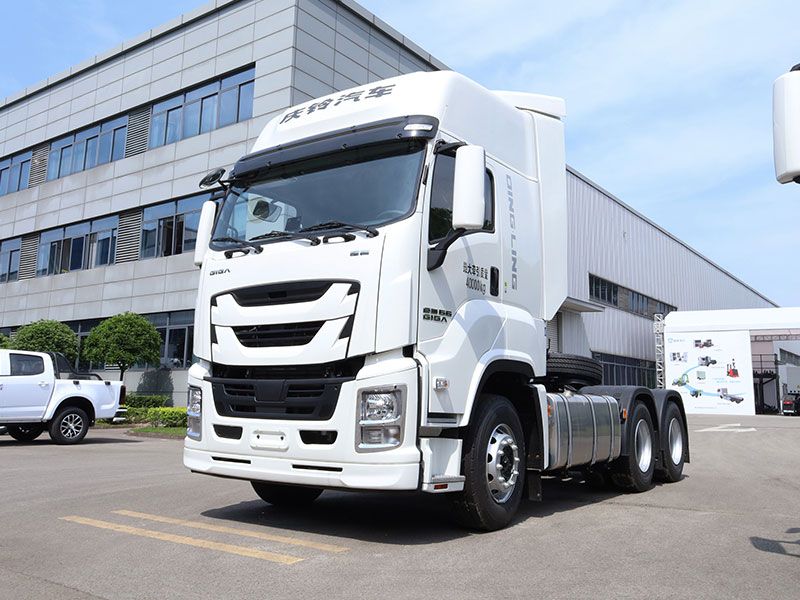

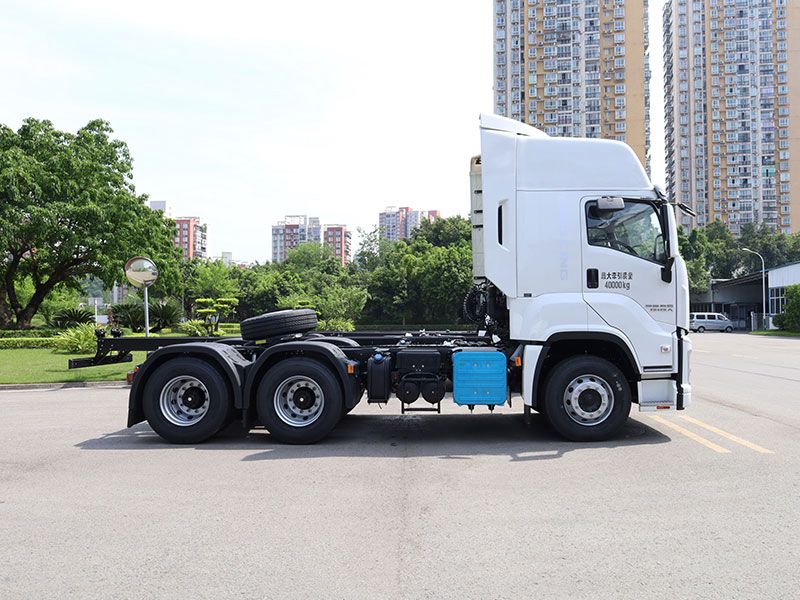

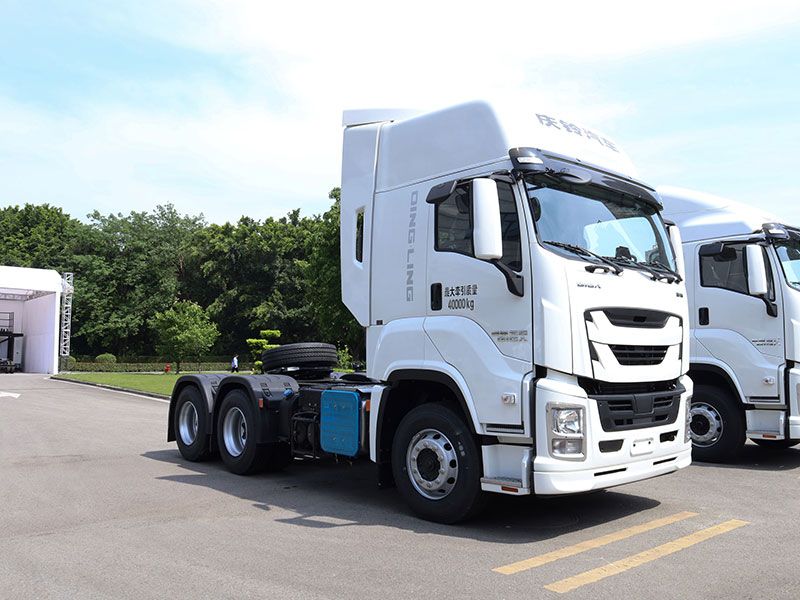

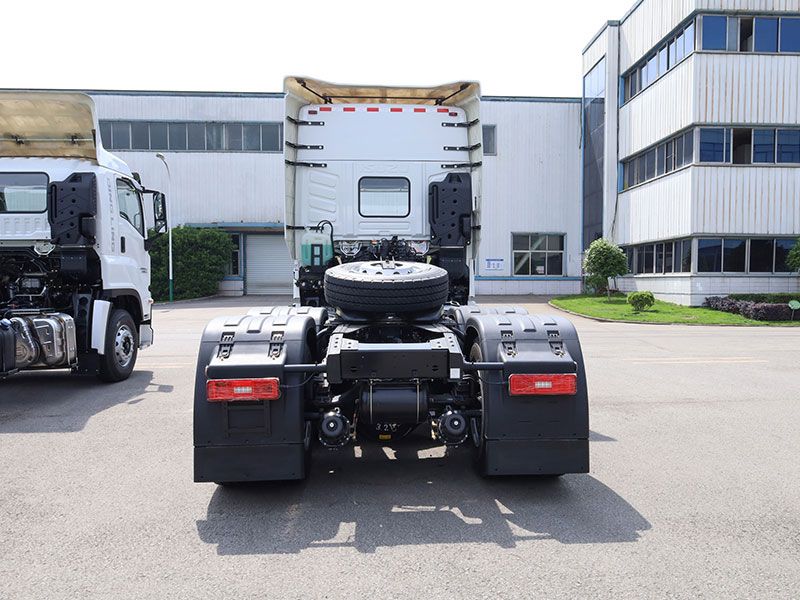

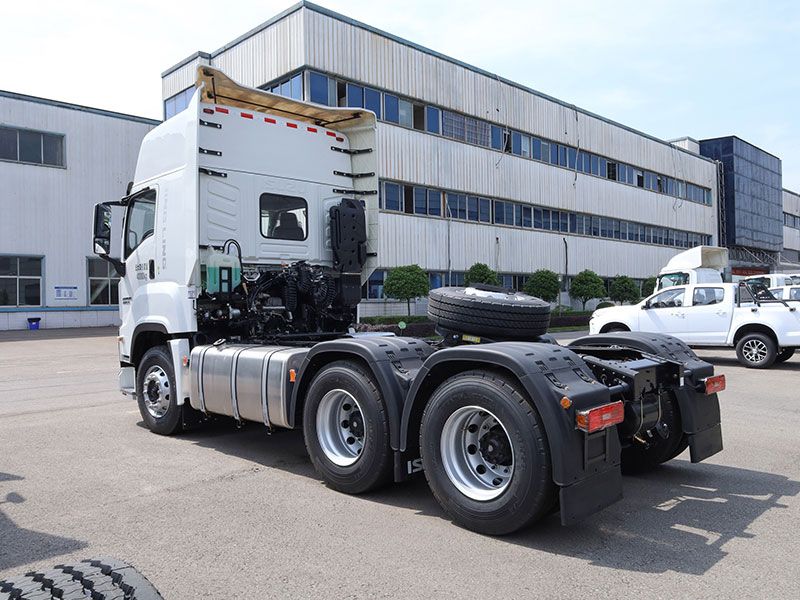

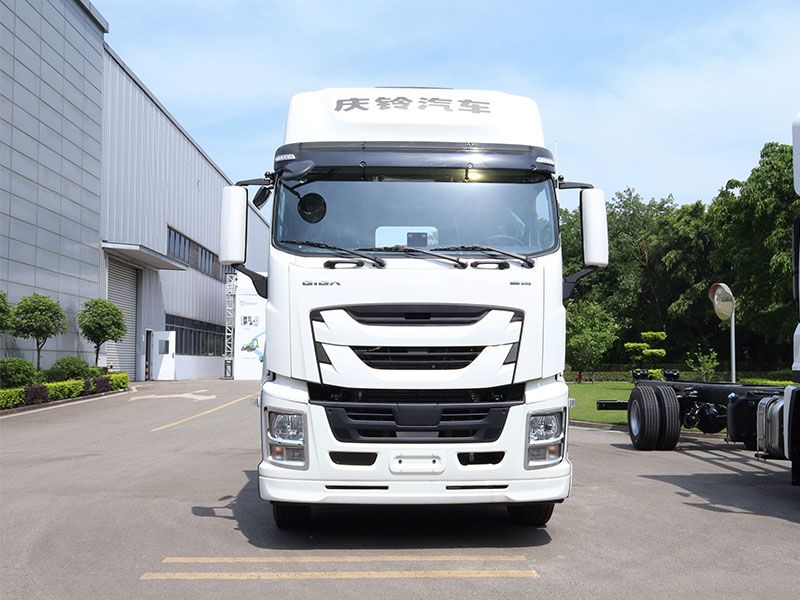

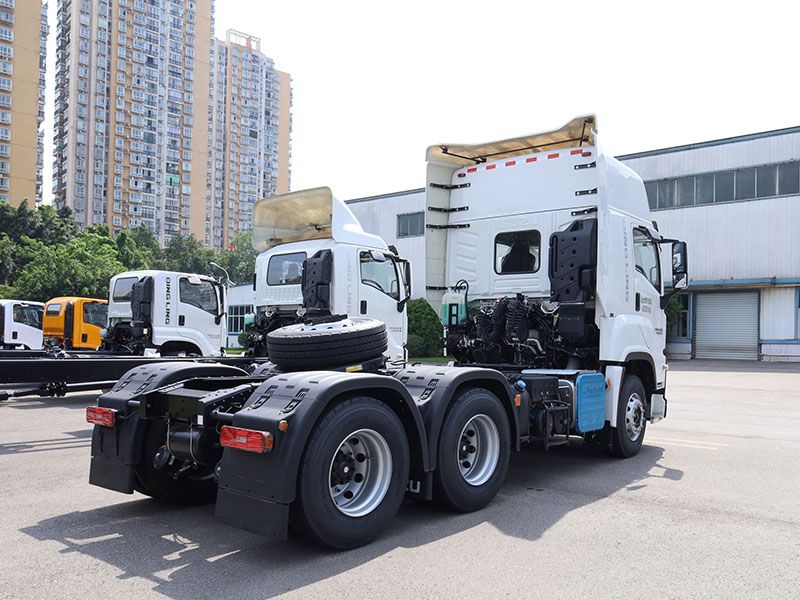

Isuzu 520hp Heavy Truck 6x4 Isuzu Tractor Head 10 wheels Trailer Truck for sale
ISUZU 6W or 6UZ diesel engine Pursuing fuel consumption performance of high requently used practica rotational speed zone, from supercharging to Cooling and fuel injection, to pursue reducing the fuel costs to the fullest.
Isuzu 520hp Heavy Truck 6x4 Isuzu Tractor Head 10 wheels Trailer Truck for sale
Transmission and axle The latest and most reliable new generation FAST transmission with high transmission efficiency (0.965-0.97) saves more fuel. High torque engine matches 16-speed transmission and small speed ratio rear axle, enabling the engine to work always in the most economic rotational speed range to reduce fuel consumption In order to adapt to different region and different load there is a wide range of speed ratios for customers to choose from.
| MODEL | GIGA Tractor Head | |||
| Drive Type | ||||
| Drive | 6 × 4 | |||
| wheels | 10 wheeler | 10 wheeler | 10 wheeler | |
| Weight&Capacities | ||||
| GVW | (kg) | 24900 | 24900 | 25000 |
| Curb Weight | (kg) | 8850/8350 | 9100 | 9280 |
| GCW | (kg) | 48900 | 48900 | 49000 |
| Size | ||||
| Wheel Base | (mm) | 3385+1370 | 3385+1370 | 3385+1370 |
| Rear Body Size (For Ref. Only) | (mm) | |||
| Engine Specs | ||||
| Model | 6UZ1-TCG50 | 6WG1-TCG52 | 6WG1-TCG51 | |
| Type | 6 cylinders in line, water-cooled, direct-injection, high-pressure common rail, supercharged and inter-cooled diesel engine | |||
| Emission Standard | EURO V | EURO V | EURO V | |
| Displacement | (L) | 9.839 | 15.681 | 15.681 |
| Rated Power | (kw/rpm) | 279(380hp) | 309(420hp) | 338(460hp) |
| Max. Torque | (N.m/rpm) | 180/1765 | 210/2060 | 210/2060 |
| Dimensions | ||||
| Wheelbase WB | (mm) | 3385+1370 | 3385+1370 | 3385+1370 |
| Overall Length OAL | (mm) | 6895 | 6895 | 6895 |
| Overall Width OW | (mm) | 2540 | 2540 | 2540 |
| Overall Height OH | (mm) | 3720 | 3720 | 3720 |
| Front Overhang FOH | (mm) | 1370 | 1370 | 1370 |
| Rear Overhang ROH | (mm) | 770 | 770 | 770 |
| Front Wheel Distance | (mm) | 2045 | 2065 | 2065 |
| Rear Wheel Distance | (mm) | 1875/1875 | 1875/1875 | 1875/1875 |
