product description
Highly integrated of "comfort" and "efficiency", focusing on "relieve fatigue driving", realizing a comfortable driving environment.
Half-surrounded aircraft cockpit designing
Reasonable allocation of switch partitions according to use frequency
Multifunctional 4-inches liquid crystal display which pursues"easily watching and understanding
Multifunctional steering wheel
Shoulder strap integrated air suspension seat

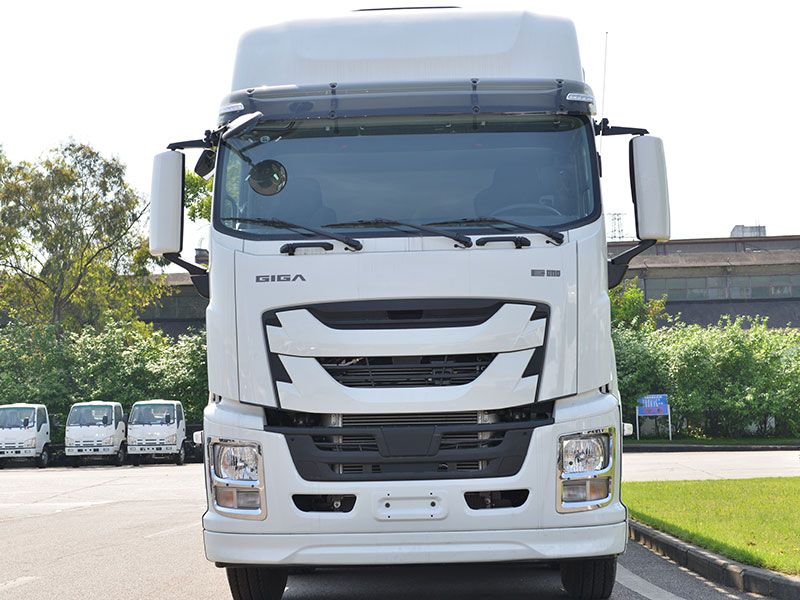

ISUZU GIGA 10 wheel cargo trucks manual transmission 8x4 LHD van trucks for sale
ISUZU 6W or 6UZ diesel engine Pursuing fuel consumption performance of high requently used practica rotational speed zone, from supercharging to Cooling and fuel injection, to pursue reducing the fuel costs to the fullest.

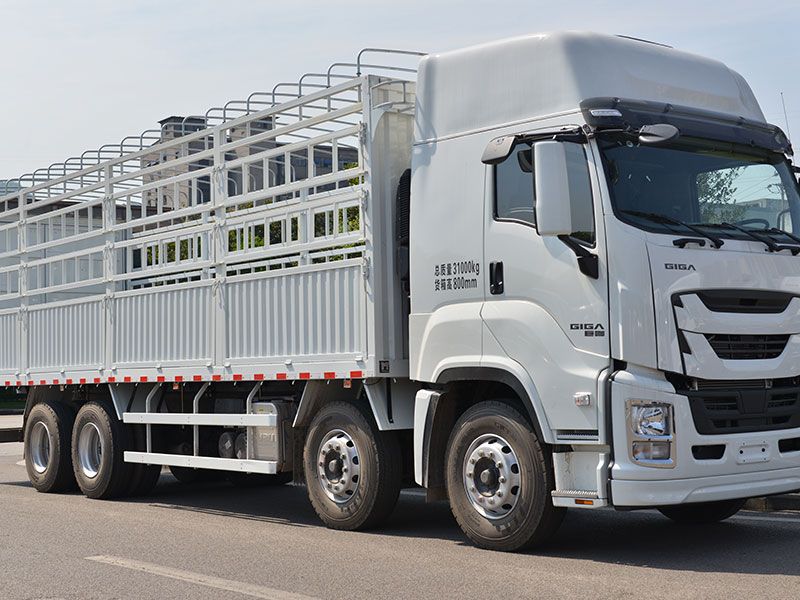

ISUZU GIGA 10 wheel cargo trucks manual transmission 8x4 LHD van trucks for sale
Transmission and axle The latest and most reliable new generation FAST transmission with high transmission efficiency (0.965-0.97) saves more fuel. High torque engine matches 16-speed transmission and small speed ratio rear axle, enabling the engine to work always in the most economic rotational speed range to reduce fuel consumption In order to adapt to different region and different load there is a wide range of speed ratios for customers to choose from.
| Vehicle model | QL5210TZZU2ADRY D45WR | QL5210TZZU2QDRY D65WR | |
| Wheelbase (mm) | 4600 | 5600 | |
| Drive Type | 4x2(left hand drive) | 4x2(left hand drive) | |
| Chassis dimension(L*W*H) | 8000*2540*3055 | 9000*2540*3055 | |
| Chsssis Parameters | GVW (kg) | 21000 | 21000 |
| Curb Weight (kg) | 7030 | 7150 | |
| Pay Load (kg) | |||
| Cabin | Double/Single | 1.5 Cab | 1.5 Cab |
| Cabin Type | Standard Roof | Standard Roof | |
| Driver & Passenger | 2 | 2 | |
| Engine | Model | 6UZ1-TCG50 | 6UZ1-TCG50 |
| Type | 6 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | ||
| Emission Standard | EURO V | ||
| Displacement (L) | 9.839 | ||
| Rated Power kw(hp) | 279Kw(380hp) | ||
| Transmission | Transmission | FAST | FAST |
| Forward gear | 12 speed gear | 12 speed gear | |
| Backward gear | 2 speed gear | 2 speed gear | |
| Front wheel distance | 2065 | 2065 | |
| Rear wheel distance | 1855 | 1855 | |
| Axle Loads | 8000/13000 | 8000/13000 | |
| Front/Rear suspention | 1370/2030 | 1370/2030 | |
| Approach/departure angle | 17/23 | 17/23 | |
| Leaf spring | 8/6+8 | 8/6+8 | |
| Rear Axle Ratio | 4.555 | 4.555 | |
| Tires | 7(including spare tire) | 7(including spare tire) | |
| Tire model | 315/80R 22.5 | 315/80R 22.5 | |
| Fuel tank | 400L | ||
| Brake System | Air /Oil | Air Brake | |
| Max. Speed (km/h) | 100 | ||
| Standard Configurations | 1 | Power steering | |
| 2 | Air Conditioning | ||
| 3 | Tubless tire | ||
| 4 | ABS | ||
| 5 | Free maintenance Battery | ||
| 6 | Central lock | ||
| 7 | Power window | ||
| 8 | Driving Data Recorder | ||
