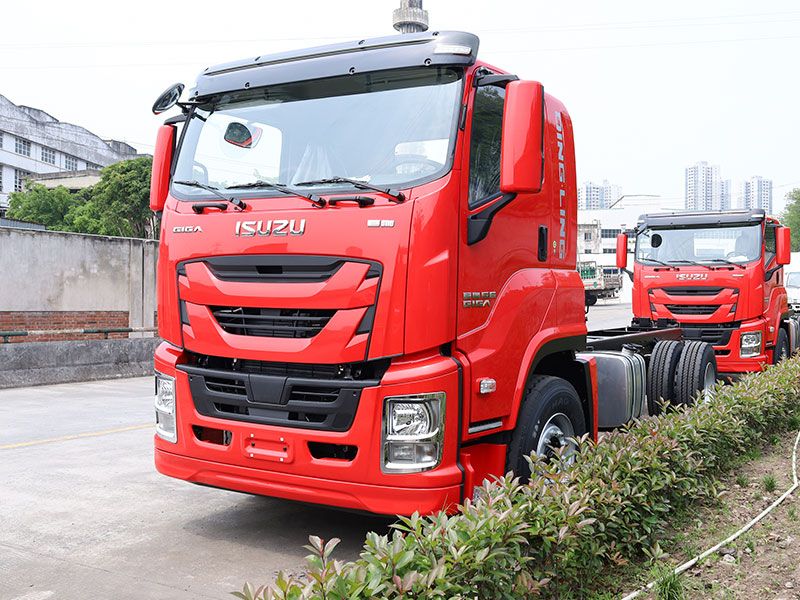

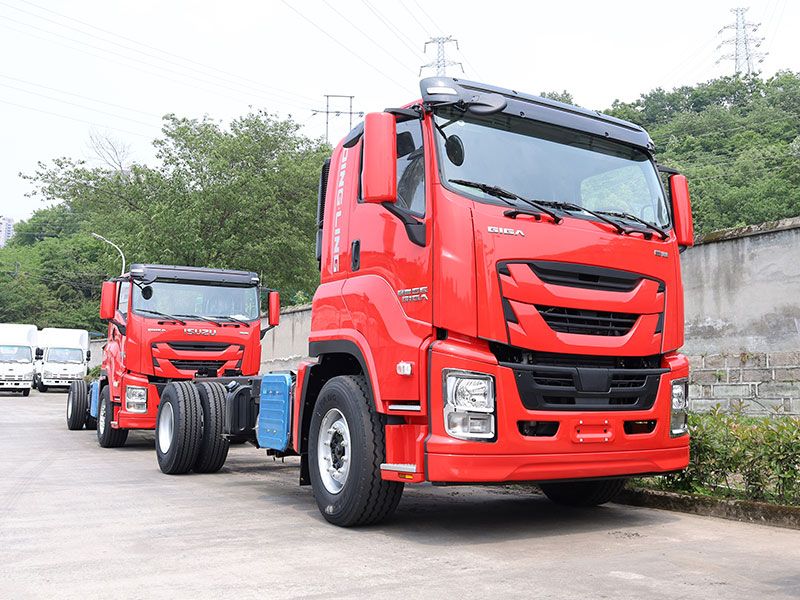

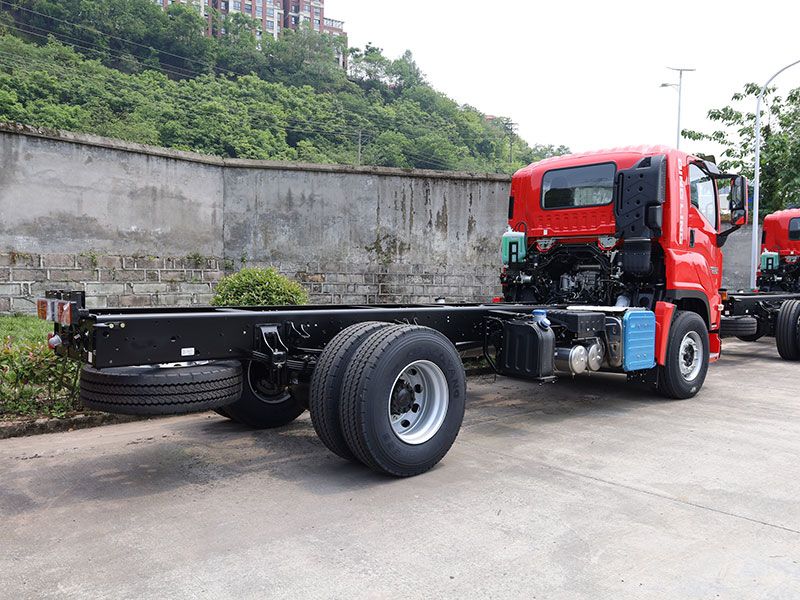

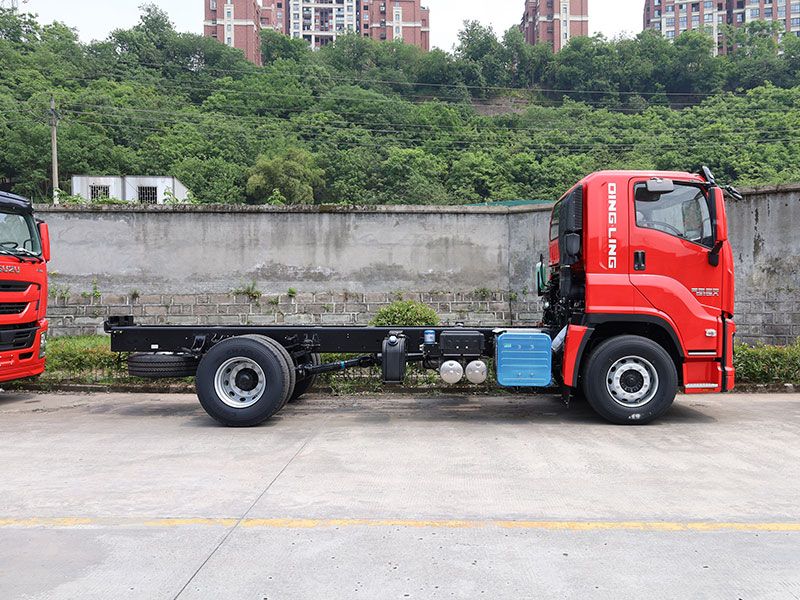

Isuzu GIGA VC61 8X4 cabin chassis truck

product description

Isuzu GIGA VC61 8X4 cabin chassis truck

Highly integrated of "comfort" and "efficiency", focusing on "relieve fatigue driving", realizing a comfortable driving environment.

Half-surrounded aircraft cockpit designing

Half-surrounded aircraft cockpit designing

Reasonable allocation of switch partitions according to use frequency

Reasonable allocation of switch partitions according to use frequency

Multifunctional 4-inches liquid crystal display which pursues

Multifunctional 4-inches liquid crystal display which pursues"easily watching and understanding

Multifunctional steering wheel

Multifunctional steering wheel

Shoulder strap integrated air suspension seat

Shoulder strap integrated air suspension seat

ISUZU 6W or 6UZ diesel engine Pursuing fuel consumption performance of high requently used practica rotational speed zone, from supercharging to Cooling and fuel injection, to pursue reducing the fuel costs to the fullest.

Isuzu GIGA VC61 8X4 cabin chassis truck

ISUZU 6W or 6UZ diesel engine Pursuing fuel consumption performance of high requently used practica rotational speed zone, from supercharging to Cooling and fuel injection, to pursue reducing the fuel costs to the fullest.

Transmission and axle The latest and most reliable new generation FAST transmission with high transmission efficiency (0.965-0.97) saves more fuel. High torque engine matches 16-speed transmission and small speed ratio rear axle, enabling the engine to work always in the most economic rotational speed range to reduce fuel consumption In order to adapt to different region and different load there is a wide range of speed ratios for customers to choose from.

Isuzu GIGA VC61 8X4 cabin chassis truck

Transmission and axle The latest and most reliable new generation FAST transmission with high transmission efficiency (0.965-0.97) saves more fuel. High torque engine matches 16-speed transmission and small speed ratio rear axle, enabling the engine to work always in the most economic rotational speed range to reduce fuel consumption In order to adapt to different region and different load there is a wide range of speed ratios for customers to choose from.

Vehicle model QL5420THBW2TDHYQL5440TZZW2VDHYQL5440TZZW2VDHY
Wheelbase (mm) 1850+4575+13702100+4325+13702100+4325+1370
Drive Type8x4(left hand drive)8x4(left hand drive)8x4(left hand drive)
Chassis dimension(L*W*H)11285*2540*298511285*2540*300011285*2540*3080
Chsssis Parameters
GVW  (kg)420004400044000
Curb Weight (kg)106501069010690
Pay Load  (kg)


Cabin
Double/Single1.5 Cab1.5 Cab1.5 Cab
Cabin TypeStandard RoofLow RoofStandard Roof
Driver & Passenger
222
Engine
Model6WG1-TCG51
Type
6 Cylinders in line,
high presure, electrical common-rail diesel fuel injection system,
water cooling , turbo charging, inter cooling.
Emission StandardEURO  V
Displacement (L)15.681
Rated Power kw(hp)337Kw(460hp)
Transmission
TransmissionZF(8S2030TO)ZF(8S2030TO)ZF(8S2030TO)
Forward gear8 speed gear8 speed gear8 speed gear
Backward gear2 speed gear2 speed gear2 speed gear
Front wheel distance 206521402140
Rear wheel distance 185518551855
Axle Loads 8000/8000/260009000/9000/13000/130008000/8000/26000
Front/Rear suspention1370/2120 1370/1800 1370/1800
Approach/departure angle 17/2717/2417/24
Leaf spring 7/7/10 7/7/10,4/4/5 7/7/10,4/4/5
Rear Axle Ratio4.5554.5554.555
Tires13(including spare tire)13(including spare tire)13(including spare tire)
Tire model315/80R22.5 20PR385/65R22.5 20PR385/65R22.5 20PR
Fuel tank600L
Brake SystemAir /Oil Air Brake
Max. Speed (km/h)100
Standard Configurations
1Power steering
2Air Conditioning
3Tubless tire
4ABS
5Free maintenance Battery
6Central lock
7Power window
8Driving Data Recorder
