4KHICN6LB

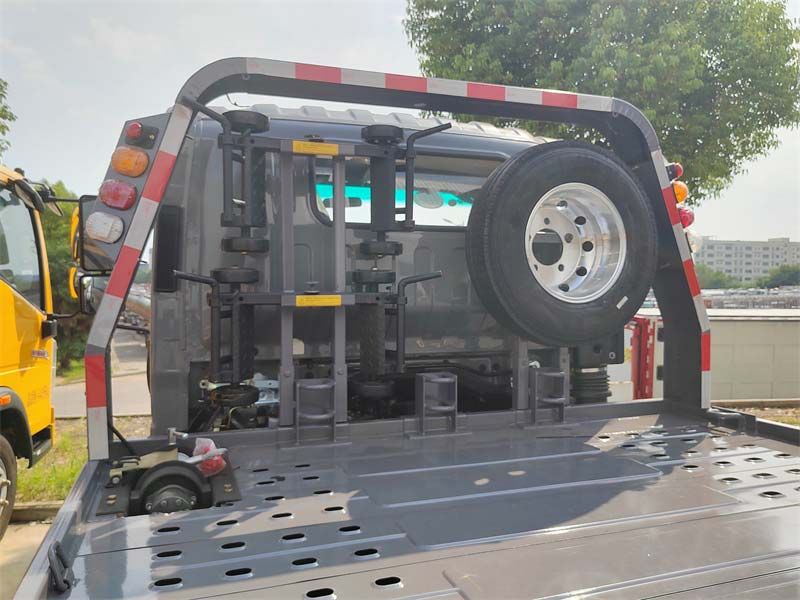

Auxiliary wheel
used to help tow a vehicle whose tires have been immobilized in an accident
details show
| General Technical Parameters for ISUZU NPR 5tons road recovery truck | |||
| Engine power | 120 HP | ||

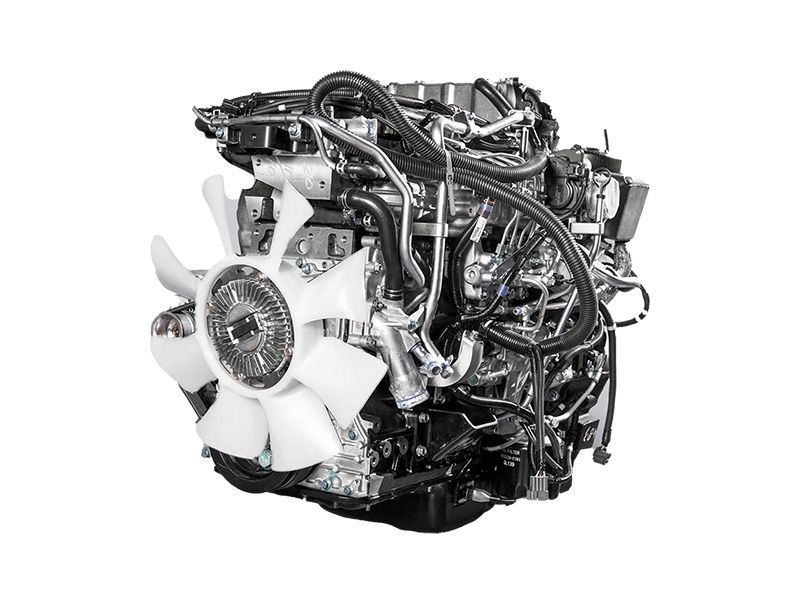

| Engine type | 4KHICN6LB | ||
| Axle drive | 4x2 | ||
| Gear box | MSB 5-speed manual | ||
| Overall Dimension | 5995x2300x2550 (mm) | ||
| Gross Vehicle Weight | 7300kg | ||
| Curb Weight | 3800kg | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | ISUZU | |
| Cabin | Single, Left Hand Driving | ||
| Engine | Model | 4 Cylinders | |
| Power | 88 KW/120HP | ||
| Emission Standard | EURO 5/6 | ||
| Displacement | 2999 ML | ||
| Fuel Type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 2.5T/4.8T | ||
| Wheel Base | 3360(mm) | ||
| Overhang( Front/Rear) | 1015/2450(mm) | ||
| Angle(Approach/departure) | 24/9(°) | ||
| Brake System | Air brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 7.00R16, 6 Pieces with 1 Spare Tire | ||
| Maximum Speed | 90 (km/h) | ||
| Superstructure | |||
| Flatbed | Dimensions | 4200x2320 (mm)+Telescopic Platform 1300mm | |
| Max. Loading Weight | 4000(kg) | ||
| Operating Stroke | 2700 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||
| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 4000 (kg) | ||
| Length of Steel Cable | 25 (m) | ||
| Hoisting Organ | Rating Under-Pulling Capacity | 6000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||
| Remarks | 1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars | ||
