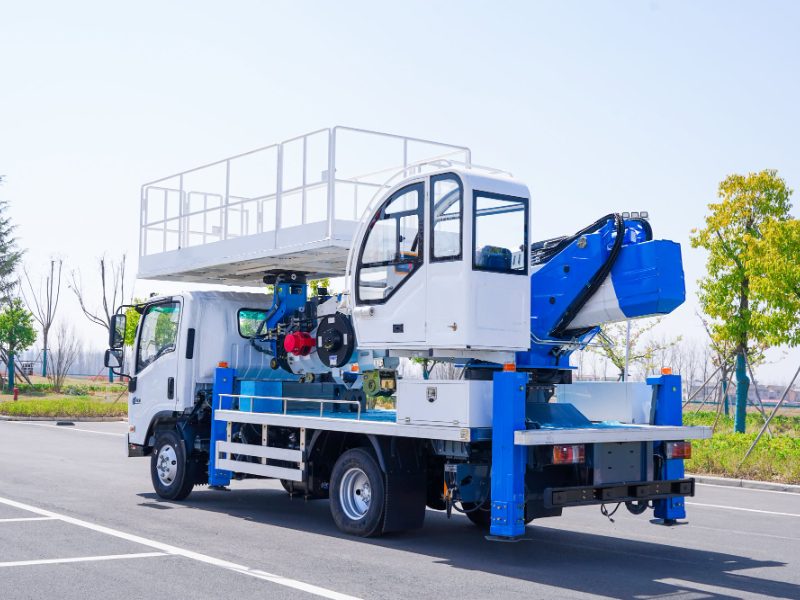

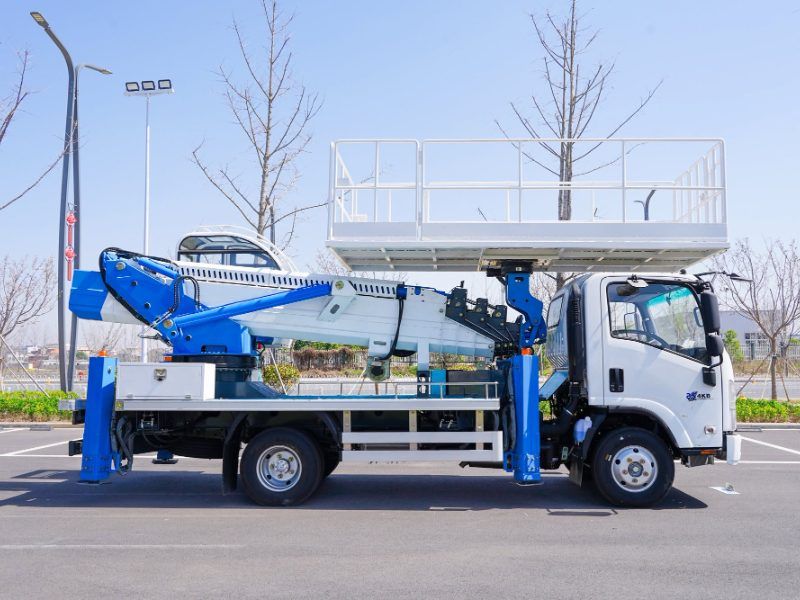

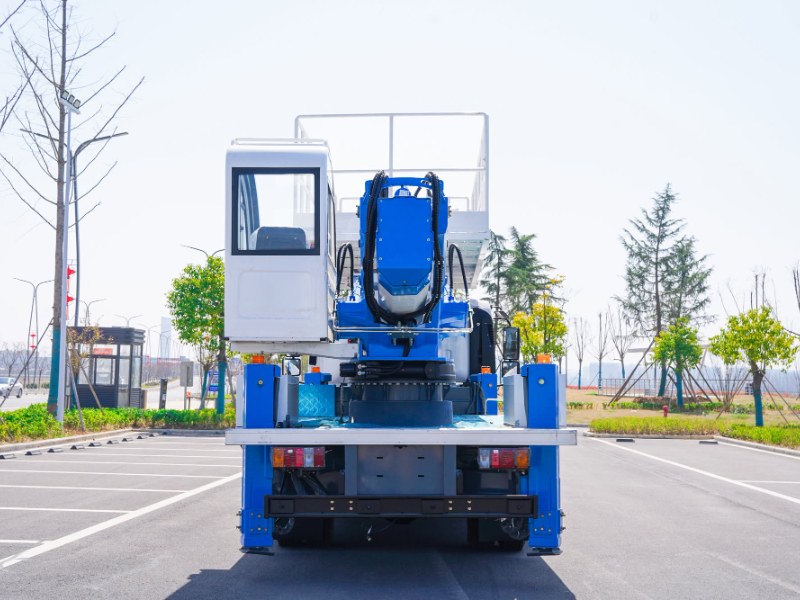

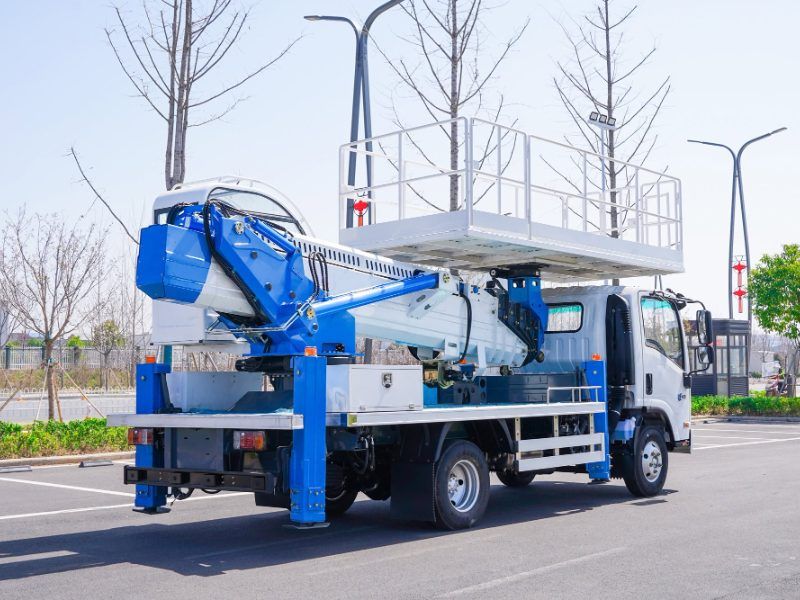

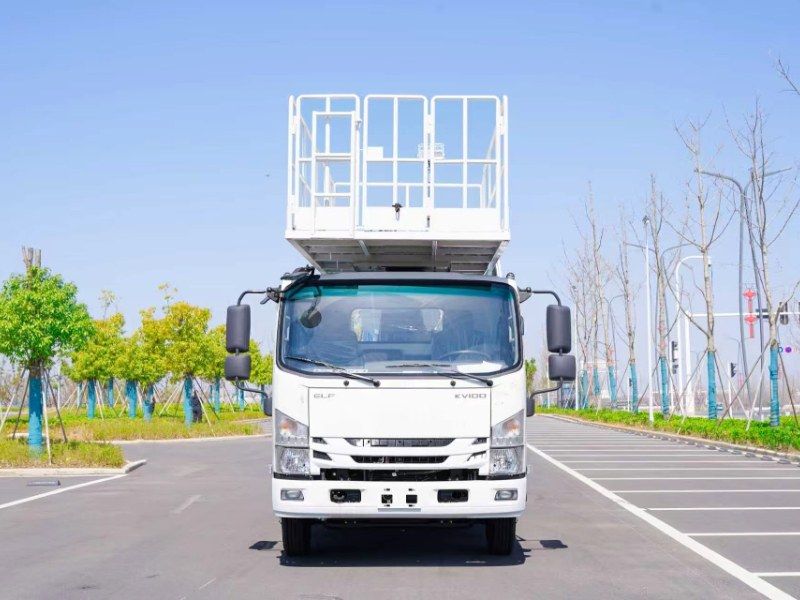

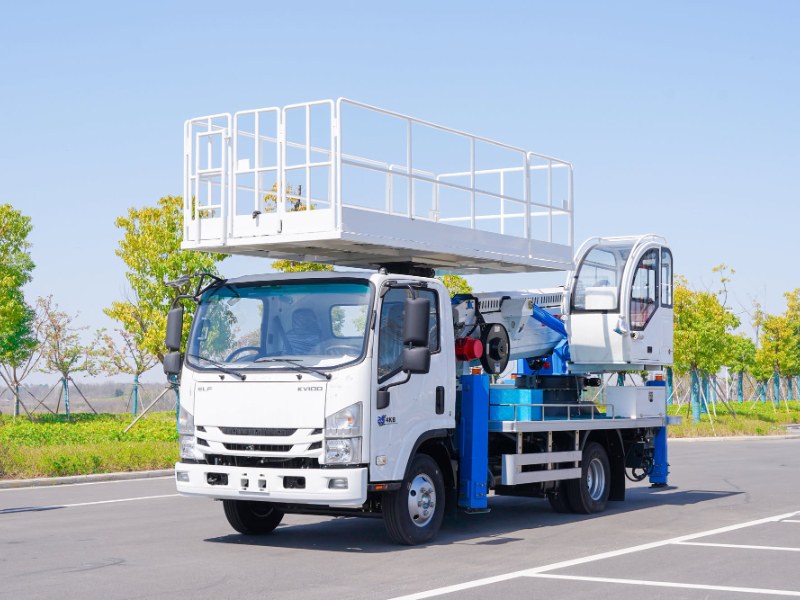

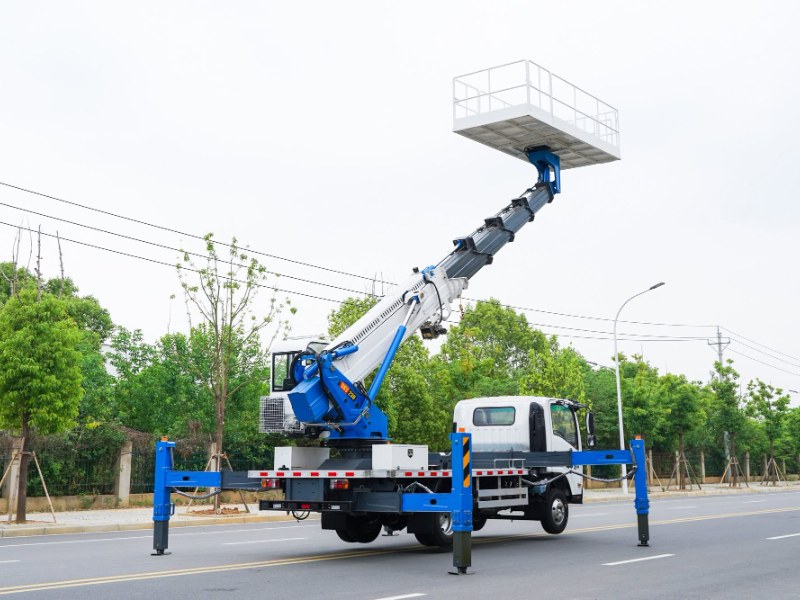

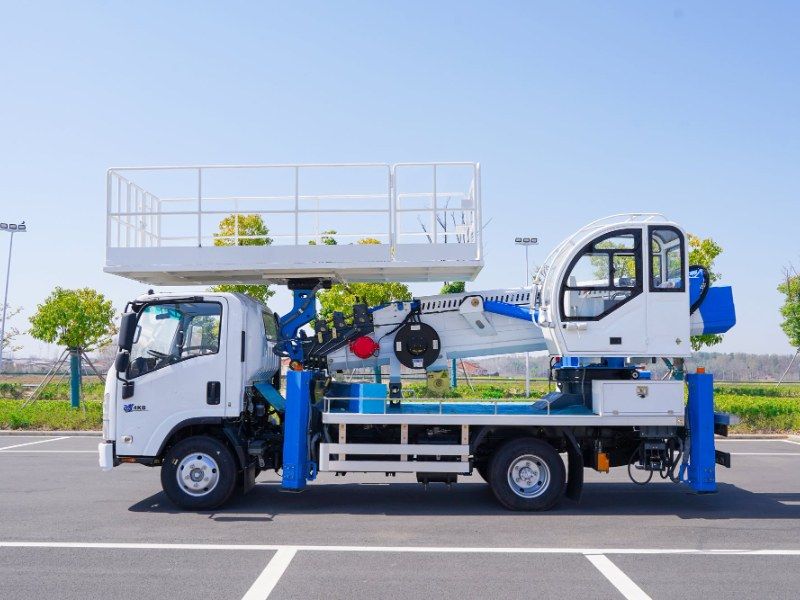

23M Isuzu KV100 telescopic boom aerial work platform truck (also called Isuzu Man Lifter truck, KV100 truck mounted aerial work platform , knuckle boom aerial platform truck,Telescoping boom aerial platform, ISUZU Aerial working platfrom truck, aerial boom lift, bucket truck, overhead working truck, sky lift truck,etc).mainly used for the street lights maintenance, high-rise building maintenance, cleaning, maintenance, also used for elevator installation, ship repairing and cliff homework, etc, is essential to the construction machinery.
Isuzu 23M KV100 Truck-Mounted Aerial Platform, also named Isuzu Truck Mounted Man Boom Lift OR Telescoping boom aerial platform, ISUZU Aerial working platfrom truck, aerial lift, hydraulic beam lifter is the combination of truck and boom lift. Boom Lift are installed on the back of the truck. Truck Mounted Boom Lift is very suitable for long distance travel and much more convenient for aerial working.Furthermore, truck mounted boom lift are equipped with lifting hook which enlarge its working range widely. Operator can control lifting and lowering both on the platform and on the ground through the control system.
| Vehicle Basic Specifications | |||
| Vehice Model | Maximum Working Height | 23 meters | |
| Chassis brand | ISUZU 4x2 | New or Used | Condition new |
| Overall dimension | 7450x2000x3300mm | Cargo Box Dimension | |
| Gross weight | 7300 kg | Rated Weight | |
| Curb weight | 5068kg | Wheelbase | 3360mm |
| Axle No. | 2 | Cab Seat No. | 3 |
| Axle Load | 2500/4800kg | Fuel Type | Diesel |
| Engine | ISUZU 120HP Diesel | Steering System | LHD,power aissist steering |
| Transmission | Manual 5-speed | Clutch | Single dry clutch plate |
| Brake | Hydraulic brake | Tire No. | 6+1 pcs |
| Front/Rear Suspension | Tire Model | 7.00R16 | |
| Fue Tank | 100 liter | Battery | 12V |
| Max speed | 90km/h | ||
| Superstructures Parameters | |||
| Model | Maximum Working Height | 23 meters | |
| Boom Type | 4-section arm,telescopic arm | Maximum Working Radius | 18.4 meters |
| Basket Dimension | 1000x750x1200 mm | Slewing Angle | 360°continually rotary |
| Basket Load | 200kg | Outrigger | Front V rear H shape hydraulic legs |
| Basket Slewing | 360° | Outrigger Span | Horizontal 4.0meter,Vertical 4.0 meters |
| Operation System | One set at down turntable position,one set on upper basket. Optional:computer control system+wireless remote controller | ||
| Safety System | 1.Whole vehicle automatically balance leveling real-time test; 2.Outrigger auto levelingbasket auto leveling; 3.Up and Down operation anti-lock,Upper operation on basket &down operation at turntable can't operation at the same time; 4.When people on basket,outrigger operation is locked,can't operate,to prevent damage happened; 5.Emerngecy pump is installed to prevent emergency situation. | ||
