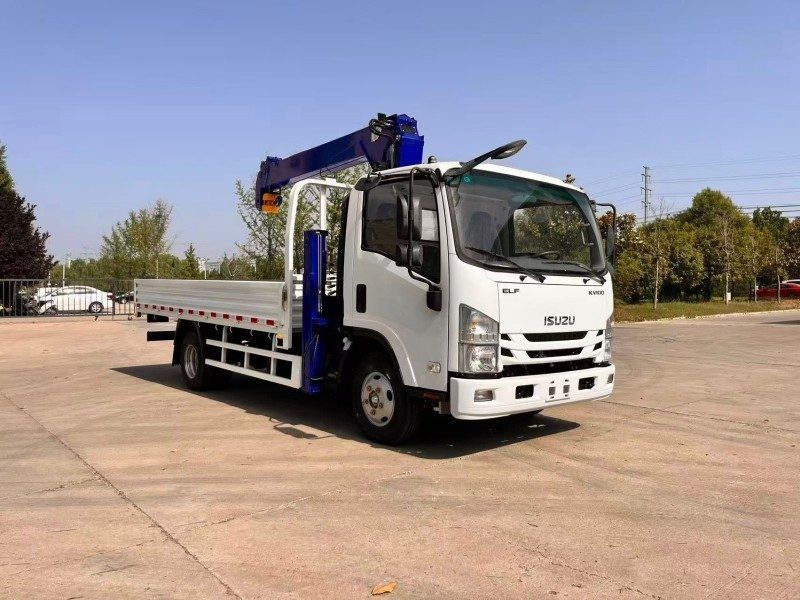

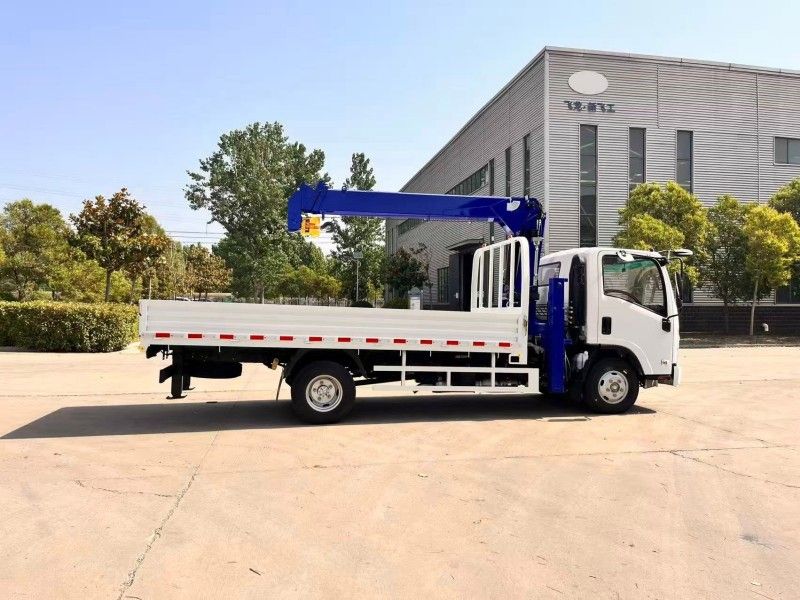

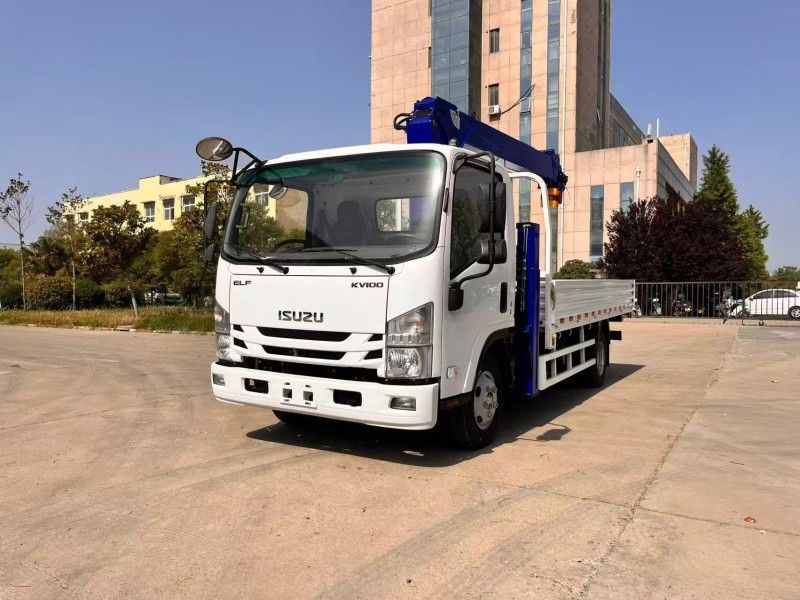

Isuzu KV100 Straight-Boom Crane Truck: A High-Efficiency Hoisting Solution for Logistics and Construction

The Isuzu KV100 straight-arm truck-mounted crane combines robust dependability with accurate lifting capabilities. Designed for heavy-duty operations, it maintains steady performance across logistics, construction, and municipal applications. Meeting rigorous standards, its high-efficiency engine strikes a balance between power and fuel efficiency. With user-friendly controls and a stable frame, it ensures safe, straightforward operation—even in confined areas. Whether tasked with transporting equipment, loading cargo, or on-site lifting, this crane turns your KV100 into a multi-functional workhorse, enhancing productivity for every project.

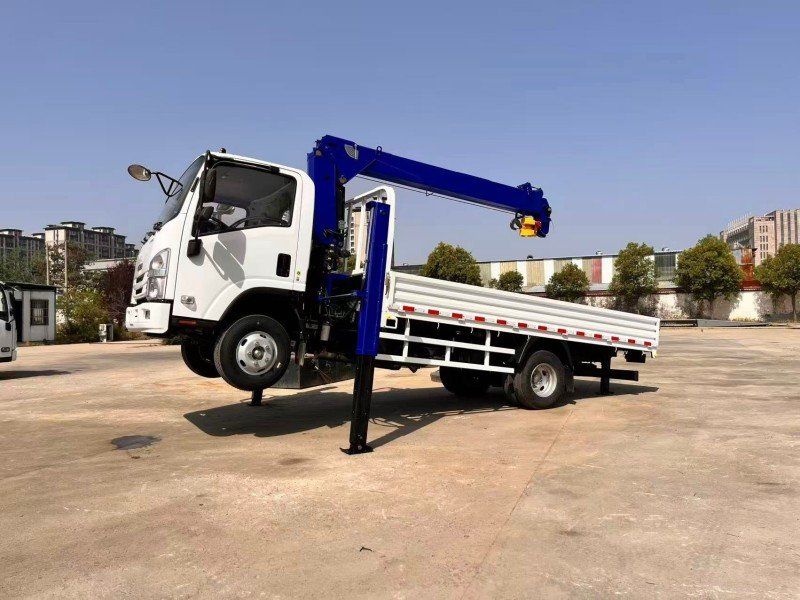

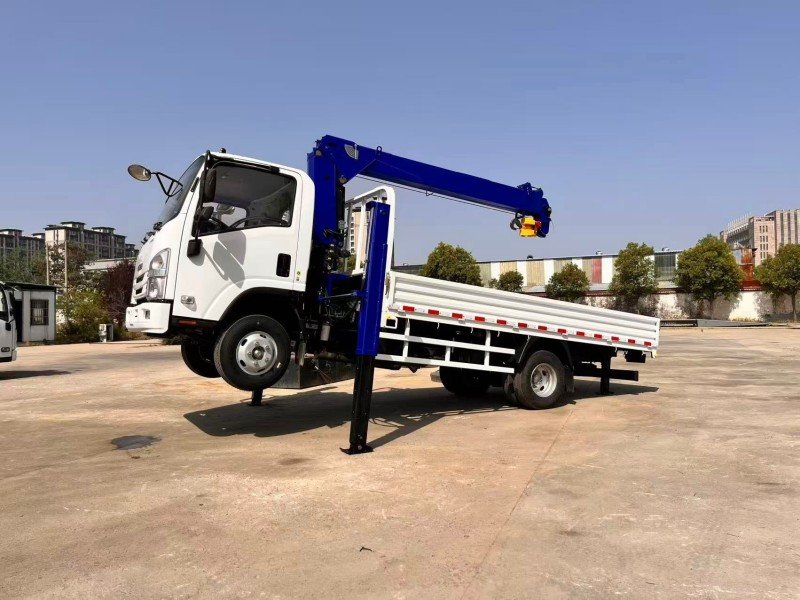

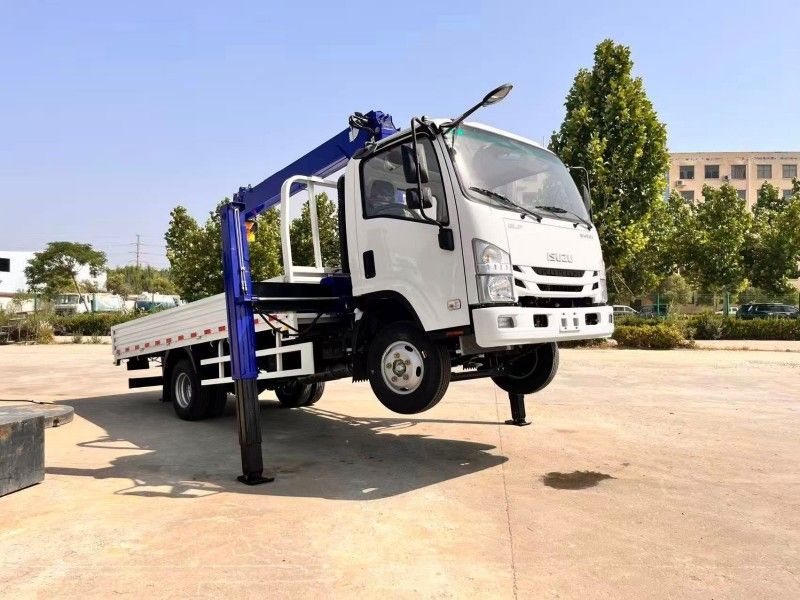

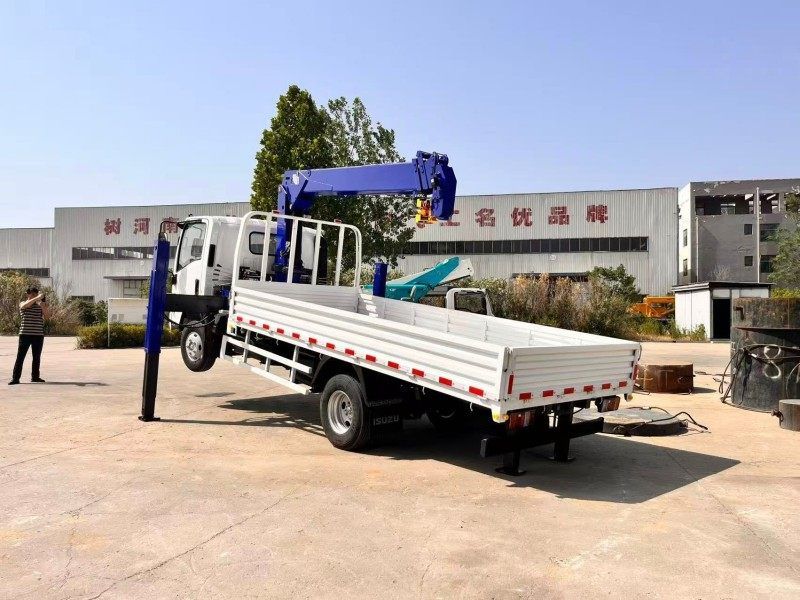

The Isuzu KV100 straight-arm truck-mounted crane sets a new standard for heavy lifting efficiency, driven by Isuzu’s 4KH1CN6LB engine. This powerplant delivers 130 horsepower and 380Nm of torque, merging strong performance with fuel efficiency to lower operational expenses. Its straight arm, available in 5-8 meter reach configurations, can manage loads of 5-8 tons—making it perfect for moving machinery, construction supplies, or industrial cargo. A high-precision hydraulic system guarantees smooth, controlled movements even when under maximum load. Safety is prioritized with features like adjustable outriggers (for stability on uneven terrain), overload protection, ABS, and a reinforced chassis, all of which meet international standards. The operator-friendly control panel, equipped with joysticks and digital displays, allows for precise handling of complex lifting tasks, shortening training periods and enhancing overall productivity.

General information	Chassis model	KV100 light truck chassis
	Wheelbase(mm)	3360
	Drive Type	4X2
	GVW (kg)	7300
	Curb Weight (kg)	2300
	Cabin	single
	Driver and Passenger	3
Engine	Model	4KH1CN6LB
	Type	4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling.
			Emission Standard	Euro VI
			Displacement (L)	2.999
	Rated Power (kw/rpm)	88kw
	Max. Torque (N.m/rpm)	290N.m
	Transmission	Model	Manual,MSB
			5 Forward + 1 Reverse
Brake System	Service brake	Double circuit, air drive
	Brake(Oil/Air)	air brake
	Parking brake	Central drum brake
standard Configuration	Tires	7.00R16LT 14PR,7.00-16LT 14PR
	Power steering	●
	Radio	●
	ABS	●
	A/C	●
	Tilted cabin	●
	Exhuast brake	●
Option configuration	Central lock	●
	Electric window	●
	Deflector	●
Dimensions	Length OAL  (mm)	5995
	Width  OW (mm)	2030
	Height OH (mm)	2280
	Front Tread AW (mm)	1685
	Rear Tread CW  (mm)	1685
1. ● means standard configuration.                           ○    means option configurtaion
2. All above information is for reference only, and will be updated timely without notice;
3. The listed models are part of the full products range, any special request will be available on request.

Crafted for adaptability, the KV100 seamlessly transitions between logistics centers and remote locations. With a length ranging from 6.2 to 7.5 meters, it navigates tight spaces with ease, while its 3.2-ton truck payload enables simultaneous transport of tools and materials—doing away with the need for additional vehicles. Weather-resistant features, including corrosion-proof hydraulic lines and sealed controls, ensure consistent reliability in rain, dust, or extreme temperatures, keeping downtime to a minimum. The cabin focuses on operator comfort, boasting adjustable suspension seats, air conditioning, and noise insulation to support long work shifts. Maintenance is made simple thanks to easily accessible service points and durable components, backed by Isuzu’s worldwide support network. This crane elevates the KV100 into a versatile workhorse, streamlining operations across municipal, warehouse, and construction tasks.
