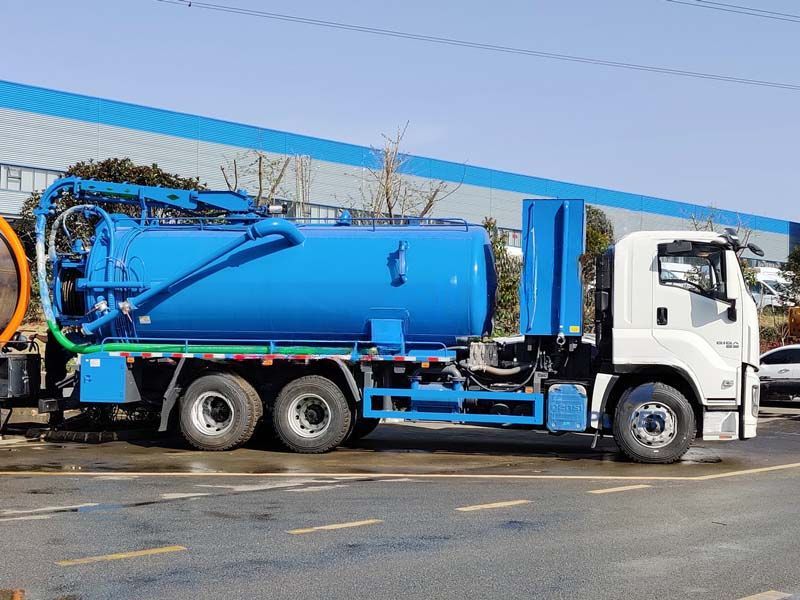

Qingling GIGA Combined Sewage Jetting Truck

customized 40001 water tank

customized 40001 water tank

High performance 4000L clean water tanker for convenient usage

Qingling GIGA Combined Sewage Jetting Truck
Qingling GIGA Combined Sewage Jetting Truck
Qingling GIGA Combined Sewage Jetting Truck
Qingling GIGA Combined Sewage Jetting Truck
Qingling GIGA Combined Sewage Jetting Truck

Body application


To Ask Us Ask For Brochure

SPECIFICATIONS

Manufacturer

Qingling Trucks

Item

QINGLING GIGA Septic Vacuum Pump Jetting Tanker Truck

Brand

QINGLING

Model

PT20QW

Production Time

30 days

Truck Chassis

Specification

Overall  dimensions

9100*2500*3200 mm

Gross weight

25,000 kg

Kerb weight

12,500 kg

Wheelbase

4,565+1370 mm

Driving type

6*4

Chassis model

QINGLING GIGA Heavy-duty

Tire size

315/80R22.5

Passengers in cab

3

Engine

Engine model

6WG1-TCG52

Type of fuel

Diesel

Power

420HP

Gearbox

FAST 12-shift gearbox

Upper Structure

Vacuum Tanker performance

Tank Capacity

16,000L

Tank Material

6mm carbon steel with antiseptic treatment

Vacuum Pump

Original Italy Import famous JUROP brand

Suction Time

250 s

Tank lifting angle

45°

Self-suction height

7 m

Suction hose

7m length with DN 100 mm

Rear cover

Hydraulic control

Water Tanker performance

Tank Capacity

4,000L

Tank Material

4mm carbon steel with antiseptic treatment

High Pressure Water Pump

Original Germany Import famous PINFL brand

High Pressure Pipe

60m high pressure water pipeline with diameter φ19

Jetting Nozzle

Standard 10 units with different models

Control Panel

English

Discharging system

Gravity discharge or pump out from tank body.

Painting

Two primers, and one final paint coating

Color & LOGO

According to wish

Factory   standard

“U” shape Sub Frame, Hydraulic system,   Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and   rubber flaps...

Documents

English operation manual, Spare parts list, and all necessary export docs.

Optional   equipment

1, Stainless steel tank, Aluminum alloy tank

2, Wider platform for Pipeline Storage

3, Wireless Electricity controller optional


DIMENSIONS
