Stainless steel water pump 65QZB-40/45
Customized Stainless steel water pump 65QZB-40/45, with flow rate 40m³/h
Body application
SPECIFICATIONS
Manufacturer | Qingling Trucks | |

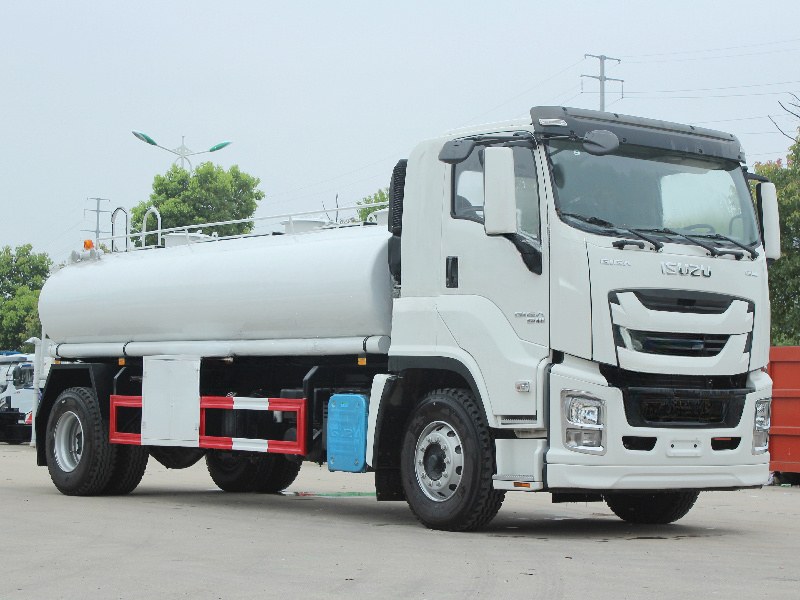

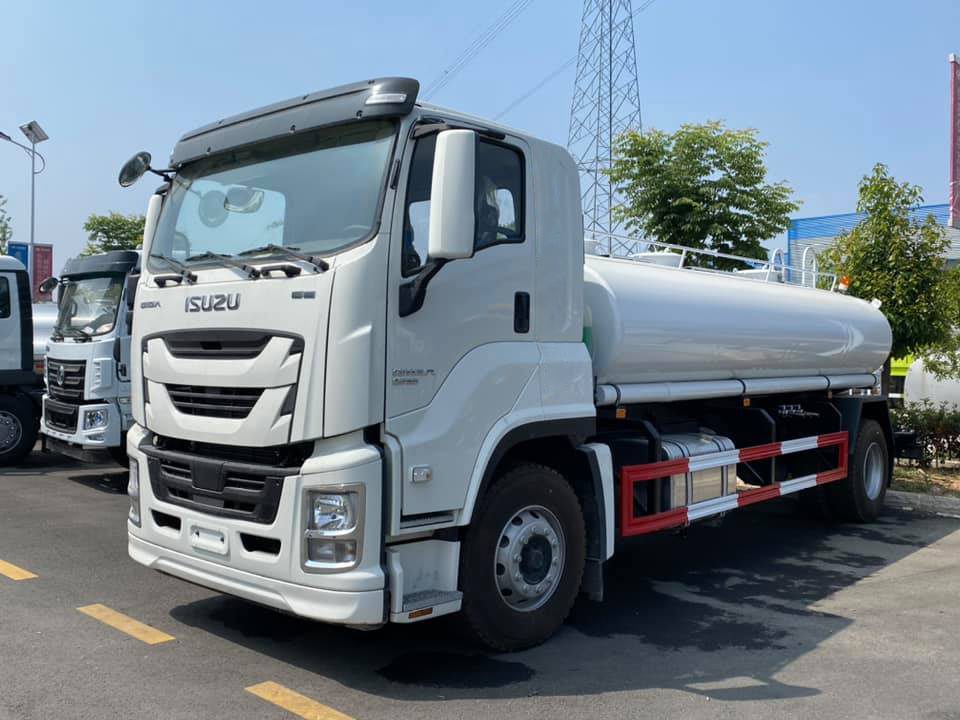

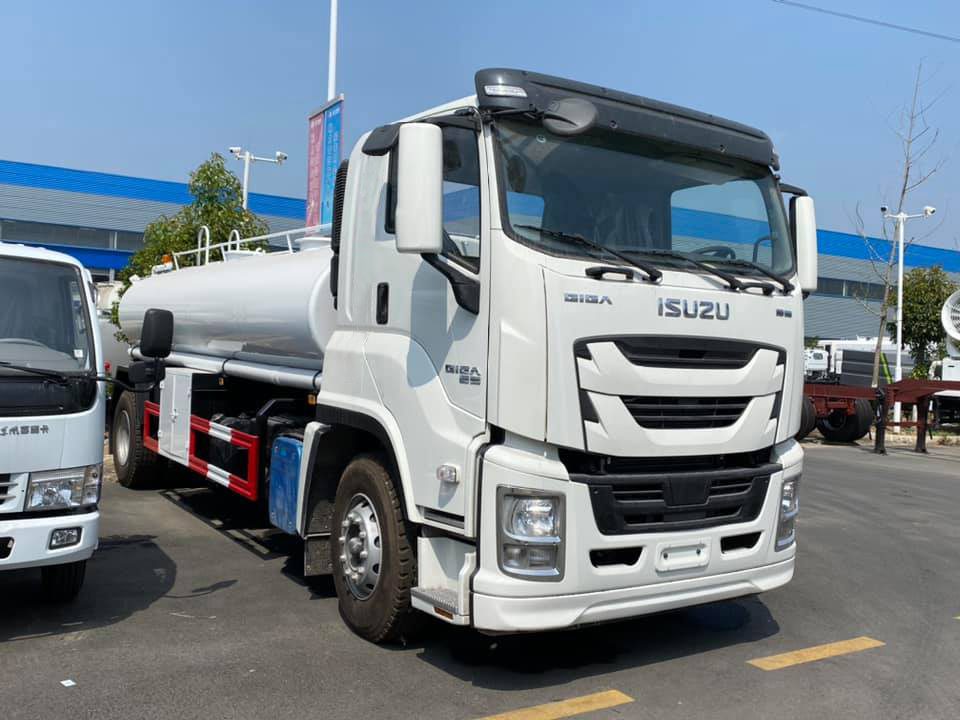

Item | QINGLING GIGA Cleaning Water Tanker Truck | |
Brand | QINGLING | |
Model | PT12YS | |
Production Time | 25 days | |
Truck Chassis | ||
Specification | Overall dimensions | 8670*2500*3055 mm |
Gross weight | 18,000 kg | |
Kerb weight | 9,200 kg | |
Wheelbase | 5,600 mm | |
Driving type | 4*2 | |
Chassis model | QINGLING GIGA Heavy-duty | |
Tire size | 315/80R22.5 | |
Passengers in cab | 3 | |
Engine | Engine model | 6UZ1 / 6WG1 |
Type of fuel | Diesel | |
Power | 350HP / 380HP / 420HP / 460HP | |
Gearbox | FAST 12-shift gearbox | |
Upper Structure | ||
Water Tanker performance | Tank Capacity | 12,000L |
Tank Material | 4mm food grade stainless steel 304-2B material | |
Water Pump | Top Chinese WEILONG brand | |
65QZB-40/50 model stainless steel water pump, flow rate 40m³/h | ||
Suction Time | 290 s | |
Tank Shape | Ellipse as standard | |
Rear Platform | Customized rear platform and Water Canon | |
Function | Standard Pump In and Pump Out | |
Discharge Valve | Customized 3 discharge valves with independent switch | |
Control Panel | English | |
Discharging system | Gravity discharge or pump out from tank body. | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Stainless steel tank, Aluminum alloy tank 2, Wider platform and Fire Cannon 3, Electricity controlled separately sprinkler 4, Spreading salt water Snow-melting agent | |

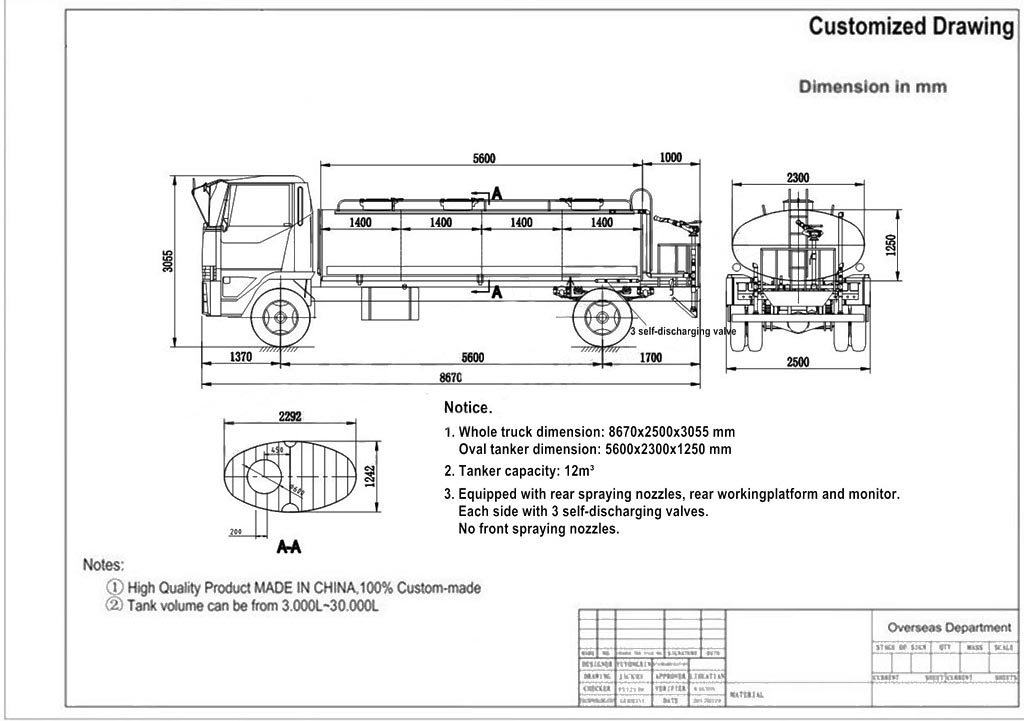

DIMENSIONS
