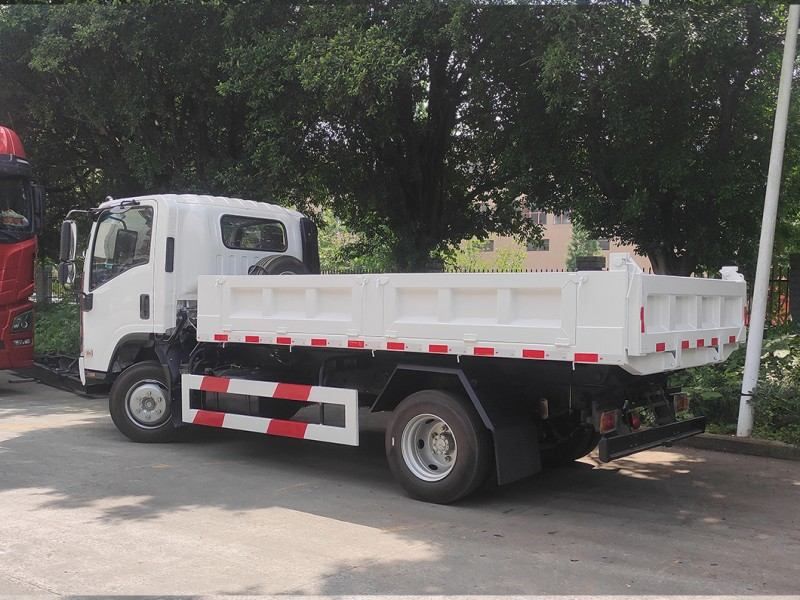

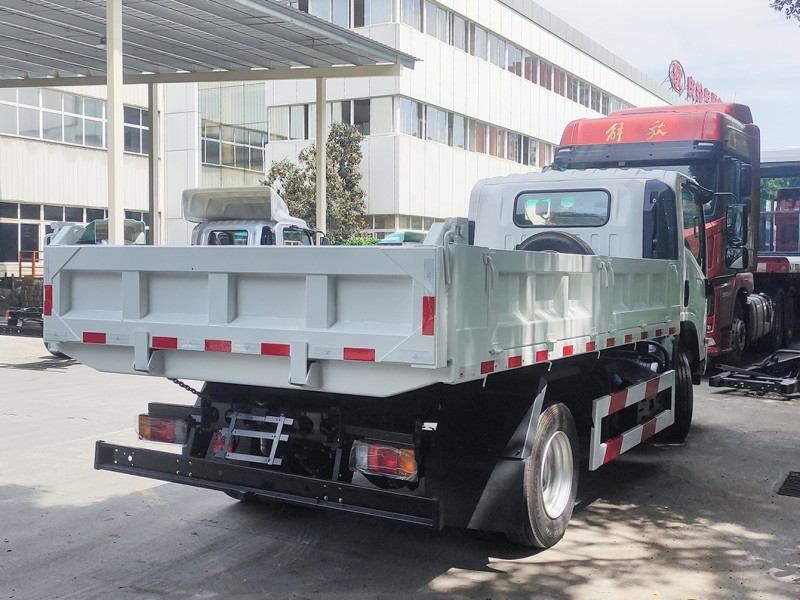

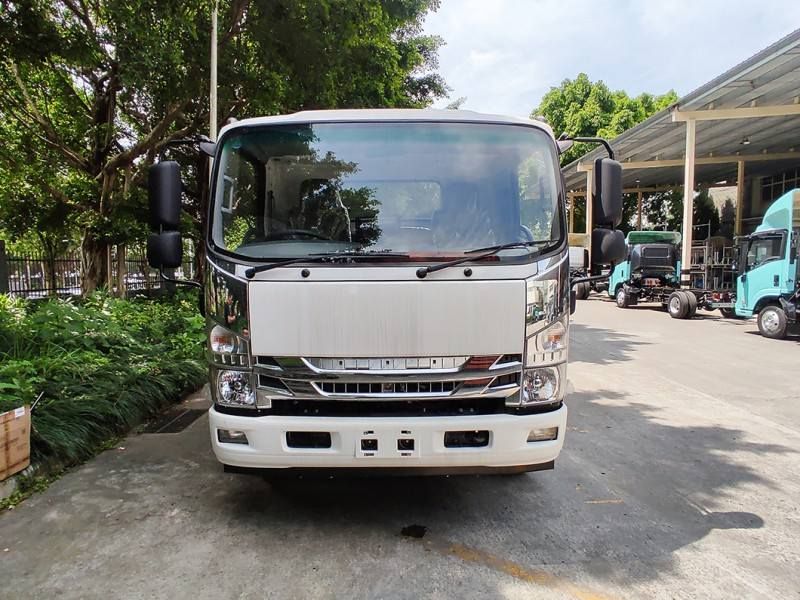

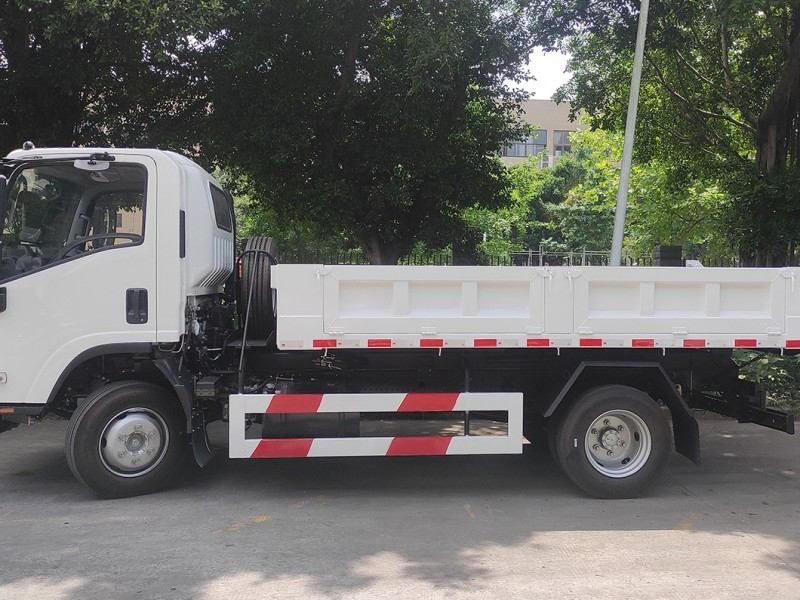

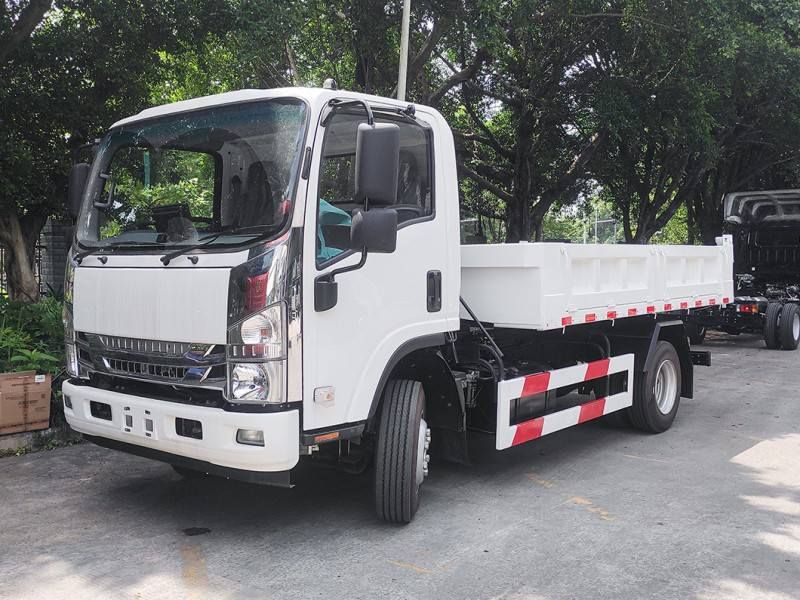

The Isuzu npr dump truck, alternatively known as the Isuzu medium dump truck, Isuzu 7-ton tipper truck, or Isuzu NKR tipper lorry, is a prime example of our engineering prowess. This vehicle is equipped with hydraulic lifting mechanisms for efficient unloading, making it ideal for transporting a wide array of materials such as sand, gravel, construction waste, domestic waste, and other bulk materials. Its high-capacity dump box ensures maximum payload capacity, allowing for the efficient transportation of large volumes of material over extended distances.
| General information | Wheelbase(mm) | 4175 | |||
| GVW (kg) | 10550 | ||||
| Curb Weight (kg) | 6055 | ||||
| Payload (kg) | 6-7T | ||||
| Max Speed (km/h) | 110 | ||||
| Engine | Model | 4HK1-TCG61 | |||
| Displacement (L) | 5.193 | ||||
| Max. Power (kw/HP) | 139kw/188HP | ||||
| Max. Torque (N.m/rpm) | 507N.m | ||||
| Number of cylinder | 4 | ||||
| Emission Standard | Euro III or Euro IV | ||||
| Fuel type | 4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | ||||

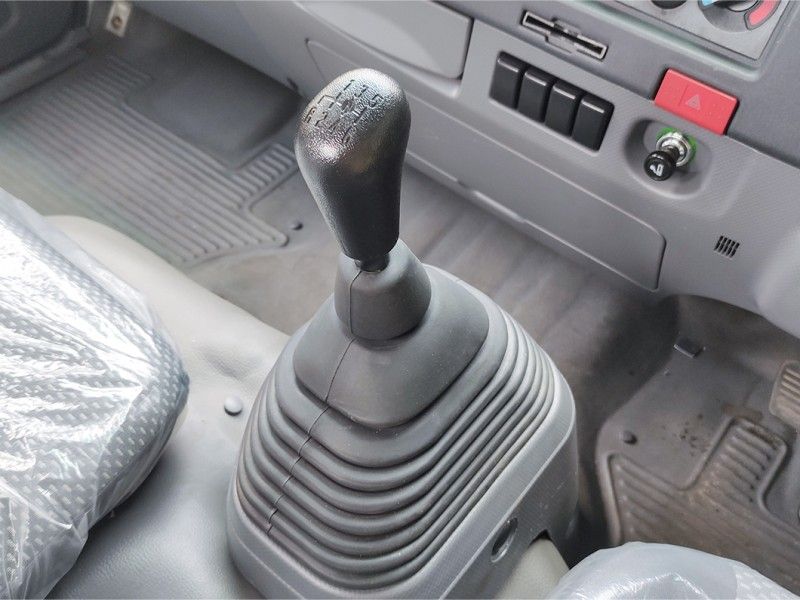

| Transmission | Transmission | MLD-6Q | |||
| 6 Forward + 1 Reverse | |||||
| Ratio | 4.1 | ||||

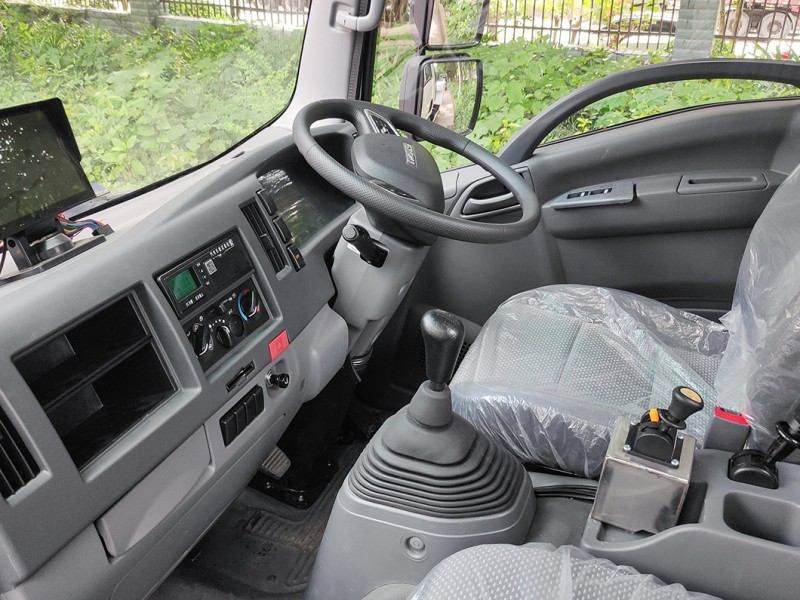

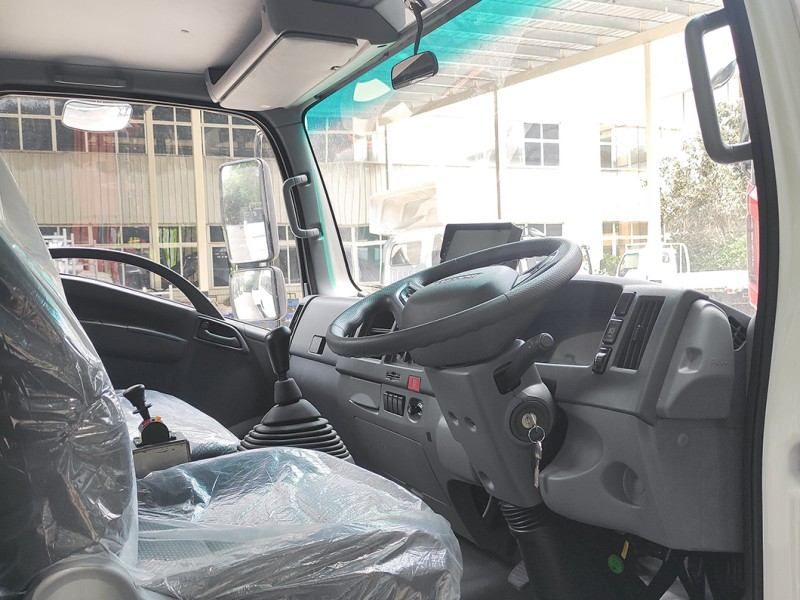

| Cab | Cabin | single cabin | |||
| Passengers | 3 | ||||
| Chassis | Drive Type | 4x2 | |||
| Oil Tank | 100L | ||||
| Brake | Air Brake | ||||
| Battery | 24V | ||||
| Tire | Tires | 6 | |||
| Standard | 235/75R17.5 16PR | ||||

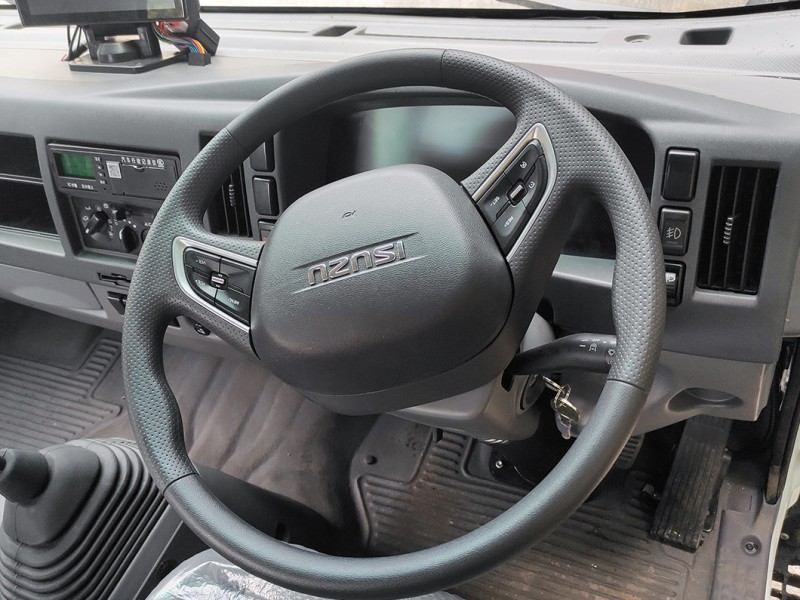

| Configuration | Power steering | ||||
| Radio | |||||
| Seat belts | |||||
| ABS | |||||
| A/C | |||||
| Electric window | |||||
| Central Lock | |||||
| Tilt cab | |||||
 Notes Equipped Optional | |||||
| DIMENSION | units：mm | ||||
| Model | Wheelbase/WB | 4175 | |||
| Cargo length | 5508 | ||||
| Cargo width | 2300 | ||||
| Cargo height | 450 | ||||
| Overall Length/OAL | 7450 | ||||
| Overall Width/OW | 2380 | ||||
| Overall Height/OH | 2480 | ||||
| Front Tread/AW | 1680 | ||||
| Rear Tread/CW | 1650 | ||||
