product description

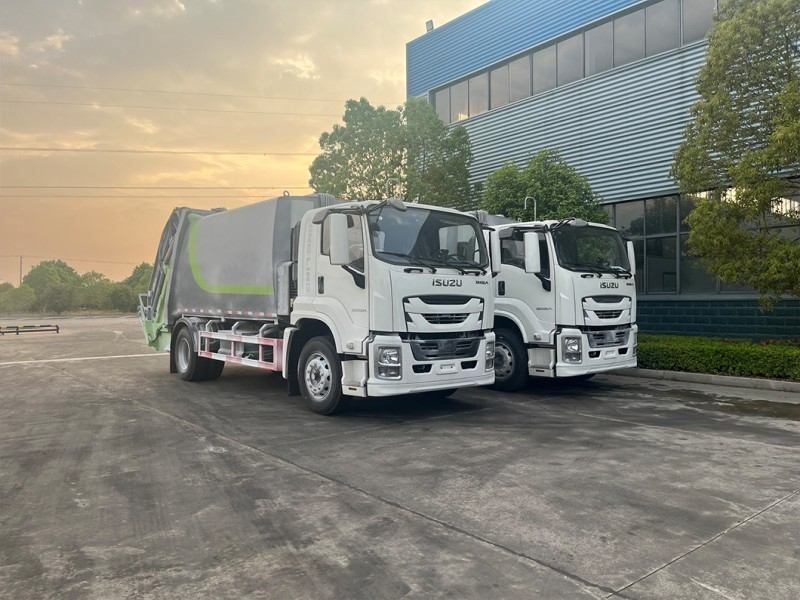

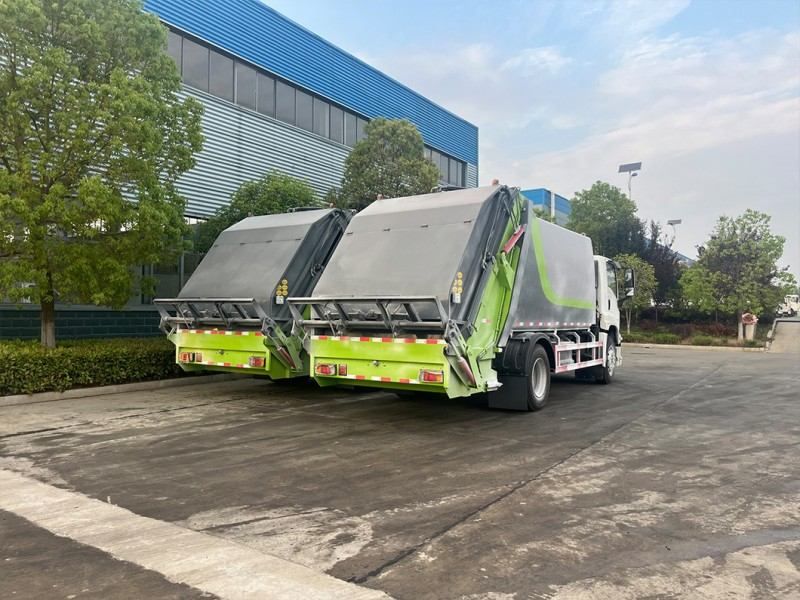

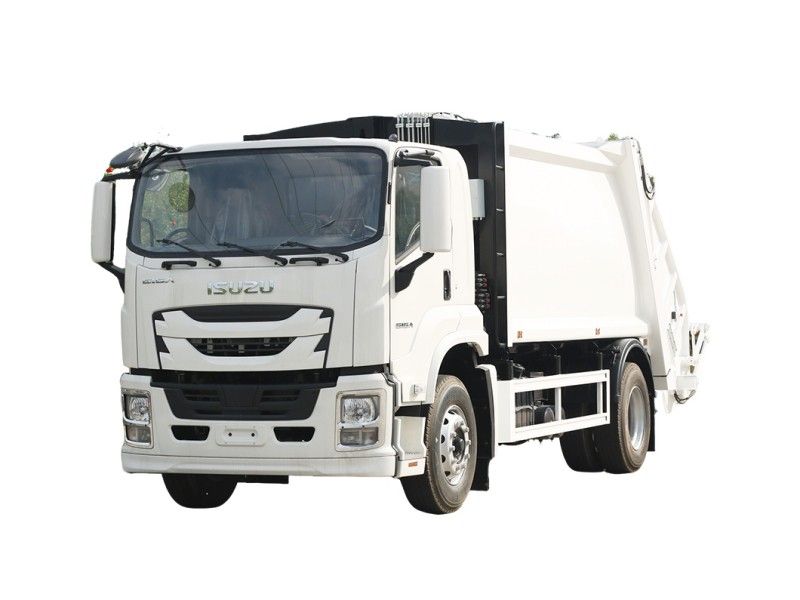

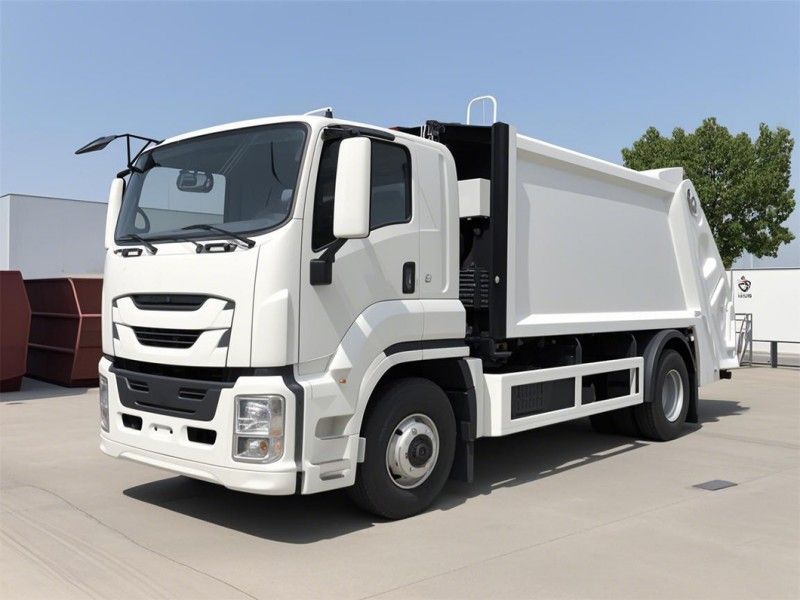

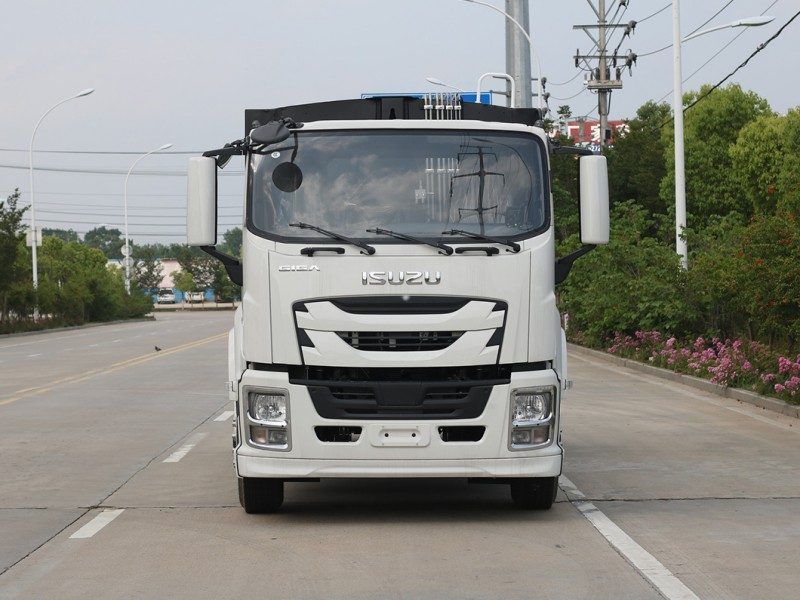

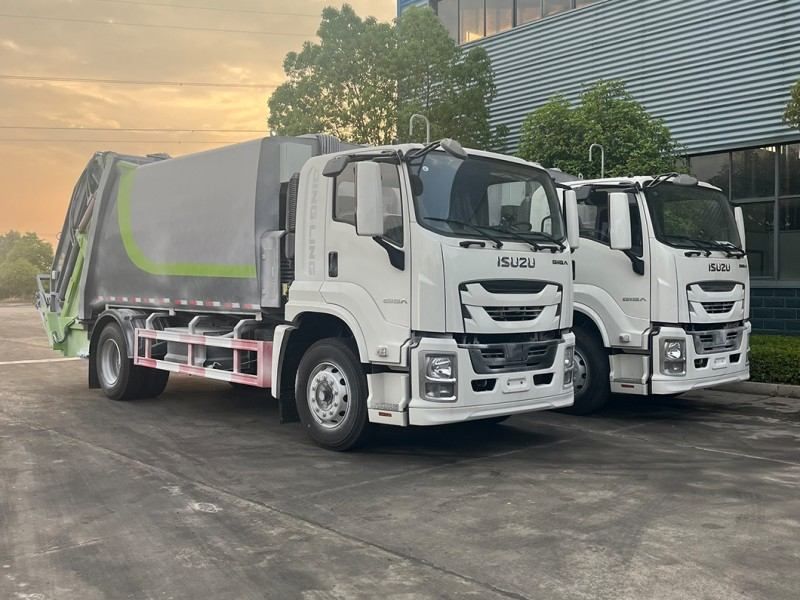

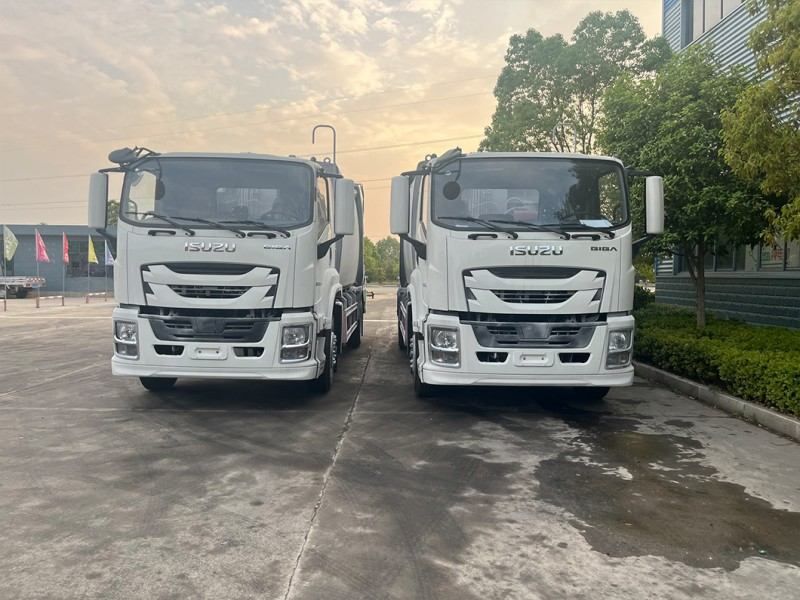

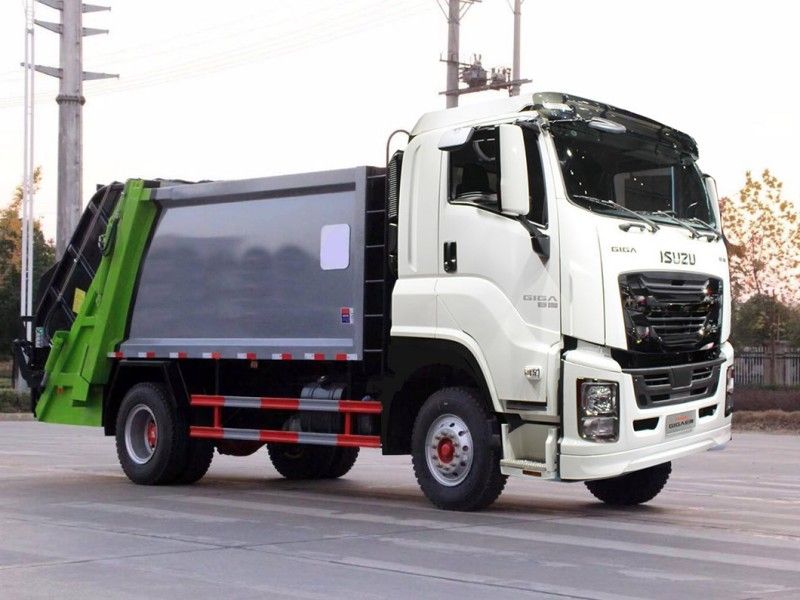

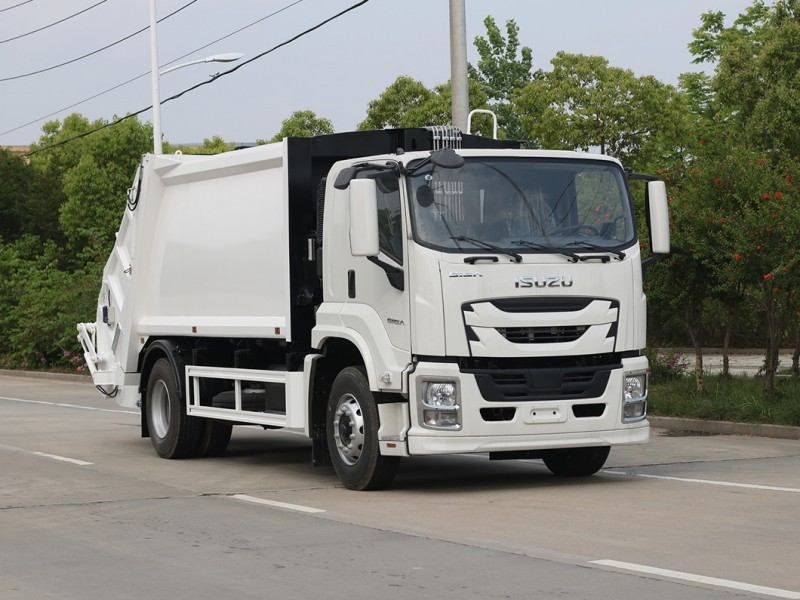

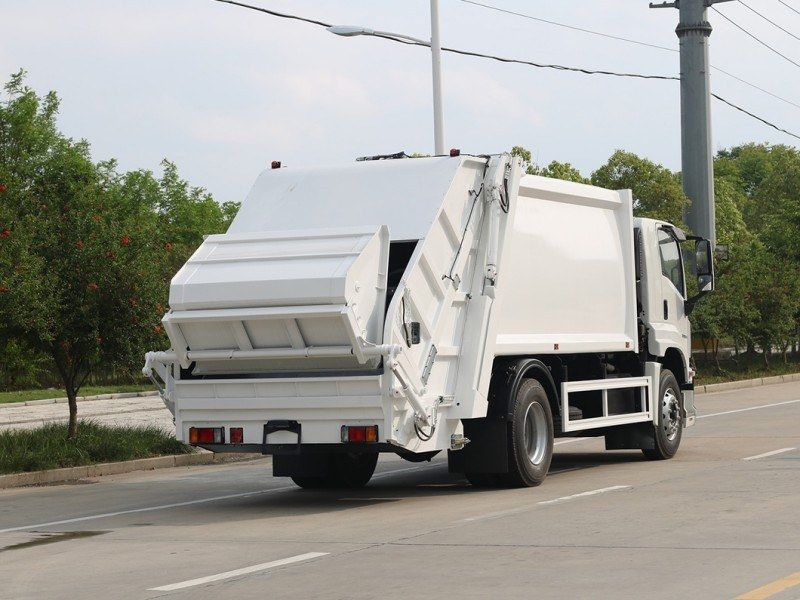

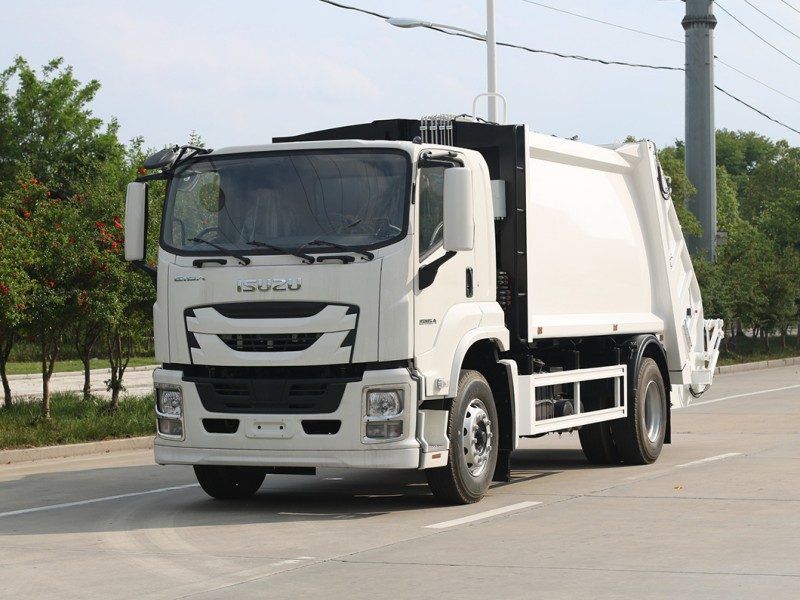

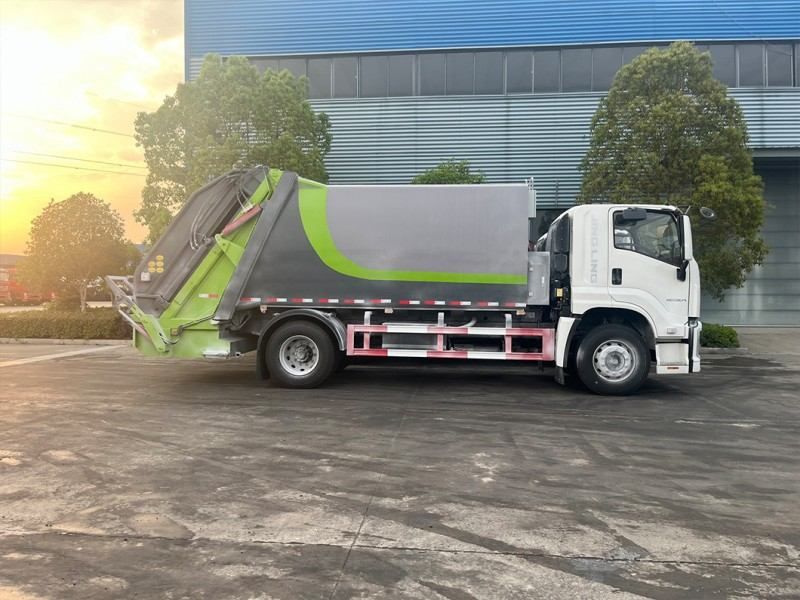

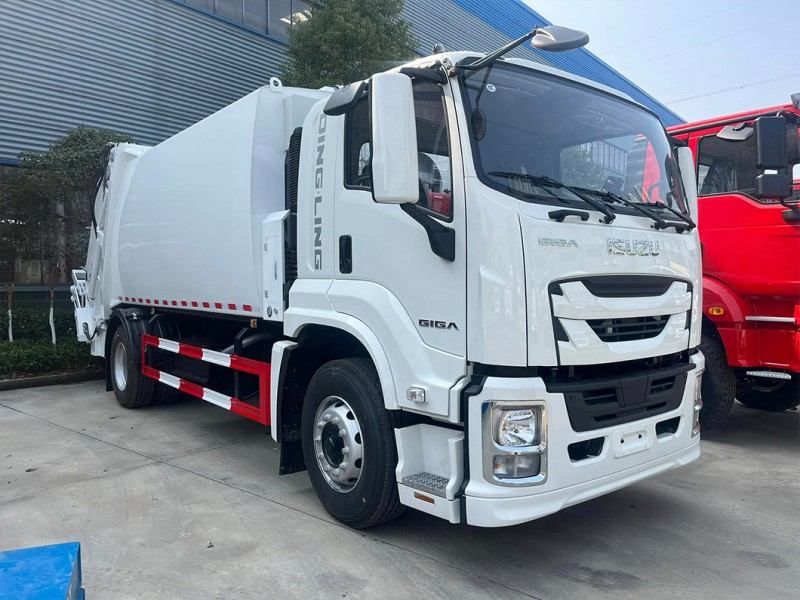

Isuzu GIGA Compressed garbage truck is a heavy-duty commercial vehicle designed for applications that require high load-bearing capacity and stable performance. It is an 15-ton giant that combines powerful power, robust structure and excellent performance. It ensures excellent stability and reliability even under complex road conditions. It is a new benchmark in the field of special vehicles and leads the development trend of the industry.
General information | Chassis model | GIGA | |
Wheelbase(mm) | 5800 | ||
Drive Type | 4x2 | ||
GVW (kg) | 22000 | ||
Curb Weight (kg) | 7200 | ||
Cabin | single cabin with sleeper (standard roof) | ||
Driver and Passenger | 2 | ||
Engine | Model | 6WG1-TCG61 | |
Type | 6 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | ||
Emission Standard | Euro 6 | ||
Displacement (L) | 15.681L | ||
Rated Power (kw) | 338kW/460hp | ||
Max. Torque (N.m/rpm) | 2250N.m | ||
Transmission | Model | ZF 16S | |
16 Forward + 2 Reverse | |||
Fuel tank | Capacity | 600L | |
Material | aluminium alloy | ||
Brake System | Service brake | front and rear drum brake | |
Brake(Air/Oil) | Air brake | ||
Parking brake | Air cut brake valve | ||
Max. Speed (km/h) | 85 | ||
standard Configuration | Tires | 385/65R22.5 20PR | |
Power steering | standard | ||
Radio | standard | ||
Dashcam | standard | ||
A/C | standard | ||
Tilted cabin | standard | ||
Exhuast brake | standard | ||
Electric window | standard | ||
Central lock | standard | ||
Deflector | Optional | ||
Garbage box body configurations | Capacity: | 22 cubic meters | |
Box: | curved box | ||
Material: | Q355 high-strength steel | ||
Box material thickness: | side:4mm , bottom: 5mm | ||

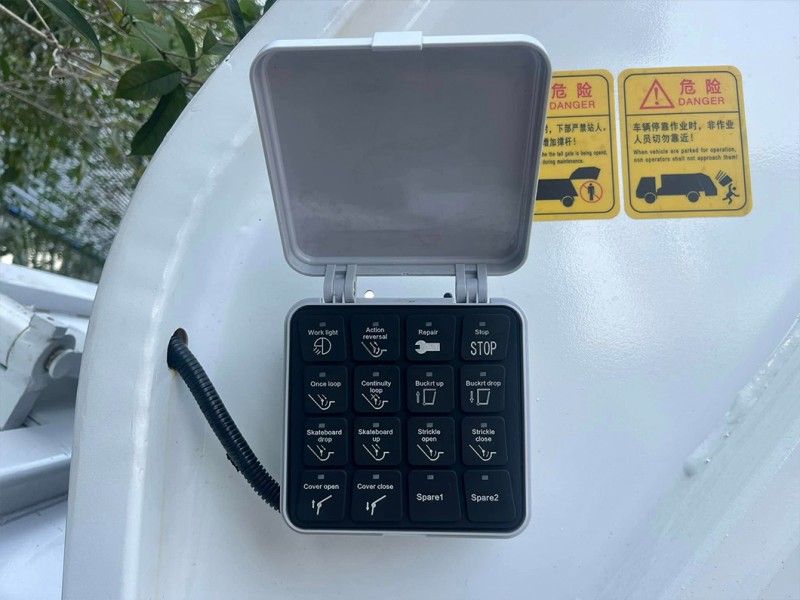

Hydraulic pipeline: | ferrule connection, CNA electronic control system, closed pressure valve, manual and electronic control operation. | ||
Compression method: | bidirectional peristaltic compression. | ||

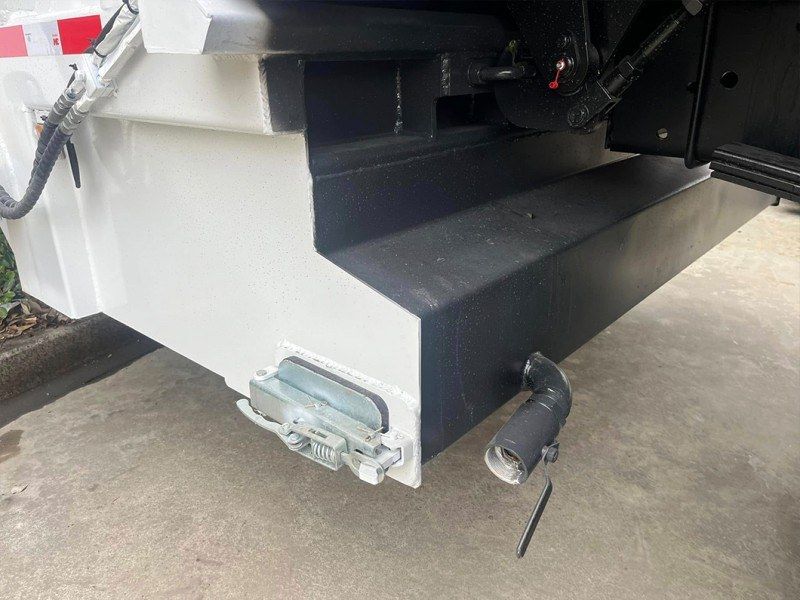

Loader lifting cylinder with hydraulic lock. The flip frame can flip two 240L national standard plastic trash cans at the same time. The whole vehicle is equipped with two sewage tanks, and a large-volume sewage tank is standard for more than 12 cubic meters. |
