product description

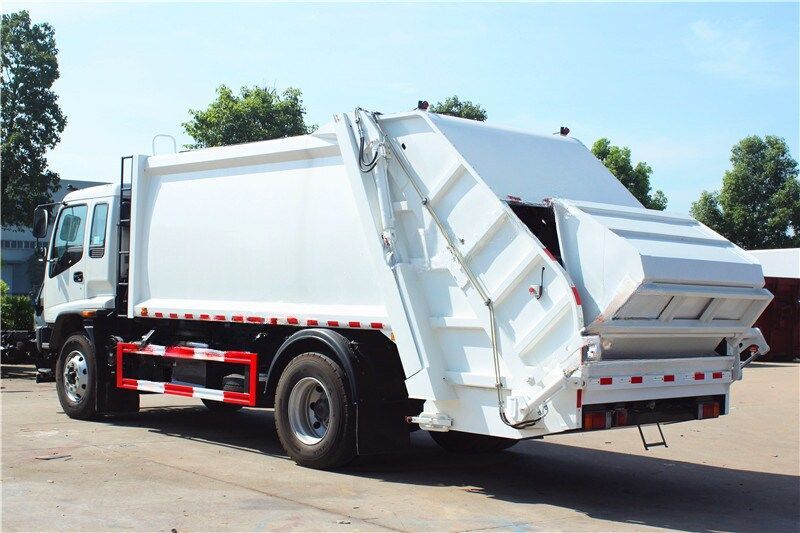

Customized Qingling FVR garbage compactor truck for hot sale, Qingling FVR 4*2 drive 6 wheeler truck chassis, 6HK1-tcg61 engine with 240HP / 300HP, fast 9-shift gear box, arc-shape compactor body with top Chinese brand hydraulic cylinders, rear tilting device can be lifting 240L, 360L, 660L, 770L, 1100L international garbage bins, high strength T420 steel body with customized 15 CBM capacity

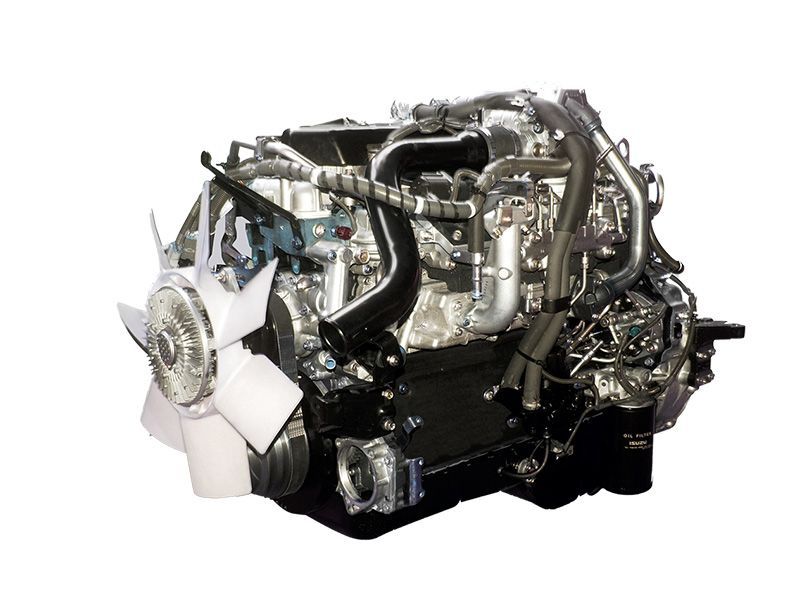

6HK1 diesel engine with 240 Hp

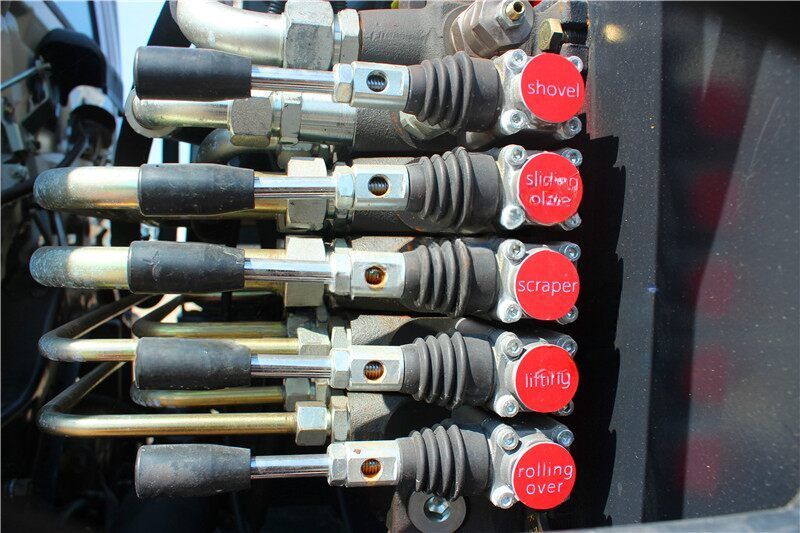

Compared with normal valve system, it works more than 30%
Manufacturer | Qingling Trucks | |
Item | QINGLING FVR Garbage Compactor Truck | |
Brand | QINGLING | |
Model | PT15ZYS | |
Production Time | 25 days | |
Truck Chassis | ||
Specification | Overall dimensions | 8590*2000*2550 mm |
Gross weight | 18,000 kg | |
Kerb weight | 9,600 kg | |
Wheelbase | 4,500 mm | |
Driving type | 4*2 | |
Chassis model | QINGLING FVR medium-duty | |
Tire size | 295/80R22.5 | |
Passengers in cab | 3 | |
Engine | Engine model | 6HK1-TCG60 |
Type of fuel | Diesel | |
Power | 240 HP | |
Gearbox | MLD 6-shift gearbox | |
Upper Structure | ||
Compactor Body performance | Tank Capacity | 15 CBM |
Tank Material | 4mm high strength steel T420, with inside and outside antirust treatment | |
Rear Hopper | 0.8-1.2 CBM | |
Waste Water Tanker | 100 + 200 Liters | |
Body Shape | Arc Shape as standard | |

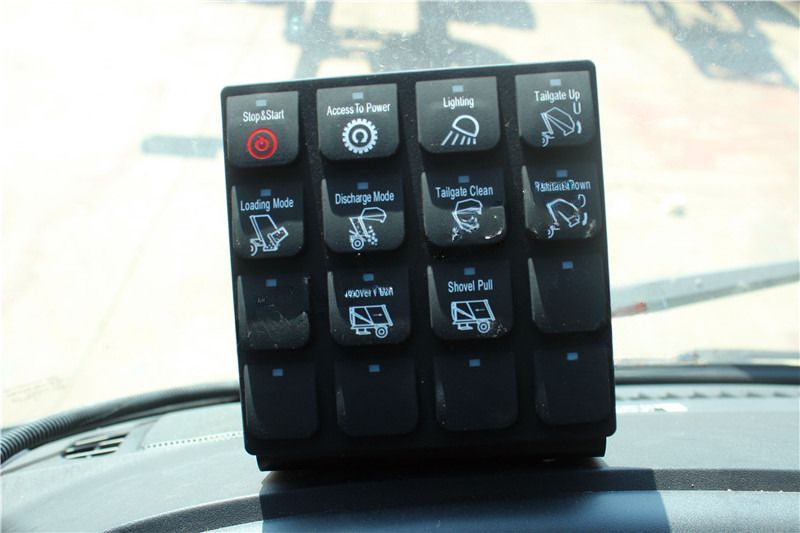

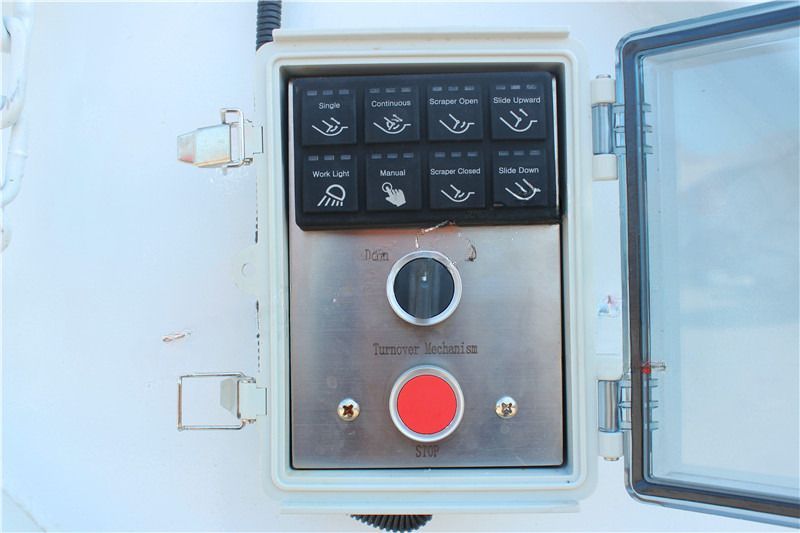

Control System | CAN-BUS electric control | |
Hydraulic Valve control | ||
Control Panel | English or Your language | |
Discharge Model | Horizontal Ejection | |
Tilting Device | Standard 240L * 2 | |
Customized 360L, 660L, 770L, 1100L bins | ||
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Back Alarm and Camera can be equipped 2, Italy brand multi-way valve can be optional 3, 660L, 770L, 1100L bins lifting device can be optional 4. Front snowing sweeping device can be optional | |
