Body application

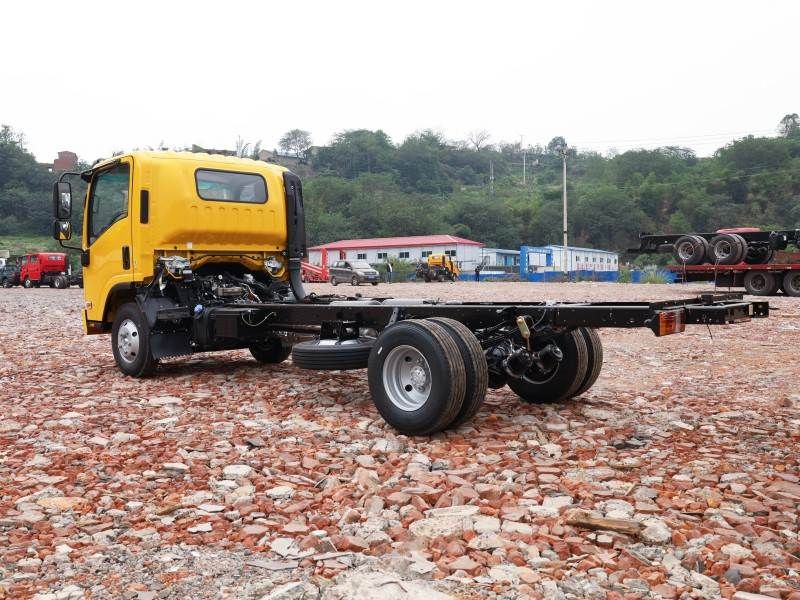

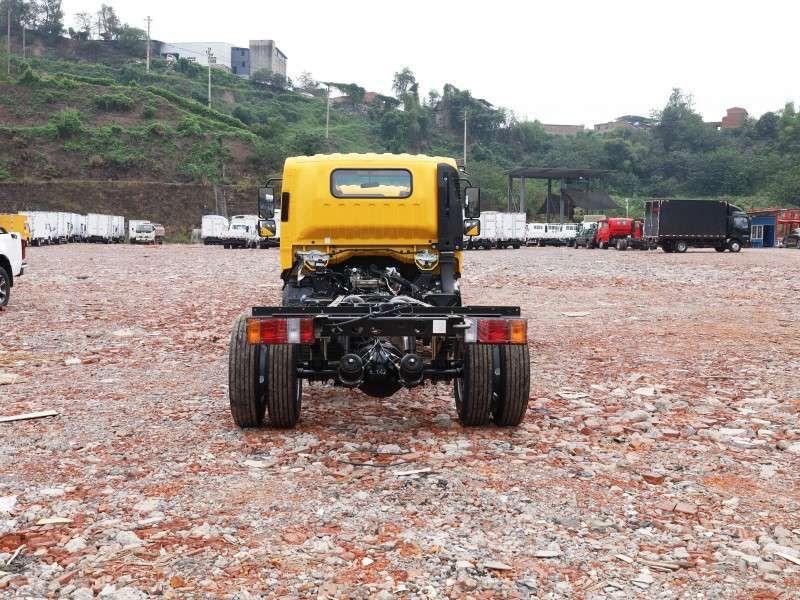

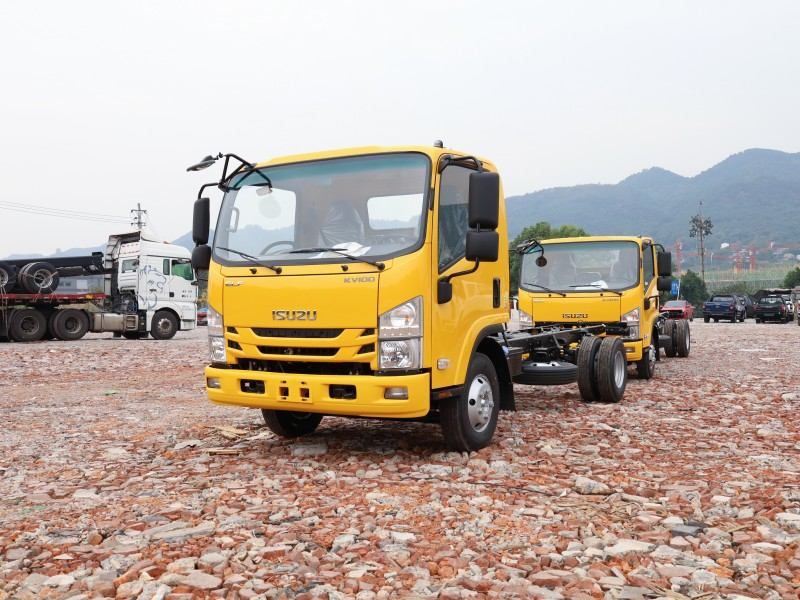

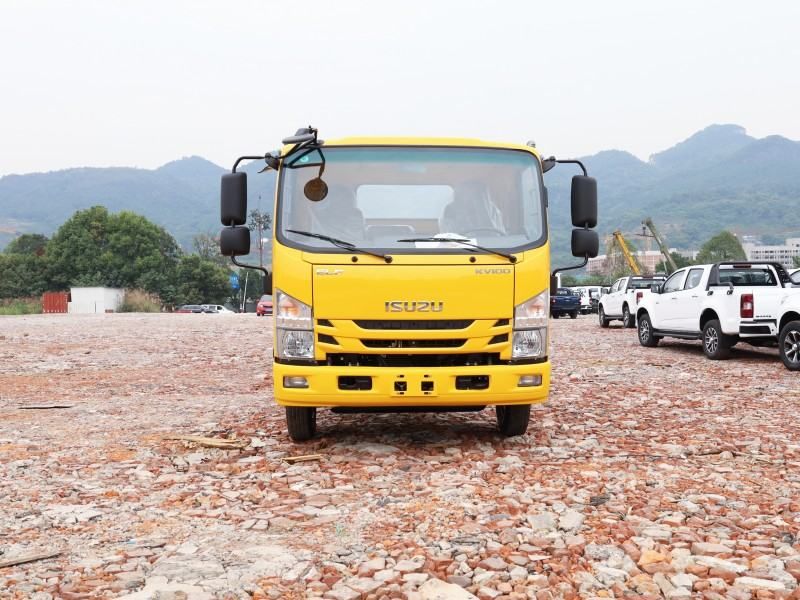

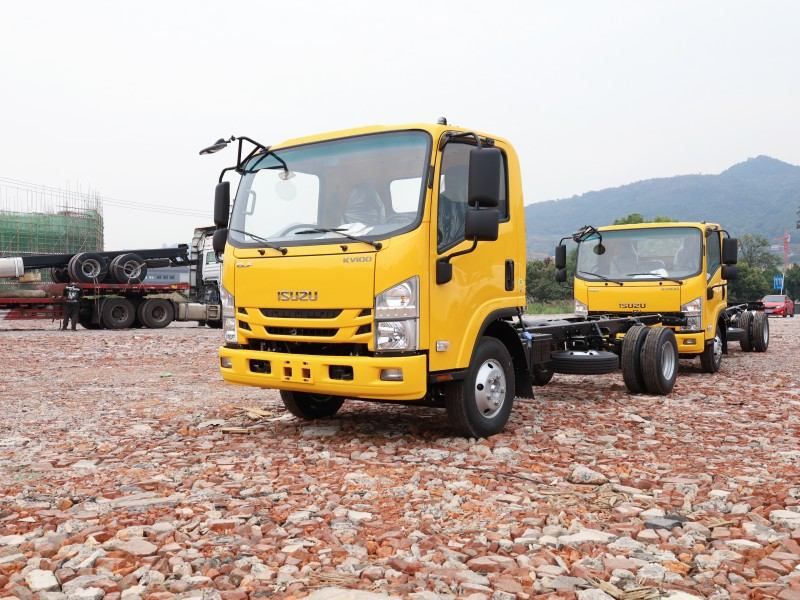

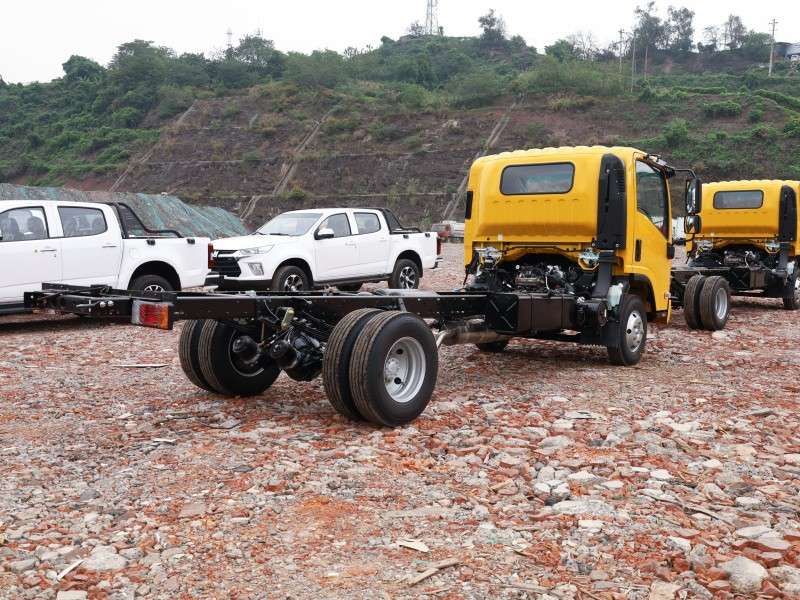

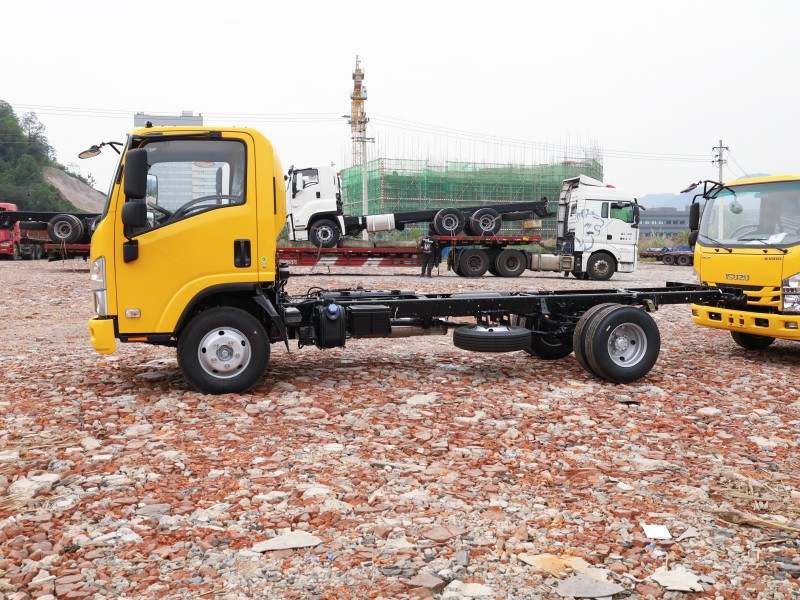

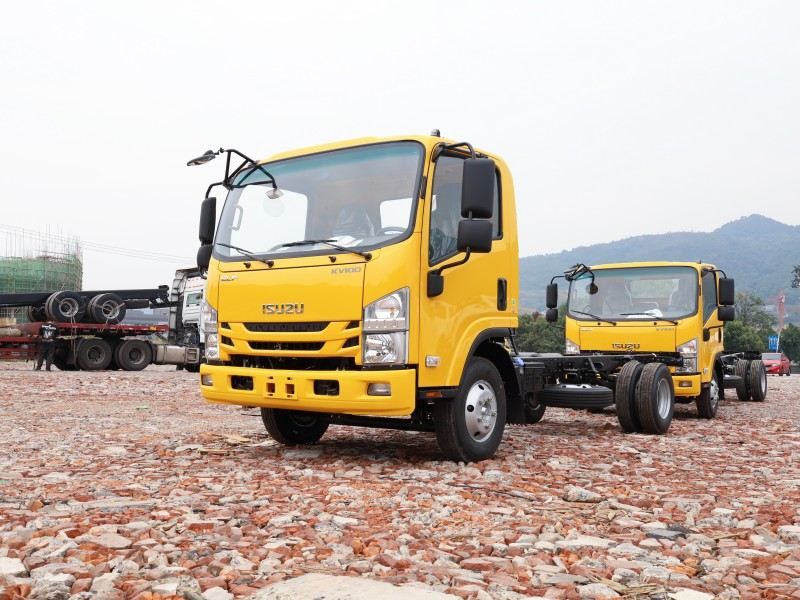

Built for demanding commercial applications, the Isuzu KV100 Single Cab Chassis offers proven Japanese engineering and durability. This reliable platform meets the stringent **China VI-B emission standard**, ensuring environmental compliance in regulated markets. Designed as a **bare chassis**, it provides the perfect foundation for custom body builds (like cargo boxes, refrigeration units, service bodies, or tippers). Expect **strong performance, excellent fuel efficiency, and low maintenance costs** – hallmarks of the Isuzu brand. Ideal for logistics, construction, utilities, and municipal services
SPECIFICATIONS
DIMENSIONS
| General information | Chassis model | KV100 CAB CHASSIS | ||||||||||
| Wheelbase(mm) | 3360 | |||||||||||
| Drive Type | 4X2 | |||||||||||
| GVW (kg) | 3950 | |||||||||||
| Curb Weight (kg) | 2030 | |||||||||||
| Cabin | single | |||||||||||
| Driver and Passenger | 3 | |||||||||||
| Engine | Model | 4KK1N6LB (120HP) | ||||||||||
| Type | 4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | |||||||||||
| Emission Standard | Euro VI (we will reduce the emission to met local market request) | |||||||||||
| Displacement (L) | 2.5 | |||||||||||
| Rated Power (kw) | 88KW | |||||||||||

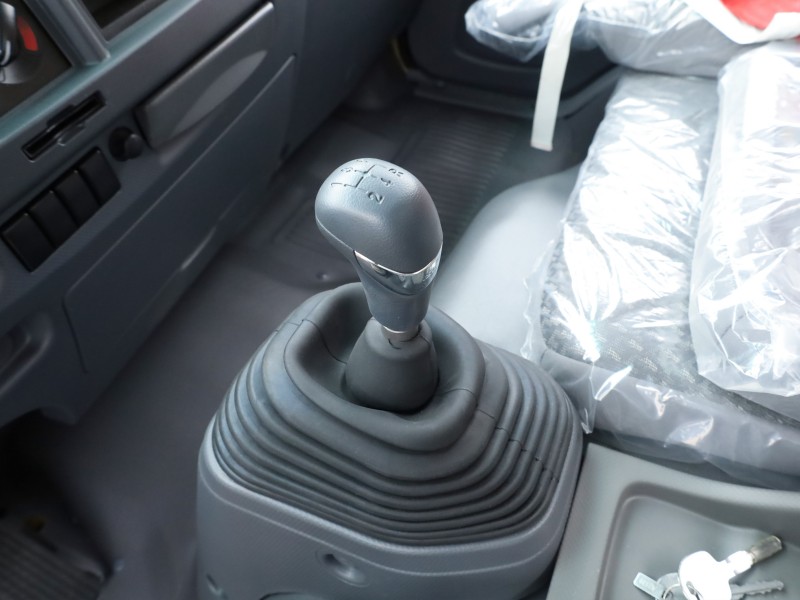

| Transmission | Model | Manual,MSB | ||||||||||
| 5 Forward + 1 Reverse | ||||||||||||
| Fuel tank | Capacity | 100L | ||||||||||
| Brake System | Brake(Air/Oil) | Oil brake | ||||||||||
| Max. Speed (km/h) | 100 | |||||||||||
| standard Configuration | Tires | 7.00R16LT 8PR | ||||||||||
| Power steering | ● | |||||||||||

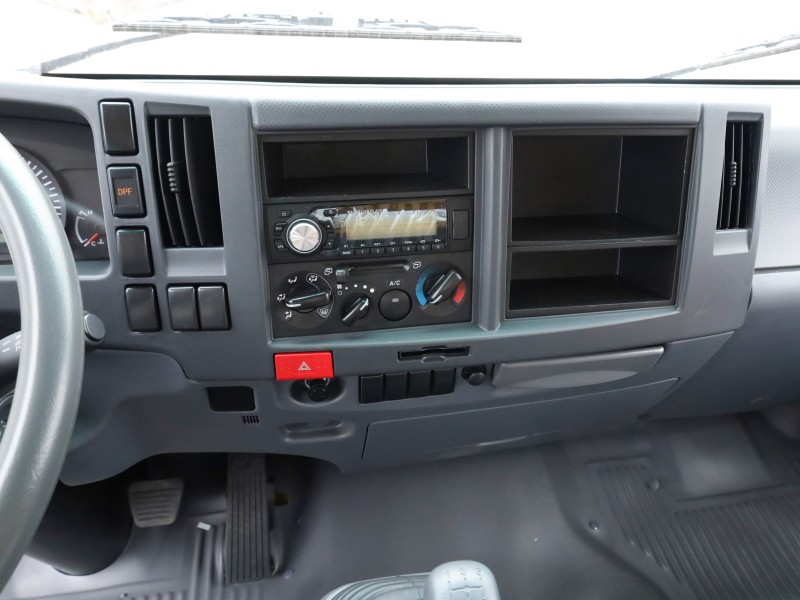

| Radio | ● | |||||||||||
| ABS | ● | |||||||||||
| A/C | ● | |||||||||||
| Tilted cabin | ● | |||||||||||
| Option configuration | Central lock | ○ | ||||||||||
| Electric window | ○ | |||||||||||
| Deflector | ○ | |||||||||||
| Dimensions | Length OAL (mm) | 5995 | ||||||||||
| Width OW (mm) | 2030 | |||||||||||
| Height OH (mm) | 2280 | |||||||||||
| Front Tread AW (mm) | 1685 | |||||||||||
| Rear Tread CW (mm) | 1525 | |||||||||||
| Front/rear suspension | 1110/1525 | |||||||||||
| Approaching departure angle | 19/16 | |||||||||||
| 1. ● means standard configuration. means option configurtaion and need extra cost 2. All above information is for reference only, and will be updated timely without notice; 3. The listed models are part of the full products range, any special request will be available on request. | ||||||||||||
