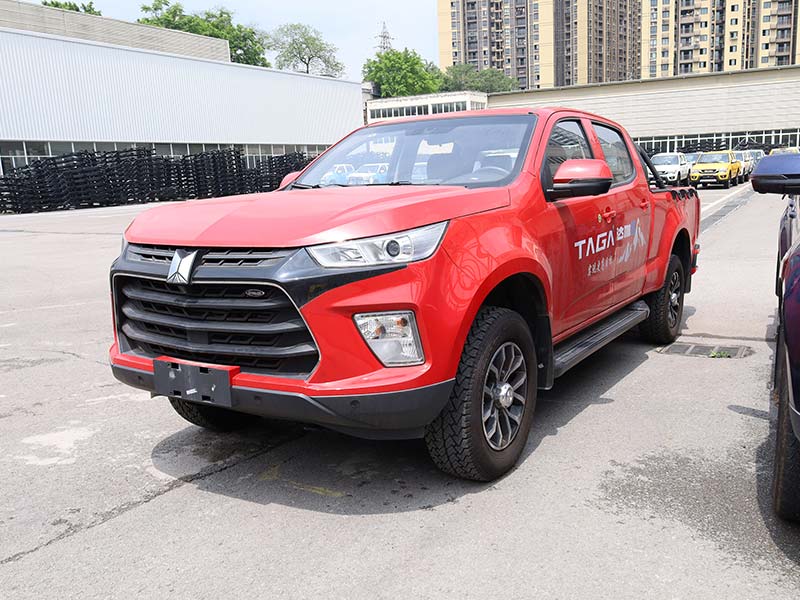

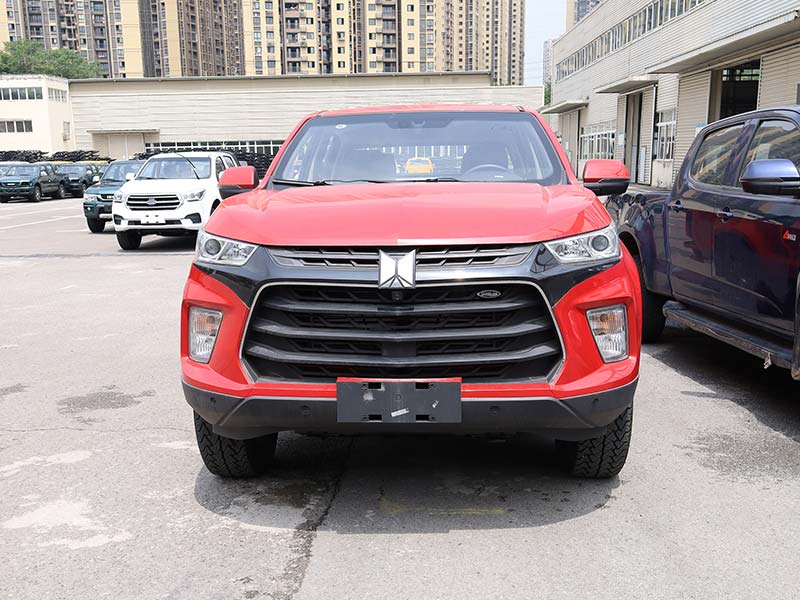

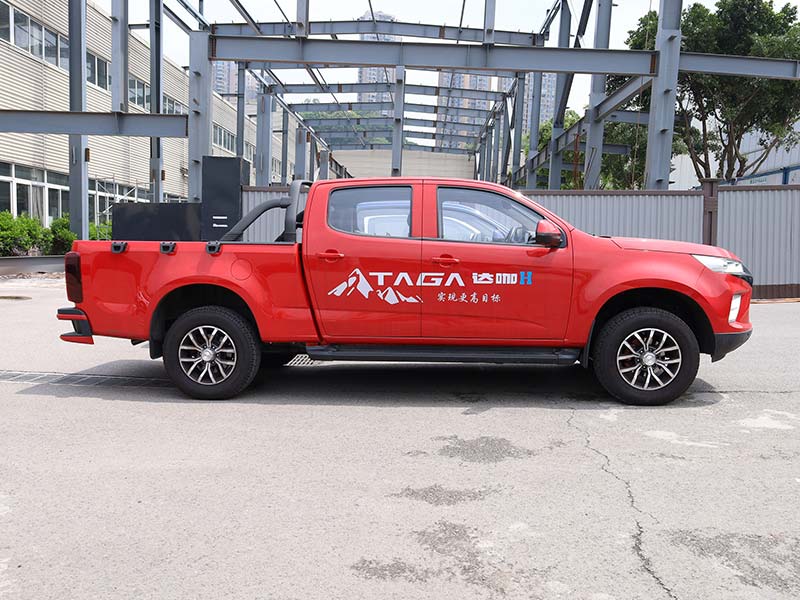

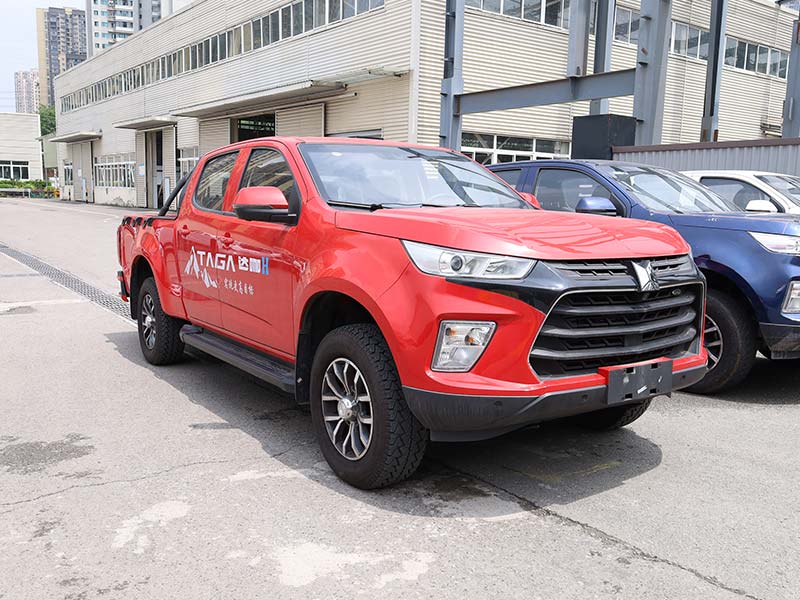

Qingling Isuzu TAGA H: A Robust Diesel Pickup – Blending Workhorse Power with Adventure-Ready Styling

Inquire Now

Body application

To Ask Us Ask For Brochure

SPECIFICATIONS

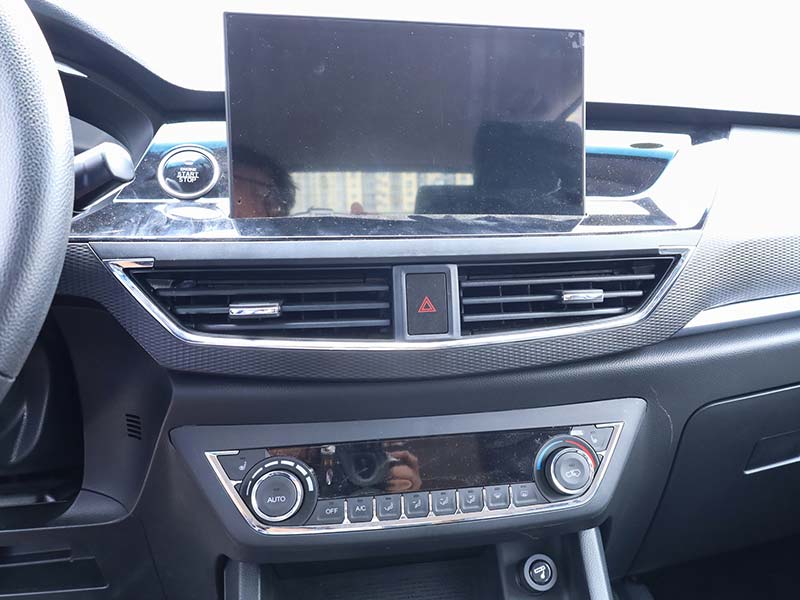

The Qingling Isuzu TAGA H Pickup combines tough durability with flexible functionality. Under the hood, its 3.0T turbo diesel engine churns out 105kW of power and 320N·m of torque, making light work of 1,000kg loads and rough off-road terrain thanks to its 4WD system. A sturdy steel chassis and 215mm ground clearance further enhance its ability to withstand harsh conditions. Inside the cabin, a 10-inch touchscreen display and comfortable seating strike a perfect balance between workday practicality and adventure-ready comfort. It’s your go-to, all-purpose companion for tackling tough jobs and embarking on getaways alike.

Engine power:	105HP
Engine type:	4KH1CT6H1
Axle drive:	4X2/4x4,LHD
Gear box:	MUA-5G
Remarks:	Qingling Isuzu TAGA H Pickup

DIMENSIONS

The Qingling Isuzu TAGA H is built to conquer the hardest challenges, beginning with its 3.0T turbocharged diesel engine. Producing 105kW of power and 320N·m of torque, it easily manages heavy weights—up to 1,000kg—and steep hills, making it perfect for building sites or distant delivery work.

Its smart 4WD system with shift-on-the-fly technology allows drivers to change between 2WD and 4WD in an instant, while the rear differential lock provides grip on muddy, gravelly, or snowy surfaces.

Based on a 3H high-strength steel frame (70% high-tensile steel), it has 215mm of ground clearance and strengthened undercarriage protection, keeping important parts safe from rocks and other debris.

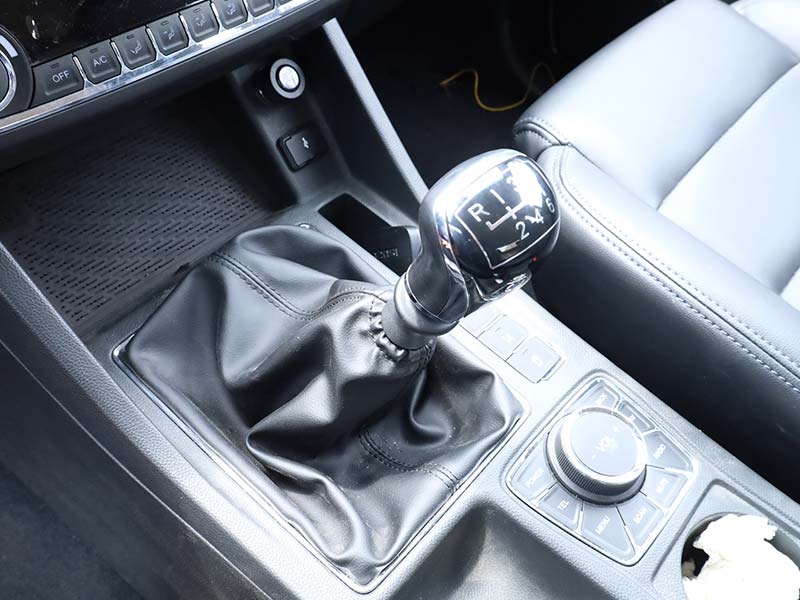

The 6-speed manual or automatic gearbox optimizes how power is sent, balancing tough performance with fuel economy—it uses just 8.2L per 100km on highways, which is great for long-distance jobs that don't need frequent stops to refuel.

TAGA Series		Elegant Version	Luxury Version	Super Luxury Version
Drive type		4X4	4X4	4X4
Wheelbase		3096	3096	3096
Curb weight		2140	2140	2140
GVW		3265	3265	3265
Cargo compartment size		1485X1540X480	1485X1540X480	1485X1540X480
Overall size		5382x1877x1830	5382x1877x1830	5382x1877x1830
Engine		4KH1CT6H1(Remove DPF)
Rated power (kW)		105	105	105
Maximum net torque Nm		310	310	310
Displacement (l)		2999 mL	2999 mL	2999 mL
Arrangement method		Inline	Inline	Inline
Intake method		Turbocharged	Turbocharged	Turbocharged
Gearbox		MUA-5G
Gearbox ratio		4.008/2.301/1.427/1.000/0.828/R3.651
Main reducer speed ratio		3.55
Security configuration	Main and Passenger Airbags	Main ●/Vice ●	Main ●/Vice ●	Main ●/Vice ●
	Force-limiting seat belt/seat belt not fastened reminder	Main ●/Vice ●	Main ●/Vice ●	Main ●/Vice ●
	Front seat belt height adjustment/rear seat belt (three-point)	●	●	●
	Remote control key, central lock in the car, automatic lock when driving, door open warning, child safety lock, front door glass automatic lift function	●	●	●
	Tire pressure monitoring system	●	●	●
	Front disc rear drum	●	-	-
	Front and rear disc	-	●	●
	Brake shoe wear alarm	●	●	●
	Engine electronic anti-theft	-	●	●
	Rear window electric heating defrosting	-	-	●
Manipulation configuration	Keyless entry, one-button start system	-	-	●
	ABS anti-lock brake	●	●	●
	Four-wheel drive electronic conversion	●	●	●
	Brake force distribution EBD	●	●	●
	Vehicle Stability Control (ESC)	-	●	●
	360 panoramic images, lane departure, driving records	-	-	●
	Cruise control	●	●	●
Internal configuration	Soft instrument panel, soft door panel	●	●	●

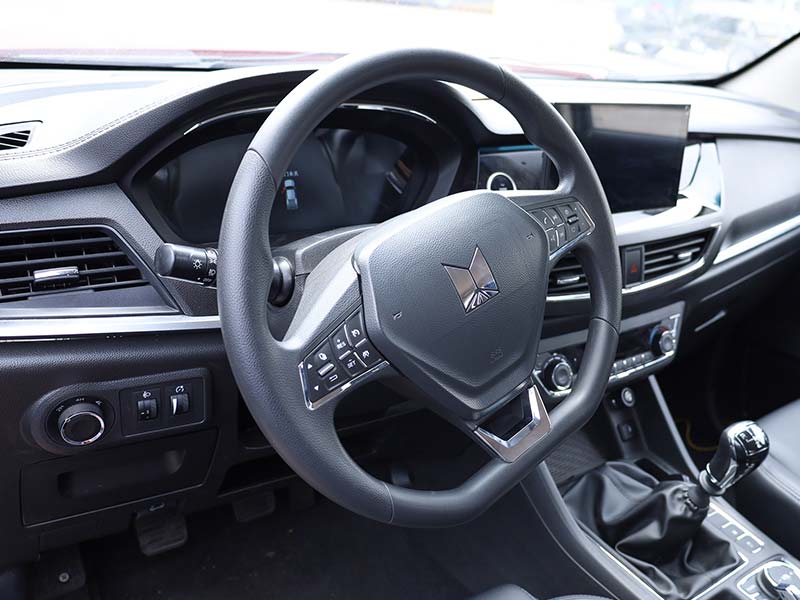

	Adjustable multifunction steering wheel	●	●	●
	Steering wheel material	PU foam	PU foam	●PU foam/O leather
	Full-screen liquid meter,instrument panel backlight brightness adjustable, driving computer display	●	●	●
	Remote control fuel tank lid lock	●	●	●
	Parking radar	Front- /Back●	Front- /Back●	Front- /Back●
	Portable ashtray	●	●	●
	Chrome-plated inner handle	●	●	●
	Large volume storage space (can hold 1.5L mineral water	●	●	●
	Rear car power supply	●	●	●

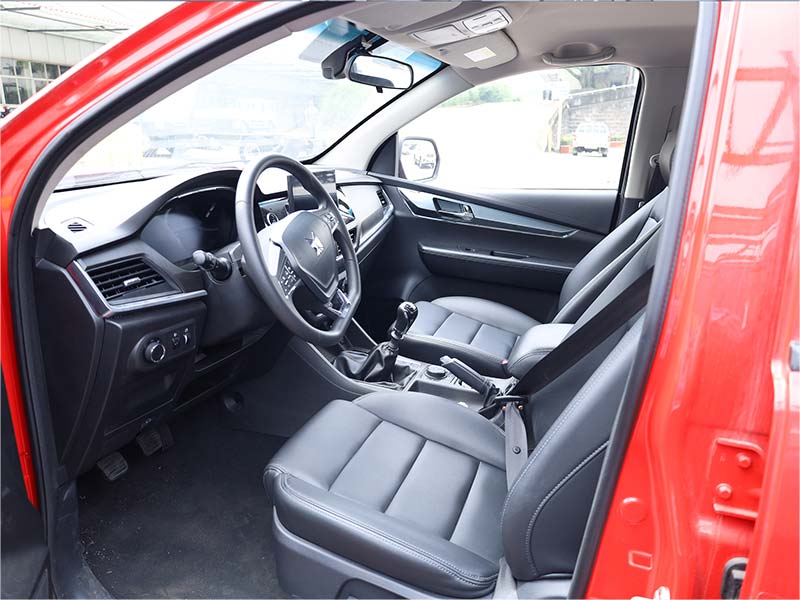

Seat configuration	Seat Material/Color	fabric/black	faux leather/black	faux leather/black
	Manually adjustable front seats	●	-	-
	Ten-item electric adjustable driver's seat / eight-item electric adjustable co-pilot seat	-	●	●
	Driver's seat lumbar support	-	●	●
	Rear seat down method	Four or six down	Four or six down	Four or six down
	Rear center armrest	●	●	●
Multimedia configuration	Intelligent Interconnection System (Internet of Vehicles)	-	o	o
	MP5 (high configuration version): Real-time color large screen, radio, GPS+BD dual-mode navigation, USB, Bluetooth/car phone, mobile phone interconnection, mobile phone charging, voice recognition, reversing image, 360 panoramic image	-	-	●
	MP5 (middle version): Real-time color large screen, radio, USB, Bluetooth/car phone, mobile phone interconnection, mobile phone charging	●	●	-
	360 panoramic image	-	-	●
	Number of speakers	4	4	6
Lighting configuration	Lens low /high beam light	halogen	halogen	halogen
	C-shaped LED daytime running lights	●	●	●
	Turning auxiliary lights (turning auxiliary lights and front fog lights are optional at the same time)	-	●	●
	Front/Rear Fog Lights	Front- /Back●	Front ●/Back ●	Front ●/Back ●
	Front and rear reading lights	●	●	●
	High mount brake light	●	●	●

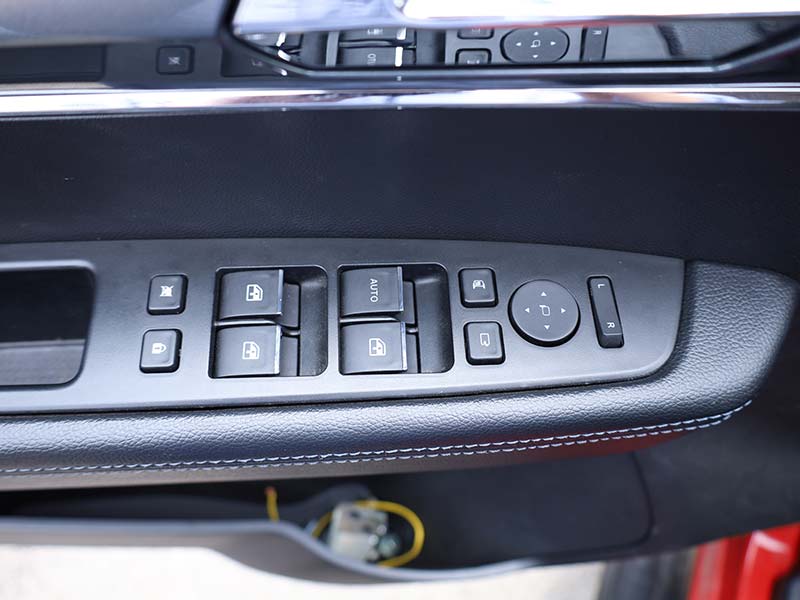

Glass/mirror	Electric windows	Front ●/Back ●	Front ●/Back ●	Front ●/Back ●
	Electric rearview mirror with electric folding heating/with side turn signal	●	●	●
	Glasses case	●	●	●
	Sun visor vanity mirror	Left ●/Right ●	Left ●/Right ●	Left ●/Right ●
Air Conditioning System	Rear air outlet	-	●	●
Air Conditioning System	Automatic air conditioner	-	●	●
External configuration	Cargo box treasure or spray anti-wear layer	o	o	●
	Non-slip side steps	o	●	●

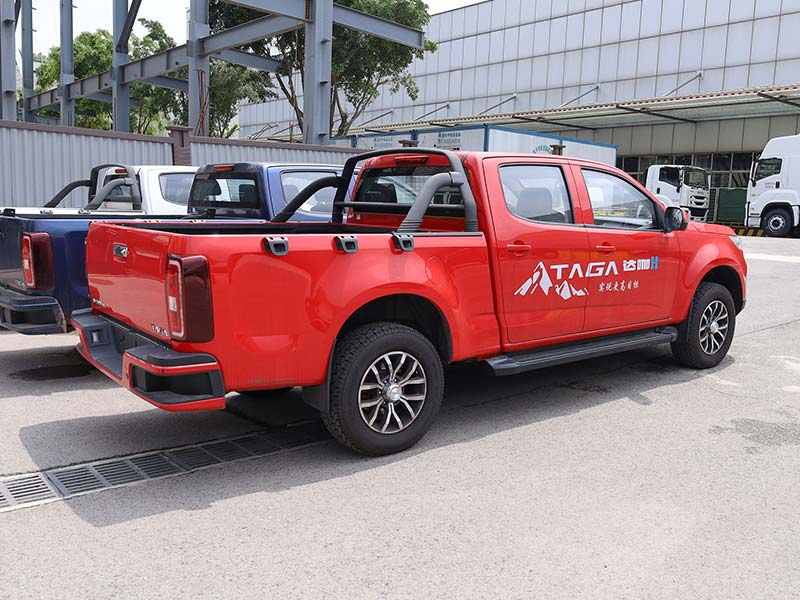

	Cargo box roll cage/external independent rope hook/pedal type rear bumper	●	●	●
	Body-colored door handles/chrome-plated door handles	●/o	●/o	●/o
	Headlight trim	paint	paint	paint
	Automatic induction intermittent adjustable wiper	-	●	●
	Tire specifications	245/70R18	245/70R20	245/70R22
	Aluminum alloy steel ring and decorative cover	●	●	●
	Tank	Plastic fuel tank 77L	Plastic fuel tank 79L	Plastic fuel tank 81L
Engine cover	Fully enclosed decorative cover	-	●	●
	Front trim cover	●	●	●
	Air strut	●	●	●
Interior color	Dashboard	black	black	black
	Dashboard right trim panel	black	black	Black o dark brown faux leather covering
	Door handle	Black faux leather upholstery	Black faux leather upholstery	Black faux leather upholstery
	Door trim cover/door trim strip	black/chrome	black/chrome	black/chrome
