Body application
SPECIFICATIONS
A flexible, high-powered commercial truck chassis designed for city logistics, construction work, and custom modifications. It comes with the 4KB1 diesel engine—boasting 360 N·m of torque—providing strong performance alongside fuel efficiency, consuming 11-12 liters per 100 kilometers. Though lightweight, it’s built to last: with a curb weight of 2.7 tons and a payload capacity of 1.8-5 tons, it can accommodate refrigerated units, flatbeds, and specialized body designs. Meeting Euro 6 and China 6b standards, it features a DPF+SCR aftertreatment system to guarantee low emissions and regulatory compliance. Thanks to an engine built to endure 600,000 kilometers and require little upkeep, it stands as a cost-efficient option for fleet operations. For personalized solutions, visit [website] or reach out at +86 191 1204 2858
| Work capacity: | 2-5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu 100P light truck chassis |
DIMENSIONS

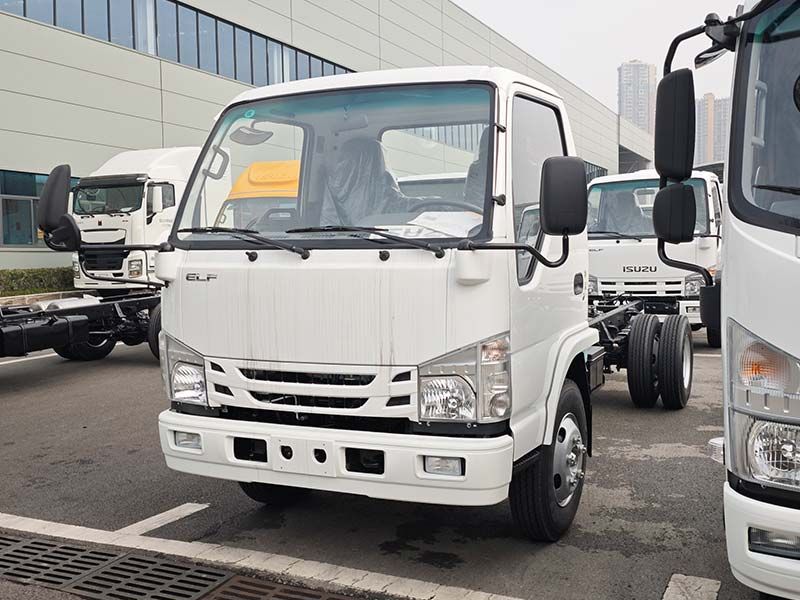

The Isuzu 100P Chassis Cab sets a new standard for commercial truck dependability, thanks to its powerful 4JB1-CN turbocharged diesel engine. This engine generates 220 N·m of torque at 1,700 rpm, making it capable of handling the most demanding urban and intercity logistics tasks. Mated to a 5-speed manual transmission (ISUZU MSB-5MT) and a reinforced ladder-frame chassis, the 100P can carry payloads of up to 4.5 tons while keeping its curb weight light at 2.55 tons—this balance ensures excellent fuel efficiency, averaging 11-12 liters per 100 kilometers. Its front and rear suspension system, which includes semi-elliptical leaf springs paired with double-acting shock absorbers, provides a smooth ride even over rough ground. Meanwhile, the drum brake system with ABS delivers reliable stopping power when needed. Meeting Euro IV/V emissions standards (equipped with DPF+DOC aftertreatment), the 100P complies with global environmental regulations without sacrificing performance. Built to withstand 600,000 km of heavy-duty use, its engine undergoes over 1,000 hours of endurance testing and is backed by a 5-year/200,000 km warranty, offering added reassurance. Notable technical features include a 100-liter fuel tank, 7.00R16 radial tires, and a 3360mm wheelbase—all contributing to its agile handling in tight spaces. Whether outfitted as a refrigerated vehicle, flatbed, or fire engine, the 100P’s modular design allows for easy integration with specialized bodies. This versatility makes it the top pick for fleets that value durability and adaptability above all else.
| General information | Chassis model | 100p light truck chassis | ||
| Wheelbase(mm) | 3360 | |||
| Drive Type | 4X2 | |||
| GVW (kg) | 7300 | |||
| Curb Weight (kg) | 2250 | |||
| Cabin | single | |||
| Driver and Passenger | 2 | |||

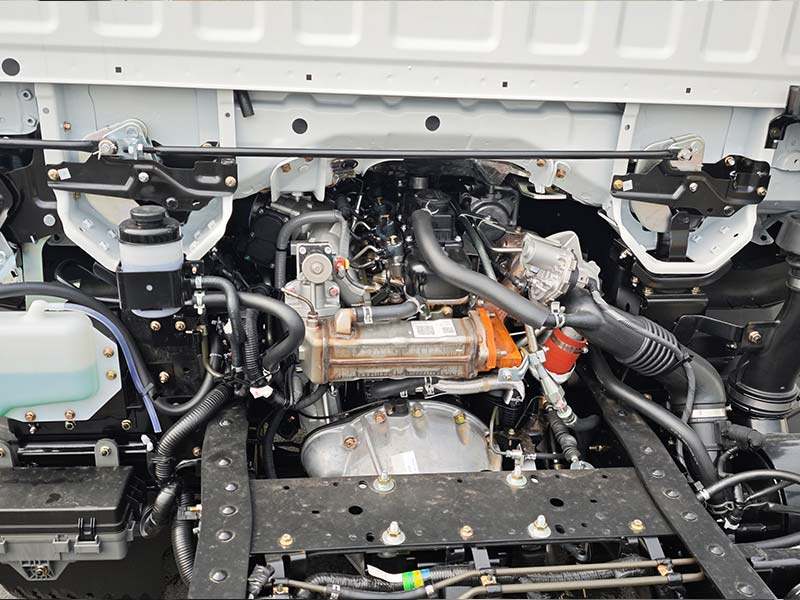

| Engine | Model | 4KH1CN6LB | ||
| Type | 4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | |||
| Emission Standard | Euro VI | |||
| Displacement (L) | 2.999 | |||
| Rated Power (kw/rpm) | 88kw | |||
| Max. Torque (N.m/rpm) | 290N.m | |||
| Transmission | Model | Manual,MSB | ||
| 5 Forward + 1 Reverse | ||||
| Brake System | Service brake | Double circuit, air drive | ||
| Brake(Oil/Air) | air brake | |||
| Parking brake | Central drum brake | |||
| standard Configuration | Tires | 7.00R16LT 14PR,7.00-16LT 14PR | ||
| Power steering |  ● | |||
| Radio | ● | |||
| ABS | ● | |||
| A/C | ● | |||
| Tilted cabin | ● | |||
| Exhuast brake | ● | |||
| Option configuration | Central lock | ● | ||
| Electric window | ● | |||
| Deflector | ● | |||

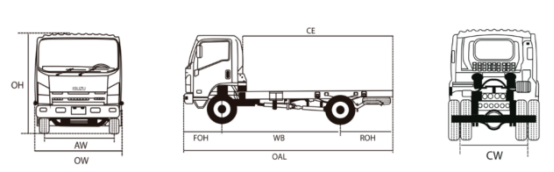

| Dimensions | Length OAL (mm) | 5900 | ||
| Width OW (mm) | 1880 | |||
| Height OH (mm) | 2200 | |||
| Front Tread AW (mm) | 1504 | |||
| Rear Tread CW (mm) | 1425 | |||
| 1. ● means standard configuration. ○ means option configurtaion | ||||
| 2. All above information is for reference only, and will be updated timely without notice; | ||||
| 3. The listed models are part of the full products range, any special request will be available on request. | ||||

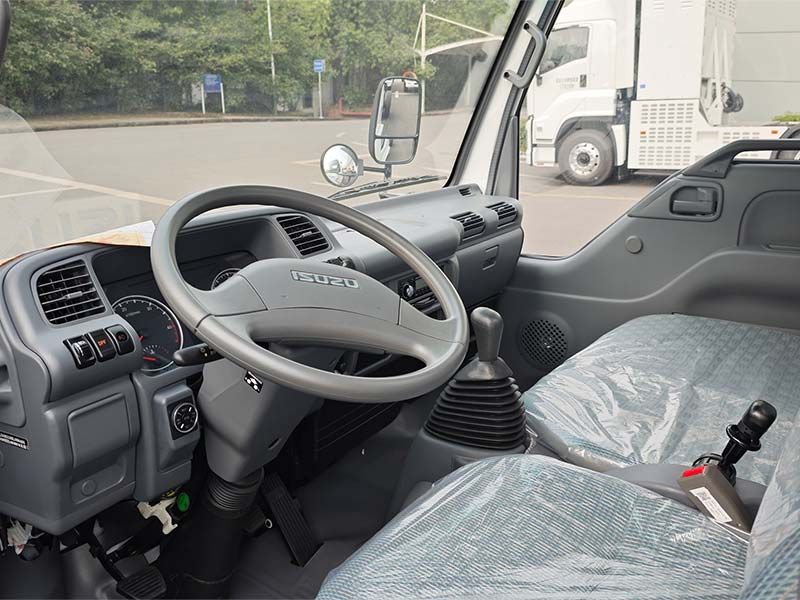

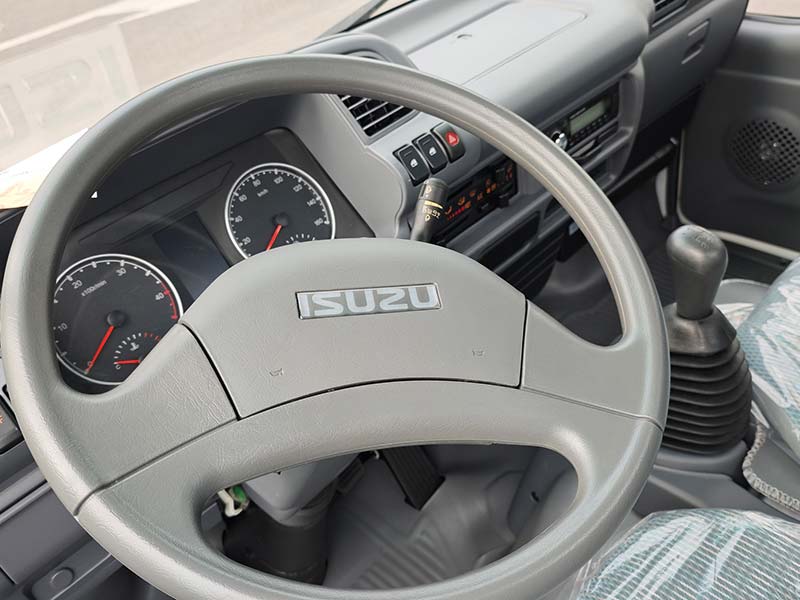

Whether it’s e-commerce deliveries or emergency services, the Isuzu 100P Chassis Cab shines in high-stakes applications. Its compact 5.95-meter total length and 13.6-meter turning radius make navigating crowded city streets a breeze, while the 1.88-meter-wide chassis easily accommodates custom setups—such as 4.275-meter-long refrigerated units for pharmaceutical transport or 5-ton dump bodies for construction sites. A major Chinese logistics firm saw a 20% reduction in delivery times and 30% lower maintenance costs after switching to the 100P, attributing the gains to its minimal downtime and extensive national service network. The driver-focused cabin, outfitted with air conditioning, power steering, and a 7-inch infotainment system, boosts comfort during long workdays, while the reinforced cab design prioritizes safety in high-impact situations. Recent export wins include 2 units of 100P dump trucks sent to Angola for mining use and a 2,500-liter water rescue fire engine now in service with Albania’s emergency teams. With over 100,000 units sold worldwide, the 100P is relied on by Walmart, Pfizer, and municipal fleets for its consistent dependability. Supported by Isuzu’s 24/7 assistance network—featuring preventive maintenance plans and access to genuine parts—it keeps downtime to a minimum and maximizes return on investment. Upgrade your operations with a chassis built to excel, no matter the environment.
