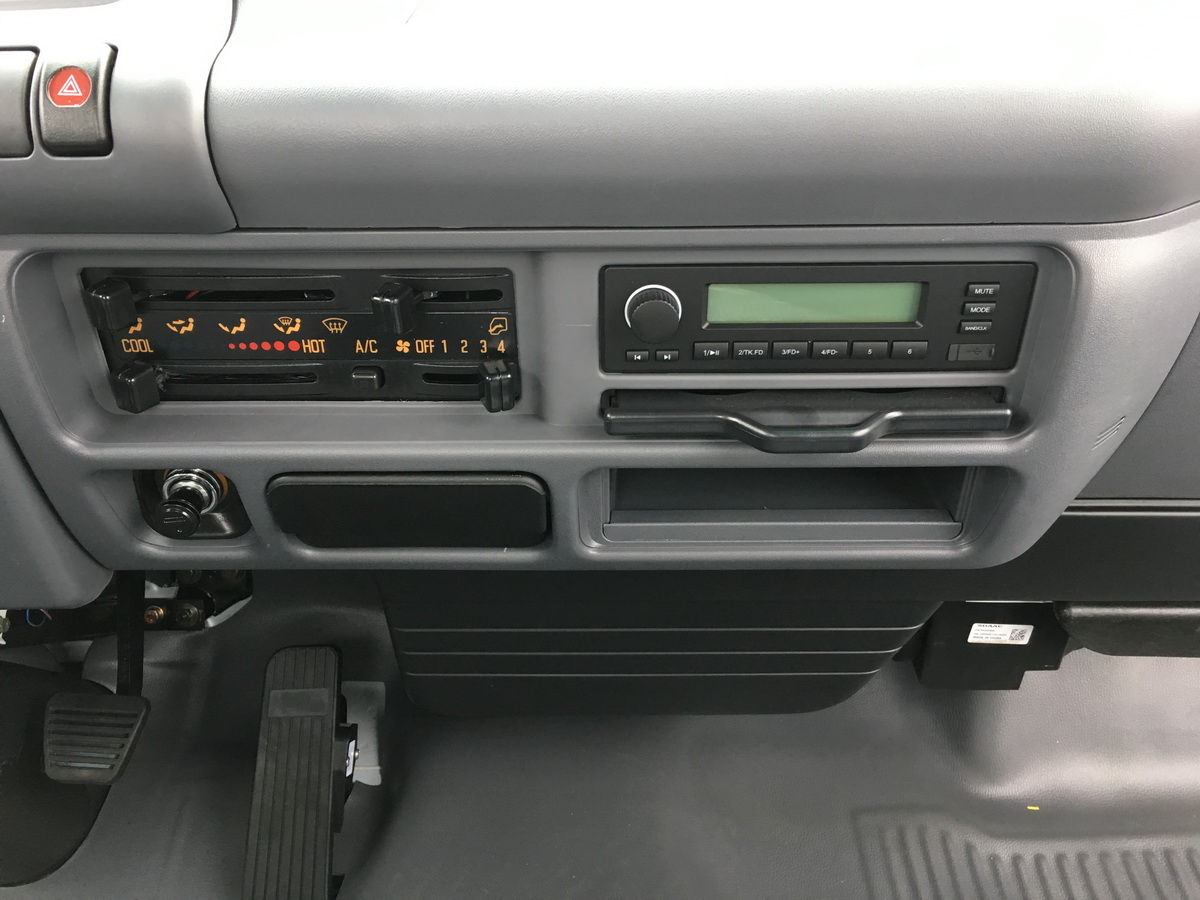

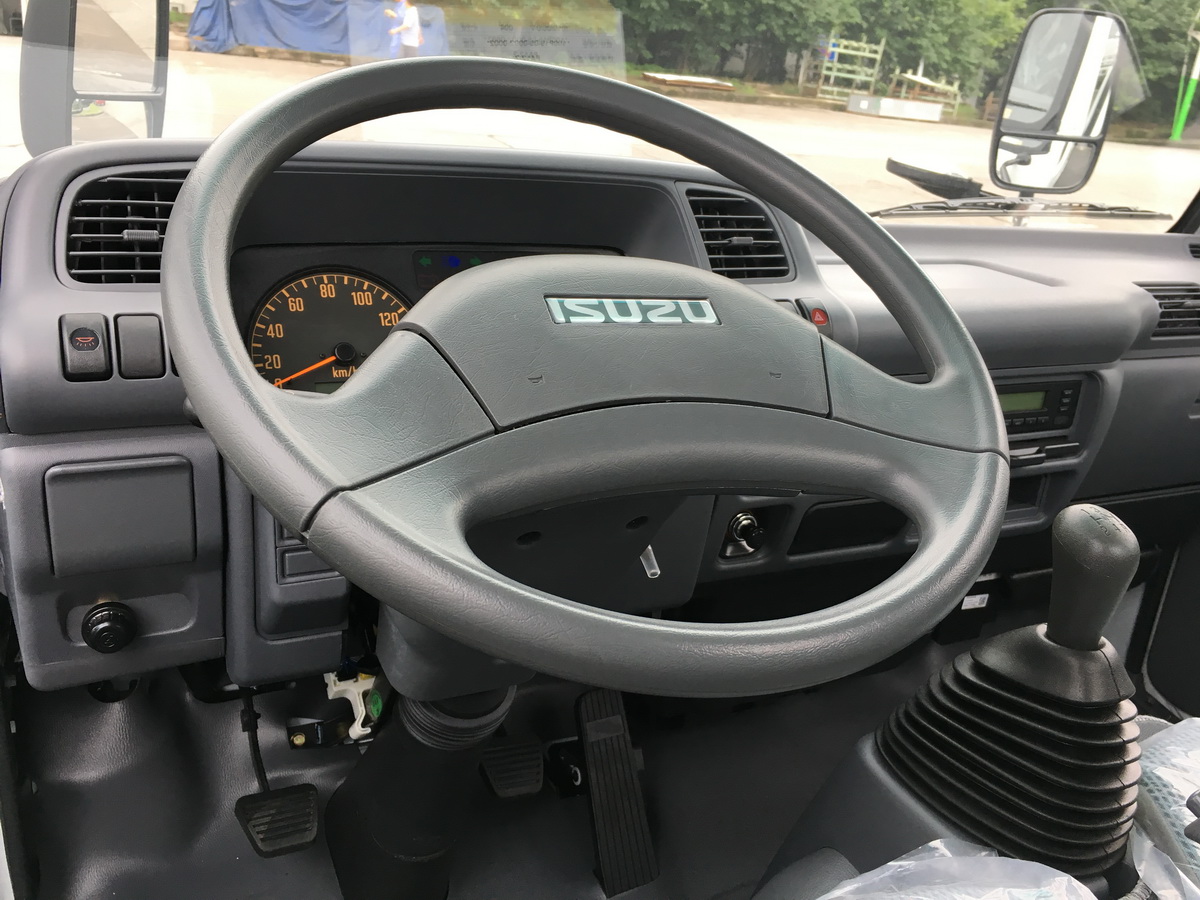

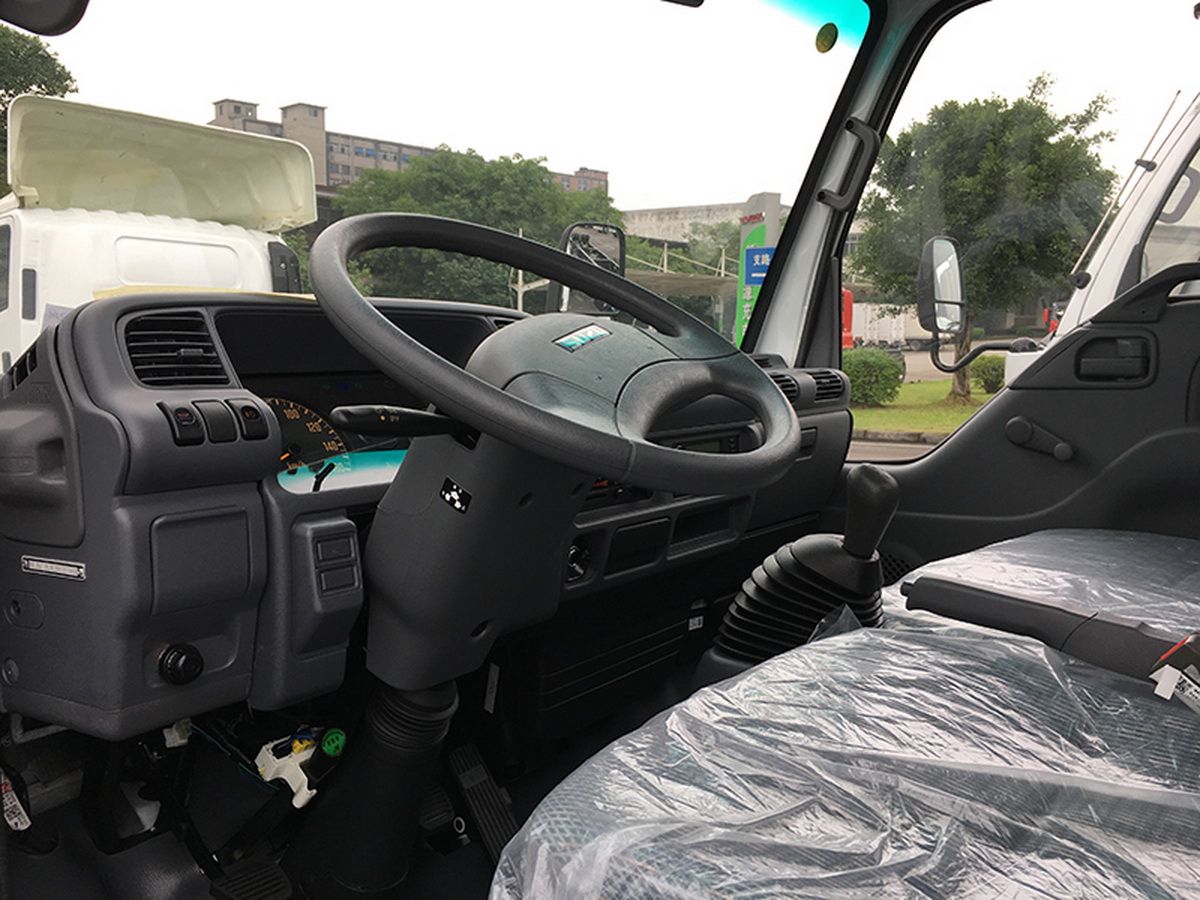

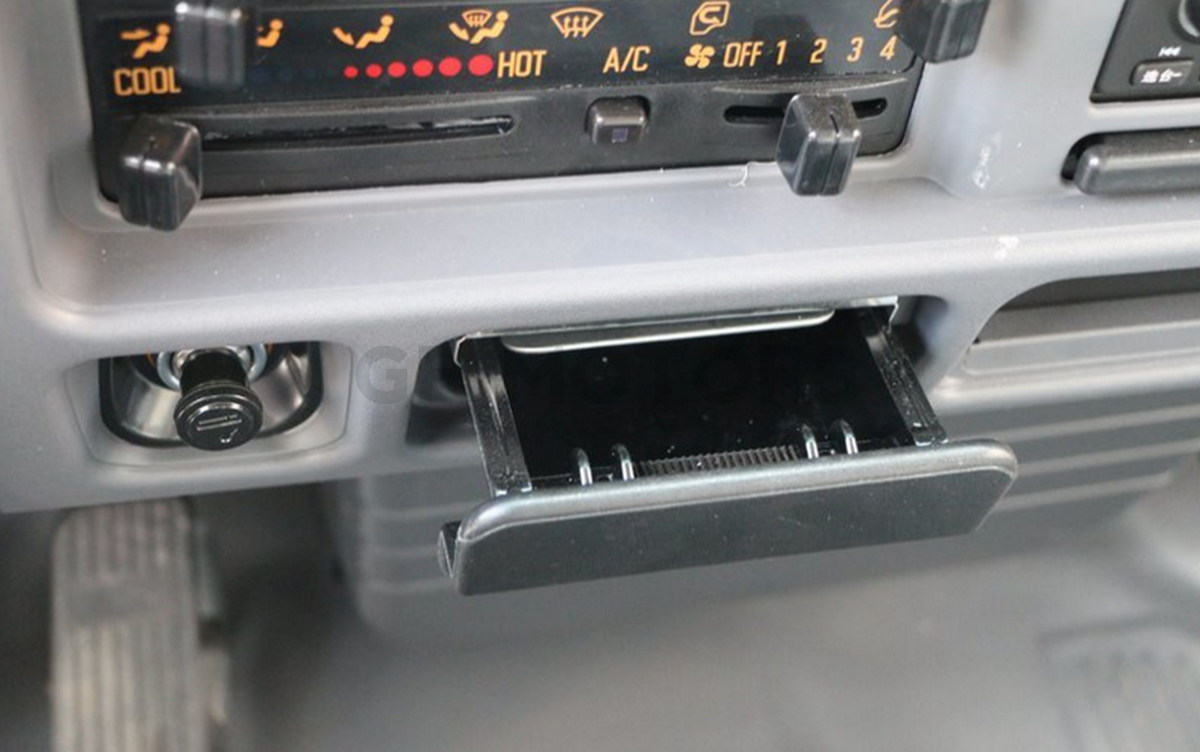

ISUZU NKR 100P CABIN CHASSIS TRUCK

Inquire Now

Maximum power up 9%

Torque up 10%

Body application

To Ask Us Ask For Brochure

SPECIFICATIONS

Model No.
		QL10403EARY	QL10403FARY	QL10503HARY	QL10703KARY
Wheelbase
Wheelbase	(mm)	2490	2765	3360	3815
Drive Type
		4 × 2
Weight& Capacities
GVW	(kg)	4200	4380	5250	7130
Curb Weight	(kg)	1680	1810	1850	2050
Pay Load	(kg)	2000 ~ 4500
Cabin
Type		Single
Driver & Passenger		1+1
Engine
Model		4JB1-CN
Type		4 cylinders in line, turbo charging, inter cooling, high pressure common-rail diesel injection system, liquid-cooled engine
Emission Standard		EURO IV
Displacement	(L)	2.771
Rated Power	(kw/rpm)	72(98hp)/3400
Max. Torque	(N.m/rpm)	220/1700
Transmission
Model		manual, ISUZU MSB-5S (5 forward+1 reverse)	manual, ISUZU MSB-5MT,(5 forward+1 reverse)
Gear Ratio		5.016/2.524/1.489/1.000/0.713/R:4.783	5.594/2.814/1.660/1.000/0.794/R:5.334
Clutch
Type		dry,single plate with cushioning spring
Axle Load
Front (type)		reverse Elliot "I" beam
Front	(T)	2.2	2.5	2.5	2.5
Rear (type)		Banjo,full floating type
Rear	(T)	3	4.8	4.8	4.8

DIMENSIONS

Model No.
		QL10403EARY	QL10403FARY	QL10503HARY	QL10703KARY
Dimensions

Wheelbase WB	(mm)	2490	2765	3360	3815
Overall Length OAL	(mm)	4605	5230	5900	6645
Overall Width OW	(mm)	1695	1860	1860	1880
Overall Height OH	(mm)	2105	2180	2180	2220
Front Overhang FOH	(mm)	1015	1015	1015	1015
Rear Overhang ROH	(mm)	1100	1450	1525	1815
Front Tread AW	(mm)	1385	1385	1385	1504
Rear Tread CW	(mm)	1395	1425	1425	1425
Remark:
1. ● means standard configuration. 2. All above information is for reference only, and will be updated timely without notice; 3. The listed models are part of the full products range,any special request will be available on request.
