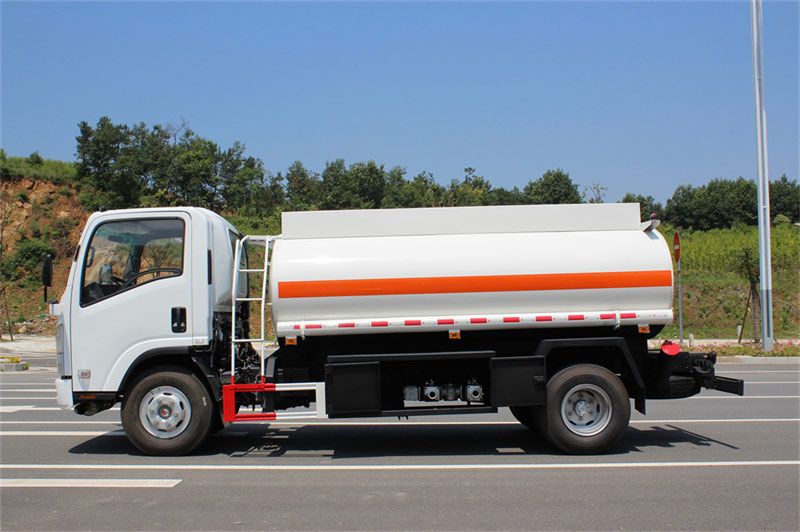

Isuzu 3000 gallons oil tanker truck
Work capacity:5000L
Engine power:190 HP
Engine type:ISUZU 4HK1
Axle drive:4x2
Gear box:Isuzu MLD6 speed
Remarks:rear refueling box
Body application
SPECIFICATIONS
| Isuzu 3000 gallons oil tanker truck | |||
| Vehicle model | PT5110FTT | ||
| Chassis model | Isuzu NPR | ||
| Overall dimensions | mm | 6390*2200*2350 | |
| Fact cubage | L | 5000 | |
| Curb weight | kg | 3385(ref) | |
| Wheel base | Mm | 3360 | |
| Engine | Displacement/power | 5196mL/190HP | |
| Model | 4HK1-TCG61 | ||
| Torque/speed | 507N.m/2600rpm | ||
| Max speed | km/h | 90 | |
| Tire specification | 235/75R17.5 | Drive seat | LHD |
| Electric system | 24v | transmission | 6speed,6 Forward ,1 reserve |
| Color | According to customer wish | ||
| Tanker | capacity | 5000L | |
| materials | carbon steel | ||
| Tank Thickness | 4mm | ||
| Head Thickness | 4mm | ||
| Shape | Oval shape,or square shape | ||
| Fuel outlet | 2nos nozzle at below of side tank , | ||
| Fuel inlet | From Manhole , or pump in from outlet nozzle | ||
| Pump | china band , 30M3/h, 0.4MPa,970r/min | ||
| Pump power | PTO from engine | ||
| Department | 1,can be seperated into different parts | ||
| manhole | 1nos,same with department number | ||
| Pipe | Two numbers of steel pipe for discharge/charge oil | ||
| Work way Diamond plate at top of tank | |||
| safety | Static wire | ||
| 2Bottle of fire extinguisher | |||
| Folding type fence at top of tank | |||
| Refuel equipment optional | Fuel Dispenser | ||
| Refilling pipe with gun | |||
| Optional | ** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker). ** lt can be divided into many compartments. ** lmported American pump as optional ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, levelgauge, etc ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. | ||
DIMENSIONS
