The engineering vehicle assembly process encompasses chassis preparation, key component installation, power and control system assembly, and comprehensive testing. Automated production lines, particularly robotic welding and automated assembly, enhance manufacturing efficiency and precision. Manufacturing Execution Systems (MES) strengthen production monitoring and quality management. The use of industrial robots reduces manpower requirements and improves operational stability and safety.
An overview of the structure, assembly process, automated production line, MES (Manufacturing Execution System), and industrial robots of engineering vehicles:
Construction Vehicle StructureThe structure of a construction vehicle typically includes the following key components:
- Chassis: Provides basic support for the vehicle and can be specially designed or a modification of an existing model.
- Working Mechanism: Depending on the specific purpose of the vehicle, this may include a crane boom, bucket, mixer drum, etc.
- Powertrain: Provides power to the vehicle and may include an internal combustion engine or electric motor.
- Control System: Includes control devices in the cab and, possibly, remote control systems.

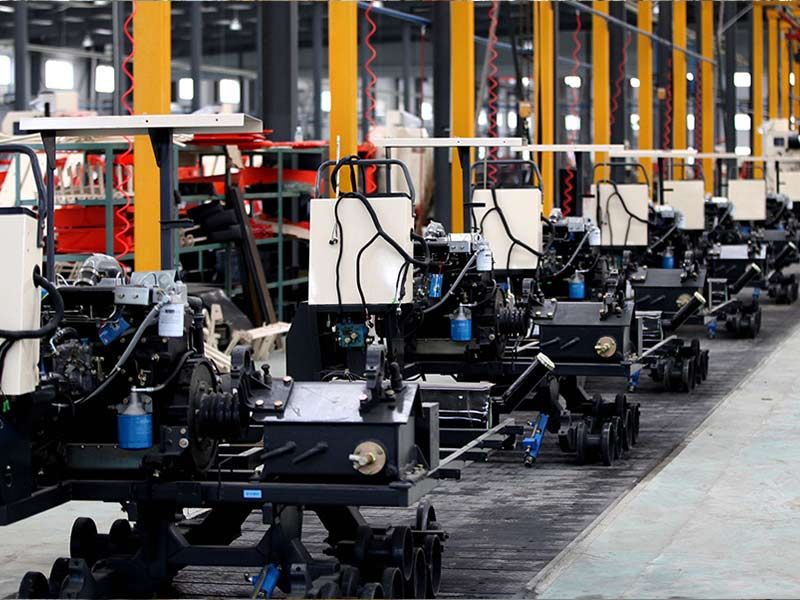

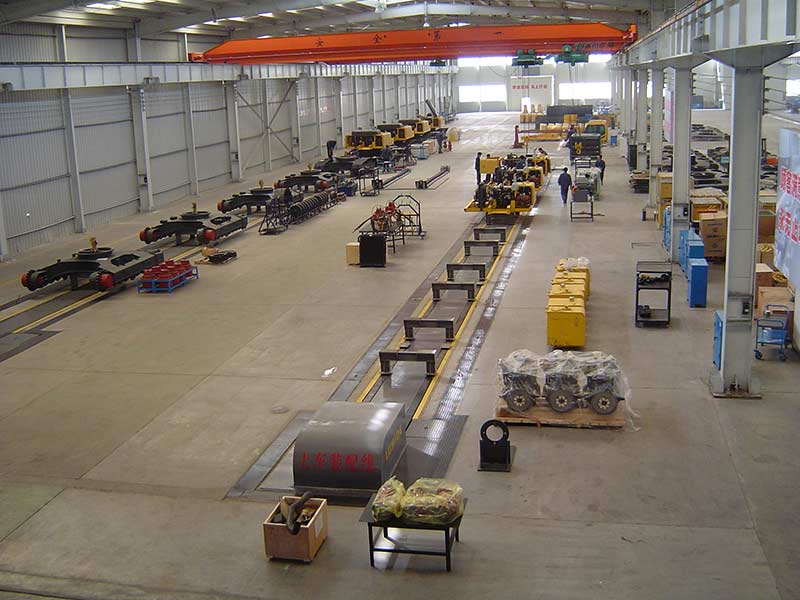

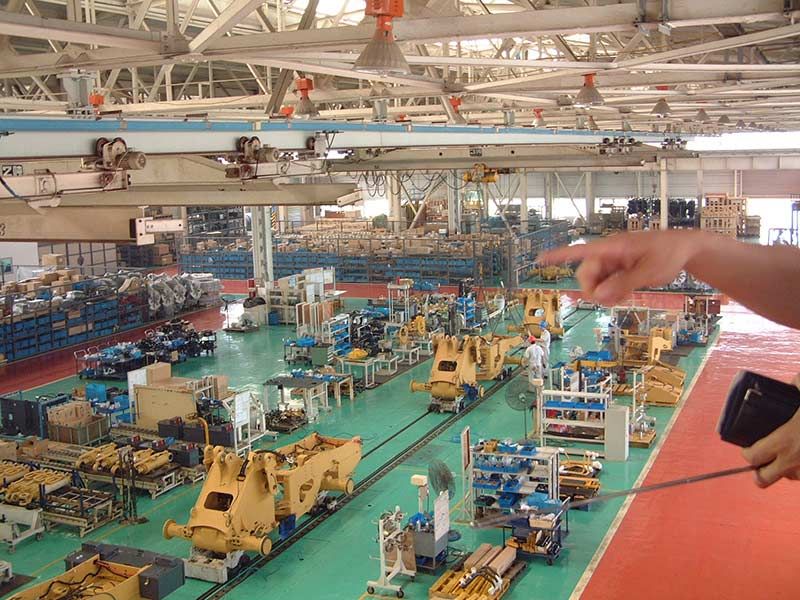

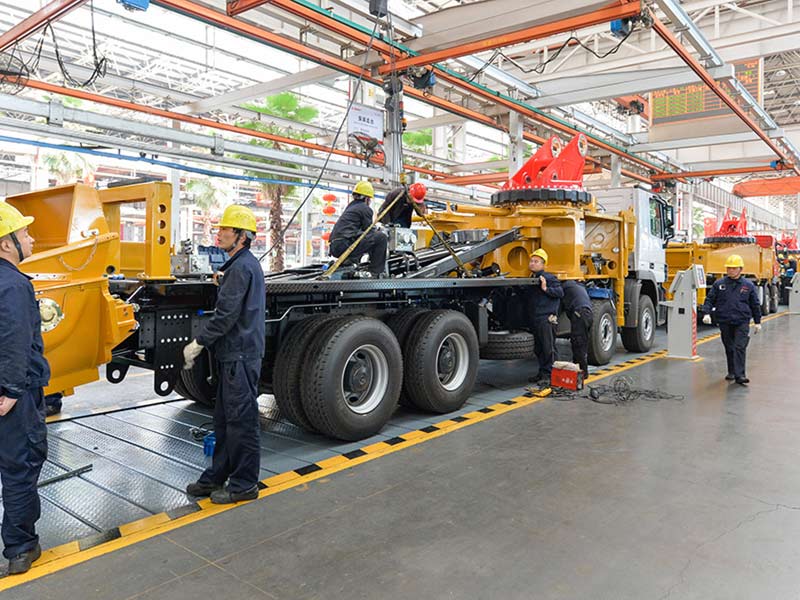

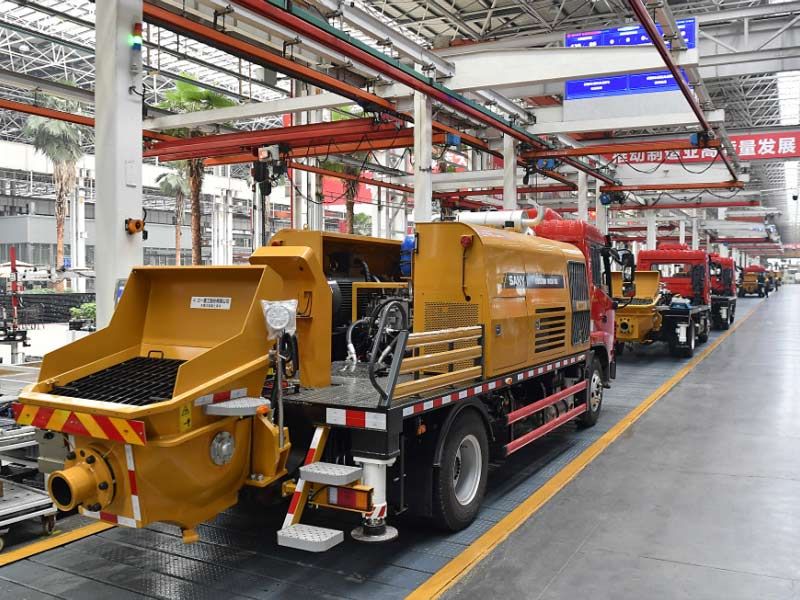

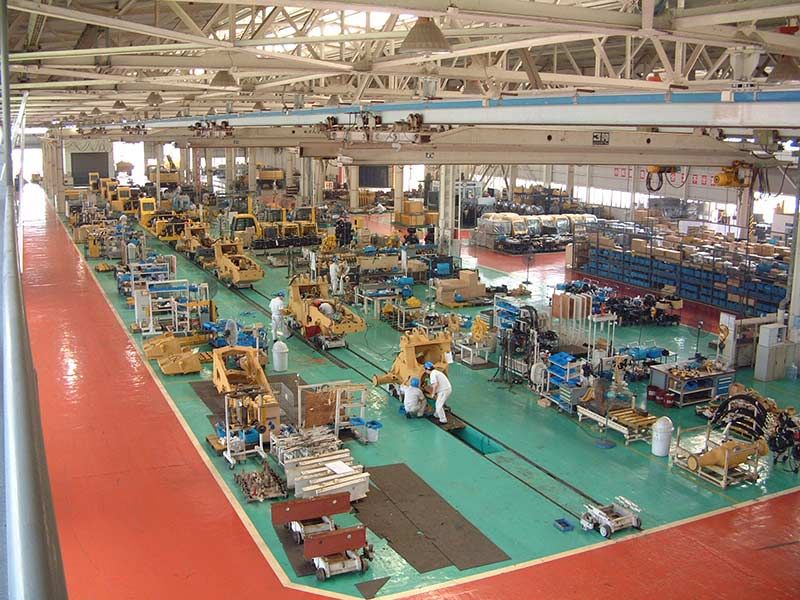

Assembly Process
- Chassis Preparation: Modifying and reinforcing the chassis according to the specific requirements of the construction vehicle.
- Working Mechanism Installation: Installing key working components such as the crane boom, bucket, or mixer drum onto the chassis.
- Powertrain Assembly: Installing the engine or electric motor and connecting it to the working mechanism.
- Control System Wiring: Laying out and connecting the vehicle's electrical systems, including the control system.
- Functional Testing: Testing the working mechanism and control system to ensure they function as designed.
Automated Production LineAutomated production lines for construction vehicles may include:
- Robotic Welding: Automated welding of the vehicle's main structural components.
- Automated Component Assembly: Automated assembly of large components, such as crane arms or mixing drums, using robotic arms.
- Conveying Systems: Moving vehicles between different workstations to complete various assembly steps.
MES (Manufacturing Execution System)Applications of MES systems in engineering vehicle production include:
- Production Scheduling: Scheduling work for each process on the production line.
- Data Collection: Collecting data from the production process for analysis and improvement.
- Quality Management: Monitoring production quality to ensure products meet standards.
Industrial RobotsApplications of industrial robots in engineering vehicle manufacturing include:
- Precision Welding: Improving welding accuracy and efficiency.
- Heavy Load Handling: Moving large or heavy components, such as crane arms or mixing drums.
- Assembly Automation: Automating the execution of highly repetitive assembly tasks.
Summary
The structure and function of engineering vehicles are designed specifically to meet the needs of engineering operations. Their assembly processes must ensure vehicle durability and operational efficiency. The application of automated production lines, MES systems, and industrial robots improves the automation level of engineering vehicle production, thereby enhancing production efficiency and product quality. With the development of intelligent manufacturing technology, the production process of engineering vehicles will become more efficient and intelligent.
