product description

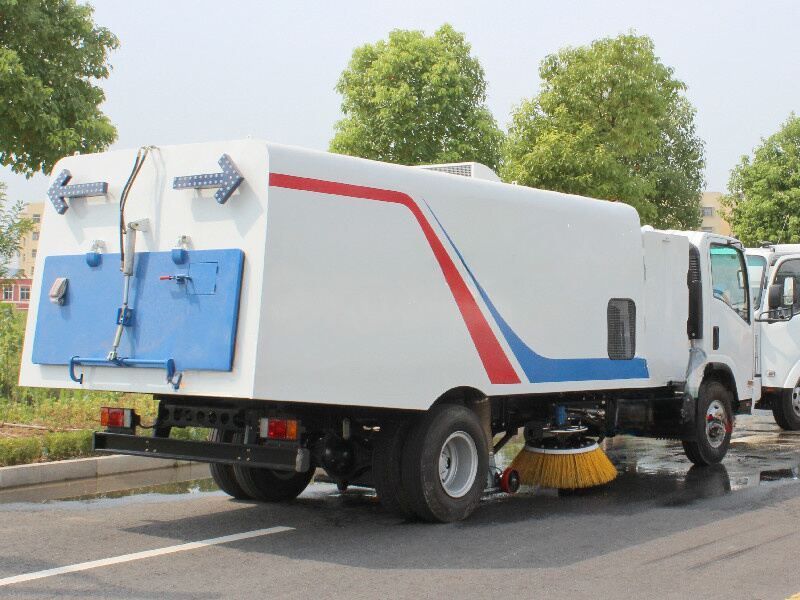

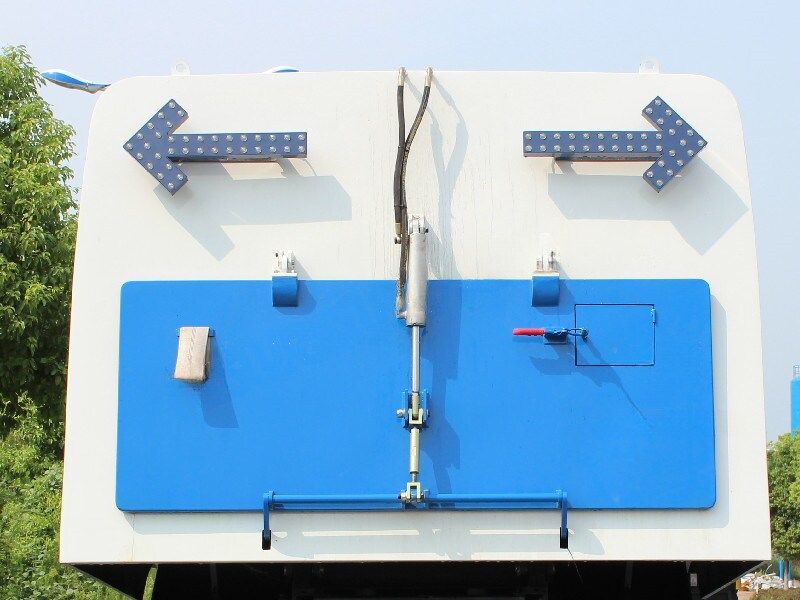

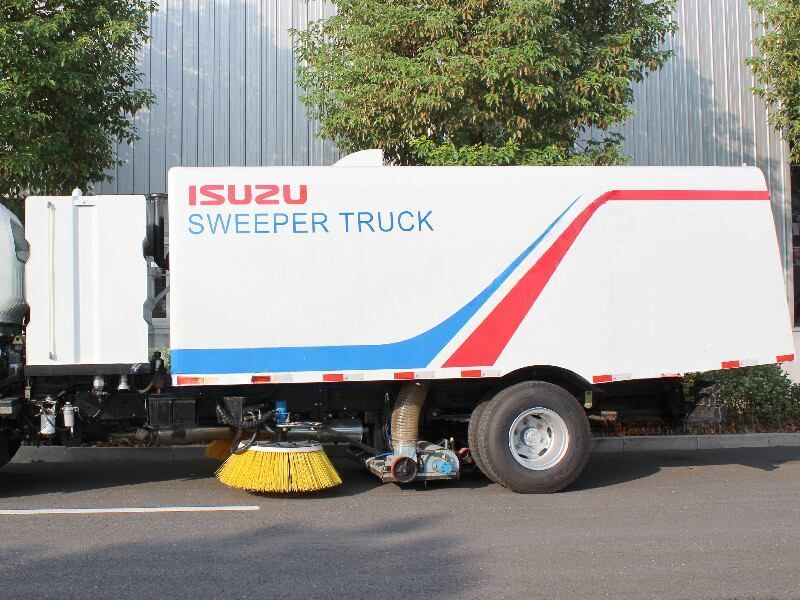

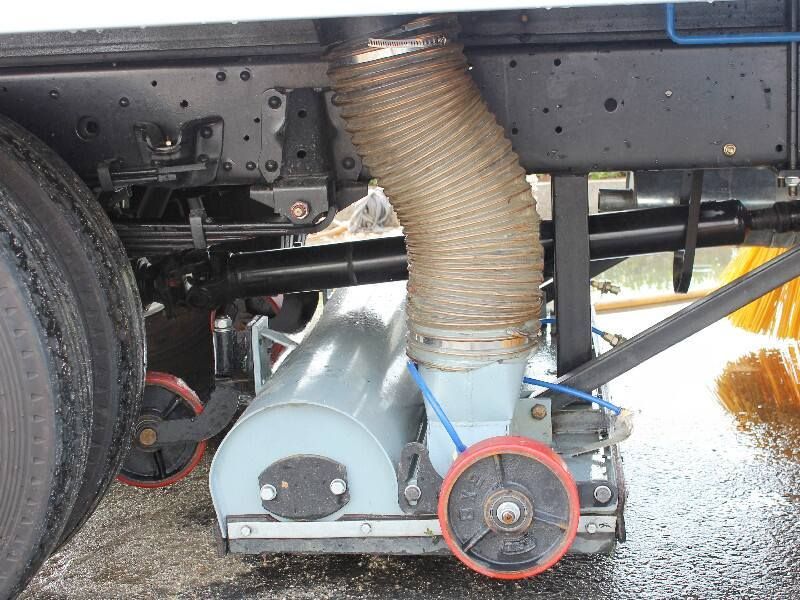

Customized Qingling ELF / 700P road truck for hot sale, Qingling 700P 4*2 drive 6 wheeler truck chassis, 4HK1-TC51 engine with 190HP, MLD 6-shift gear box, square-shape sweeper body 6000 Liters dust bin and 2000 Liters clean water bin, Import hydraulic motor with 4 sweeper plate, each side two sets, rear vacuum suction plate with roller, painting and logos as required.

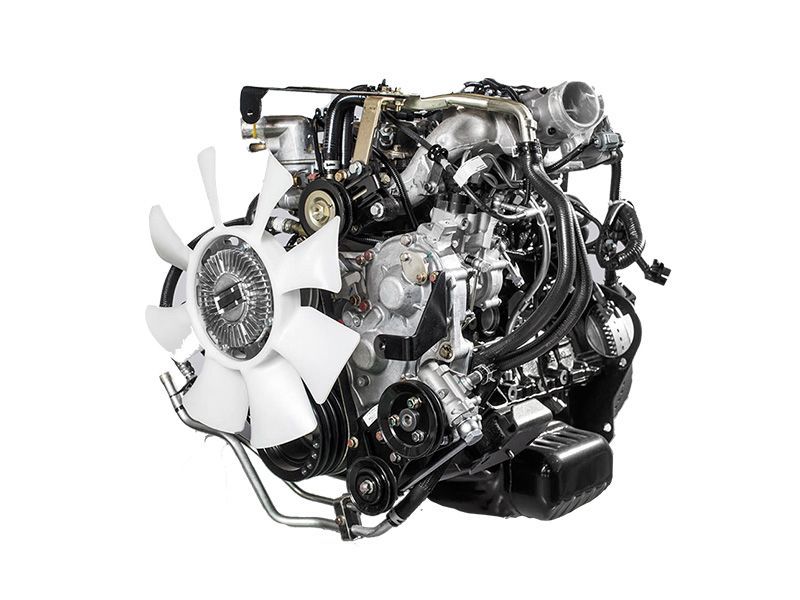

4HK1-TC51 engine, no overhaul within 100,000 km

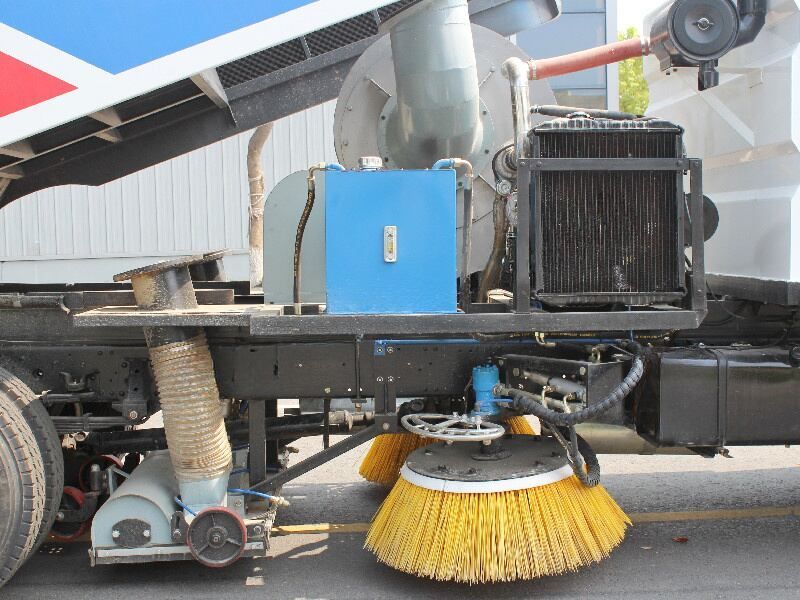

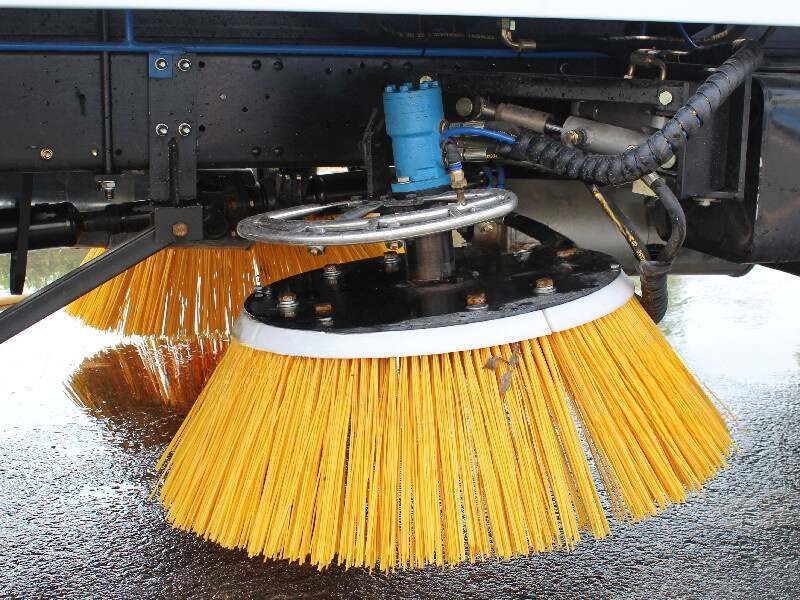

Road Sweeper with water spraying nozzles, driving by USA technology hydraulic motor, steel sweeper brushes for good performance
Manufacturer | Qingling Trucks | |
Item | QINGLI ELF / NPR Street Sweeper Truck | |
Brand | QINGLING | |
Model | PT08TSL | |
Production Time | 25 days | |
Truck Chassis | ||
Specification | Overall dimensions | 7200*2400*2860 mm |
Gross weight | 10,000 kg | |
Kerb weight | 5,800 kg | |
Wheelbase | 4,175 mm | |
Driving type | 4*2 | |
Chassis model | QINGLING 700P Light-duty | |
Tire size | 235/75R17.5 | |
Passengers in cab | 3 | |
Engine | Engine model | 4HK1-TC51 |
Type of fuel | Diesel | |
Power | 190 HP | |
Gearbox | MLD 6-shift gearbox | |
Upper Structure | ||
Sweeper Body performance | Dust Tank | 6 CBM |
Water Tank | 2000 Liters | |
Tank Material | 4mm stainless steel material | |
Auxiliary Engine | CUMMINS Technolgy auxiliary engine with 140HP | |
Fan System | Super Powerful Fan System | |
Sweeping Width | 2.8-3.2 m | |
Working Speed | 3-20 km/h | |
Max. Sweeping | 68000㎡/h | |

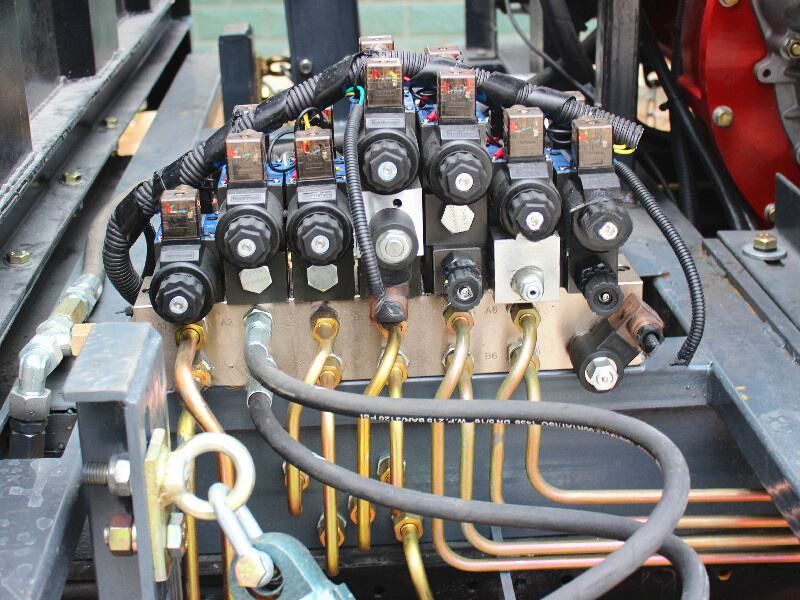

Control System | Electric Hydraulic control | |

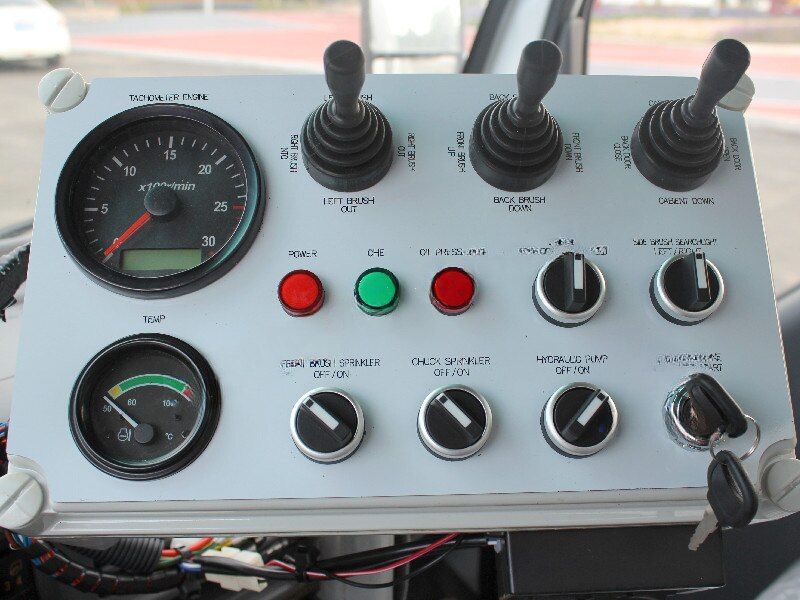

Control Panel | English or Your language | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Back Alarm and Camera can be equipped 2, Italy/USA brand Hydraulic Motor can be optional 3, Front snowing sweeping device can be optional | |
