Product features
Exuberance shows
Product parameters
| Driving Type | Left Hand Drive |
| Overall Dimension（L*W*H） | 10000*2550*3900mm |
| Box Dimension（L*W*H） | 7550*2450*2530mm |
| GVW | 16000Kg |
| Curb Weight | 7510Kg |
| Axle loading: | |
| Wheelbase | 5800mm |
| F/R Track | 1960/1855 |
| Approaching Angle/Departure Angle(o) | 15/13 |
| Tire No. | 7（Including Spare Tire） |
| Tire | 10.00R20 16PR |
| Color: | Optional |
| Max Speed（Km/h） | 105km/h |
| Engine | |

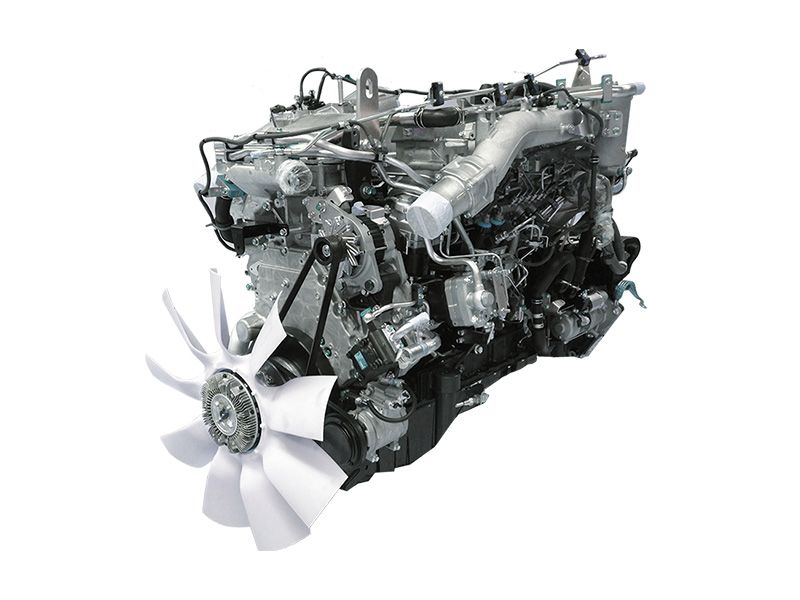

| Engine System | 4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
| Emission Route | DPF |
| Model | 4HK1-TC50 |
| Fuel Type | Diesel Engine |
| Max output | 150Kw |
| Horsepower： | 205Hp |
| Max Torque | 650N.m |
| Emission Standard | Euro V |
| Displacement: | 5193ml |
| Transmission: | |
| Model: | MLD-6Q |
| Type | Manual |
| Forward/Reverse | 6F/1R |
| Brake System: | |
| Service Brake | Dual Circuit Compressed Air Brake |
| Parking Brake | Spring Energy, Compressed Air Operating on Rear Wheels |
| Auxiliary System | Engine Exhaust Brake |
| Electrical System | |
| Battery | 2*12-70Ah |
| Alternator | 28V-70Ah |
| Starter | 24V/7.5Kw |
| Cab | |
| One Row and Half Cab with Air Conditioner | |
| Other Equipment: | |
| Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking，Data Recorder，Vehicle Speed Light | |
