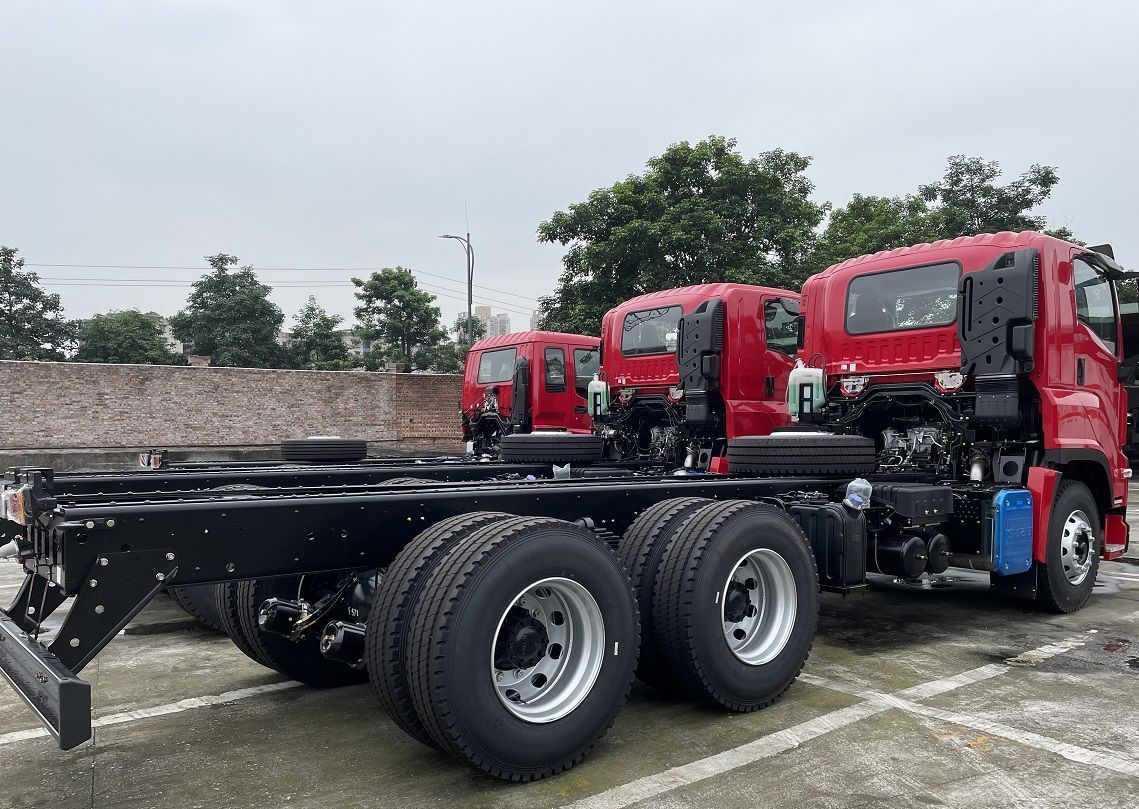

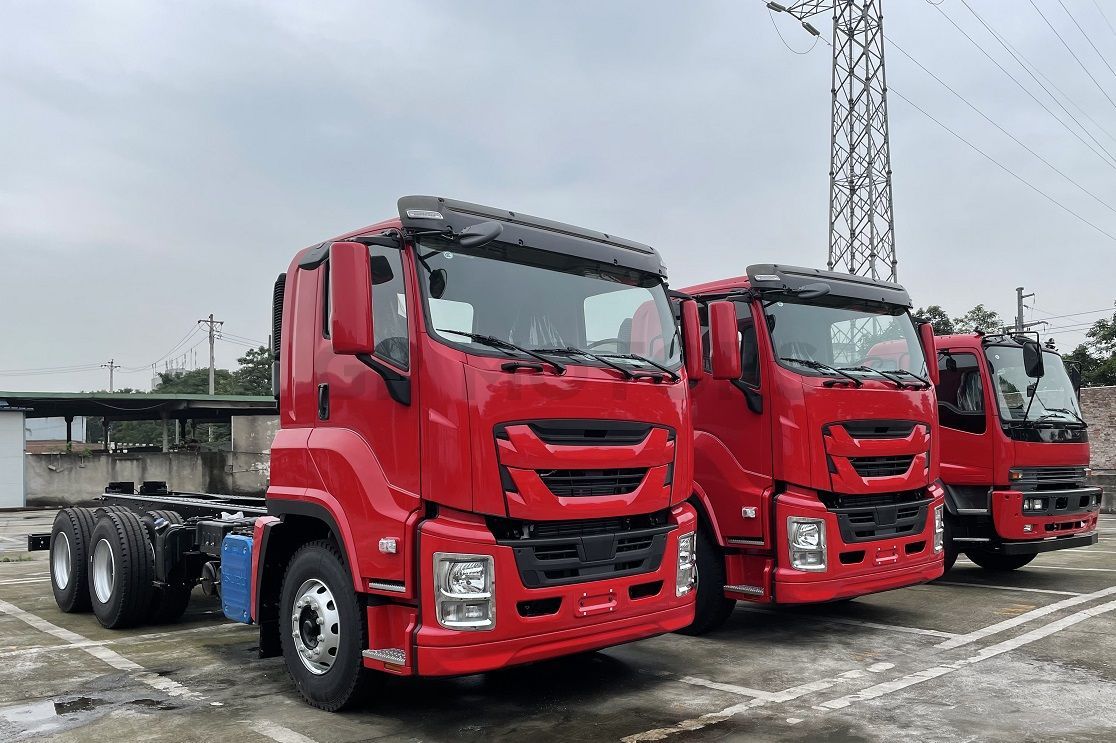

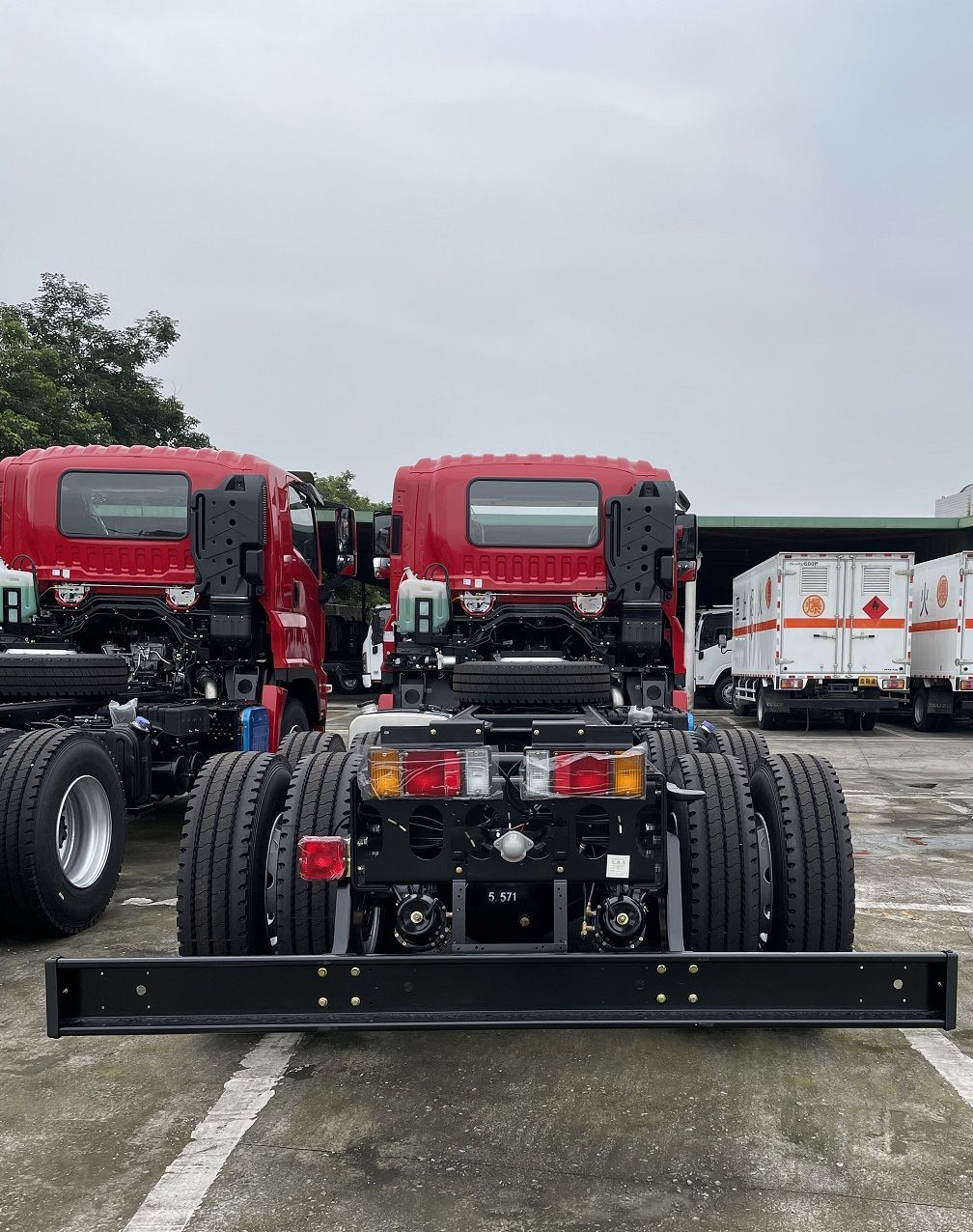

6 wheeler GIGA VC61 cabin chassis
| SPECS OF GIGA 6x4 cab chassis (EURO V) | ||||
| 车辆型号 MODEL NO. | ||||
| 车辆型号 MODEL NO. | MODEL NO. | QL5330GXFW2SDZY D27JZ | QL5330GXFW2QDZY D37JZ | QL1250U1QDZY D34EZ |
| 类型Type | 消防底 FIRE FIGHTING CHASSIS | 消防/短轴底 FIRE FIGHTING CHASSIS(SHORT WHEEL BASE) | 搅拌车底盘 Mixer truck Chassis | |
| 轴距 WHEELBASE | ||||
| mm | 4565+1370 | 3985+1370 | 3985+1370 | |
| 轴距合计 WHEEL BASE IN TOTAL | mm | 5935 | 5355 | 5355 |
| 驱动方式 DRIVE TYPE | ||||
| 6x4 | ||||
| 重量Weight& Capacity | ||||
| GVW(总质量） | kg | 33000 | 33000 | 25000 |
| 整备质量 KURB WEIGHT | kg | 9400 | 9260 | 9000 |
| 整备质量带货箱 KURB WEIGHT WITH BODY | kg | -- | -- | -- |
| 前轴荷(底盘) FRONT AXLE LOAD(CHASSIS) | kg | 4660 | 4600 | 4620 |
| 后轴荷(底盘) REAR AXLE LOAD(CHASSIS) | kg | 4740 | 4660 | 4380 |
| 前轴荷(整车)FRONT AXLE LOAD(WHOLE VEHICLE) | kg | 7000 | 7000 | 7000 |
| 后轴荷(整车)REAR AXLE LOAD(WHOLE VEHICLE) | kg | 26000 | 26000 | 18000 |
| 比功率 POWER DENSITY（>5） | kg | 10.24242424 | 10.24242424 | |
| 驾驶室Cabin | ||||
| 标顶 STANDARD ROOF/低 LOW ROOF | 标顶 STANDARD ROOF/低 LOW ROOF | 标顶 STANDARD ROOF/低 LOW ROOF | ||
| 乘员数 PASSENGER NO. | 2 | 2 | 2 | |
| 气悬座椅 AIR SUSPENSION SEAT | 普通式 NORMAL | 普通式 NORMAL | 普通式 NORMAL | |
| 气悬驾驶室 AIR SUSPENSION AEAT | 弹簧式 SPRING TYPE | 弹簧式 SPRING TYPE | 弹簧式 SPRING TYPE | |
| 转向系统 STEERING SYSTEM | ||||
| 转向型式 TYPE | 动力转向POWER STEERING | 动力转向POWER STEERING | ||
| 前束 | mm | 0±1 | 0±1 | |
| 车轮外倾角 | ° | 0°30′ | 0°30′ | |
| 主销后倾角 | ° | 2°±50′ | 2°±50′ | |
| 主销内倾角 | ° | 7°30′ | 7°30′ | |
| 发动机 Engine | ||||
| 发动机类型 Type | 直列六缸、水冷、直喷式、高压共轨、增压中冷柴油机 six-cylinder In-line, water-cooled, direct-injection, high-pressure common rail, supercharged and inter-cooled diesel engine | |||
| 型号 MODEL | 6WG1-TCG51 | 6WG1-TCG51 | 6UZ1-TCG51 | |
| 额定功率 RATED POWER | kw | 338 | 338 | 257 |
| 最大净功率 MAX. NET POWER | kw | 337 | 337 | |
| 最大扭矩 MAX.TORQUE. | kgf.m(N.m) | 210(2060) | 210(2060) | 1422/1100～1600 |
| 排放标准 EMISSION | 国Ⅴ EURO V | 国Ⅴ EURO V | 国Ⅴ EURO V | |
| 后处理装置 EXHAUST DEVICE | SCR | SCR | SCR | |
| 飞轮取力器 PTO | — | — | — | |
| 变速器 TRANSMISSION | ||||
| 型号Model | 8S2030TO | 8S2030TO | 8S2030TO | |
| 速比 RATIO | 11.54/7.93/5.46/3.82/2.53/1.74/1.20/0.84，R10.8 | 11.54/7.93/5.46/3.82/2.53/1.74/1.20/0.84，R10.8 | 11.54/7.93/5.46/3.82/2.53/1.74/1.20/0.84，R10.8 | |
| 离合器 CLUTECH | ||||
| 型号Model | φ430拉式PULLING TYPE | φ430拉式PULLING TYPE | φ430拉式PULLING TYPE | |
| 轴荷 Axle load | ||||
| 前桥 FRONT AXLE | 型号 MODEL | F075 | F075 | |
| 额定载荷 RATED LOADING CAPACITY | kg | 7500 | 7500 | |
| 后桥 REAR AXLE | 型号 | RT260 | RT260 | |
| 主减速器齿轮直径 RATIO OF MAIN REDUCER GEAR | 17.5" | 17.5" | ||
| 额定载荷 RATED LOADING CAPACITY | kg | 26000kg | 26000kg | |
| 主减速比 FINAL REDUCTION RATION | kg | 标配STANDARD:4.555 | 标配STANDARD:4.555 | |
| 车架 Frame | ||||
| 断面尺寸 CROSS DIMENSIONS | mm | 950-850×320t=8 | 950-850×320t=8 | |
| 悬挂 Suspention | ||||
| 前钢板弹簧 FRONT LEAF SPRING | 型式 TYPE | MULTIPLE-LEAF SPRING | MULTIPLE-LEAF SPRING | MULTIPLE-LEAF SPRING |
| 片数 NO. | 7 | 7 | 7 | |
| 后钢板弹簧 REAR LEAF SPRING | 型式 TYPE | MULTIPLE-LEAF SPRING | MULTIPLE-LEAF SPRING | |
| 片数 NO. | 10 | 10 | ||
| 燃油系统Fuel system | ||||
| 燃油种类 Fuel type | diesel | |||
| 燃油箱容量 CAPACITY OF FUEL TANK | 400L | 400L | 400L | |
| 制动 BRAKE | ||||
| 前制动器规格 FRONT BRAKE SIZE | φ410×160， S-CAM | φ410×160， S-CAM | ||
| 后制动器规格 REAR BRAKE SIZE | φ410×220， S-CAM | φ410×220， S-CAM | ||
| 辅助制动 AUXILIARY BRAKE | 排气制动AIR BRAKE | 排气制动AIR BRAKE | 排气制动AIR BRAKE | |
| 驻车 PARKING BRAKE | 弹簧储能式, 作用于后轮 SPRING STORED ENERGY,ACT ON REAR WHEEL | 弹簧储能式, 作用于后轮 SPRING STORED ENERGY,ACT ON REAR WHEEL | 弹簧储能式, 作用于后轮 SPRING STORED ENERGY,ACT ON REAR WHEEL | |
| 轮胎及钢圈 TIRE&RIM | ||||
| 轮胎 TIRE | 315/80R22.5 18PR(12R22.5 18PR) | 315/80R22.5 18PR(12R22.5 18PR) | 12R22.5 18PR | |
| 钢圈 RIM | 9.00×22.5 | 9.00×22.5 | ||
| 电气系统 Electrical system | ||||
| Battery | ||||
| Alternator | ||||
| 性能参数 Performance | ||||
| 最高车速 MAX.SPEED | km/h | 100 | 100 | 100 |
| 接近角/离去角 APPROACH/DEPATURE ANGLE | ° | 17/18 | 17/27 | 17/27 |
| 转弯直径 TURNING RADIUS | mm | 21.2 | 19.2 | 19.2 |
| 最小离地间隙 MIN. GROUND CLEARANCE | mm | 265 | 265 | 265 |
| 配置 Confirguration | ||||
| 空调A/C | ● | ● | ● | |
| ABS | ● | ● | ● | |
| 动力转向Power steering | ● | ● | ● | |
| 收音机Radio | ● | ● | ● | |
| 子午胎Tubless tire | ● | ● | ● | |
| 免维护电池Free maintenance battery | ● | ● | ● | |
| 中控锁Central lock | ● | ● | ● | |
| 电动车窗 Power window | ● | ● | ● | |
| 行车记录仪Driving Date recorder | ● | ● | ● | |
| 尺寸 Dimensions | ||||
| 轴距 WHEELBASE | 4565+1370 | 3985+1370 | 3985+1370 | |
| 全长 OVERALL LENGTH | mm | 9895 | 8465 | 8465 |
| 全宽 OVERALL WIDTH | mm | 2540 | 2540 | 2540 |
| 全高 OVERALL HEIGHT | mm | 3055/2985 | 3055/2985 | 3055 |
| 前悬 FRONT SUSPENSION | mm | 1370 | 1370 | 1370 |
| 后悬 REAR SUSPENSION | mm | 2590 | 1740 | 1740 |
| 轮距(前) FRONT TREAD | mm | 2065 | 2065 | 2065 |
| 轮距(后) REAR TREEAD | mm | 1855/1855 | 1855/1855 | 1855 |
