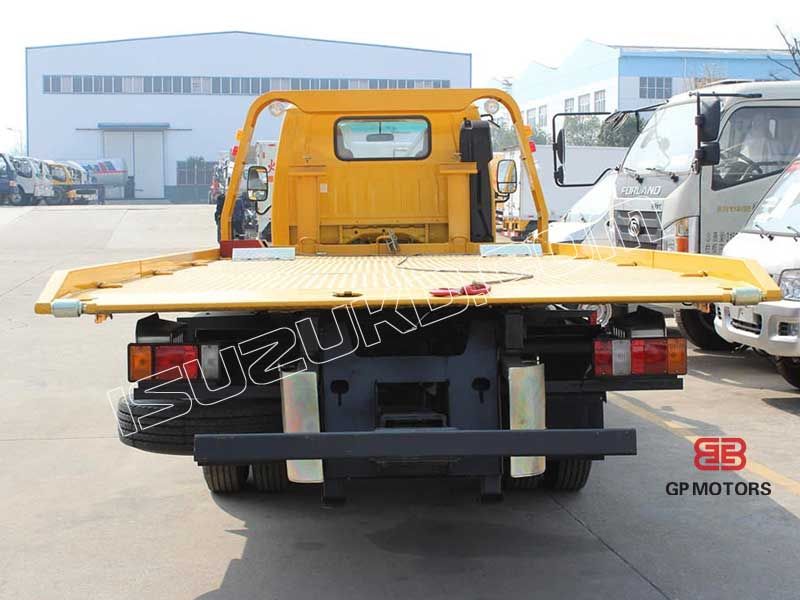

Integrated designed wrecker platform
Integrated designed wrecker platform, with steel thickness 5mm, durable performance

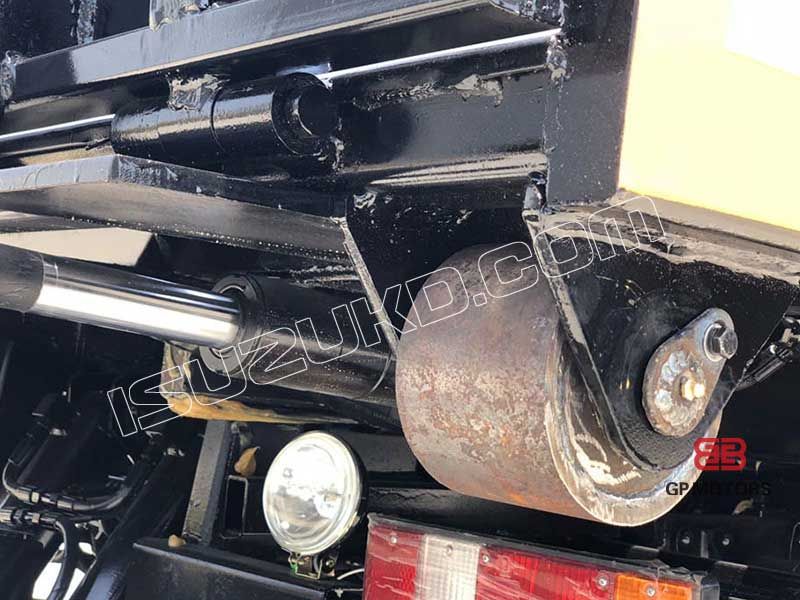

3 Tons towing winch
3 Tons towing winch with 25m cable, easy operation
details show
| Vehicle mode | ISUZU5070TQZQL3 | |
| Chassis type | ISUZU NKR, light duty | |
| Weight (kg) | Gross vehicle weight | 7300 |
| Curb weight | 4500 | |
| Front/rear axle load | 2500/4800 | |
| Overall Dimensions | length | 6500 |
| width | 2300 | |
| height | 2380 | |
| Wheelbase(mm) | 3360 | |
| Wheel track (frontrear)(mm) | 1685/1525 | |
| Front/rear suspension (mm) | 111012475 | |
| Approach/departure Angle (°) | 19/11 | |
| Tyre Specification | 7.00R16LT 14PR (Standard) | |
| Driving form | 4x2 | |
| Maximum speed (km/h) | 95 | |
| Climbing ability (%) | 30 | |
| Minimum turning diameter (m) | 14.6 | |
| Minimum ground clearance (mm) | 195 | |
| Engine type | Model | 4KH1CN5HS |
| Rated Power (kW/HP) | 96KW/130 | |
| Displacement(ml) | 2999 | |
| Rated Speed (RPM) | 3400 | |
| Torque (N m) | 290 | |
| Fuel type | Diesel | |
| Maximum loading weight (kg) | 3500 | |
| Lift System | Maximum lift weight (kg)(load/vehicle) | 3000/1820 |
| Full extension maximum lift mass (kg) | 1500/1260 | |
| Max. effective length of bracket (mm) | 1700 | |
| Boom expansion stroke (mm) | 1340 | |
| Folding Angle (°) | 8~10 | |
| Maximum distance from the ground to the full extensionfork (mm) | 1000 | |
| Flatbed | Flatbed carrying mass (kg) | 3000 |
| Frame size Length x width (mm) | 5500x2300 | |
| Floor height (mm) | 1050-1110 | |
| Minimum Angle of the slab to the floor (°) | 8 | |
| Winch | Towing capacity | 3 tons |
| Rated tractive force per unit (kN) | 40 | |
| Wire rope specification | 12-35Wx7-1770NZS | |
| Wire rope diameter (mm) | 12 | |
| Wire rope length (m) | 25 | |
