Body application
SPECIFICATIONS
| General information | Chassis model | VC66 | ||||||||||
| Wheelbase(mm) | 5600 | |||||||||||
| Drive Type | 4X2 | |||||||||||
| GVW (kg) | 22000 | |||||||||||
| Curb Weight (kg) | 7200 | |||||||||||

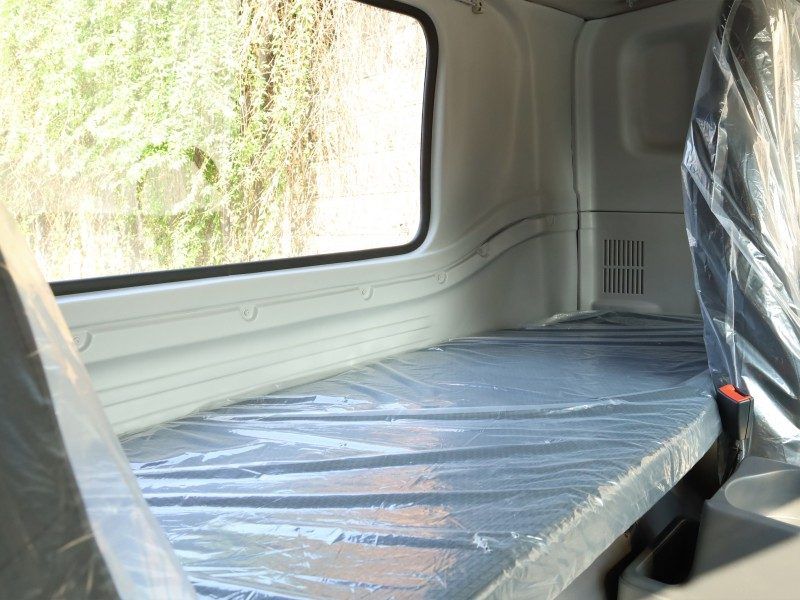

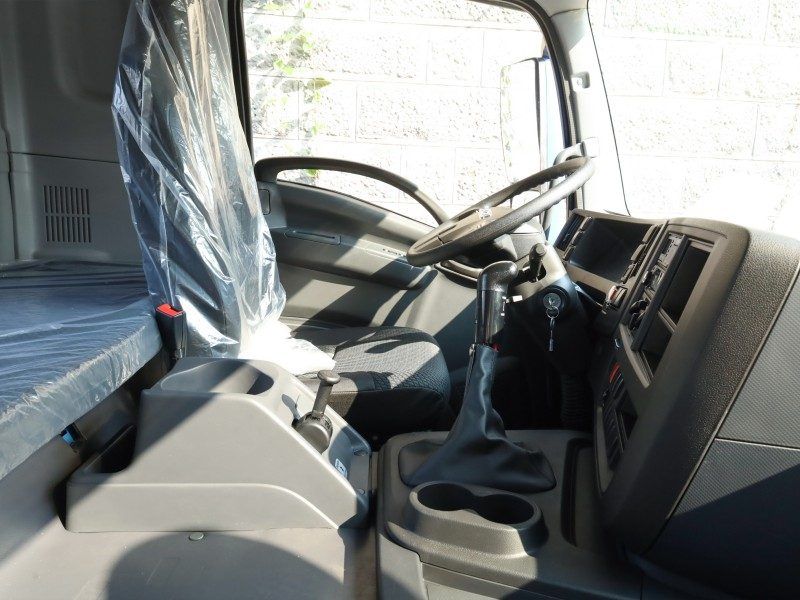

| Cabin | Single cabin with sleeper | |||||||||||
| Driver and Passenger | 2 | |||||||||||
| Engine | Model | 6UZ1-TCG61 380HP | ||||||||||
| Type | 6 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | |||||||||||
| Emission Standard | Euro 5/6 | |||||||||||
| Displacement (L) | 9.839L | |||||||||||
| Rated Power (kw/rpm) | 279kW | |||||||||||
| Max. Torque (N.m/rpm) | 1765/1000 | |||||||||||

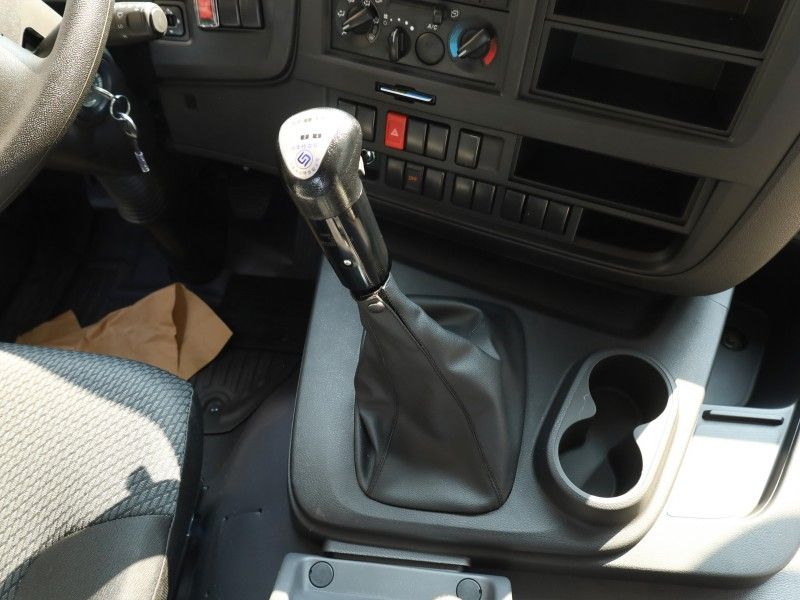

| Transmission | Model | Manual, ZF8S2030TO | ||||||||||
| 8 Forward + 2 Reverse | ||||||||||||
| Brake System | Brake(Air/Oil) | Air brake | ||||||||||
| Parking brake | Air cut brake valve | |||||||||||
| Max. Speed (km/h) | 100 | |||||||||||
| Standard Configuration | Tires | 385/65R22.5 20PR | ||||||||||
| Power steering |  YES | |||||||||||
| Radio | YES | |||||||||||
| ABS | YES | |||||||||||
| A/C | YES | |||||||||||
| Tilted cabin | YES | |||||||||||
| Central lock | YES | |||||||||||
| Electric window | YES | |||||||||||
| Retarder | YES | |||||||||||
| Aluminum alloy wheels | YES | |||||||||||
| Deflector | YES | |||||||||||
| Dimensions | Length OAL (mm) | 8865 | ||||||||||
| Width OW (mm) | 2540 | |||||||||||
| Height OH (mm) | 3080 | |||||||||||
| Front Tread AW (mm) | 2140 | |||||||||||
| Rear Tread CW (mm) | 1855 | |||||||||||
| 1. ● means standard configuration. means option configurtaion 2. All above information is for reference only, and will be updated timely without notice; 3. The listed models are part of the full products range, any special request will be available on request. | ||||||||||||
DIMENSIONS
