SPECIFICATIONS

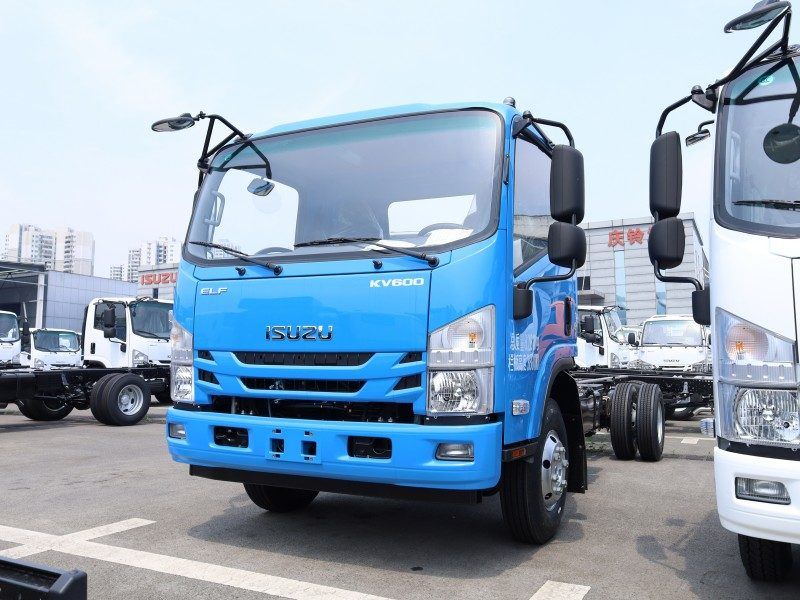

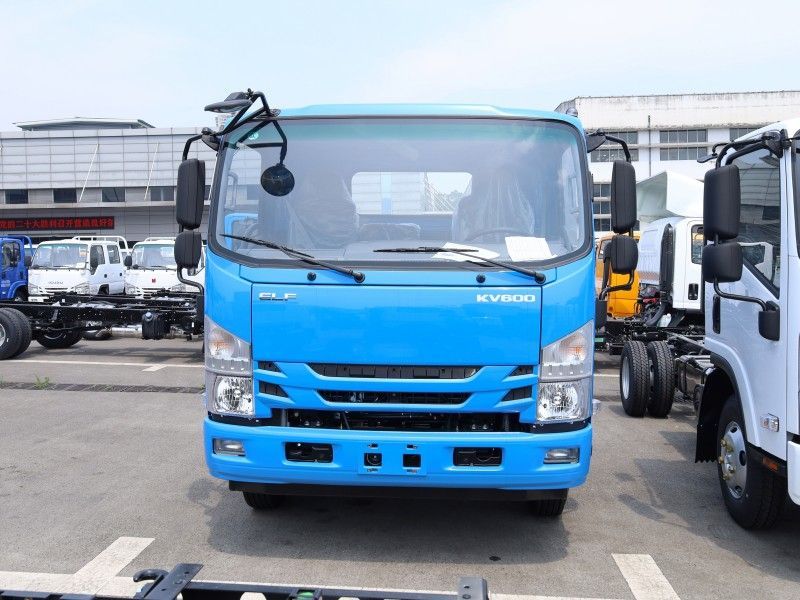

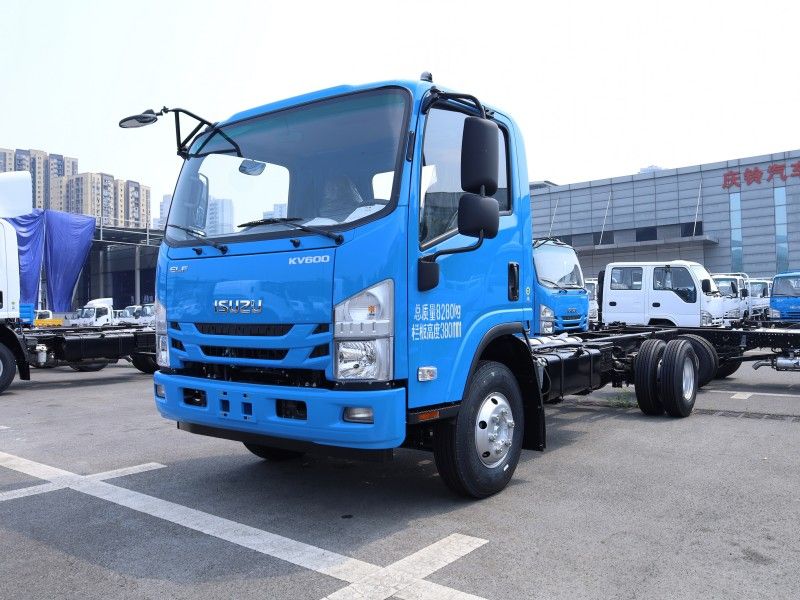

Explore the Isuzu KV600 chassis—a versatile solution designed for diverse operational needs! Boasting a 3365mm wheelbase and a gross vehicle weight (GVW) of 8280kg, it delivers an impressive payload capacity of 5 to 6 tons. Under the hood, it’s powered by the ISUZU 4KH1CN6HB engine, a Euro 6-compliant workhorse generating 132 horsepower (97kW of maximum power) for robust performance. Complemented by a 4x2 drive configuration and air brake system, this chassis ensures consistent reliability across a wide range of applications, from urban logistics to specialized tasks.
| Work capacity: | 5-6tons |
| Engine power: | 132HP |
| Engine type: | 4KH1CN6HB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual |
| Remarks: | Isuzu KV600 Light Truck Chassis |
DIMENSIONS

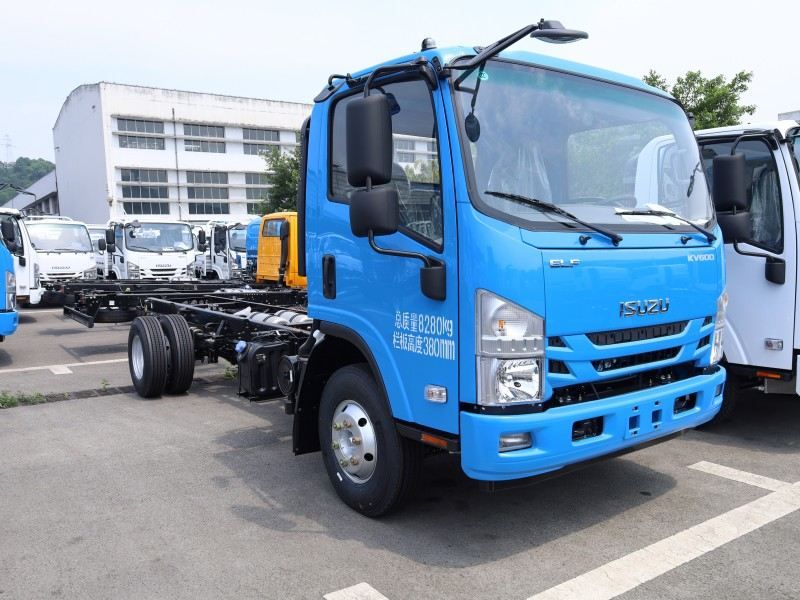

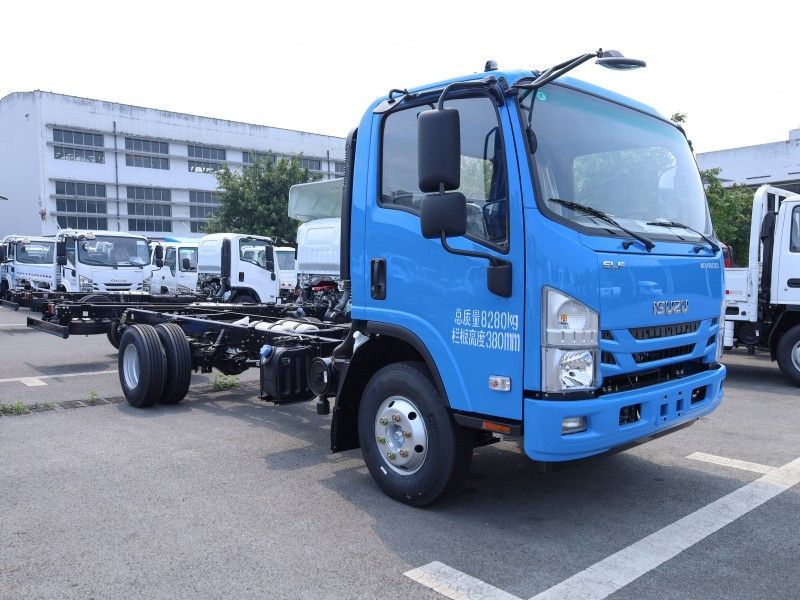

The Isuzu KV600 chassis stands as a standout engineering achievement, crafted to cater to a wide array of transportation and commercial requirements. Its 3365mm wheelbase forms a stable base, making it highly adaptable for various vehicle conversions—whether transforming into a delivery van, a utility truck, or a specialized service vehicle. With a Gross Vehicle Weight (GVW) of 8280kg and a curb weight of 2560kg, this chassis offers an impressive payload capacity of 5000 to 6000kg. This robust load - bearing capability positions it as an ideal choice for heavy - duty operations, from hauling construction materials across job sites to efficiently delivering goods in bustling urban logistics environments. Beneath the hood lies the ISUZU 4KH1CN6HB engine, a 132 - horsepower workhorse with a 2.999L displacement. It meets strict Euro 6 emission standards, ensuring compliance with modern environmental regulations, and can also operate under Euro 3 and 4 standards when needed, adding to its versatility across different regions and requirements. Delivering a maximum power of 97kW at 2900rpm and a peak torque of 317N·m between 1700 - 2900rpm, this engine strikes an
excellent balance between performance and fuel efficiency. Paired with an electronic injection system, it ensures reliable, smooth operation—minimizing downtime and maximizing productivity for any commercial task it undertakes.
| General information | Chassis model | KV600 light truck chassis | ||
| Wheelbase(mm) | 3365 | |||
| Drive Type | 4X2 | |||
| GVW (kg) | 8280 | |||
| Curb Weight (kg) | 2560 | |||
| Cabin | single | |||
| Driver and Passenger | 3 | |||
| Engine | Model | 4KH1CN6HB | ||
| Type | 4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | |||
| Emission Standard | Euro VI | |||
| Displacement (L) | 2.999 | |||
| Rated Power (kw/rpm) | 97KW/2900rpm | |||
| Max. Torque (N.m/rpm) | 317N.m/1700-2900rpm | |||

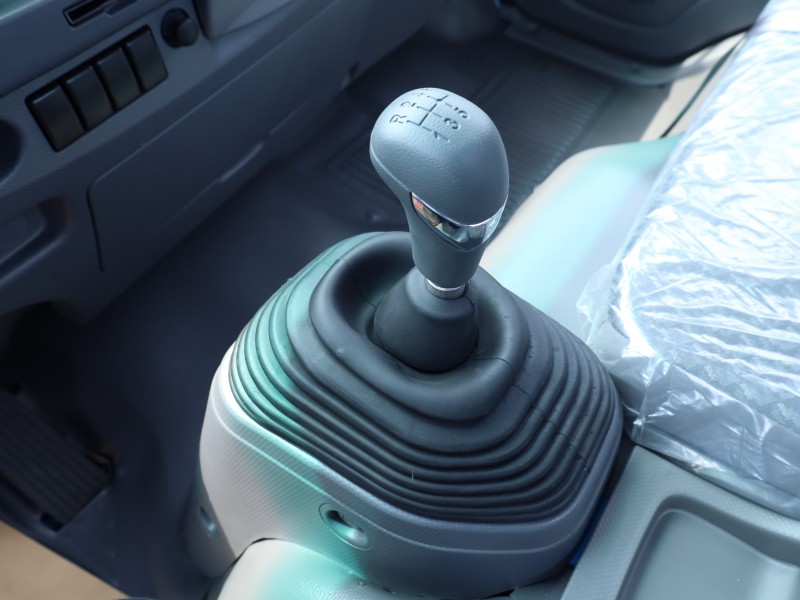

| Transmission | Model | Manual | ||
| 5 Forward + 1 Reverse | ||||
| Brake System | Service brake | Double circuit, air drive | ||
| Brake(Oil/Air) | air brake | |||
| Parking brake | Central drum brake | |||
| standard Configuration | Tires | 7.50R16LT 14PR | ||
| Power steering |  ● | |||
| Radio | ● | |||
| ABS | ● | |||
| A/C | ● | |||
| Tilted cabin | ● | |||
| Exhuast brake | ● | |||
| Option configuration | Central lock | ● | ||
| Electric window | ● | |||
| Deflector | ● | |||

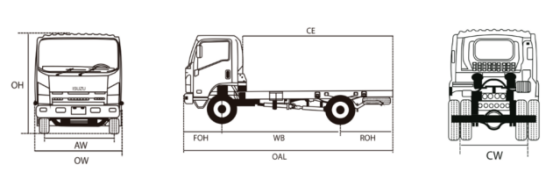

| Dimensions | Length OAL (mm) | 5875 | ||
| Width OW (mm) | 2130 | |||
| Height OH (mm) | 2880 | |||
| Front Tread AW (mm) | 2315 | |||
| Rear Tread CW (mm) | 1655 | |||
| 1. ● means standard configuration. ○ means option configurtaion | ||||
| 2. All above information is for reference only, and will be updated timely without notice; | ||||
| 3. The listed models are part of the full products range, any special request will be available on request. | ||||

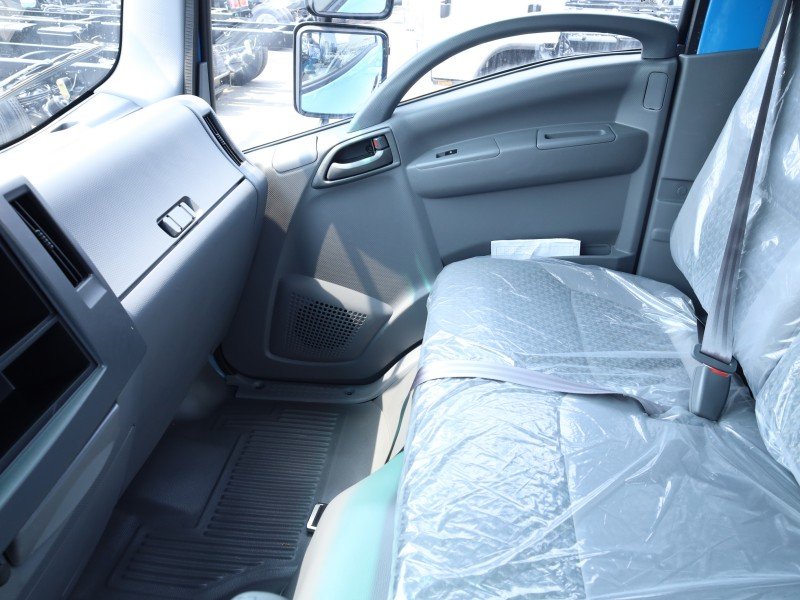

The Isuzu KV600 chassis comes with a range of carefully designed features. It adopts a 4x2 drive configuration, ensuring efficient performance in various common application scenarios. The leaf spring suspension achieves a good balance between load - bearing capacity and riding comfort, while the air brake system provides reliable braking force, which is crucial for vehicles with large load capacities. The single - row cab can accommodate 3 passengers, offering practical seating space for small work teams. The standard 7.50R16LT 14PR tires have excellent grip and durability. In terms of body dimensions, the overall length of 5875mm, overall width of 2130mm and overall height of 2315mm give it good handling flexibility on the road. Although some configurations such as power steering, radio, safety belts, ABS and air conditioning are optional, the KV600 chassis is still a solid basic platform that can be customized and modified according to specific business needs.
