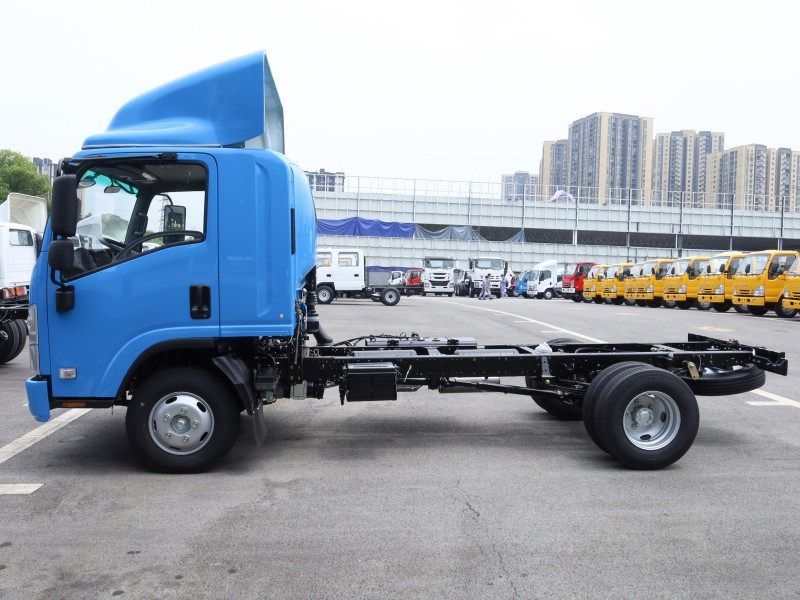

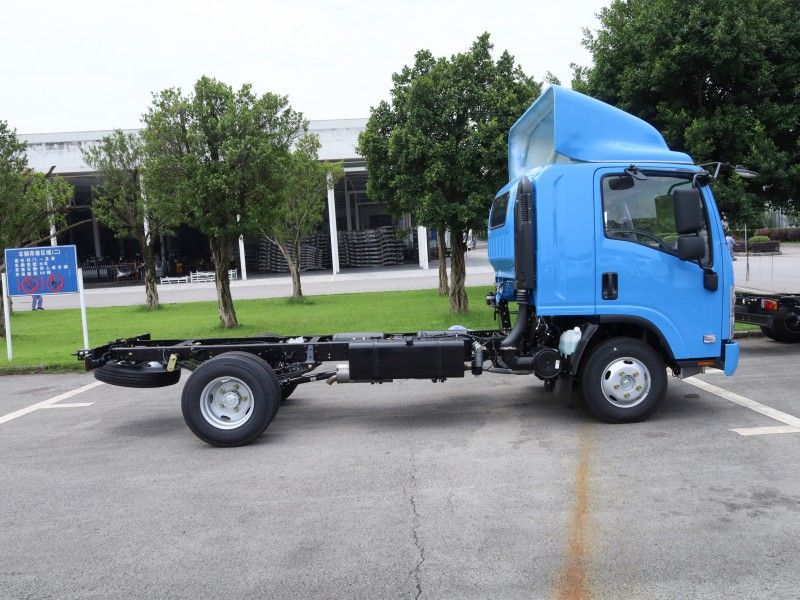

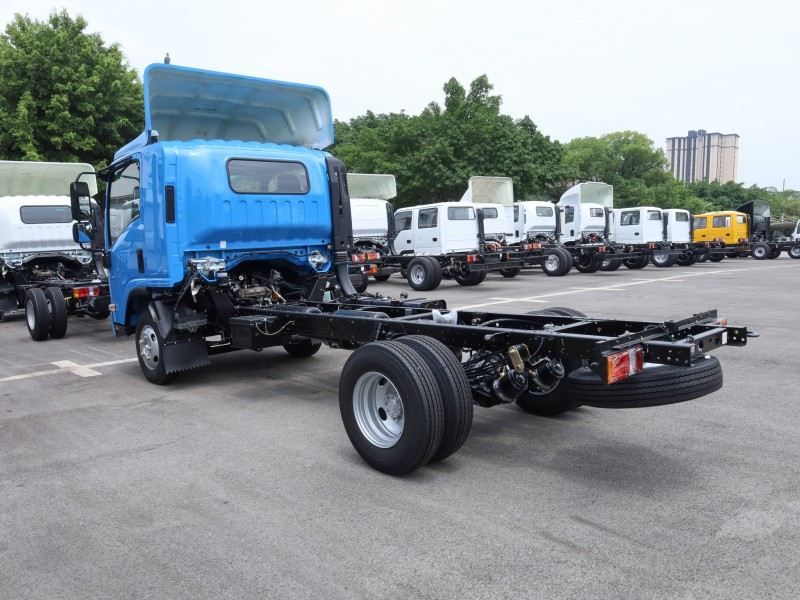

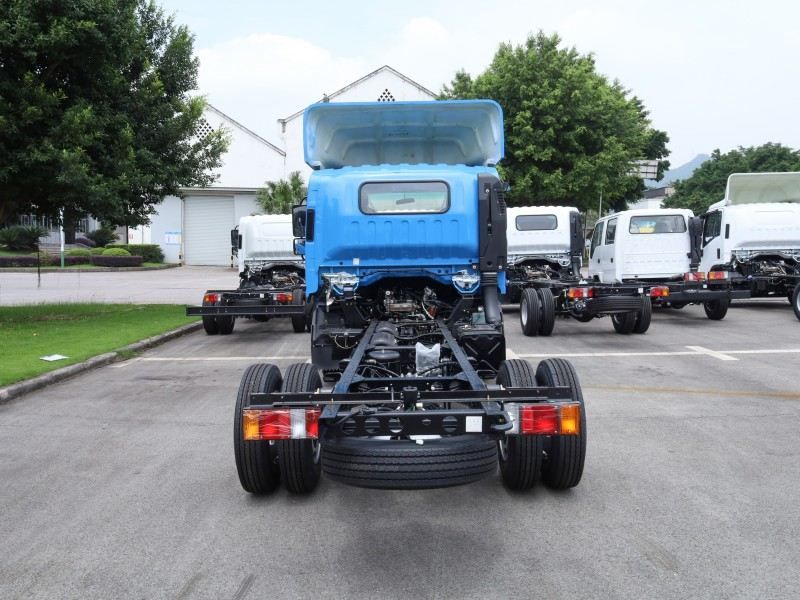

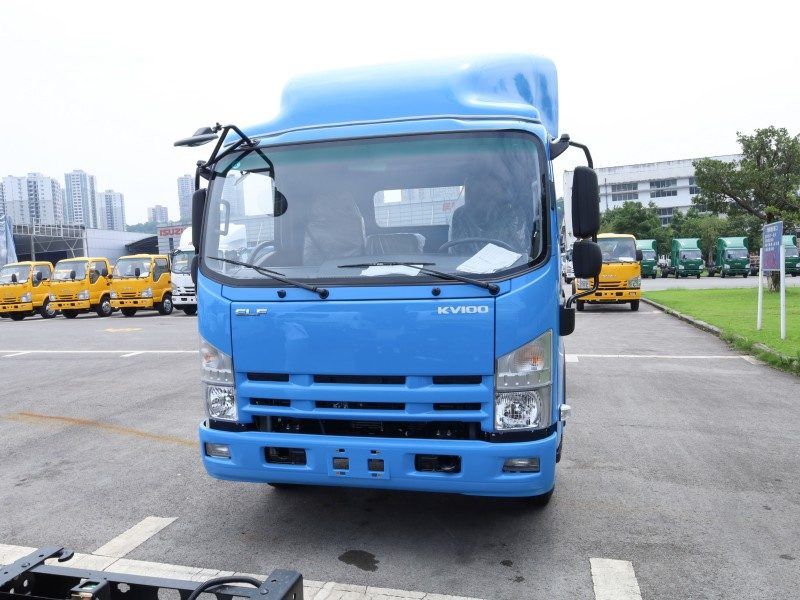

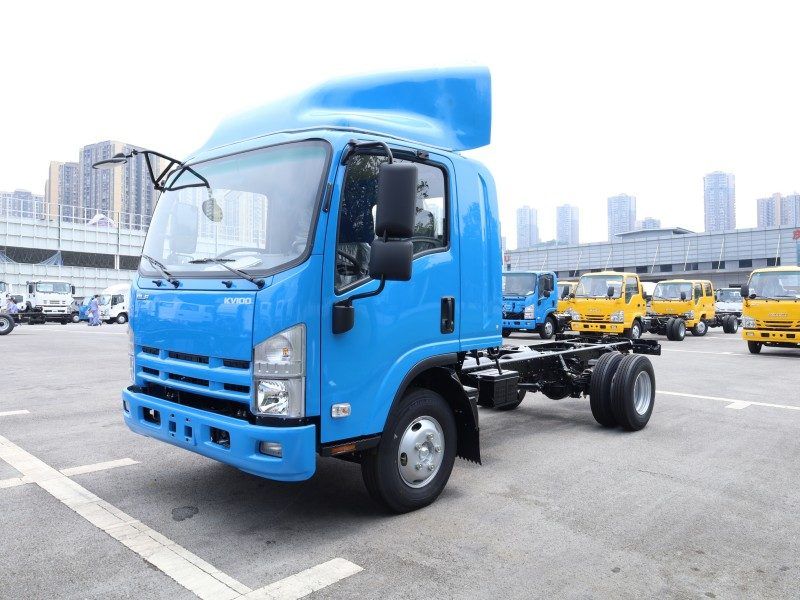

Isuzu KV100 Chassis: A Dependable Lightweight Foundation for Urban Commercial Activities

The Isuzu KV100 chassis is designed to maintain steady performance in the challenging conditions of urban environments, with its sturdy powertrain serving as a cornerstone. It is equipped with the 4JJ1-TCS 3.0L diesel engine, which produces 130 horsepower and 320 Newton-meters of torque—more than enough strength to handle loads weighing up to 3.5 tons. Th

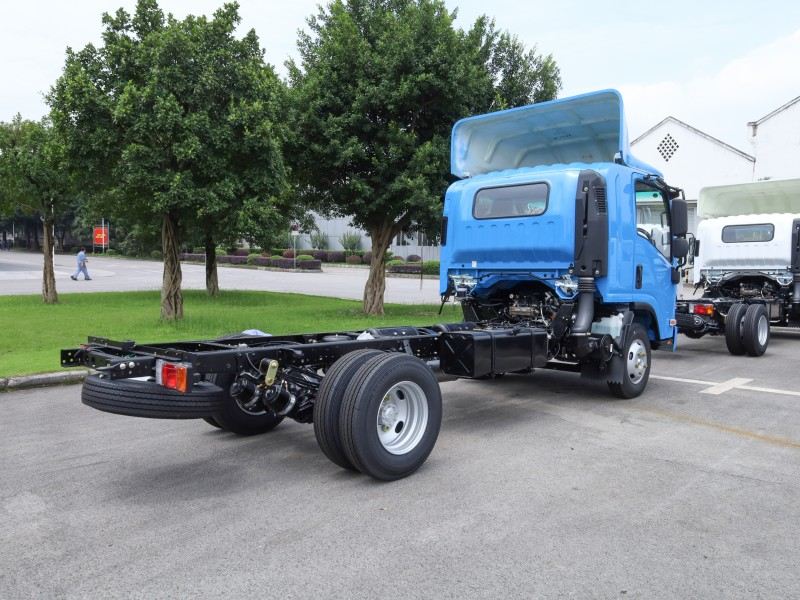

is engine is mated to a 5-speed manual transmission, specifically engineered to deliver precise gear changes that maximize fuel efficiency—a key feature for the frequent stop-and-go traffic common in cities.   The chassis boasts compact dimensions, including a wheelbase that ranges from 3,000mm to 4,200mm and a turning radius of 11.8 meters, ensuring it can easily navigate narrow streets, busy parking lots, and tight loading areas. Its suspension system, which combines front independent coil springs and rear leaf springs, strikes a balance between load stability and ride comfort, minimizing vibrations even when traveling over rough roads.   The ladder frame is reinforced with high-tensile steel, making it resistant to bending under heavy pressure. Additionally, the inclusion of an anti-lock braking system (ABS) enhances safety by preventing wheel lock-upduring sudden stops. All these features make the Isuzu KV100 chassis a dependable option for daily commercial operations.

General information	Chassis model	KV100 light truck chassis
	Wheelbase(mm)	3360
	Drive Type	4X2
	GVW (kg)	7300
	Curb Weight (kg)	2300
	Cabin	single
	Driver and Passenger	3
Engine	Model	4KH1CN6LB
	Type	4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling.
			Emission Standard	Euro VI
			Displacement (L)	2.999
	Rated Power (kw/rpm)	88kw
	Max. Torque (N.m/rpm)	290N.m

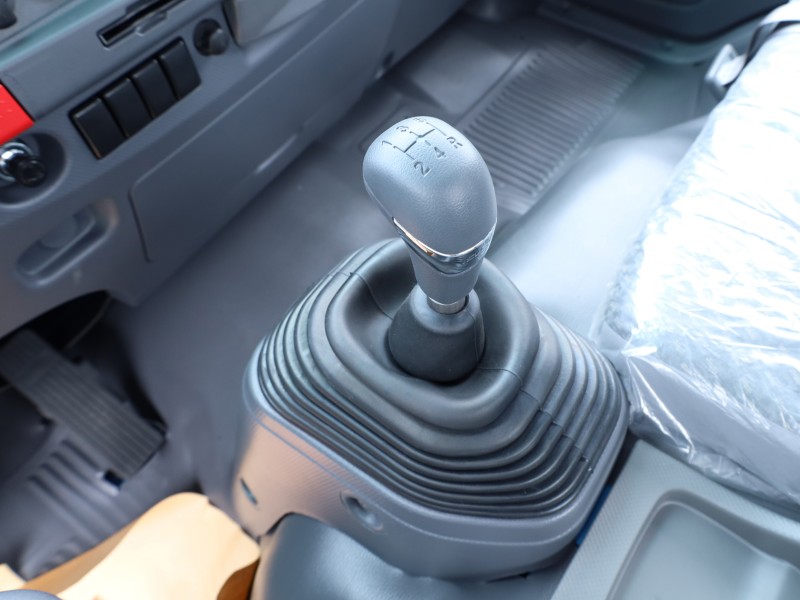

	Transmission	Model	Manual,MSB
			5 Forward + 1 Reverse
Brake System	Service brake	Double circuit, air drive
	Brake(Oil/Air)	air brake
	Parking brake	Central drum brake
standard Configuration	Tires	7.00R16LT 14PR,7.00-16LT 14PRR
	Power steering	●
	Radio	●
	ABS	●
	A/C	●
	Tilted cabin	●
	Exhuast brake	●
Option configuration	Central lock	○
	Electric window	○
	Deflector	○
Dimensions	Length OAL  (mm)	5995
	Width  OW (mm)	2030
	Height OH (mm)	2280
	Front Tread AW (mm)	1504
	Rear Tread CW  (mm)	1425
1. ● means standard configuration.                           ○    means option configurtaion
2. All above information is for reference only, and will be updated timely without notice;
3. The listed models are part of the full products range, any special request will be available on request.

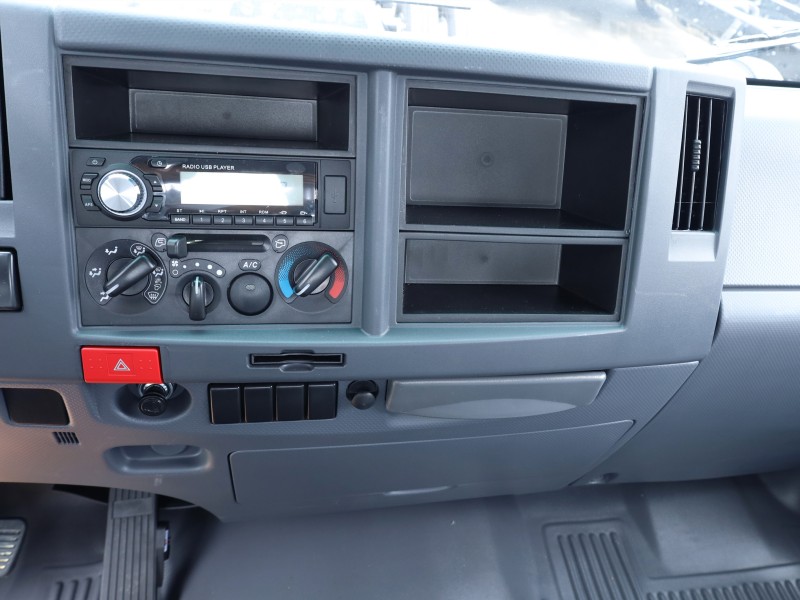

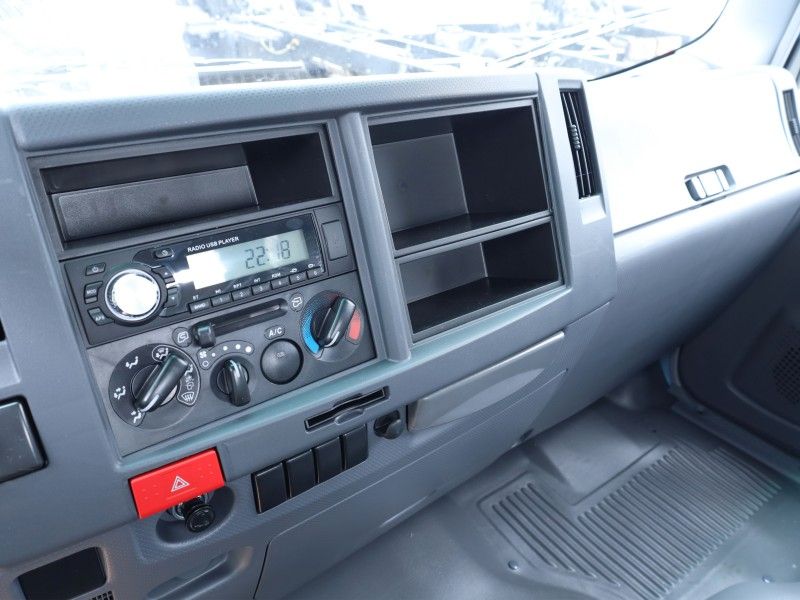

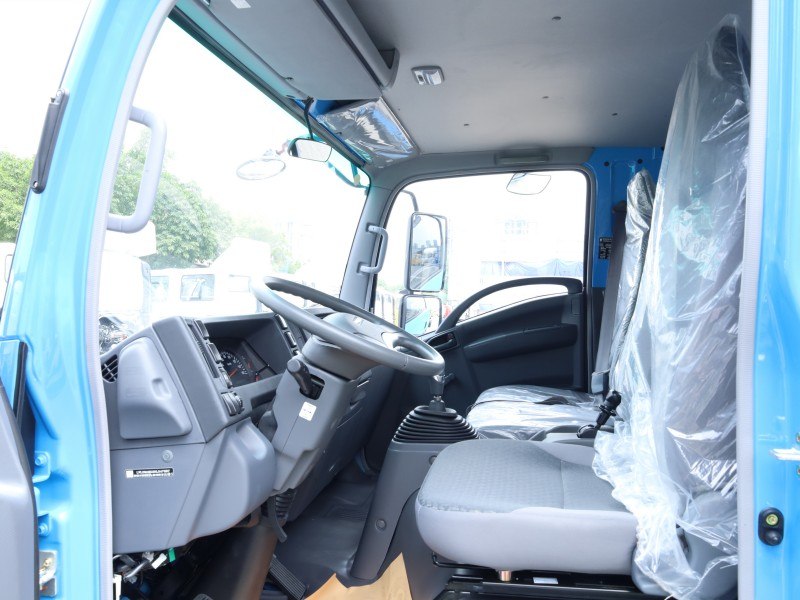

Beyond its strong performance, the Isuzu KV100 chassis shines in terms of versatility and durability, crafted to meet a wide range of business requirements. Its modular design allows for smooth customization, supporting various body styles like delivery vans, refrigerated trucks, flatbed vehicles, and utility trucks—making it perfect for logistics, food service, or small construction projects. Pre-drilled mounting holes simplify the upfitting process, cutting down on conversion time and expenses.   Built to hold up in tough environments, the chassis comes with galvanized parts and a corrosion-resistant underbody coating, which helps extend its service life and reduce maintenance needs related to rust. The cab is designed with driver comfort in mind: ergonomic controls are within easy reach, the supportive seat includes adjustable lumbar support, and there’s plenty of legroom—all of which help reduce fatigue during long workdays. Extra storage spaces keep tools and documents tidy, while large windows improve visibility.   Supported by Isuzu’s global service network, the KV100 ensures easy access to parts and maintenance services, minimizing operational downtime. Whether you’re growing your fleet or launching a new business, this chassis provides the durability, flexibility, and efficiency needed to propel your operations forward.
