Body application

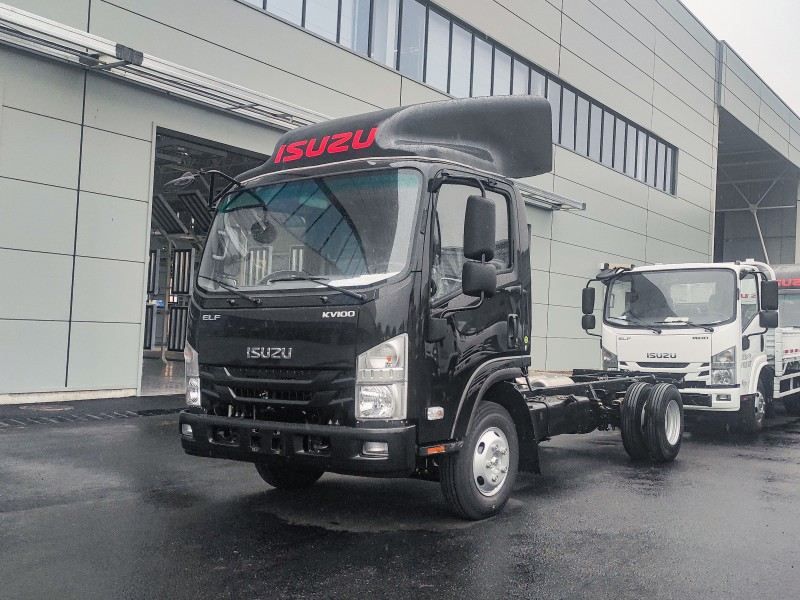

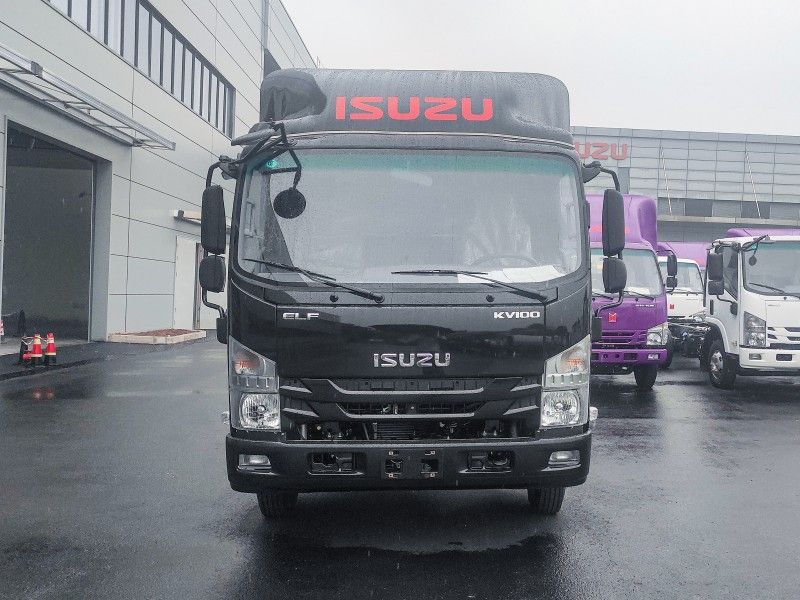

Engineered for versatility and dependability, the Isuzu KV100 Single Cab Chassis is a powerful diesel platform meeting the latest China VI-B (6B) emission regulations . Featuring a robust chassis frame and a capable drivetrain, it supports a **GVW of approximately 3.5 tons , making it perfect for diverse body conversions. Key advantages include:
> High Reliability & Low TCO: Legendary Isuzu durability for maximum uptime and low operating costs.
> China VI-B Compliant: Environmentally responsible, suitable for markets with strict emission norms.
> Excellent Payload Capacity: Strong foundation for significant payloads after body mounting.
> Superior Maneuverability: Compact size ideal for urban operations and tight spaces.

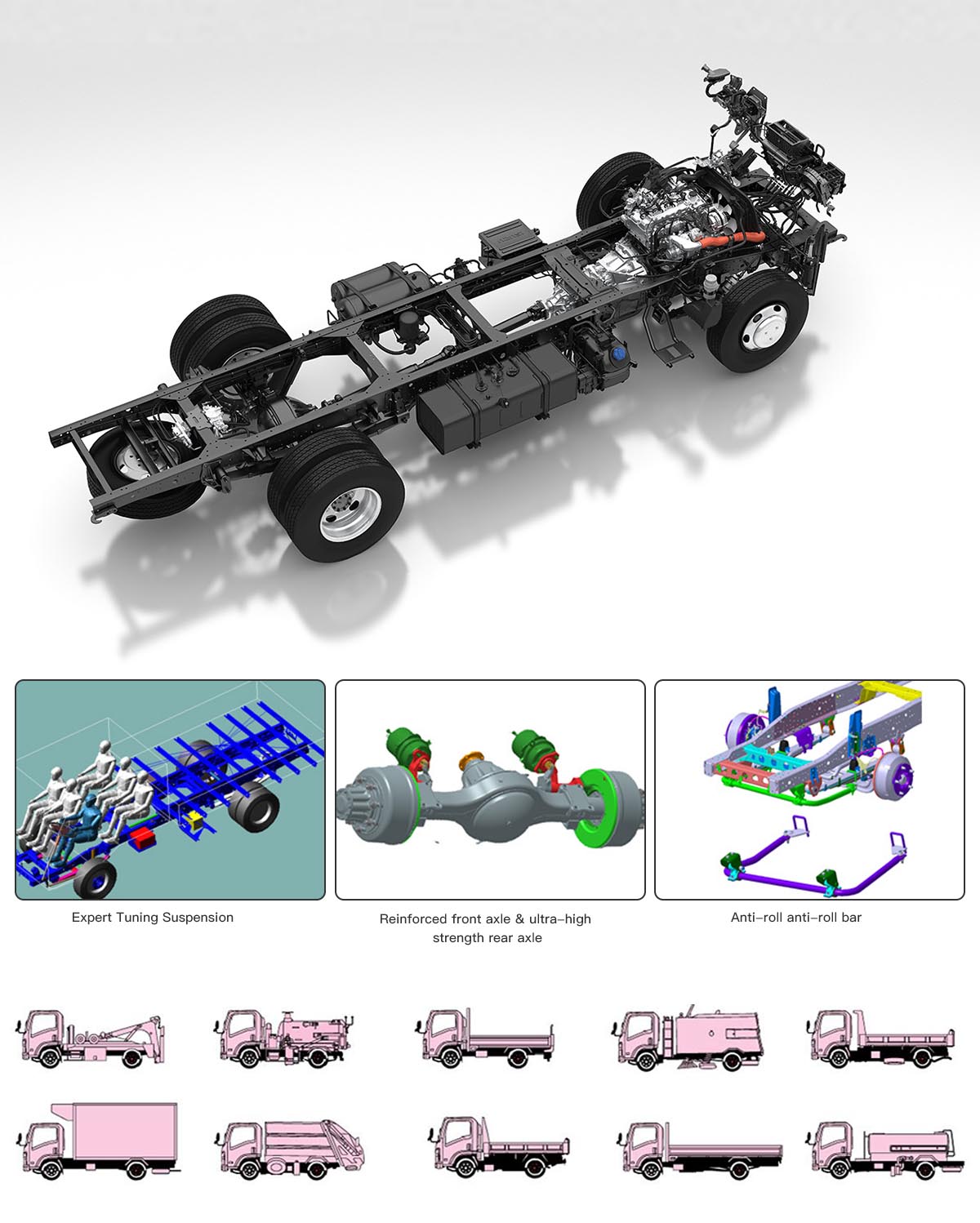

> Ready for Customization: Blank canvas for building specialized trucks (cargo, refrigerated, service, dump, etc.).
SPECIFICATIONS
DIMENSIONS
| General information | Chassis model | KV100 CAB CHASSIS | ||||||||||

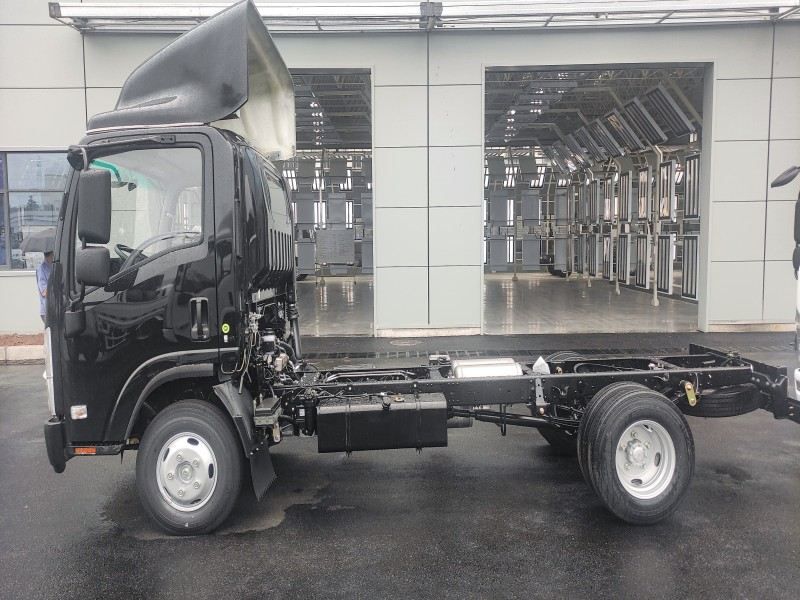

| Wheelbase(mm) | 3360 | |||||||||||
| Drive Type | 4X2 | |||||||||||
| GVW (kg) | 3950 | |||||||||||
| Curb Weight (kg) | 2030 | |||||||||||
| Cabin | single | |||||||||||
| Driver and Passenger | 3 | |||||||||||
| Engine | Model | 4KK1N6LB (120HP) | ||||||||||
| Type | 4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | |||||||||||
| Emission Standard | Euro VI (we will reduce the emission to met local market request) | |||||||||||
| Displacement (L) | 2.5 | |||||||||||
| Rated Power (kw) | 88KW | |||||||||||

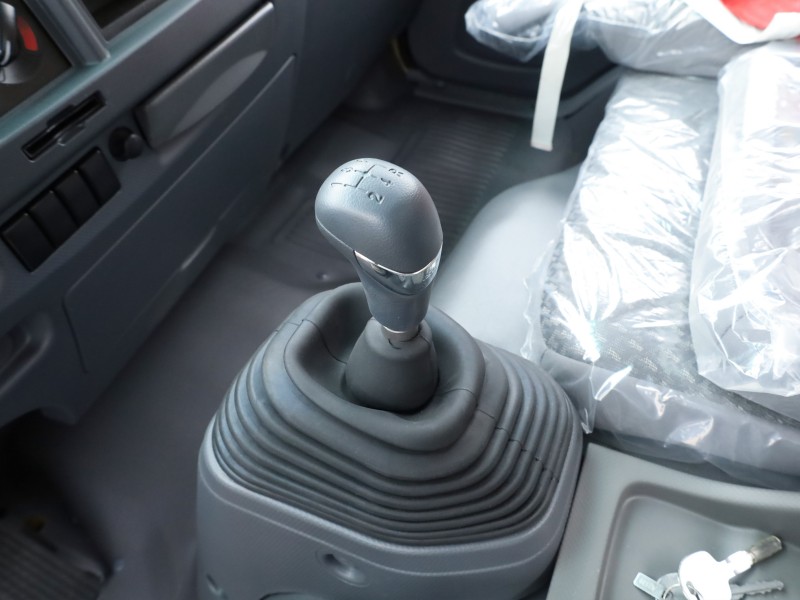

| Transmission | Model | Manual,MSB | ||||||||||
| 5 Forward + 1 Reverse | ||||||||||||
| Fuel tank | Capacity | 100L | ||||||||||
| Brake System | Brake(Air/Oil) | Oil brake | ||||||||||
| Max. Speed (km/h) | 100 | |||||||||||
| standard Configuration | Tires | 7.00R16LT 8PR | ||||||||||

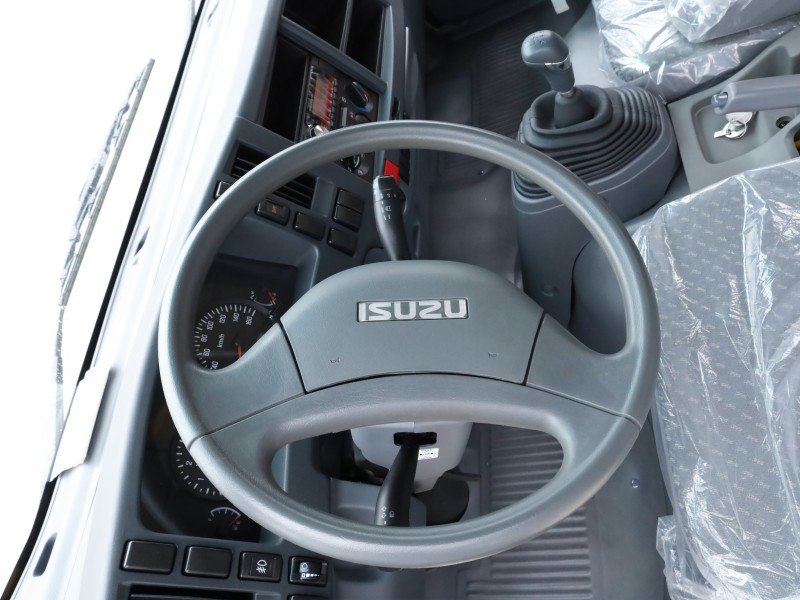

| Power steering | ● | |||||||||||

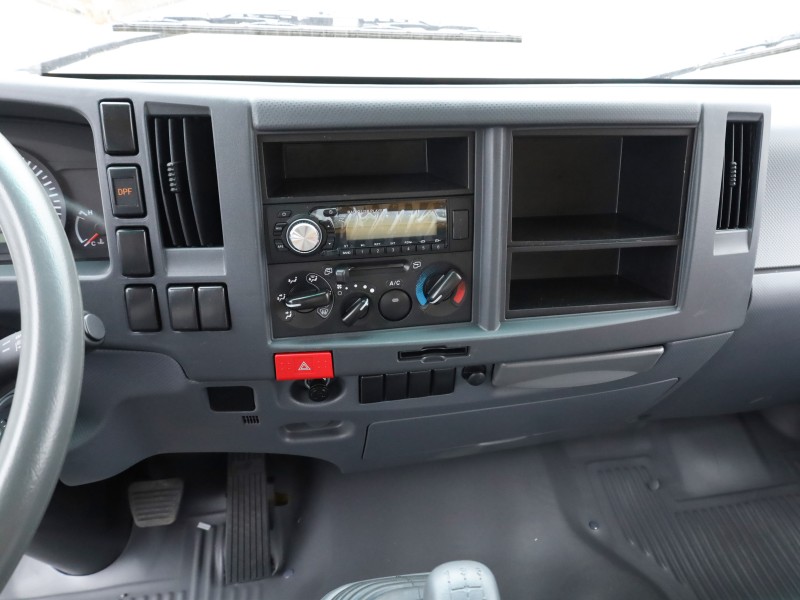

| Radio | ● | |||||||||||
| ABS | ● | |||||||||||
| A/C | ● | |||||||||||

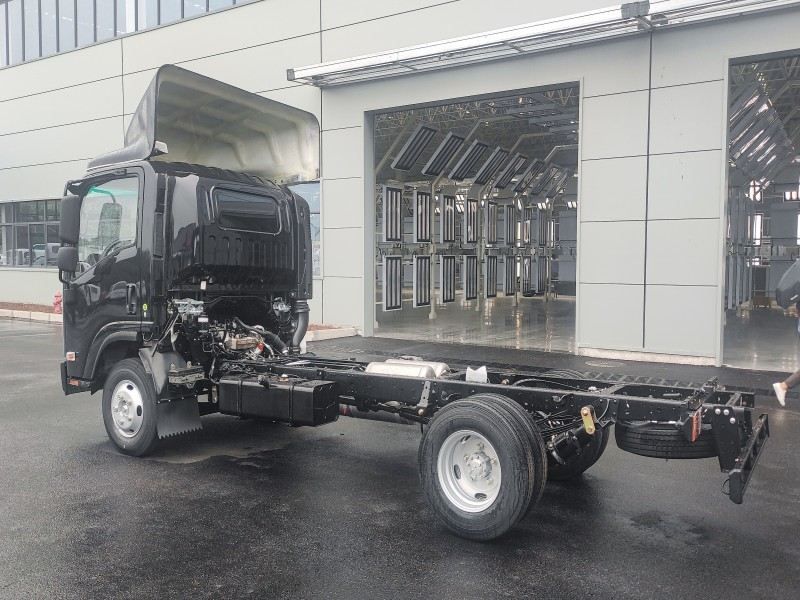

| Tilted cabin | ● | |||||||||||
| Option configuration | Central lock | ○ | ||||||||||
| Electric window | ○ | |||||||||||
| Deflector | ○ | |||||||||||
| Dimensions | Length OAL (mm) | 5995 | ||||||||||
| Width OW (mm) | 2030 | |||||||||||
| Height OH (mm) | 2280 | |||||||||||
| Front Tread AW (mm) | 1685 | |||||||||||
| Rear Tread CW (mm) | 1525 | |||||||||||
| Front/rear suspension | 1110/1525 | |||||||||||
| Approaching departure angle | 19/16 | |||||||||||
 1. ● means standard configuration. means option configurtaion and need extra cost2. All above information is for reference only, and will be updated timely without notice; 3. The listed models are part of the full products range, any special request will be available on request. | ||||||||||||
