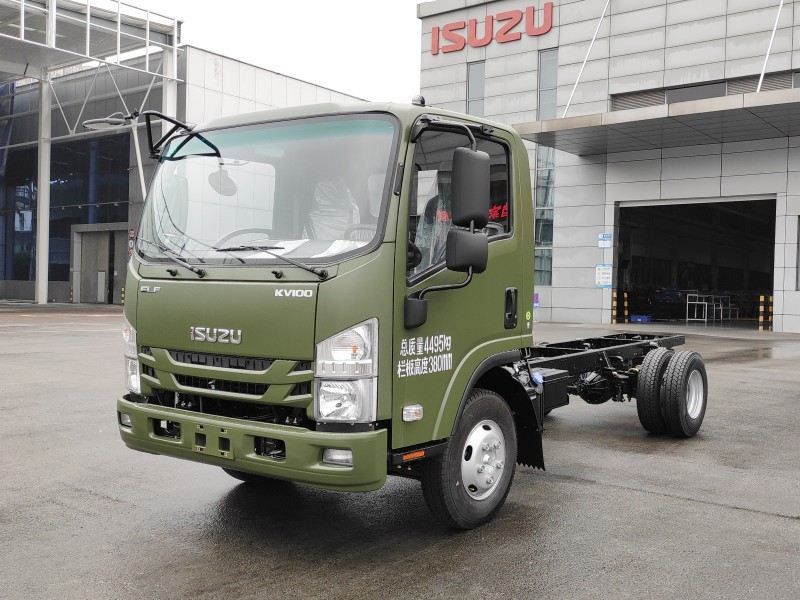

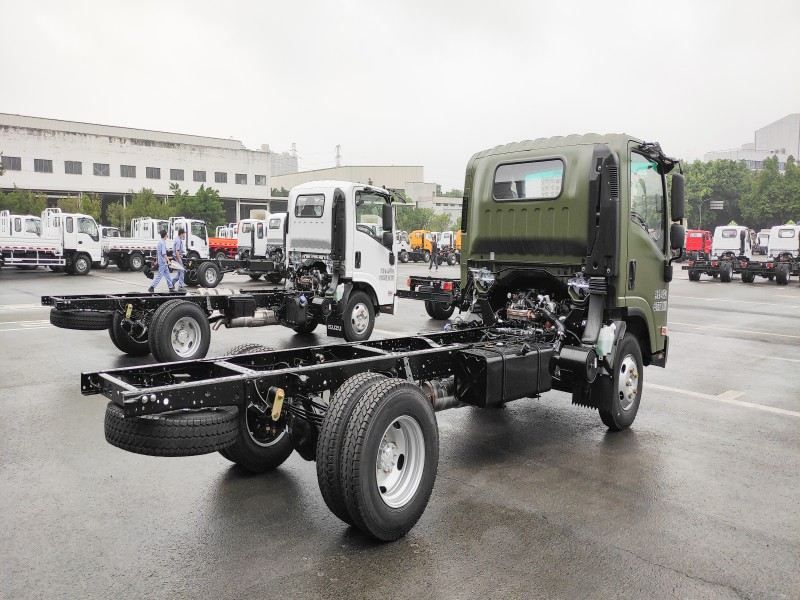

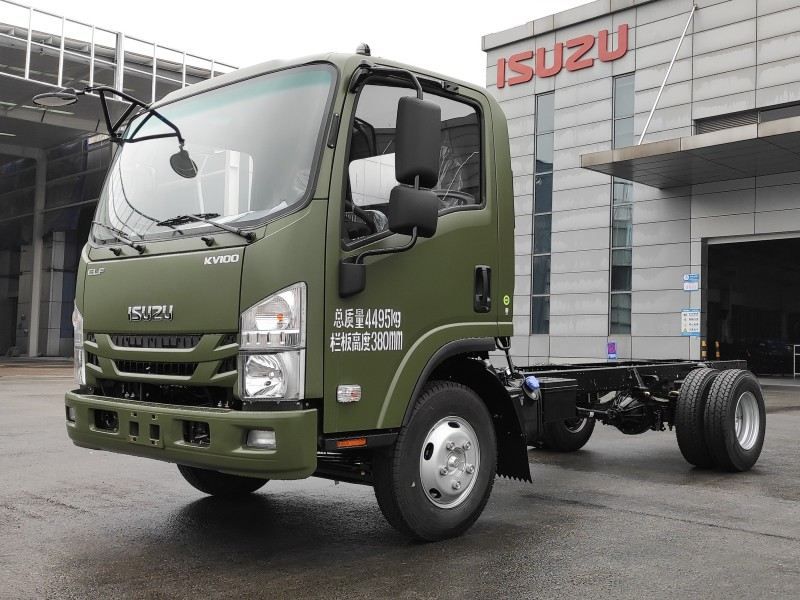

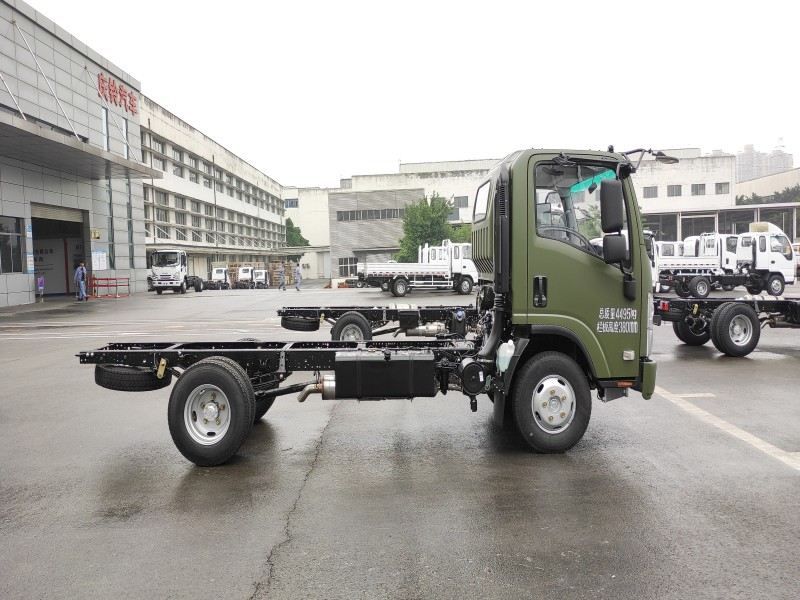

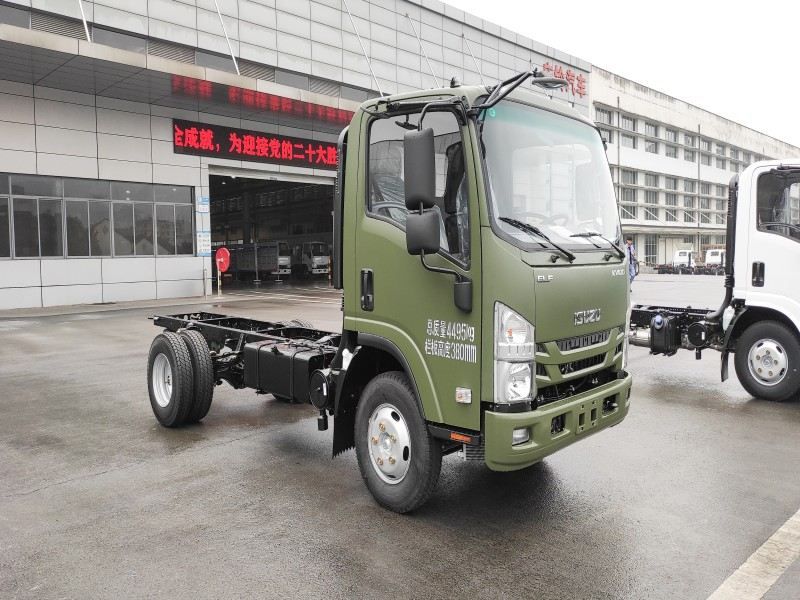

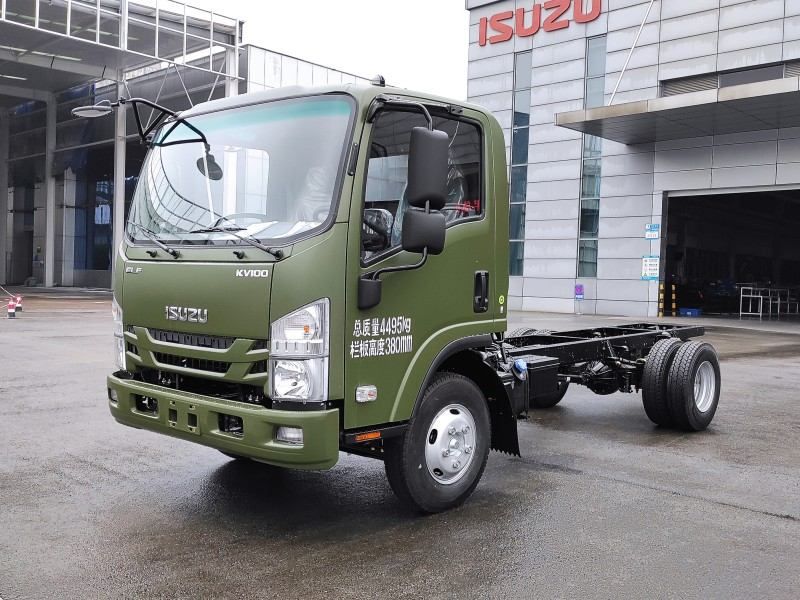

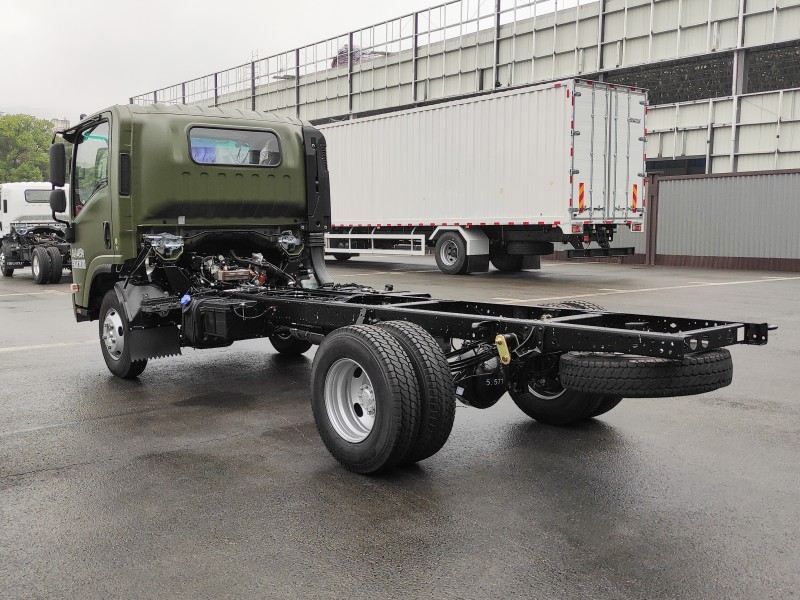

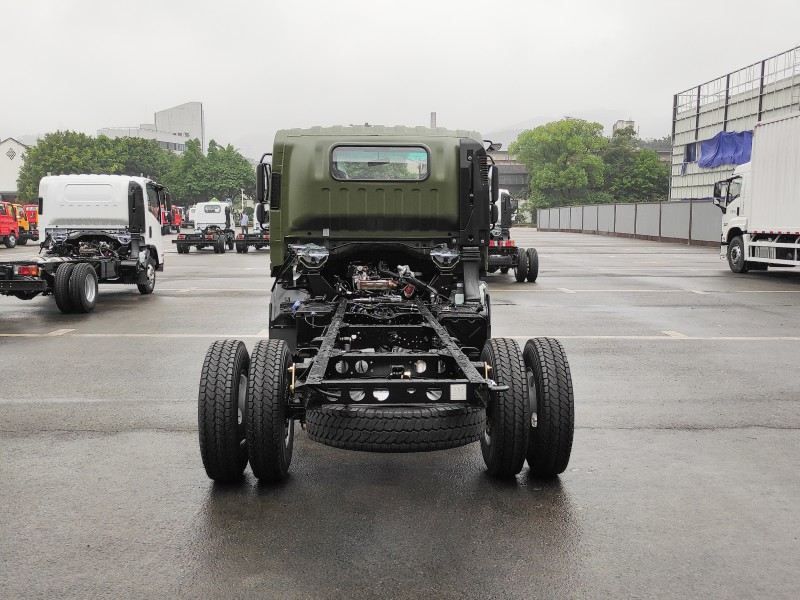

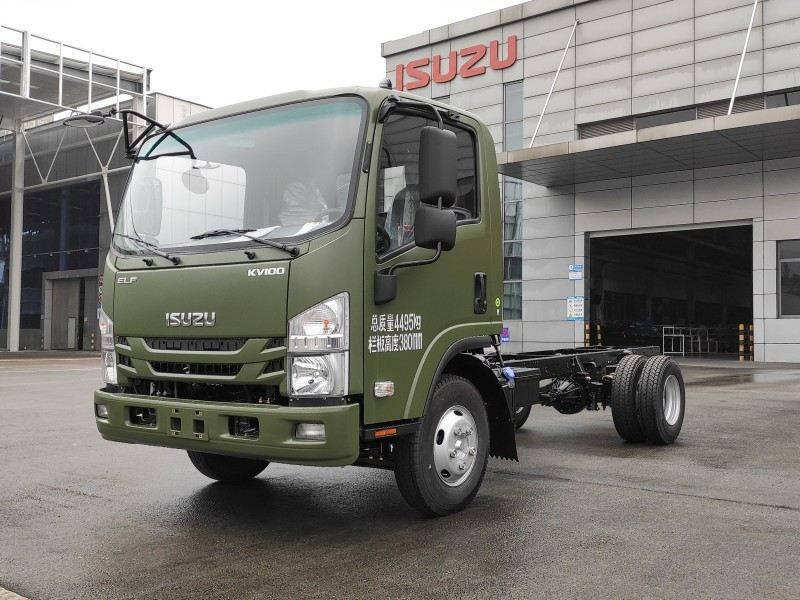

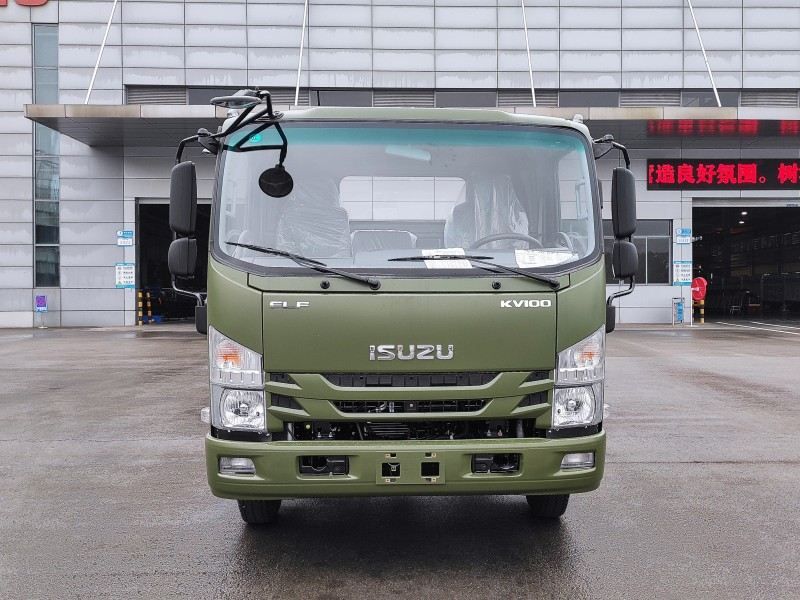

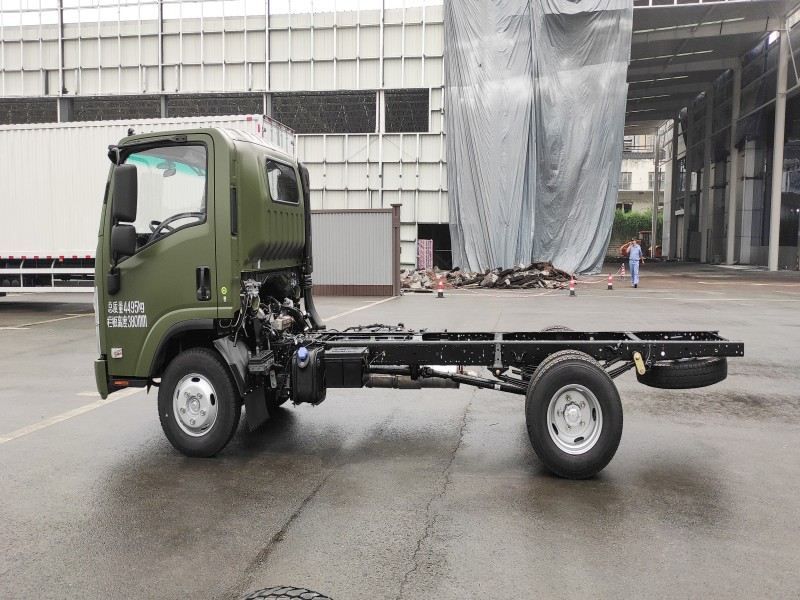

Build Your Ideal Work Truck on the Trusted Isuzu KV100 Chassis (China VI-B)
> Start with a foundation of quality and compliance. The Isuzu KV100 Single Cab Chassis delivers the robustness and reliability expected from Isuzu, now certified to the clean China VI-B emission standard . This gives you:
> Global Market Access: Meets stringent environmental requirements for easier import.
> Lower Operating Costs: Proven Isuzu efficiency for better fuel economy and maintenance savings.
> Maximum Flexibility: A dedicated single cab chassis designed specifically for seamless integration with your custom body solution – tailor-made for your business needs.
> Strong Performance: Dependable diesel power for everyday commercial tasks. > Stop compromising. Use the KV100 chassis as the base for your next cargo van, utility truck, mobile workshop, or specialized vehicle.
SPECIFICATIONS
DIMENSIONS
| General information 总体信息 | Chassis model 底盘型号 | NKR KV100 CAB CHASSIS | |||||||||
| Wheelbase(mm) 轴距 | 3815 | ||||||||||
| Drive Type 驱动形式 | 4X2 | ||||||||||
| GVW (KG) | 7300 | ||||||||||
| Curb Weight (KG) 整备质量 | 2350 | ||||||||||
| Cabin 驾驶室 | single 单排 | ||||||||||
| Driver and Passenger 可乘人数 | 3 | ||||||||||
| Engine 发动机 | Model 型号 | 4KH1CN6LB(120HP) | |||||||||
| Emission Standard 排放标准 | Euro VI (we will reduce the emission to met local market request) | ||||||||||
| Displacement (L) 排量 | 3 | ||||||||||
| Rated Power (kw) 功率 | 88KW | ||||||||||

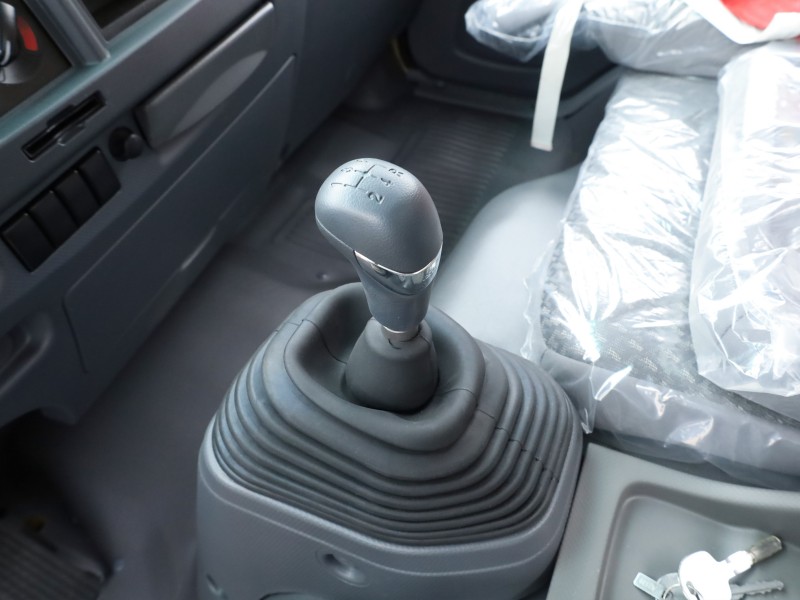

| Transmission 变速箱 | Model 型号 | Manual,MSB | |||||||||
| 5 Forward + 1 Reverse | |||||||||||
| Fuel tank 油箱 | Capacity 容量 | 100L | |||||||||
| Brake System 制动系统 | Brake(Air/Oil) | Oil brake 油制动 | |||||||||
| Max. Speed (km/h) | 最高速度 | 95/115 | |||||||||
| standard Configuration 标准配置 | Tires 轮胎尺寸 | 7.00R16LT 14PR | |||||||||
| Power steering 动力转向 | ● | ||||||||||

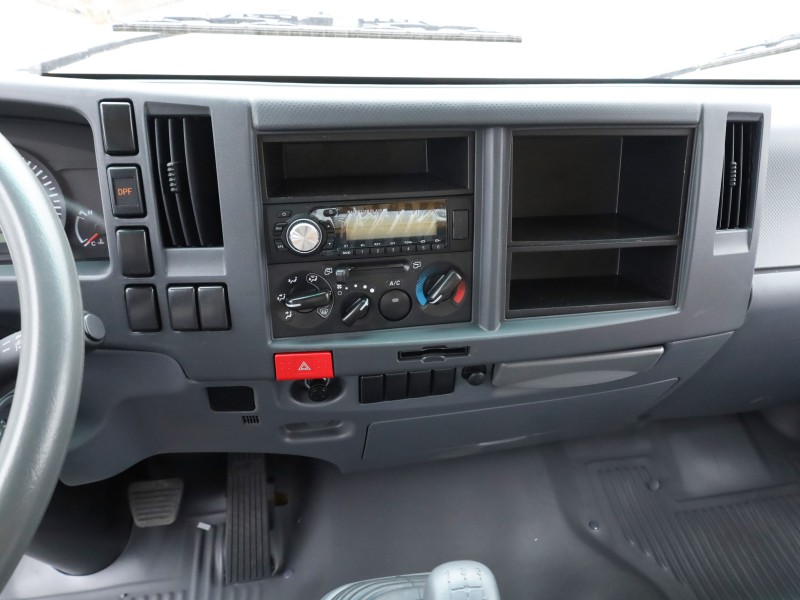

| Radio 录音机 | ● | ||||||||||
| ABS | ● | ||||||||||
| A/C 空调 | ● | ||||||||||
| Tilted cabin 翻转驾驶室 | ● | ||||||||||
| Option configuration 其他配置 | Central lock 中控锁 | ○ | |||||||||
| Electric window 电动门窗 | ○ | ||||||||||
| Dimensions 尺寸 | Length OAL (mm) 长度 | 6760 | |||||||||
| Width OW (mm) 宽度 | 2030 | ||||||||||
| Height OH (mm) 高度 | 2280 | ||||||||||
| Front Tread (mm) 前轮距 | 1685 | ||||||||||
| Rear Tread (mm) 后轮距 | 1525 | ||||||||||
| Front/rear suspension 前悬后悬 | 1110/1835 | ||||||||||
| Approaching departure angle 接近离去角 | 19/14 | ||||||||||
| 1. ● means standard configuration. ○ means have extra cost for optional 2. All above information is for reference only, and will be updated timely without notice; 3. The listed models are part of the full products range, any special request will be available on request. | |||||||||||
