SPECIFICATIONS
| 随车吊：Crane Truck | |

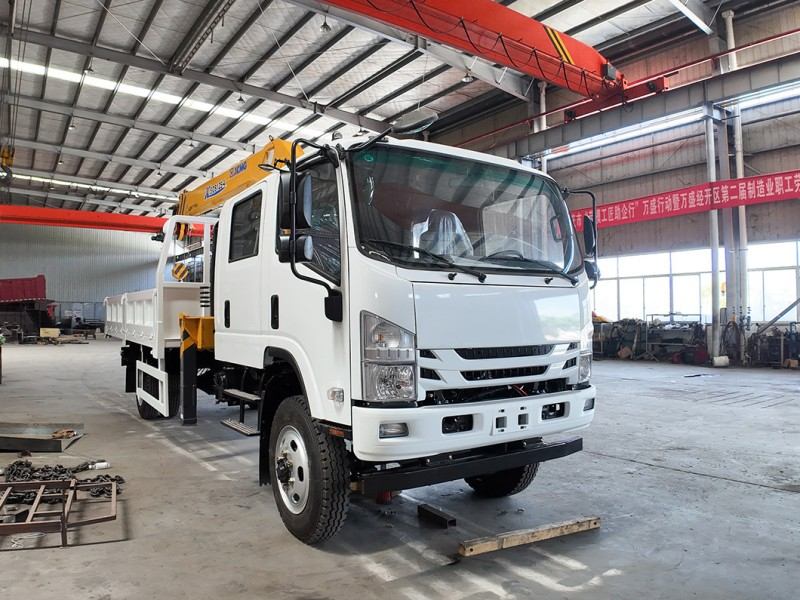

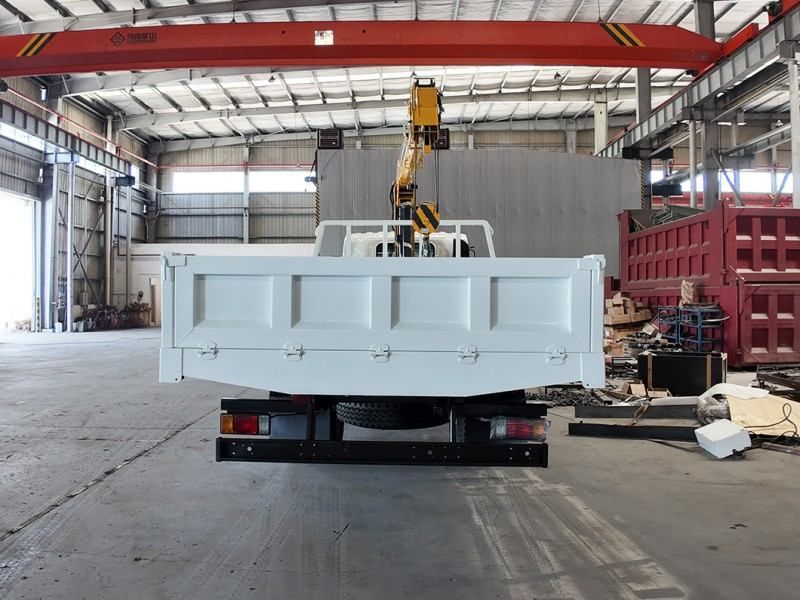

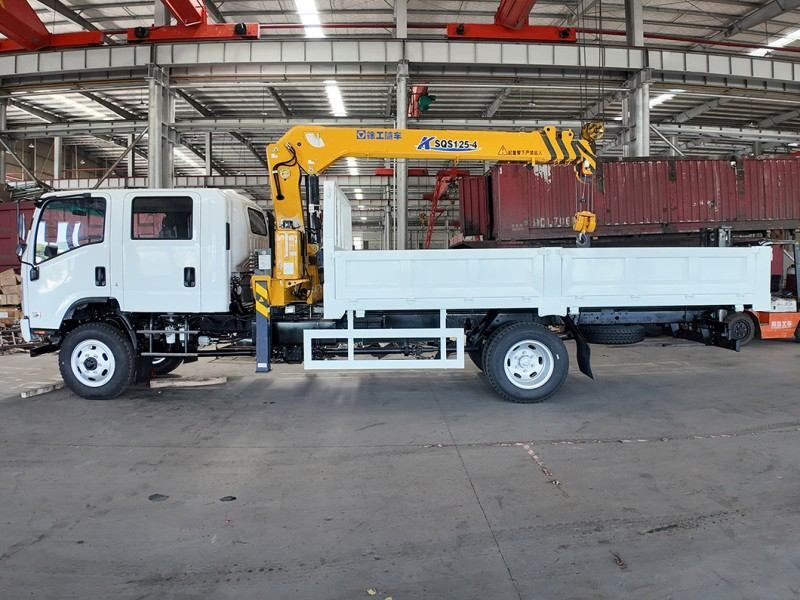

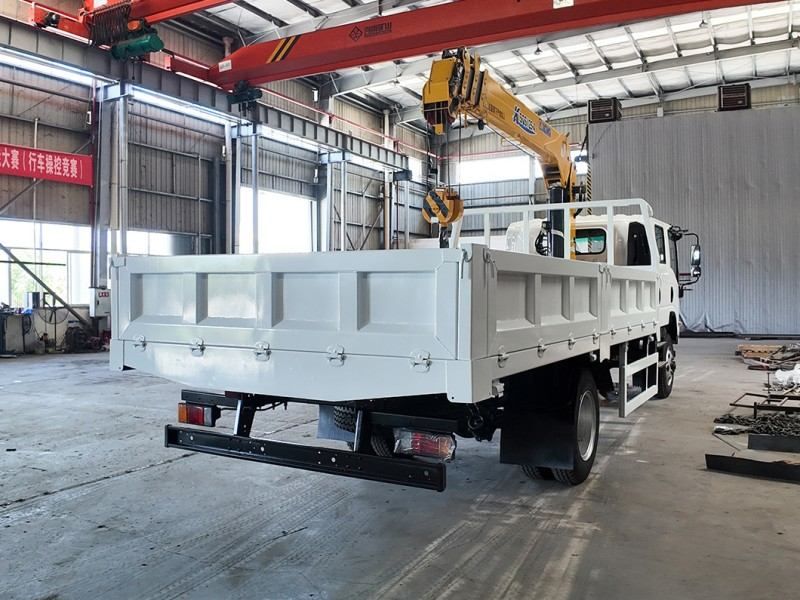

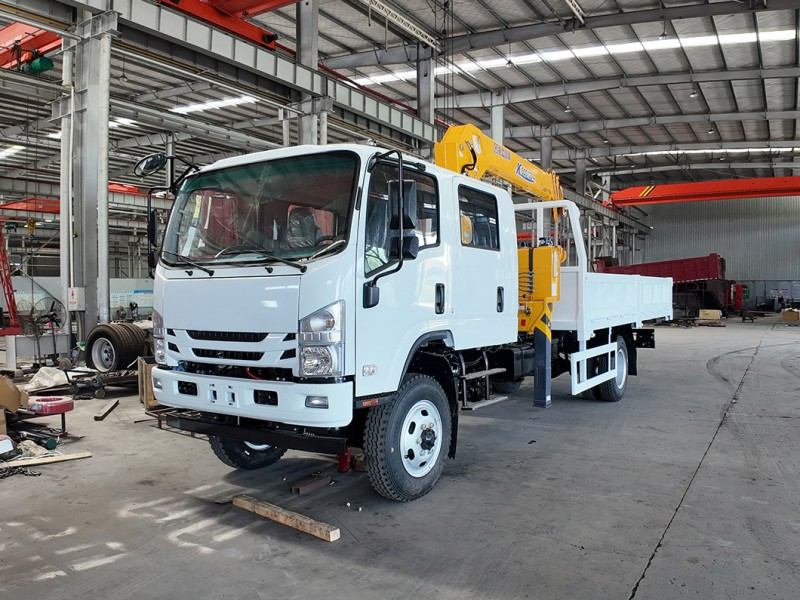

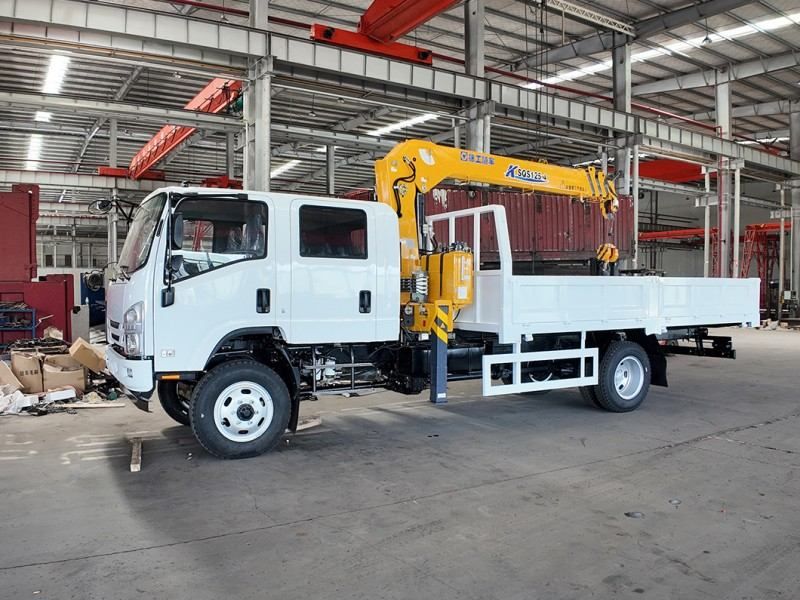

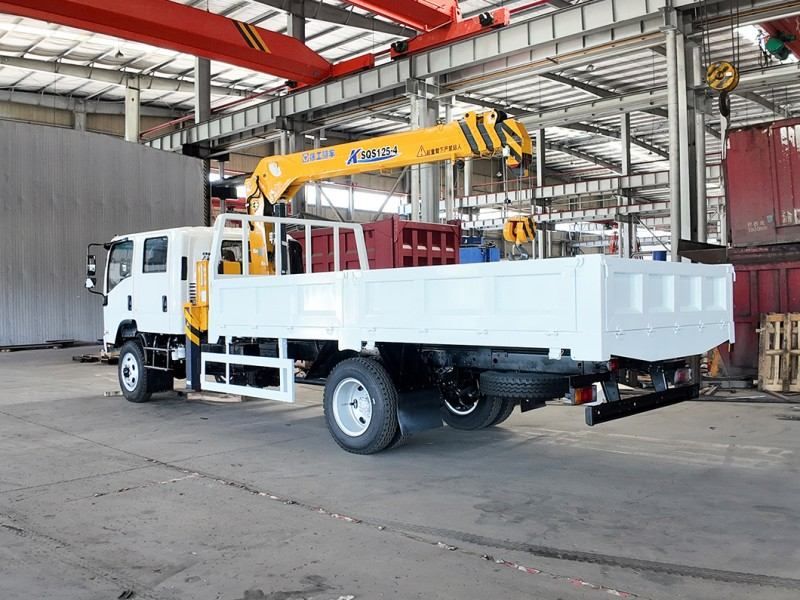

| 产品名称：NPR 700P Crane Truck (Straight Arm) | |
| I. General Information | |
| Reference Overall Dimensions(mm): | 7350×2350×3100 |
| Payload(kg): | 5000kg |
| GVW(kg): | 10550kg |
| II. Chassis | |
| Chassis Model: | ISUZU NPR 700P |
| Drive Type: | 4X4 |
| Wheelbase(mm): | 3815 |
| Cabin: | Double |
| Seats: | 6 |
| Tire Model: | 235/75R17.5 |
| Standard Configuration: | A/C, ABS, power steering, etc. |
| III. Engine | |
| Model: | 4HK1-TCG61 |
| Power (HP/kw): | 189HP/139kw |
| Displacement: | 5.193L |
| Engine Type: | 4-cylinder in-line, turbocharged, etc. |
| Fuel Type: | Diesel |
| Emission Standard: | Euro3/Euro4/Euro5/Euro6 |
| IV. Upper Body Specifications | |
| Cargo box size | 4400×2200×600mm |

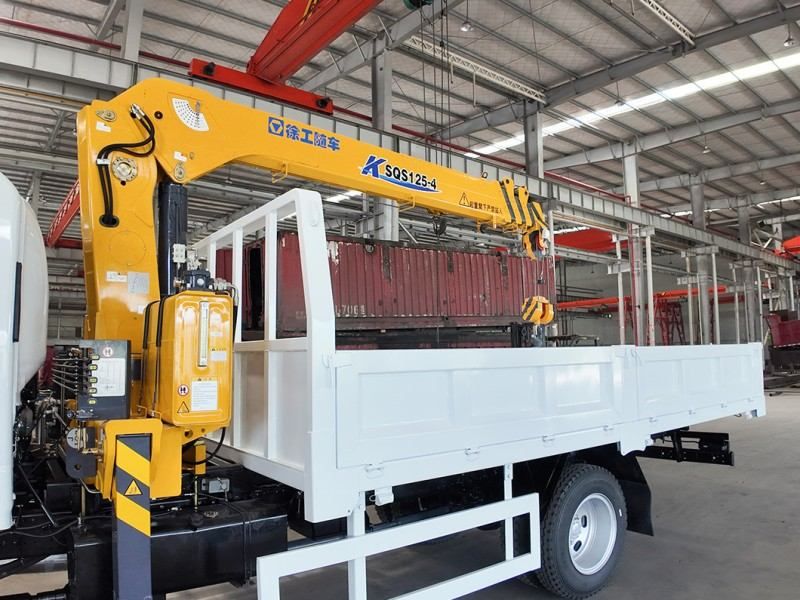

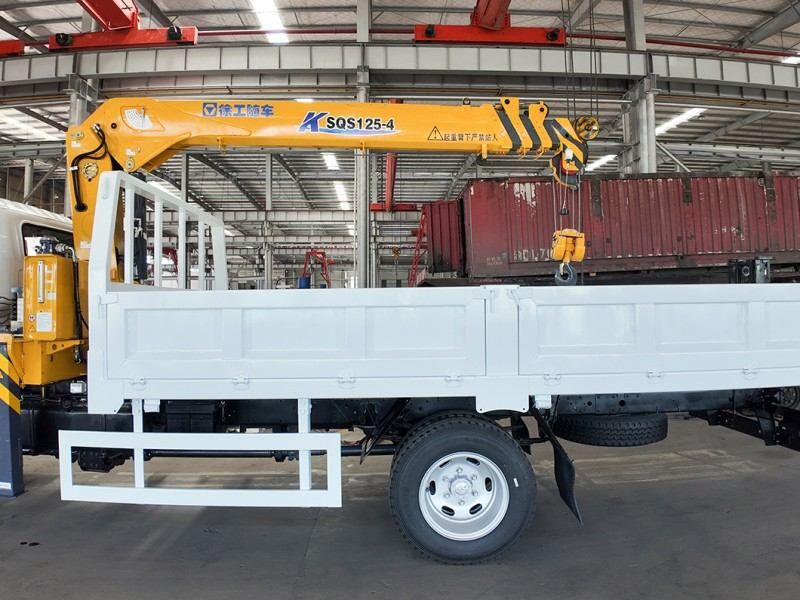

| Crane model | GSQS125-4 |
| Crane brand | XCMG |
| Max. lifting moment kN.m | 125kN.m |
| Max lifting capacity (kg) | 5050kg |
| V.Optional Configurations | |
| For more optional configurations and requirements, please contact our sales manager directly. | |
