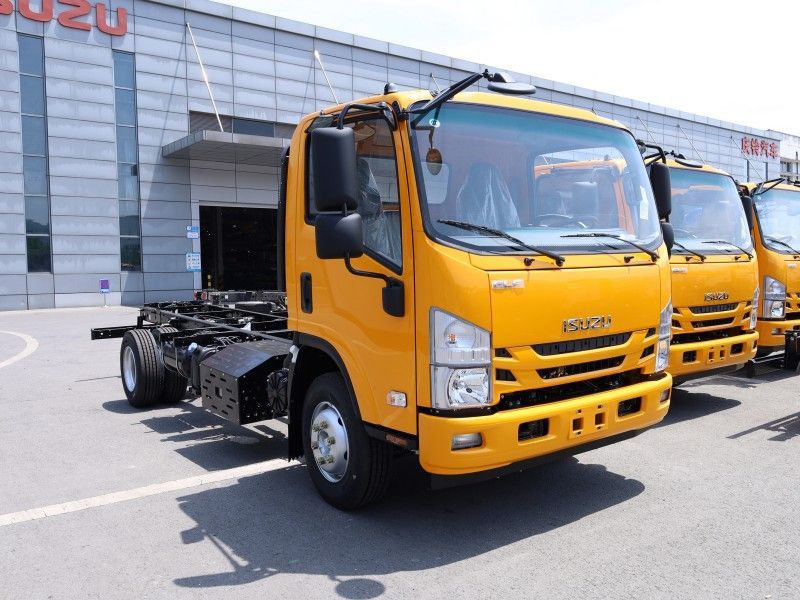

Isuzu 700P Chassis: A Robust Base for Innovations in Commercial Vehicles

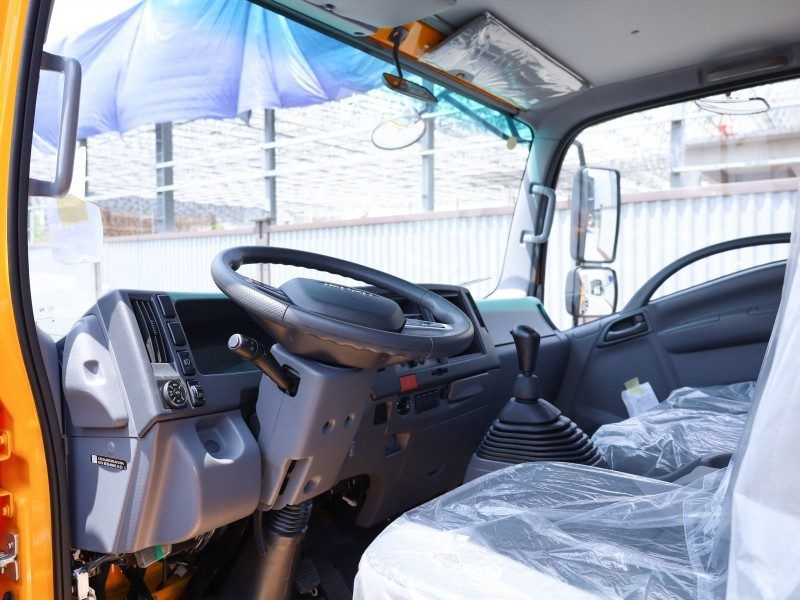

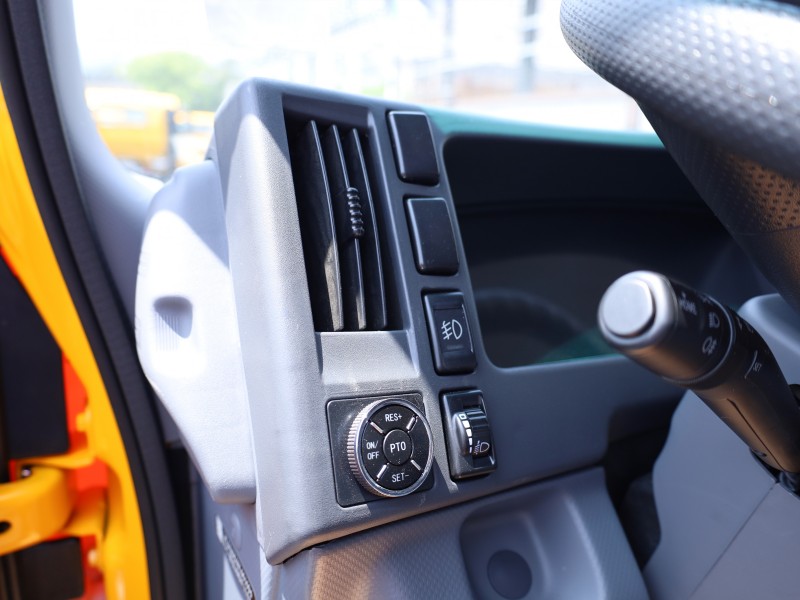

The Isuzu 700P chassis stands as a genuine workhorse in the commercial vehicle sector. Its core is the robust 189HP 4HK1-TCG61 engine, which delivers impressive power while maintaining strong performance across diverse operating environments. Complementing this engine is the manual Isuzu MLD-6Q transmission, with 6 forward gears and 1 reverse gear, ensuring precise shifts and seamless acceleration. Together, this powertrain setup enables efficient handling of heavy loads—supported by a gross vehicle weight (GVW) of 10550kg—making it well-suited for tough transportation jobs. Built on a newly developed framework, the chassis offers comfortable seating for three people. Its 3360mm wheelbase enhances stability, whether traveling through urban streets or tackling long-haul journeys. Adding to driver convenience is the multifunction steering wheel, which allows easy operation of various vehicle features without requiring the driver to remove their hands from the wheel. From the outset, the Isuzu 700P chassis sets a high bar, guaranteeing the reliability and power needed to meet your business demands.

General information	Chassis model	700p
	Wheelbase(mm)	3360
	Drive Type	4X2
	GVW (kg)	10550
	Curb Weight (kg)	3240
	Cabin	single
	Driver and Passenger	3
Engine	Model	4HK1-TCG61
	Type	4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling.
			Emission Standard	Euro VI
			Displacement (L)	5.193
	Rated Power (kw/rpm)	139KW
	Max. Torque (N.m/rpm)	510N.m

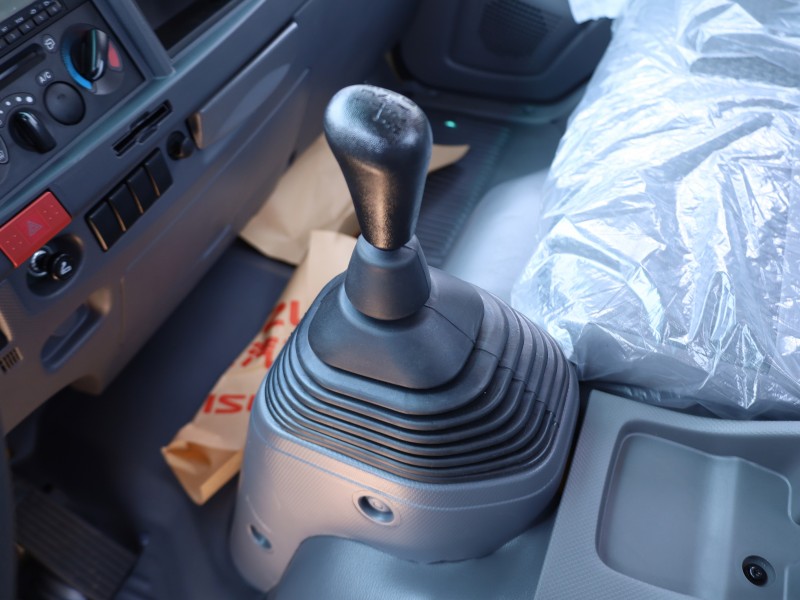

	Transmission	Model	Manual,ISUZU MLD-6Q
			6 Forward + 1 Reverse
Brake System	Service brake	Double circuit, air drive
	Brake(Oil/Air)	air brake
	Parking brake	Central drum brake
standard Configuration	Tires	235/75R17.5 16PR
	Power steering	●
	Radio	●
	ABS	●
	A/C	●
	Tilted cabin	●
	Exhuast brake	●
Option configuration	Central lock	●
	Electric window	●
	Deflector	●
Dimensions	Length OAL  (mm)	5995
	Width  OW (mm)	2170
	Height OH (mm)	2330
	Front Tread AW (mm)	1680
	Rear Tread CW  (mm)	1650
1. ● means standard configuration.                           ○    means option configurtaion
2. All above information is for reference only, and will be updated timely without notice;
3. The listed models are part of the full products range, any special request will be available on request.

Beyond its robust mechanical core, the Isuzu 700P chassis is equipped with a range of contemporary features that boost both safety and operational efficiency. A standout inclusion is the rear-view camera, which grants drivers a crisp view of the area behind the vehicle, significantly lowering the risk of collisions during reversing. Its sleek, modern body design is more than just visually appealing—it’s been aerodynamically refined to minimize drag, directly contributing to reduced fuel usage. Maintenance is also streamlined with this chassis. Thanks to its thoughtful engineering and premium components, the 700P boasts low upkeep costs, translating to long-term savings in both time and expenses. What’s more, its exceptional maneuverability makes it effortless to navigate tight spots, whether making deliveries in bustling city centers or weaving through busy industrial facilities. All in all, the Isuzu 700P chassis emerges as a comprehensive solution tailored to meet diverse commercial vehicle needs.
