Body application
SPECIFICATIONS

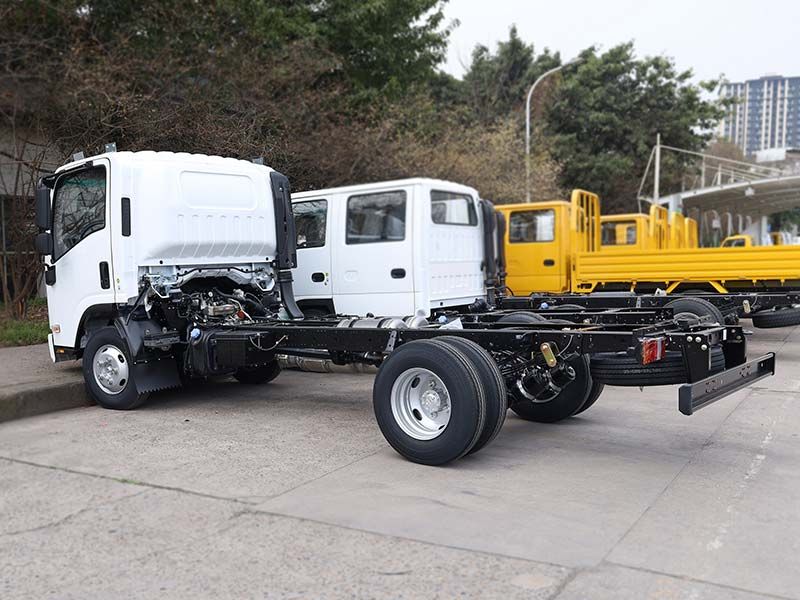

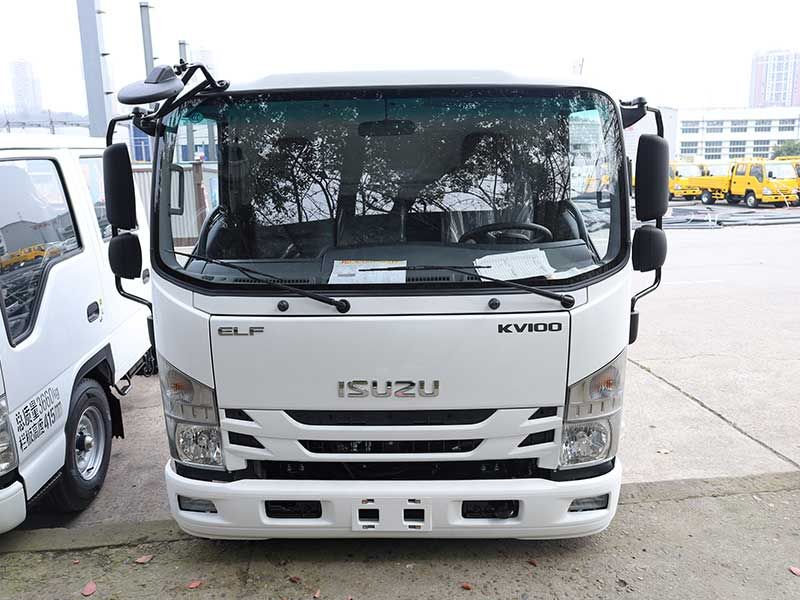

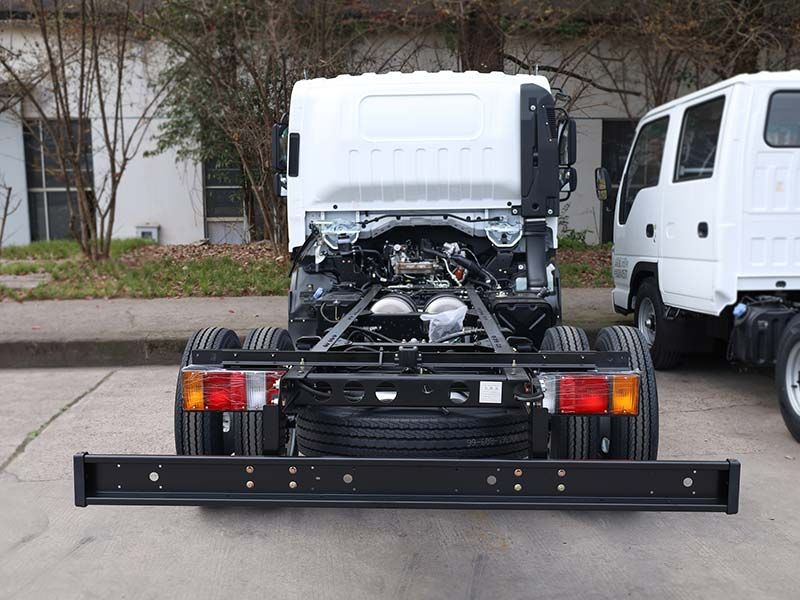

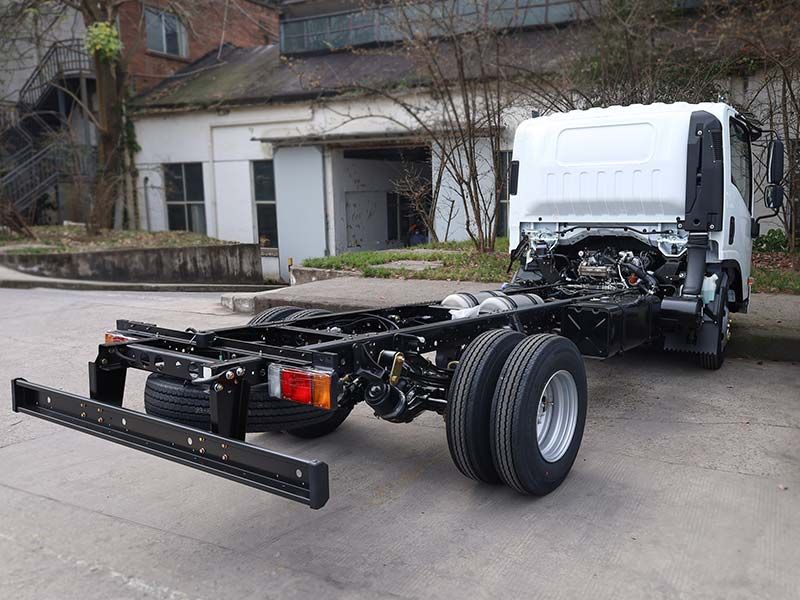

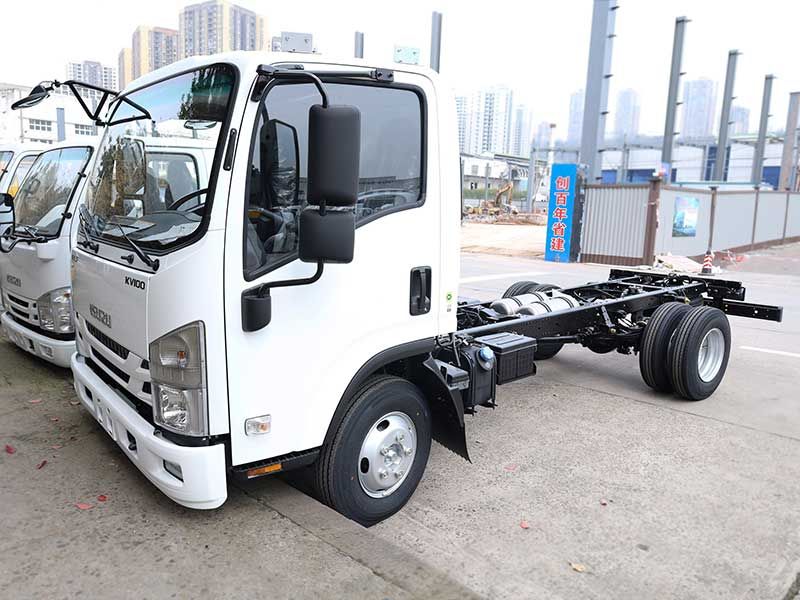

The Isuzu KV100 chassis is a top - performing light - truck solution. It offers quick power response and multiple gear ratios for various road conditions. Its high - strength steel chassis ensures durability and heavy - load capacity, while the optimized suspension guarantees stability. With fuel - efficient technology and low maintenance costs, plus wide adaptability to different truck bodies, it’s ideal for diverse transport needs.
| Work capacity: | 5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu KV100 light truck chassis |
DIMENSIONS
| General information | Chassis model | KV100 QL1043BUHAY NW57A | ||
| Wheelbase(mm) | 3360 | |||
| Drive Type | 4X2 | |||
| GVW (kg) | 7300 | |||
| Curb Weight (kg) | 2300 | |||
| Cabin | single | |||
| Driver and Passenger | 3 | |||
| Engine | Model | 4KH1CN6LB | ||
| Type | 4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | |||
| Emission Standard | Euro VI | |||
| Displacement (L) | 2.999 | |||
| Rated Power (kw/rpm) | 88KW | |||
| Max. Torque (N.m/rpm) | 290N.m | |||

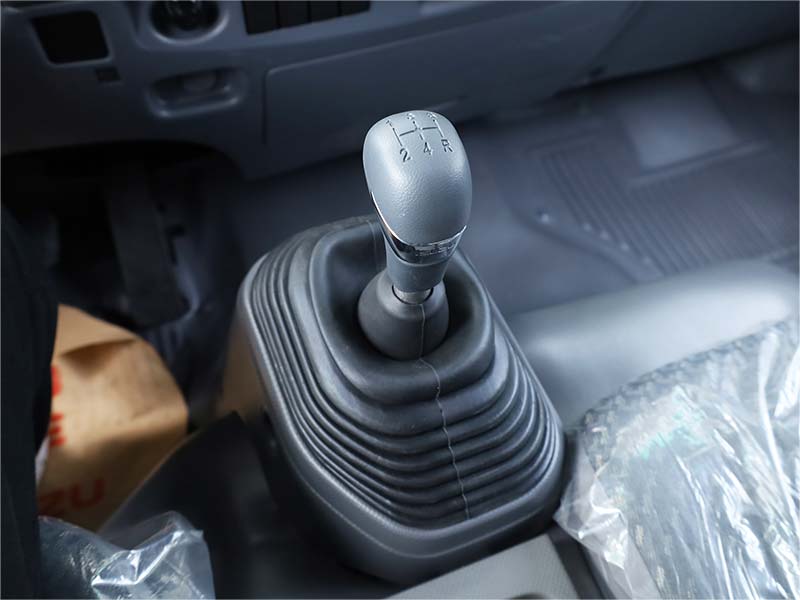

| Transmission | Model | Manual,MSB | ||
| 5 Forward + 1 Reverse | ||||
| Fuel tank | Capacity | 75L | ||
| Material | carbon steel | |||
| Brake System | Service brake | Double circuit, hydraulic drive | ||
| Brake(Oil/Air) | hydraulic brake | |||
| Parking brake | Central drum brake | |||
| standard Configuration | Tires | 7.00R16LT 14PR,7.00-16LT 14PR | ||
| Power steering |  ● | |||
| Radio | ● | |||
| ABS | ● | |||
| A/C | ● | |||
| Tilted cabin | ● | |||
| Exhuast brake | ● | |||
| Option configuration | Central lock | ● | ||
| Electric window | ● | |||
| Deflector | ● | |||
| Dimensions | Length OAL (mm) | 5995 | ||
| Width OW (mm) | 2030 | |||
| Height OH (mm) | 2280 | |||
| Front Tread AW (mm) | 1685 | |||
| Rear Tread CW (mm) | 1685 | |||
| 1. ● means standard configuration. ○ means option configurtaion | ||||
| 2. All above information is for reference only, and will be updated timely without notice; | ||||
| 3. The listed models are part of the full products range, any special request will be available on request. | ||||
 | ||||
