SPECIFICATIONS

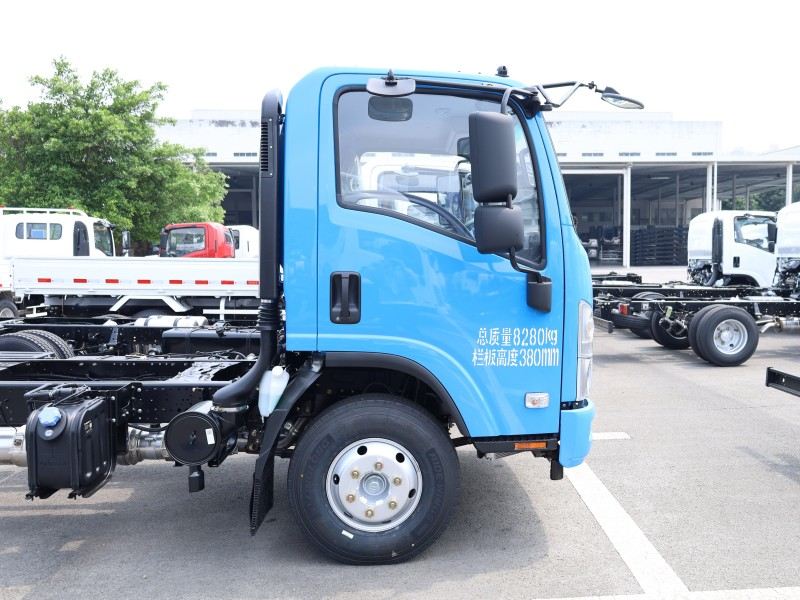

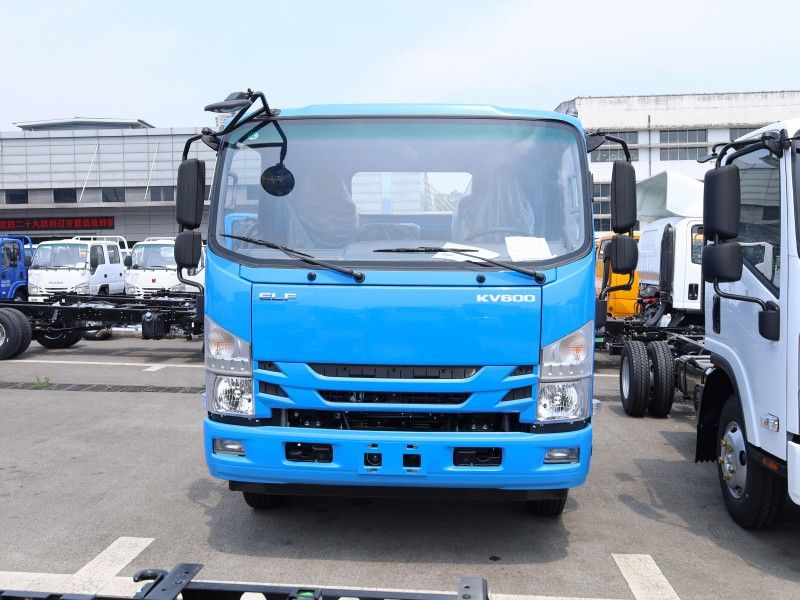

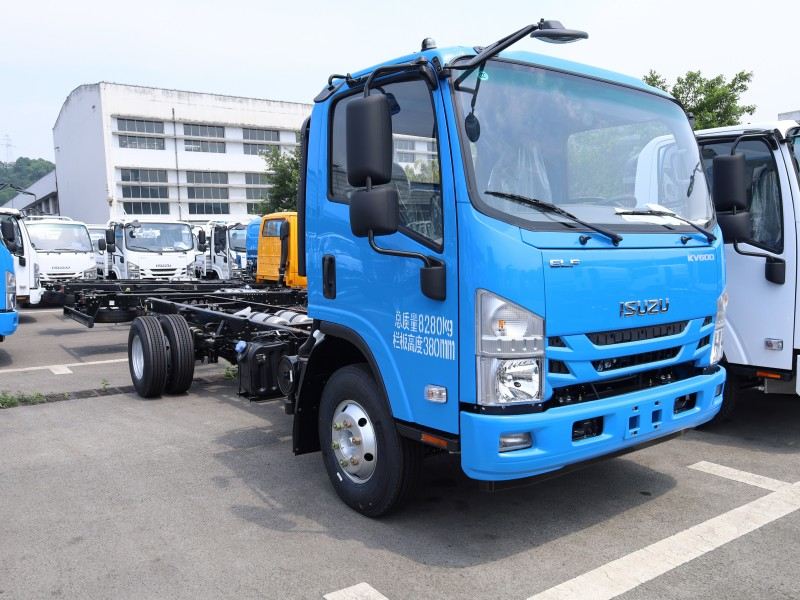

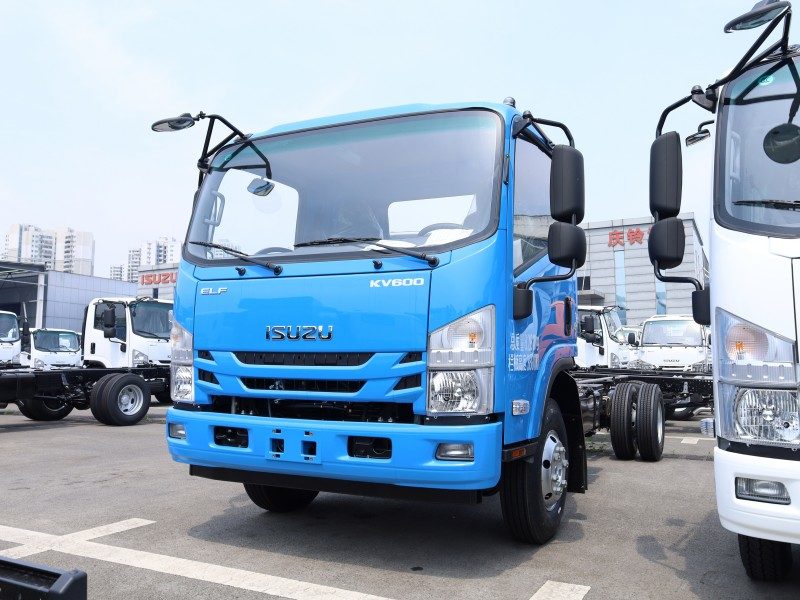

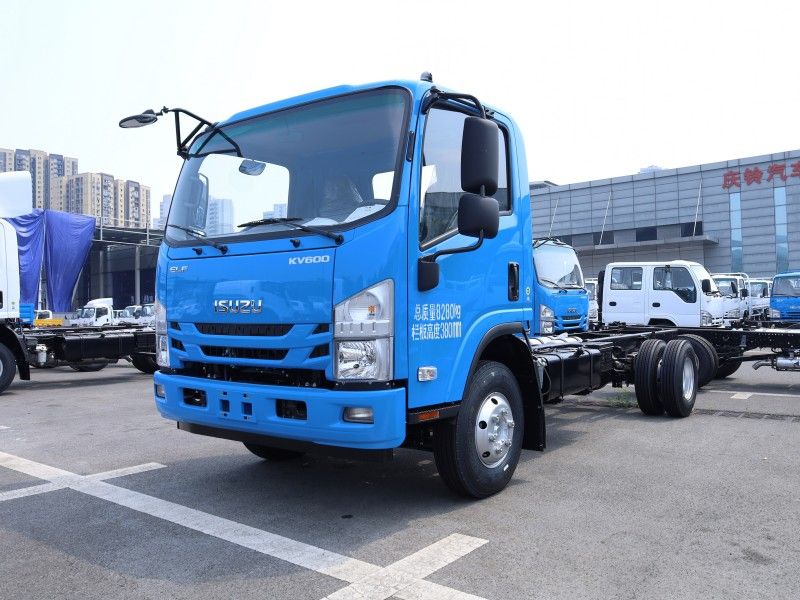

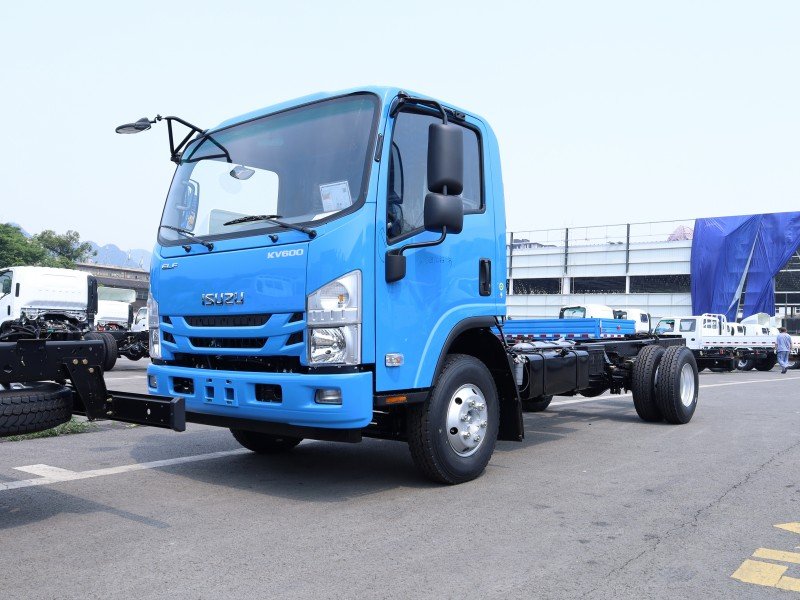

The Isuzu KV600 chassis stands as a standout engineering achievement, crafted to address a wide array of transportation and commercial requirements. Featuring a 3365mm wheelbase, it serves as a stable platform that accommodates numerous vehicle conversion needs. With a Gross Vehicle Weight (GVW) of 8280kg and a curb weight of 2560kg, it boasts an impressive payload capacity of 5000 to 6000kg—making it well-suited for heavy-duty operations, from hauling construction supplies to facilitating urban logistics deliveries. Beneath its exterior lies the robust ISUZU 4KH1CN6HB engine: a 132hp powerhouse with a 2.999L displacement. This engine meets Euro 6 emission standards and can also be adapted to operate under Euro 3 and 4 specifications when necessary. Delivering a maximum power of 97kW at 2900rpm and a peak torque of 317 N.m across 1700–2900rpm, it balances strong performance with efficient fuel usage. Additionally, its electronic injection system enhances both reliability and operational smoothness, ensuring consistent functionality in various scenarios.
| General information | Chassis model | KV600 light truck chassis |
| Wheelbase(mm) | 3365 | |
| Drive Type | 4X2 | |
| GVW (kg) | 8280 | |
| Curb Weight (kg) | 2560 | |
| Cabin | single | |
| Driver and Passenger | 3 | |
| Engine | Model | 4KH1CN6HB |
| Type | 4 Cylinders in line, | |
| high presure, electrical common-rail diesel fuel injection system, | ||
| water cooling , turbo charging, inter cooling. | ||
| Emission Standard | Euro VI | |
| Displacement (L) | 2.999 | |
| Rated Power (kw/rpm) | 97KW/2900rpm | |
| Max. Torque (N.m/rpm) | 317N.m/1700-2900rpm | |
| Transmission | Model | Manual |
| 5 Forward + 1 Reverse | ||
| Brake System | Service brake | Double circuit, air drive |
| Brake(Oil/Air) | air brake | |
| Parking brake | Central drum brake | |
| standard Configuration | Tires | 7.50R16LT 14PR |
| Power steering |  ● | |
| Radio | ● | |
| ABS | ● | |
| A/C | ● | |
| Tilted cabin | ● | |
| Exhuast brake | ● | |
| Option configuration | Central lock | ● |
| Electric window | ● | |
| Deflector | ● | |

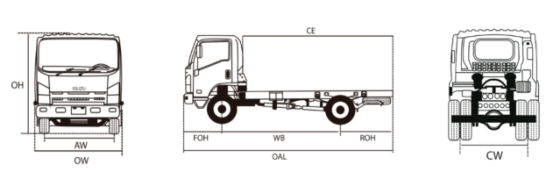

| Dimensions | Length OAL (mm) | 5875 |
| Width OW (mm) | 2130 | |
| Height OH (mm) | 2880 | |
| Front Tread AW (mm) | 2315 | |
| Rear Tread CW (mm) | 1655 | |
| 1. ● means standard configuration. ○ means option configurtaion | ||
| 2. All above information is for reference only, and will be updated timely without notice; | ||
| 3. The listed models are part of the full products range, any special request will be available on request. | ||
DIMENSIONS
Explore the Isuzu KV600 chassis—a versatile solution for diverse needs! Boasting a 3365mm wheelbase and a gross vehicle weight (GVW) of 8280kg, it delivers an impressive payload capacity of 5 to 6 tons. Under the hood, the ISUZU 4KH1CN6HB engine takes center stage: a 132hp Euro 6-compliant powerhouse that generates a maximum power output of 97kW. Complementing its robust performance are a 4x2 drive configuration and air brake system, working together to ensure consistent, reliable operation across a wide range of applications.
| Work capacity: | 5-6tons |
| Engine power: | 132HP |
| Engine type: | 4KH1CN6HB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual |
| Remarks: | Isuzu KV600 Light Truck Chassis |
