Body application
SPECIFICATIONS

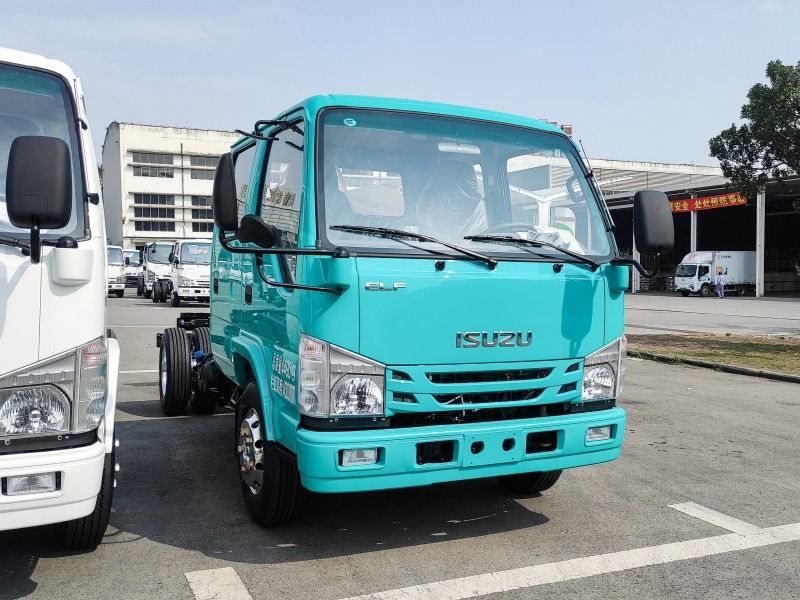

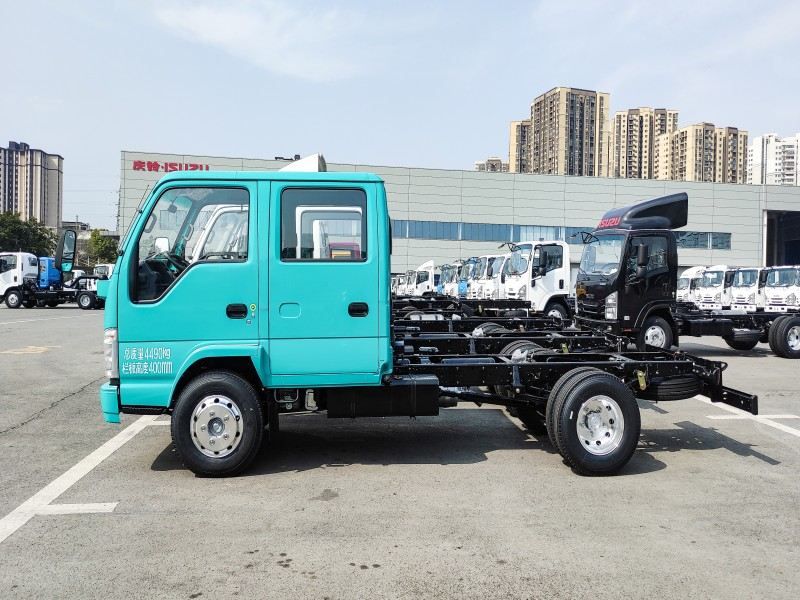

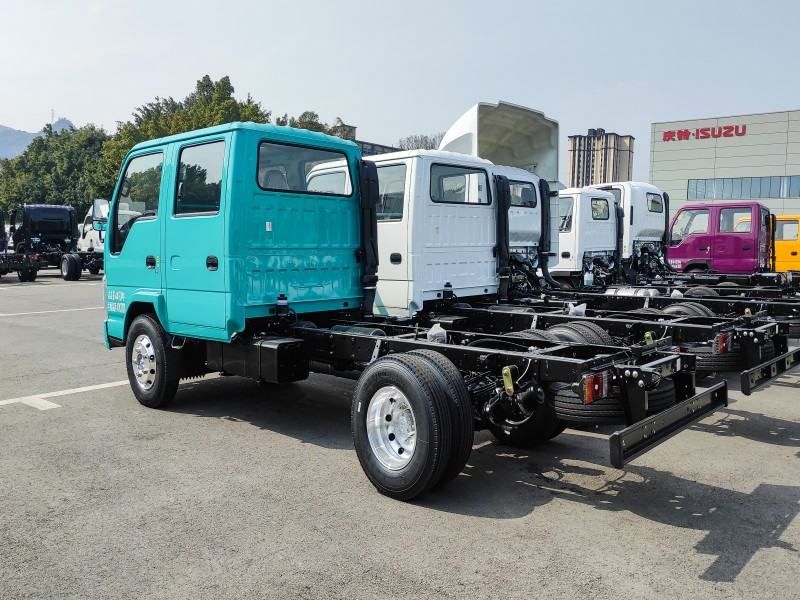

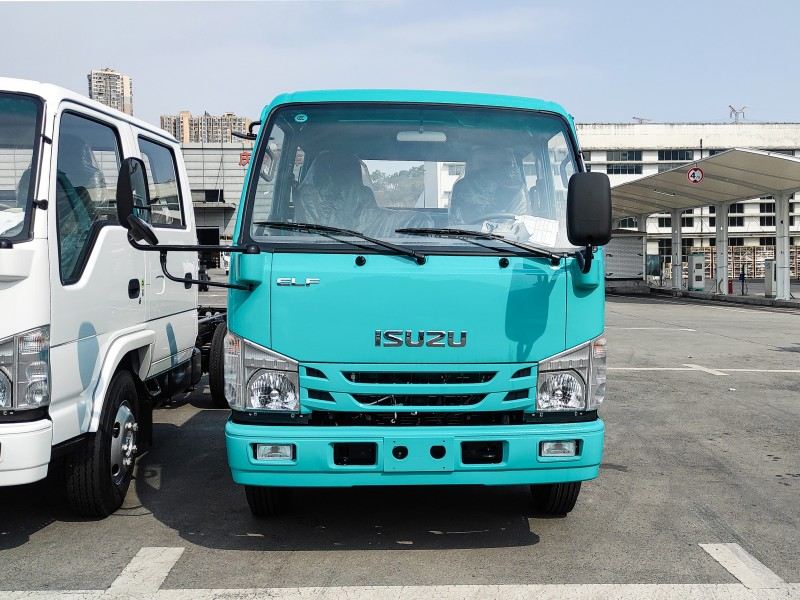

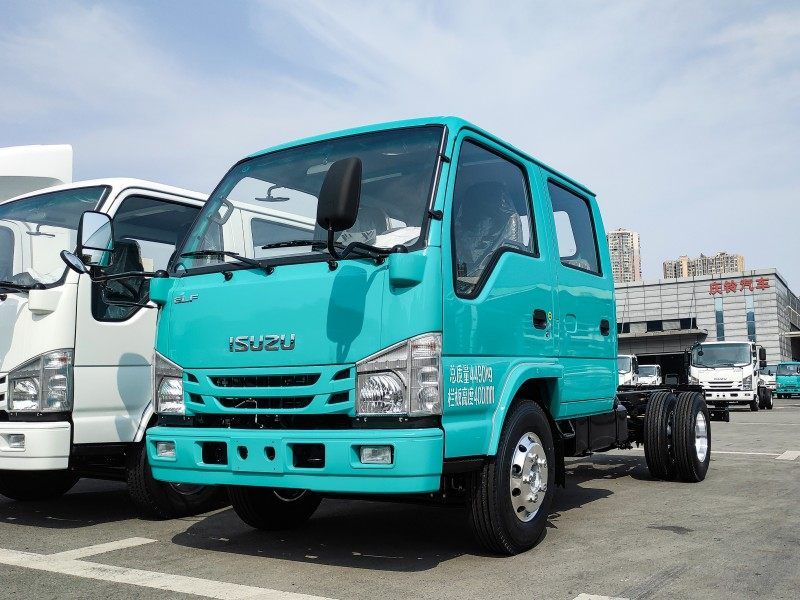

The Isuzu 100P Double Cab Chassis combines tough dependability with operational efficiency. Equipped with a 2.5-liter turbo diesel engine, it manages 1.8-ton payloads with ease. Its 5-seat crew cabin and robust frame make it ideal for municipal operations, city deliveries, and custom modifications. Thanks to its low upkeep needs, fuel-saving design, and a track record of strong performance, it stands as a reliable option for heavy-duty jobs.
| Work capacity: | 2-5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu 100P light truck chassis |
DIMENSIONS
Driven by the tried-and-tested 2.5L 4KK1 turbo diesel engine, the Isuzu 100P Double Cab Chassis offers steady performance for heavy-duty work. Producing 132 horsepower and 290Nm of torque at 1,300 RPM, it strikes a balance between power and fuel economy—perfect for lengthy work shifts. Boasting a 1.8-ton payload capacity and a 3-ton rear axle, it handles construction supplies, municipal gear, or delivery items with ease. The sturdy frame, strengthened by 3+2 leaf springs, guarantees long-lasting resilience even over uneven ground, while the 7.00R16LT heavy-duty tires deliver reliable grip. Its 84-liter fuel tank extends operational reach, cutting down on refueling stops during both urban and rural tasks. Designed with low maintenance in mind, the MSB 5-speed transmission and rust-resistant parts reduce idle time, ensuring your operations stay on track.
| General information | Chassis model | 100p light truck chassis | ||
| Wheelbase(mm) | 3360 | |||
| Drive Type | 4X2 | |||
| GVW (kg) | 7300 | |||
| Curb Weight (kg) | 2250 | |||
| Cabin | Double | |||
| Driver and Passenger | 4 | |||
| Engine | Model | 4KH1CN6LB | ||
| Type | 4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | |||
| Emission Standard | Euro VI | |||
| Displacement (L) | 2.999 | |||
| Rated Power (kw/rpm) | 88kw | |||
| Max. Torque (N.m/rpm) | 290N.m | |||
| Transmission | Model | Manual,MSB | ||
| 5 Forward + 1 Reverse | ||||
| Brake System | Service brake | Double circuit, air drive | ||
| Brake(Oil/Air) | air brake | |||
| Parking brake | Central drum brake | |||
| standard Configuration | Tires | 7.00R16LT 14PR,7.00-16LT 14PR | ||
| Power steering |  ● | |||
| Radio | ● | |||
| ABS | ● | |||
| A/C | ● | |||
| Tilted cabin | ● | |||
| Exhuast brake | ● | |||
| Option configuration | Central lock | ○ | ||
| Electric window | ○ | |||
| Deflector | ○ | |||
| Dimensions | Length OAL (mm) | 5900 | ||
| Width OW (mm) | 1880 | |||
| Height OH (mm) | 2200 | |||
| Front Tread AW (mm) | 1504 | |||
| Rear Tread CW (mm) | 1425 | |||
| 1. ● means standard configuration. ○ means option configurtaion | ||||
| 2. All above information is for reference only, and will be updated timely without notice; | ||||
| 3. The listed models are part of the full products range, any special request will be available on request. | ||||
The Isuzu 100P’s 5-seat double cab merges practicality with comfort, offering ergonomically designed seats and optional air conditioning to keep crews comfortable during extended work hours. Built for adaptability, its flexible chassis allows for smooth customization—making it ideal for transforming into fire-fighting vehicles, aerial work platforms, or utility trucks. Adherence to international standards (ISO, CE) ensures it can be used globally, while its compact build boosts maneuverability in cramped city spaces. Supported by Isuzu’s long-standing reputation for dependability, it comes with a 5-year warranty and round-the-clock technical assistance. Whether deployed for municipal projects, urban deliveries, or specialized tasks, this chassis combines sturdiness, efficiency, and versatility to fulfill a wide range of operational requirements.
