Product features
Chinese brand Refrigerated

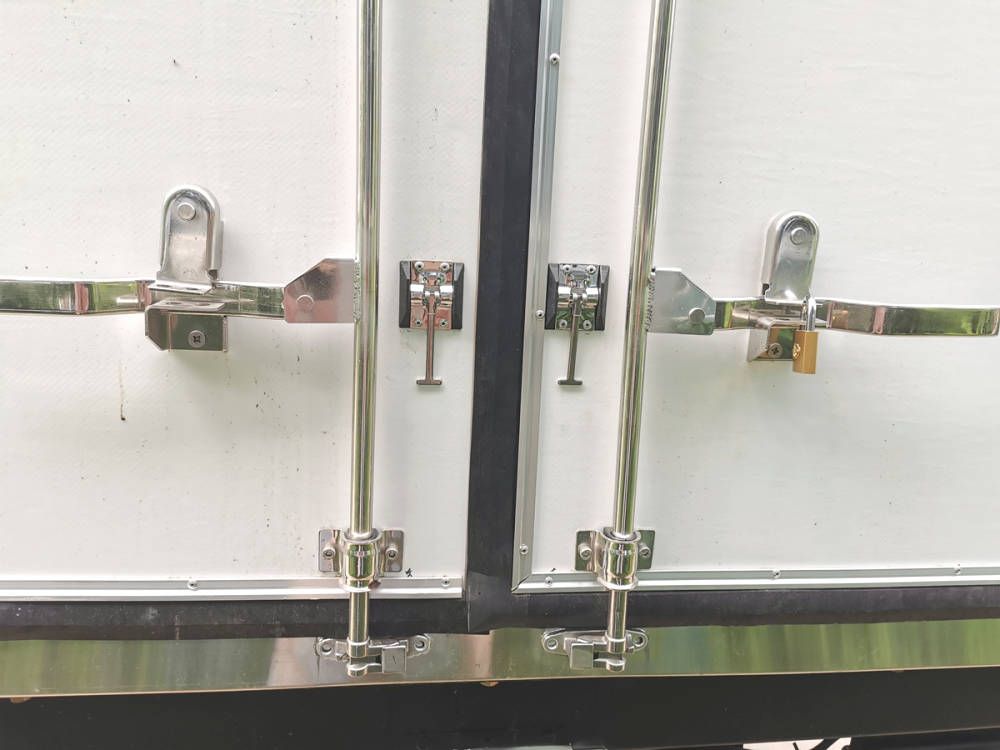

For Isuzu refrigerated van inner and outer wall plates can choose high-quality glass fiber reinforced plastic, stainless steel, or color steel plate, For middle insulation material choose an 8 cm thick imported level polyurethane XPS, compartment body aluminum alloy wrapped edge, bottom plate for non-slip pattern aluminum plate, rear door locking parts for stainless steel.
Exuberance shows
Product parameters
| Cab | Single row cab, with power steering. Electronic flameout | |
| Driving Type | 4*2 Left hand driving | |
| Max Speed (km/h) | 100Km/h | |
| Overall dimension(mm) | 5765*1950*2720 | |
| GVW( kg) | 2580 | |
| Wheelbase(mm) | 2860 | |
| F/R track base (mm) | 1506/1466 | |
| F/R overhang (mm) | 1120/1515 | |
| Approach/Departure Angel | 20/16 | |
| Tire | 185/65R15 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | 5-speed | |
| Enging | Model | ISUZU 4KH1 |
| Fuel Type | Diesel | |
| Type | Straight line four cylinder turbocharging | |
| Exhaust(ml) | 2999mL | |
| Max output power/rotate speed (hp /rpm ) | 120HP | |
| Max torque/rotate speed(N.m/rpm) | 210N·m/2200RPM | |
| Braking system | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Auxiliary brake | parking brake | |
| Eletric system | 12v | |
| Color option | Customizable | |
| Function | Transporting frozen food, dairy products, vegetables, fruit, and vaccine medicine, etc | |
| Materials | Stainless steel, glass fiber reinforced plastics, aluminum alloy, or color steel plate, etc. with PU, etc. sandwiched. | |
| Material of van box | In the middle of Polyurethenefoam, Inner and coating is glass fiber | |
| Thickness of van box (mm) | 80mm Polyurethene foam | |
| Model of Refrigeration unit | Korean ND THERMO brand Type:RV 380 | |
| Cooling capacity (w) | 1960 | |
| Van box dimension(mm) | 3500*1750*1500mm | |
| Length of van (m) | 3~4 | |
| Capacity of van (m³) | 9m³ | |
| Voltage & Total Current | DC12V(20A) | |
| Power | 240W | |
| Compressor | SD-5L09(87cc)/SD-5H09(87cc) | |
| Refrigerant | R404A 1.2Kg | |
| Evaporator Dimensions(mm) | 680×594×174 | |
| Condenser Dimensions(mm) | 905×211×420 | |
| Mini temperature in van (ºC) | ’-18(suitable for transfer food ) | |
