Product features

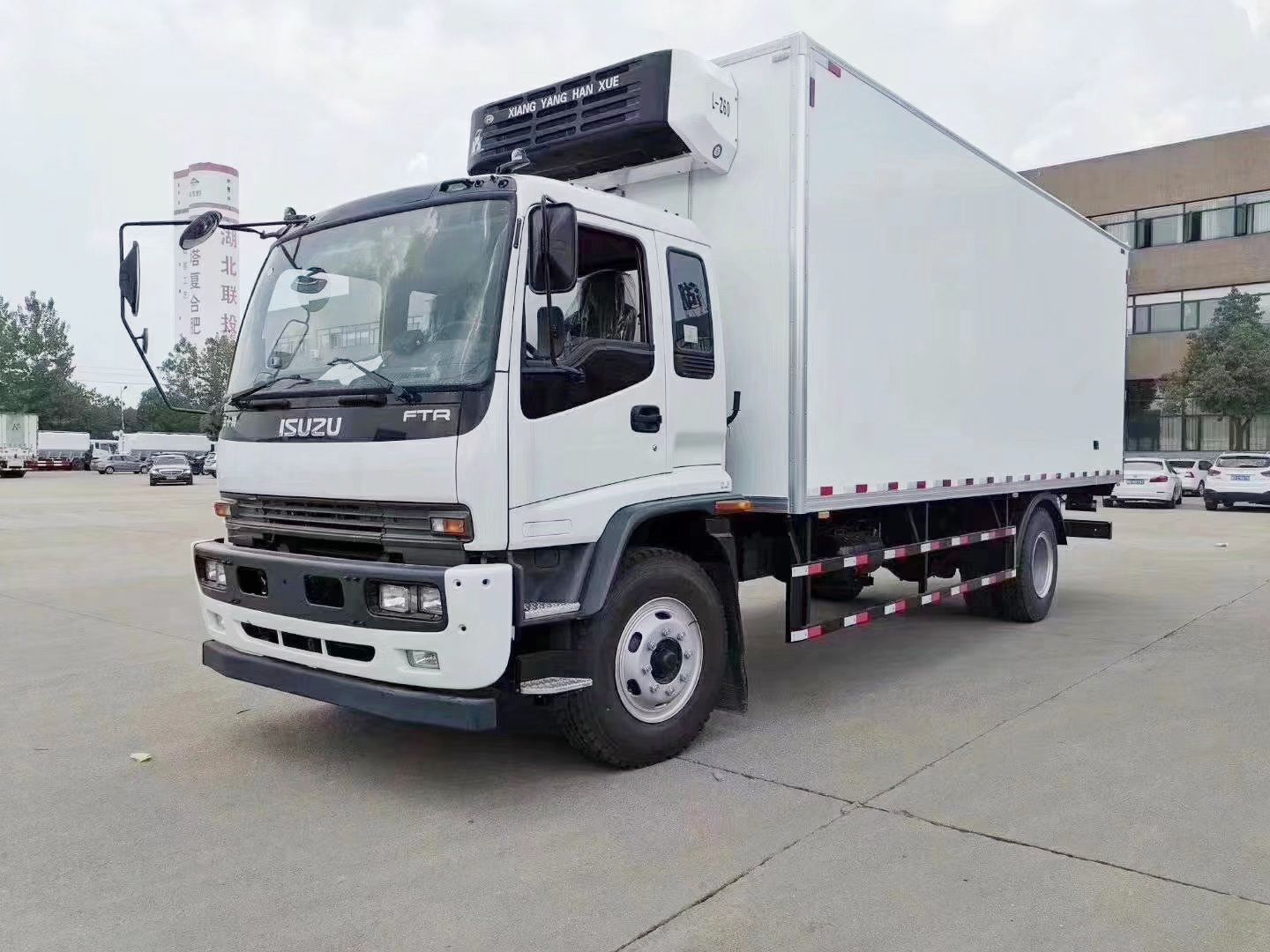

Heavy Truck Refrigerated Trucks 4x2 Refrigerator Truck for Meat and Fish Transport
Exuberance shows
Product parameters
| I. General Information | |
| Reference Overall Dimensions(mm): | 7420x2530x3900 |
| Capacity(CBM) / Payload(kg): | 10000 |
| GVW(kg): | 18000 |
| II. Chassis | |
| Chassis Model: | ISUZU GIGA (FTR) |
| Drive Type: | 4X2 |
| Wheelbase(mm): | 4500 |
| Cabin: | Single and half cabin(with bed) |
| Seats: | 3 |
| Tire Model: | 295/80R22.5 16PR |
| Standard Configuration: | A/C, ABS, power steering, etc. |
| III. Engine | |
| Model: | 4HK1-TCG60 |
| Power (HP/kw): | 205HP/151kW |
| Displacement: | 5.193L |
| Engine Type: | 4-cylinder in-line, turbocharged, etc. |
| Fuel Type: | Diesel |
| Emission Standard: | Euro3/Euro4/Euro5/Euro6 |
| IV. Upper Body Specifications | |
| Size(mm): | 5100x2400x2500 |
| Refrigerator Brand & Model | THERMO KING RV780 |
| Material: | Fiberglass inside and outside, aluminum patterned floor, overall bent 150mm skir |
| Standard Configuration: | Two hinges for the rear door, 304 stainless steel hardware, left and right side protection, rear protection, four corner light strips, six riding cards, beam rubber, reflective sheet, upper assembly, debugging and testing. |
| V.Optional Configurations | |
| If need the meat hook, please inform us in advance, so that we can calculate the cost. For more optional configurations and requirements, please contact our sales manager directly. | |
