product description

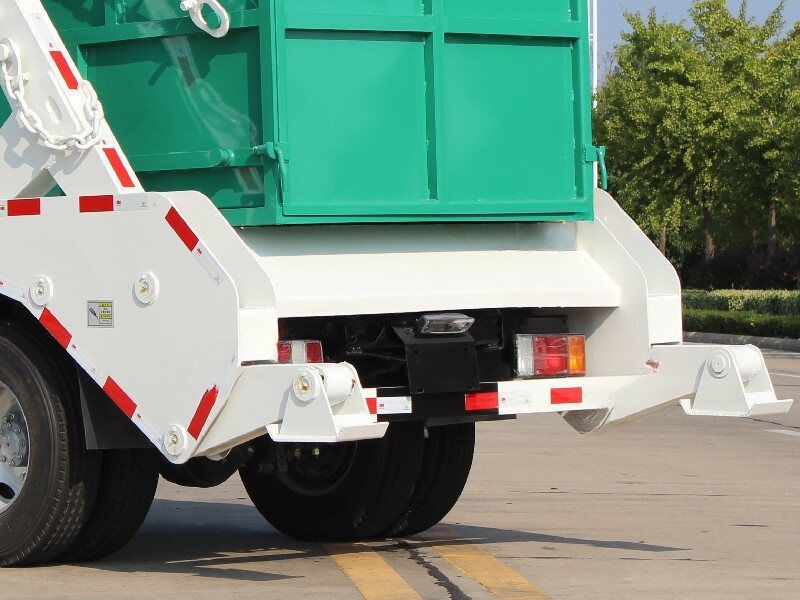

Customized Qingling mini ELF skip loader garbage truck for hot sale,Qingling 100P 4*2 drive 6 wheeler truck chassis, 4KH1CN5LS engine with 98HP, MSB 5-shift gear box, stronger swing arm with double main hydraulic cylinder also balance valve for safety, also rear hydraulic support legs, easy for loading and unloading, customized seal container with 4CBM capacity

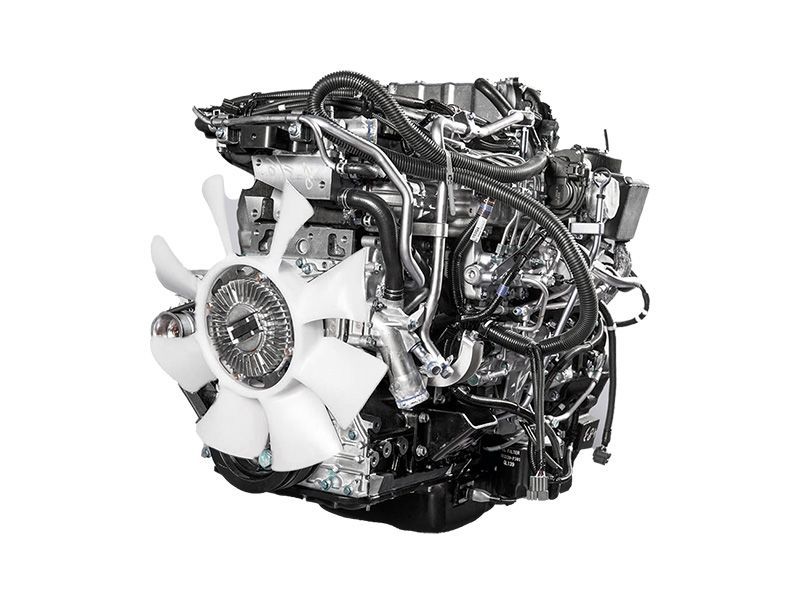

4KH1CN5LS engine, no overhaul within 100,000 km

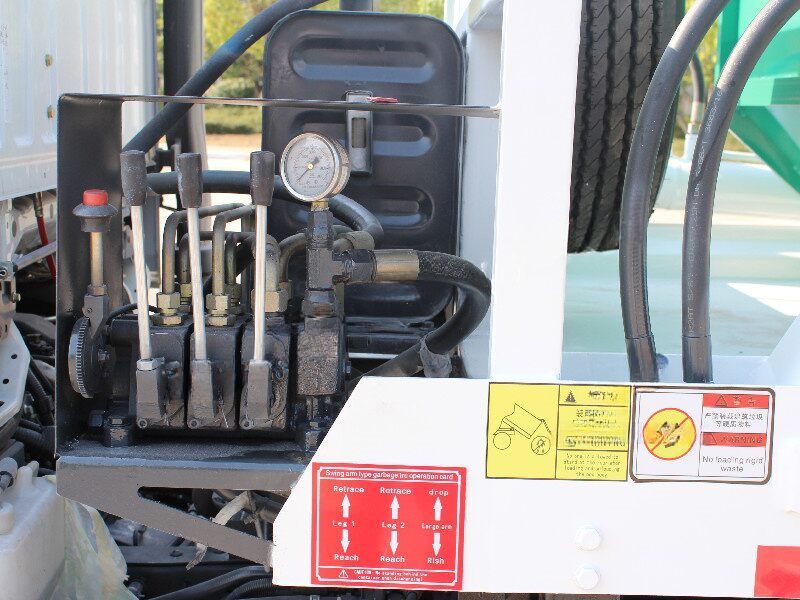

Hydraulic Control valves with English Guidance, also can be customized with French, Russia, Spanish, Arabic, etc for easy operation
Manufacturer | Qingling Trucks | |
Item | QINGLING mini ELF Skip Loader Truck | |
Brand | QINGLING | |
Model | PT04ZBS | |
Production Time | 25 days | |
Truck Chassis | ||
Specification | Overall dimensions | 5800*2000*2950 mm |
Gross weight | 7,300 kg | |
Kerb weight | 3,500 kg | |
Wheelbase | 3,360 mm | |
Driving type | 4*2 | |
Chassis model | QINGLING 100P Light-duty | |
Tire size | 7.00-16 | |
Passengers in cab | 3 | |
Engine | Engine model | 4KH1CN5LS |
Type of fuel | Diesel | |
Power | 98HP | |
Gearbox | MSB 5-shift gearbox | |
Upper Structure | ||
Compactor Body performance | Tank Capacity | 4 CBM |
Tank Material | 3mm high strength carbon steel, with inside and outside antirust treatment | |

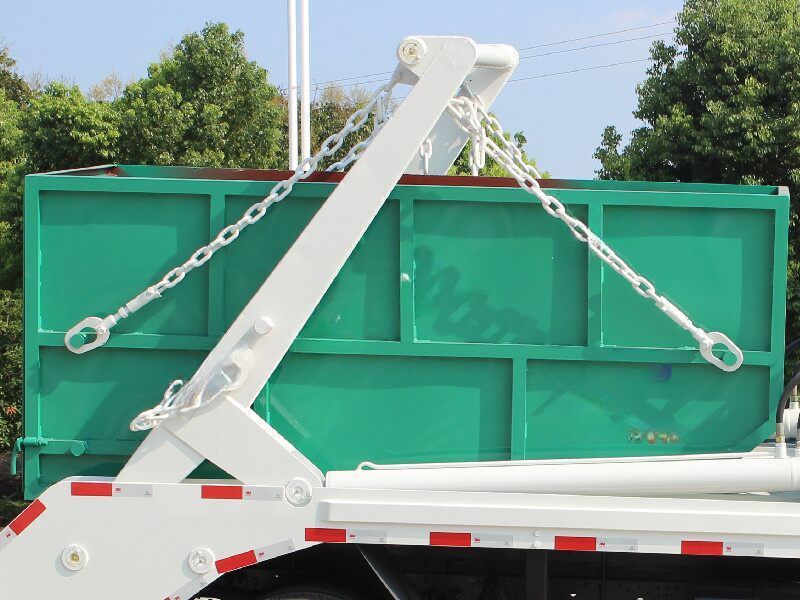

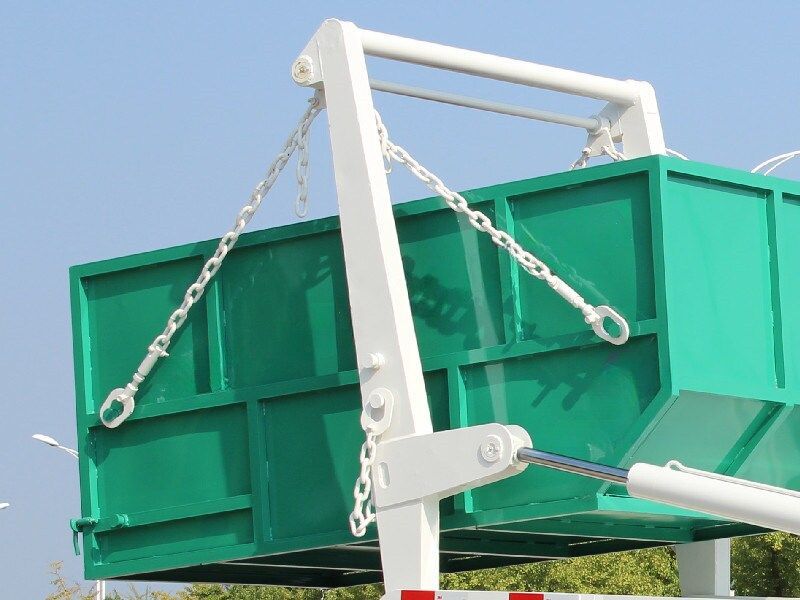

Swing Arm System | Strong Arm system with lifting chain | |
Clean Water Tanker | 20-50L as required, for hand washing | |
Body Shape | 100% customized, open or closed | |
Control System | Hydraulic Valve control | |
English or Your language Control Panel | ||

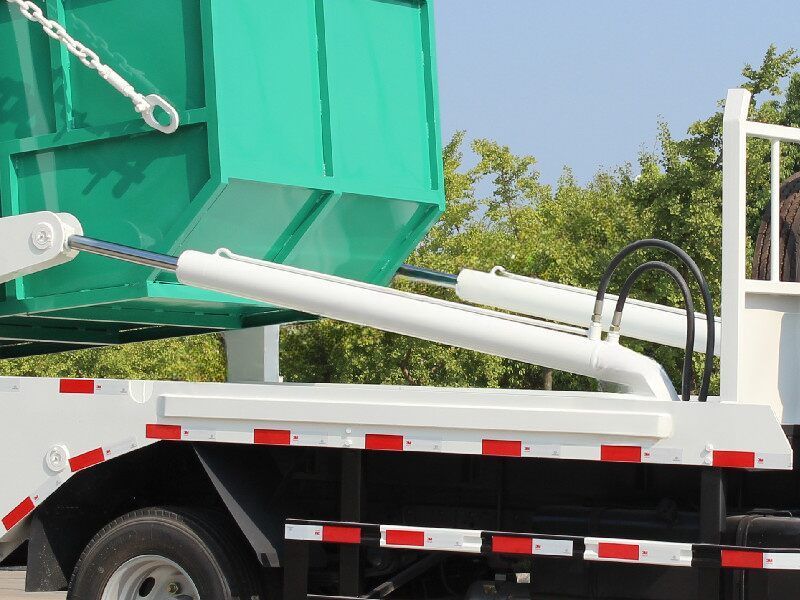

Hydraulic Cylinder | Double hydraulic cylinder with balance valve | |
Discharge Model | Chain systen for convenient discharge | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Back Alarm and Camera can be equipped 2, Multifunctional container can be optiona, stainless steel container tanker | |
