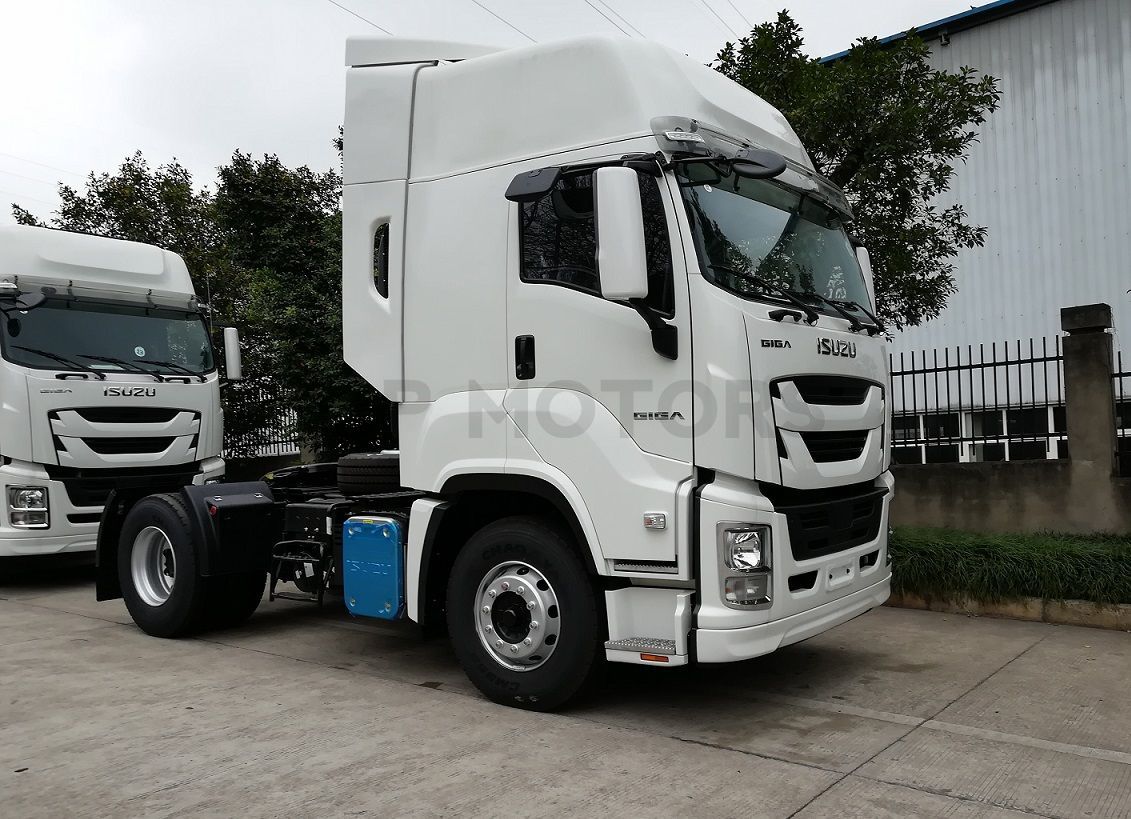

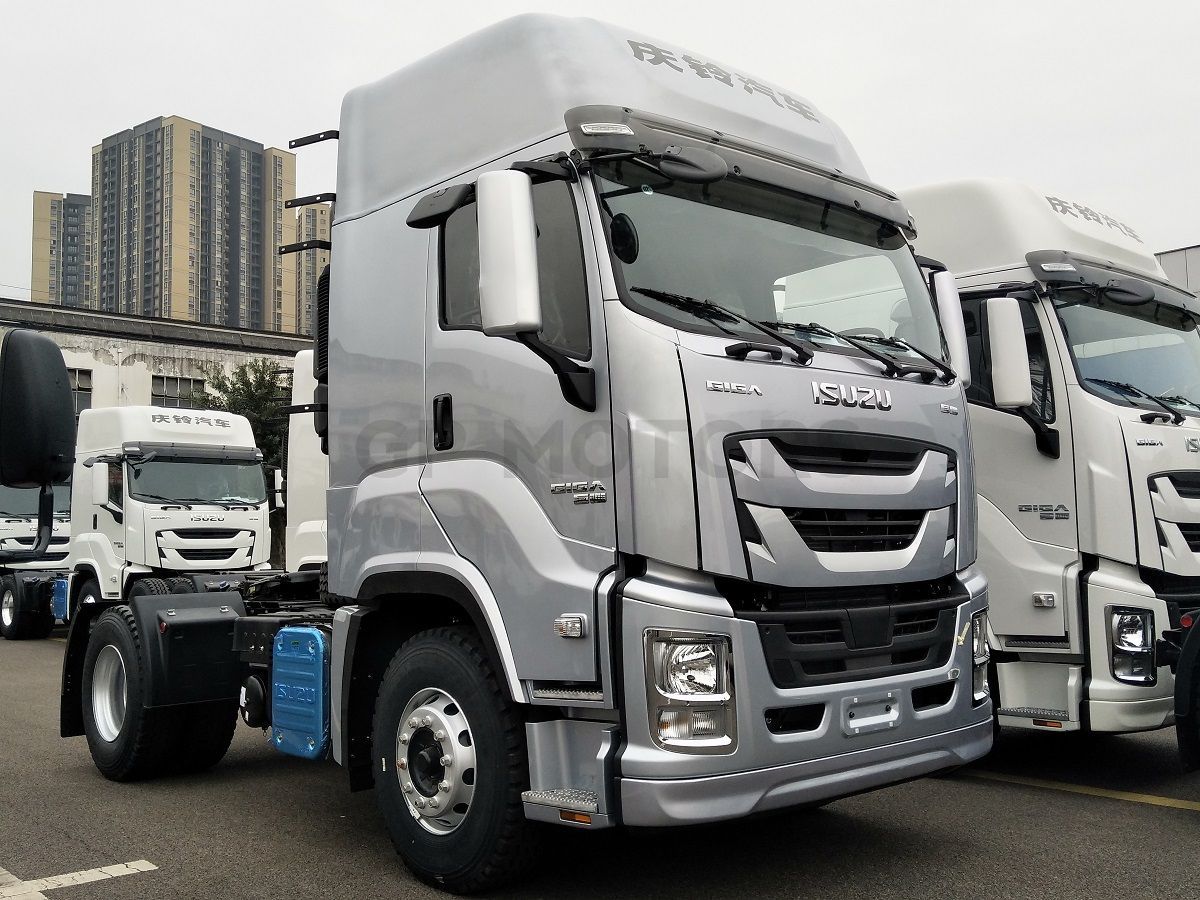

6 wheeler GIGA VC61 tractor head
6 wheeler GIGA VC61 tractor head
| SPECS OF GIGA 4x2 tractor head (EURO V) | |||||
| 车辆型号 MODEL NO. | |||||
| QL4180U2JDR D15YR | QL4180W1KDR D26YR | QL4180W1JDR D16YR | QL4180W2JDR D17YR | ||
| 轴距 WHEELBASE | |||||
| mm | 3450 | 3900 | 3450 | 3450 | |
| 驱动方式 DRIVE TYPE | |||||
| 4x2 | |||||
| 重量Weight& Capacity | |||||
| GVW(总质量） | kg | 18000 | 18000 | 18000 | 18000 |
| GCW | kg | 42000 | 42000 | 42000 | 42000 |
| 整备质量 KURB WEIGHT | kg | 6980 | 7450 | 7250 | 7250 |
| 整备质量带货箱 KURB WEIGHT WITH BODY | kg | -- | -- | -- | -- |
| 前轴荷(底盘) FRONT AXLE LOAD(CHASSIS) | kg | 4580 | 4950 | 4850 | 4850 |
| 后轴荷(底盘) REAR AXLE LOAD(CHASSIS) | kg | 2400 | 2500 | 2400 | 2400 |
| 前轴荷(整车)FRONT AXLE LOAD(WHOLE VEHICLE) | kg | 7000 | 6500 | 6500 | 6500 |
| 后轴荷(整车)REAR AXLE LOAD(WHOLE VEHICLE) | kg | 11000 | 11500 | 11500 | 11500 |
| 准拖挂总质量TOWING WEIGHTkg | kg | 34890 | 34420 | 34620 | 34620 |
| 鞍载质量 SADDLE LOADING CAPACITY | kg | 10890 | 10420 | 10620 | 10620 |
| 挂车轴荷三轴 TRAILER AXLE LOADING (3 AXLES) | kg | 24000 | 24000 | 24000 | 24000 |
| 比功率 POWER DENSITY（>5） | 6.6 | 7.4 | 7.4 | 8.0 | |
| 驾驶室Cabin | |||||
| 驾驶室 CABIN | 一排半 1.5 cabin 高顶 HIGH ROOF | 一排半 1.5 cabin 高顶 HIGH ROOF | 一排半 1.5 cabin 高顶 HIGH ROOF | 一排半 1.5 cabin 高顶 HIGH ROOF | |
| 乘员数 PASSENGER NO. | 2 | 2 | 2 | 2 | |
| 座椅 SEATS | 气悬式 AIR SUSPENSION | 气悬式 AIR SUSPENSION | 气悬式 AIR SUSPENSION | 气悬式 AIR SUSPENSION | |
| 驾驶室 CABIN | 气悬式 AIR SUSPENSION | 气悬式 AIR SUSPENSION | 气悬式 AIR SUSPENSION | 气悬式 AIR SUSPENSION | |
| 转向系统 STEERING SYSTEM | |||||
| 转向型式 TYPE | 动力转向POWER STEERING | 动力转向POWER STEERING | 动力转向POWER STEERING | 动力转向POWER STEERING | |
| 前束 mm | 0±1 | 0±1 | 0±1 | 0±1 | |
| 车轮外倾角 ° | 0°30′ | 0°30′ | 0°30′ | 0°30′ | |
| 主销后倾角 ° | 2°±50′ | 2°±50′ | 2°±50′ | 2°±50′ | |
| 主销内倾角 ° | 7°30′ | 7°30′ | 7°30′ | 7°30′ | |
| 发动机 Engine | |||||
| 发动机类型 Type | 直列六缸、水冷、直喷式、高压共轨、增压中冷柴油机 six-cylinder In-line, water-cooled, direct-injection, high-pressure common rail, supercharged and inter-cooled diesel engine | ||||
| 型号 MODEL | 6UZ1-TCG50 | 6WG1-TCG52 | 6WG1-TCG52 | 6WG1-TCG51 | |
| 额定功率 RATED POWER | ( KW)/（hp) | 279/380 | 309/420 | 309/420 | 338/460 |
| 最大净功率 MAX. NET POWER | ( KW) | 278 | 308 | 308 | 337 |
| 最大扭矩 MAX.TORQUE. | kgf.m(N.m) | 180(1765) | 210(2060) | 210(2060) | 210(2060) |
| 排放标准 EMISSION | 国Ⅴ EURO V | 国Ⅴ EURO V | 国Ⅴ EURO V | 国Ⅴ EURO V | |
| 后处理装置 EXHAUST DEVICE | SCR | SCR | SCR | SCR | |
| 飞轮取力器 PTO | — | — | — | — | |
| 变速器 TRANSMISSION | |||||
| 型号Model | 16S2030TO | 16S2230TO | 16S2230TO | 16S2230TO | |
| 速比 RATIO | 13.8/11.54/9.49/7.93/6.53/5.46/4.57/3.82/3.02/2.53/2.08/1.74/1.43/1.2/1/0.84，R12.92/R10.8 | 13.8/11.54/9.49/7.93/6.53/5.46/4.57/3.82/3.02/2.53/2.08/1.74/1.43/1.2/1/0.84，R12.92/R10.8 | 13.8/11.54/9.49/7.93/6.53/5.46/4.57/3.82/3.02/2.53/2.08/1.74/1.43/1.2/1/0.84，R12.92/R10.8 | 13.8/11.54/9.49/7.93/6.53/5.46/4.57/3.82/3.02/2.53/2.08/1.74/1.43/1.2/1/0.84，R12.92/R10.8 | |
| 离合器 CLUTECH | |||||
| 型号Model | φ430拉式PULLING TYPE | φ430拉式PULLING TYPE | φ430拉式PULLING TYPE | φ430拉式PULLING TYPE | |
| 轴荷 Axle load | |||||
| 前桥 FRONT AXLE | 型号 MODEL | F075 | F075 | F075 | F075 |
| 额定载荷 RATED LOADING CAPACITY | kg | 7500 | 7500 | 7500 | 7500 |
| 后桥 REAR AXLE | 型号 MODEL | R130 | R130 | R130 | R130 |
| 主减速器齿轮直径 RATIO OF MAIN REDUCER GEAR | mm | 18.5 | 18.5 | 18.5 | 18.5 |
| 额定载荷 RATED LOADING CAPACITY | kg | 13000 | 13000 | 13000 | 13000 |
| 主减速比 FINAL REDUCTION RATION | 3.909，选装OPTIONAL:2.85、3.08、3.36、3.7 | 3.909 | 3.909 | 3.909 | |
| 车架 Frame | |||||
| 车架 CHASSIS | 断面尺寸 CROSS DIMENSIONS | 950-850×285t=7 | 950-850×285t=7 | 950-850×285t=7 | 950-850×285t=7 |
| 悬挂 Suspention | |||||
| 前钢板弹簧 FRONT LEAF SPRING | 型式 TYPE | FEW TYPE LEAF SPRING | FEW TYPE LEAF SPRING | FEW TYPE LEAF SPRING | FEW TYPE LEAF SPRING |
| 片数 NO. | 4 | 4 | 4 | 4 | |
| 后钢板弹簧 REAR LEAF SPRING | 型式 TYPE | FEW TYPE LEAF SPRING | FEW TYPE LEAF SPRING | FEW TYPE LEAF SPRING | FEW TYPE LEAF SPRING |
| 片数 NO. | 4+3 | 4+3 | 4+3 | 4+3 | |
| 燃油系统Fuel system | |||||
| 燃油种类 Fuel type | diesel | ||||
| 油箱尺寸 Fuel tank capacity | 400L | 600L | 400L | 400L | |
| 制动 BRAKE | |||||
| 前制动器规格 FRONT BRAKE SIZE | φ410×160， S-CAM | φ410×160， S-CAM | φ410×160， S-CAM | φ410×160， S-CAM | |
| 后制动器规格 REAR BRAKE SIZE | φ410×220， S-CAM | φ410×180， S-CAM | φ410×180， S-CAM | φ410×180， S-CAM | |
| 辅助制动 AUXILIARY BRAKE | 排气制动AIR BRAKE | 排气制动AIR BRAKE | 排气制动AIR BRAKE | 排气制动AIR BRAKE | |
| 驻车 PARKING BRAKE | 弹簧储能式, 作用于后轮 SPRING STORED ENERGY,ACT ON REAR WHEEL | 弹簧储能式, 作用于后轮 SPRING STORED ENERGY,ACT ON REAR WHEEL | 弹簧储能式, 作用于后轮 SPRING STORED ENERGY,ACT ON REAR WHEEL | 弹簧储能式, 作用于后轮 SPRING STORED ENERGY,ACT ON REAR WHEEL | |
| 轮胎及钢圈 TIRE&RIM | |||||
| 轮胎 TIRE | 315/80R22.5 18PR (12R22.5 18PR) | 315/80R22.5 16PR (12R22.5 16PR) | 315/80R22.5 16PR (12R22.5 16PR) | 315/80R22.5 16PR (12R22.5 16PR) | |
| 钢圈 RIM | 9.00×22.5 | 9.00×22.5 | 9.00×22.5 | 9.00×22.5 | |
| 电气系统 Electrical system | |||||
| Battery | |||||
| Alternator | |||||
| 性能参数 Performance | |||||
| 最高车速 MAX.SPEED | (km/h) | 110 | 110 | 110 | 110 |
| 接近角/离去角 APPROACH/DEPATURE ANGLE | ° | 17/42 | 17/42 | 17/42 | |
| 鞍座接合面离地高度 DISTANCE BETWEEN SADDLE AND GROUND | mm | 1295 | 1295 | 1295 | 1295 |
| 转弯直径 TURNING RADIUS | mm | 13.2 | 14.4 | 13.2 | 13.2 |
| 最小离地间隙 MIN. GROUND CLEARANCE | mm | 265 | 265 | 265 | 265 |
| 前置距 | mm | 480 | 480 | 480 | 480 |
| 前回转半径 | mm | 1800 | 2250 | 1800 | 1800 |
| 后回转半径 | mm | 1900 | 1900 | 1900 | 1900 |
| 配置 Confirguration | |||||
| 空调A/C | ● | ● | ● | ● | |
| ABS | ● | ● | ● | ● | |
| 动力转向Power steering | ● | ● | ● | ● | |
| 收音机Radio | ● | ● | ● | ● | |
| 子午胎Tubless tire | ● | ● | ● | ● | |
| 免维护电池Free maintenance battery | ● | ● | ● | ● | |
| 中控锁Central lock | ● | ● | ● | ● | |
| 电动车窗 Power window | ● | ● | ● | ● | |
| 行车记录仪Driving Date recorder | ● | ● | ● | ● | |
| 尺寸 Dimensions | |||||
| 轴距 WHEELBASE | mm | 3450 | 3900 | 3450 | 3450 |
| 整车长Overall length | mm | 5790 | 6240 | 5790 | 5790 |
| 整车宽 Overall width | mm | 2540 | 2540 | 2540 | 2540 |
| 整车高Overall height | mm | 3720/3970(加导流罩WITH AIR DEFLECTOR ) | 3720/3970(加导流罩WITH AIR DEFLECTOR ) | 3720/3970(加导流罩WITH AIR DEFLECTOR ) | 3720/3970(加导流罩WITH AIR DEFLECTOR ) |
| 前悬FOH | mm | 1370 | 1370 | 1370 | 1370 |
| 后悬ROH | mm | 970 | 970 | 970 | 970 |
| 前轮距Front wheel distance | mm | 2045 | 2065 | 2065 | 2065 |
| 后轮距Rear wheel distance | mm | 1875/1875 | 1875 | 1875/1875 | 1875 |
