SPECIFICATIONS
The Isuzu M100 chassis variant stands out as an excellent option for a range of commercial vehicles. It’s probable that it comes equipped with a robust engine—possibly in line with Isuzu’s reputation for reliability—paired with fuel efficiency. Thanks to its thoughtfully engineered 4x2 drivetrain, it delivers consistent performance. Standard features such as electric windows, central locking, and ABS contribute to both comfort and safety. All in all, it’s a perfect fit for businesses in search of a trustworthy chassis solution.
| Work capacity: | 2-5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual |

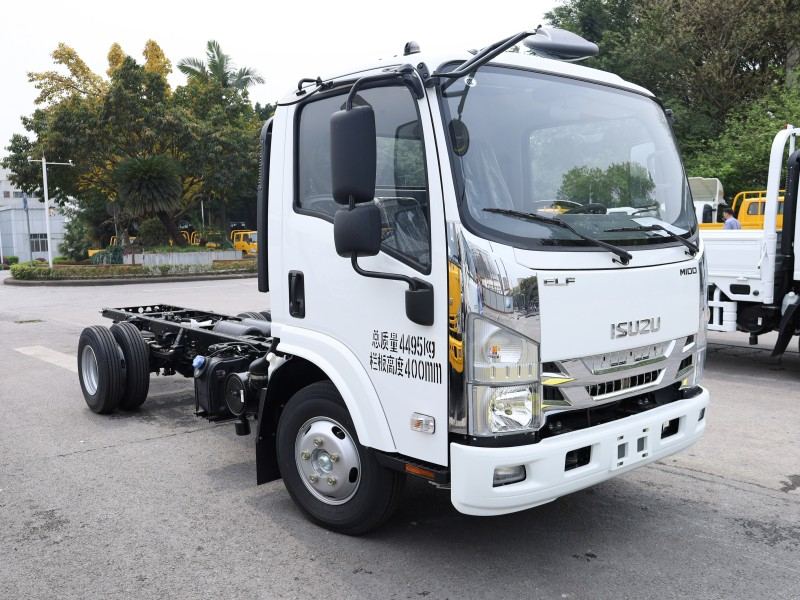

| Remarks: | Isuzu M100 Light Truck Chassis |
DIMENSIONS
The Isuzu M100 chassis model shines as a standout choice in the commercial vehicle sector. A major highlight is its performance, powered by what is likely a strong engine—one that leans into Isuzu’s long-standing legacy of dependability. This engine doesn’t just supply the muscle needed for diverse hauling and transport jobs; it also excels in fuel efficiency. For businesses, this fuel-sipping capability is transformative, as it cuts down on operational expenses significantly over the long run. Another clever design element is its 4x2 drivetrain, which ensures steady performance across various road conditions—whether navigating smooth highways or the slightly uneven surfaces of urban streets. This stability is vital: it safeguards the transported cargo and enhances overall vehicle control. Constructed from high-grade materials, the chassis itself is built to last, standing up to the daily wear and tear of commercial use. It acts as a robust base for a variety of body styles, from delivery vans to small trucks, making it an adaptable solution that caters to a broad spectrum of business requirements.
When it comes to comfort and safety, the Isuzu M100 chassis model delivers impressively. Standard features like electric windows and central locking bring added convenience to the driver’s experience. Electric windows make adjustments effortless, particularly useful in changing weather, while central locking boosts security for both the vehicle and its cargo. A key safety highlight is the inclusion of an Anti-lock Braking System (ABS). This feature prevents wheel lock-up during sudden stops, letting the driver keep steering control and avoid potential collisions—critical in commercial settings, where heavy loads can extend stopping distances. Beyond these specifics, the chassis’s overall design promotes a smooth, comfortable ride, easing driver fatigue during long hours behind the wheel. For businesses that prioritize their drivers’ well-being and the safety of their operations, the Isuzu M100 chassis emerges as a reliable and wise selection.
| General information | Chassis model | M100 light truck chassis | ||
| Wheelbase(mm) | 3815 | |||
| Drive Type | 4X2 | |||
| GVW (kg) | 8280 | |||
| Curb Weight (kg) | 2600 | |||

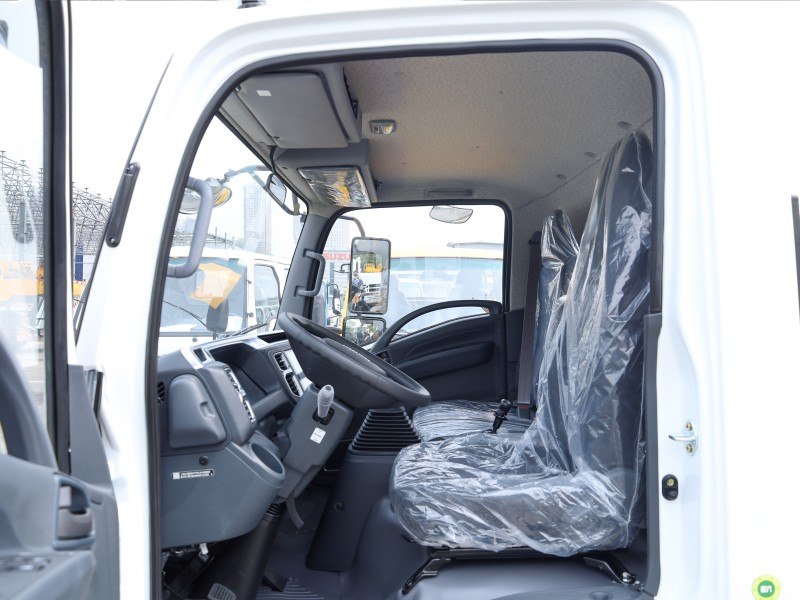

| Cabin | single | |||
| Driver and Passenger | 3 | |||
| Engine | Model | 4KH1CN6LB | ||
| Type | 4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | |||
| Emission Standard | Euro VI | |||
| Displacement (L) | 2.999 | |||
| Rated Power (kw/rpm) | 88kw | |||
| Max. Torque (N.m/rpm) | 290N.m | |||

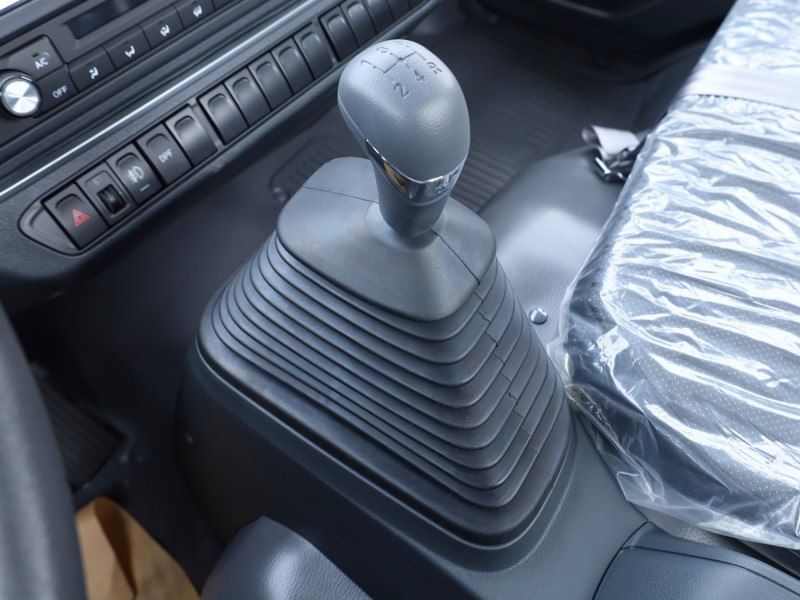

| Transmission | Model | Manual | ||
| 5 Forward + 1 Reverse | ||||
| Brake System | Service brake | Double circuit, air drive | ||
| Brake(Oil/Air) | air brake | |||
| Parking brake | Central drum brake | |||
| standard Configuration | Tires | 7.50R16LT 14PR | ||
| Power steering |  ● | |||

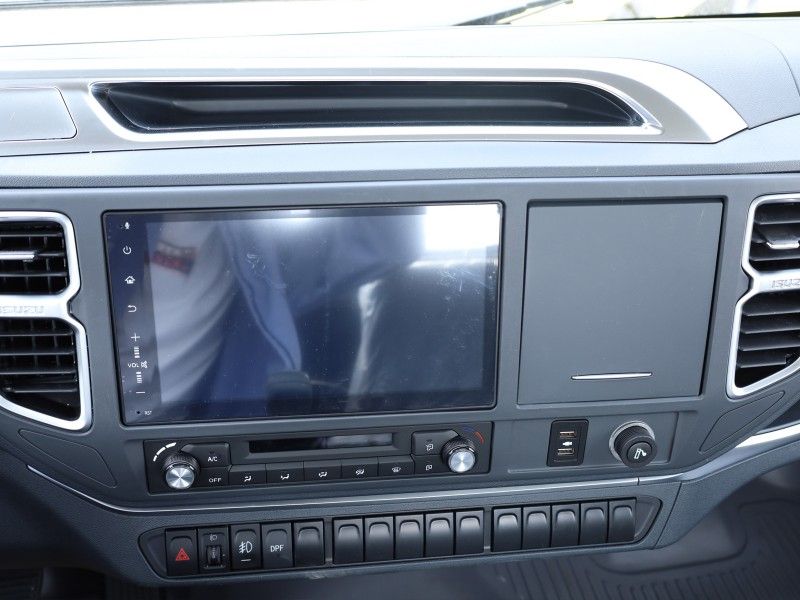

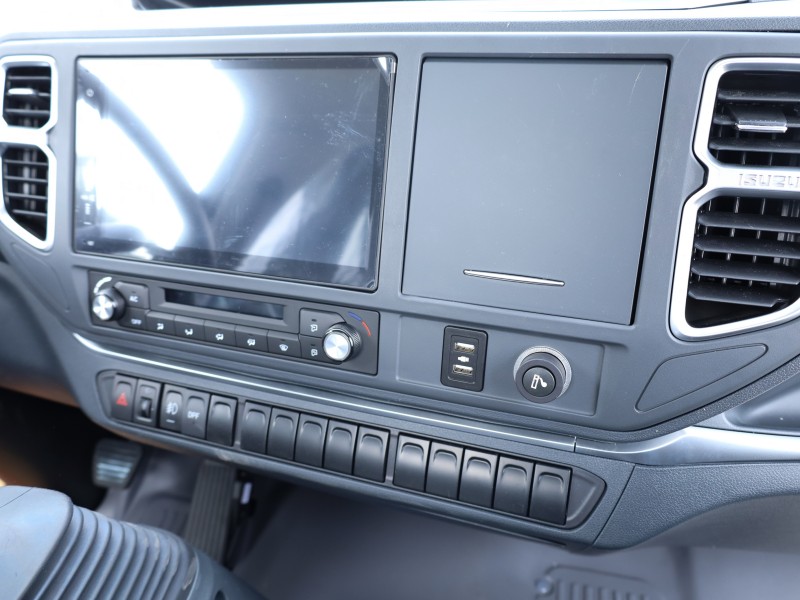

| Radio | ● | |||
| ABS | ● | |||
| A/C | ● | |||
| Tilted cabin | ● | |||
| Exhuast brake | ● | |||

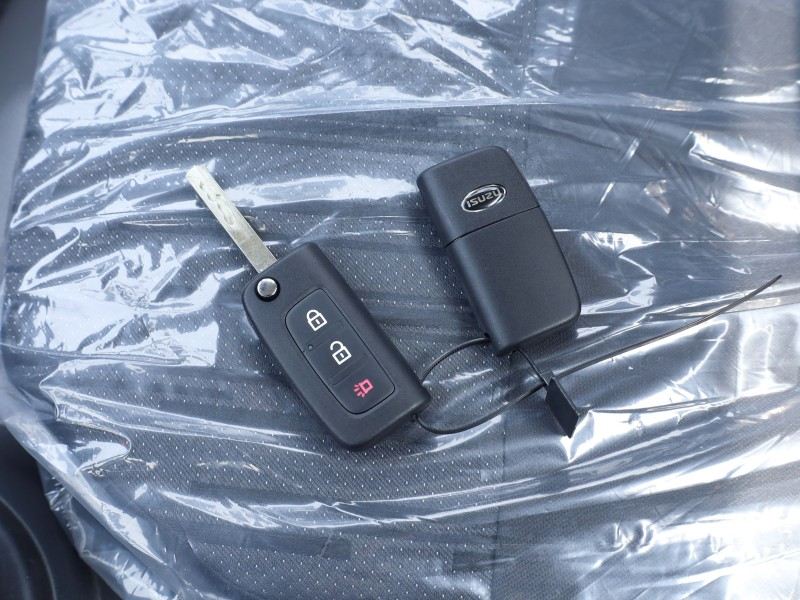

| Option configuration | Central lock | ● | ||
| Electric window | ● | |||
| Deflector | ● | |||

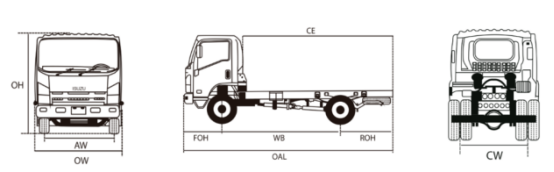

| Dimensions | Length OAL (mm) | 6950 | ||
| Width OW (mm) | 2130 | |||
| Height OH (mm) | 2315 | |||
| Front Tread AW (mm) | 1640 | |||
| Rear Tread CW (mm) | 1655 | |||
| 1. ● means standard configuration. ○ means option configurtaion | ||||
| 2. All above information is for reference only, and will be updated timely without notice; | ||||
| 3. The listed models are part of the full products range, any special request will be available on request. | ||||
