Body application
SPECIFICATIONS

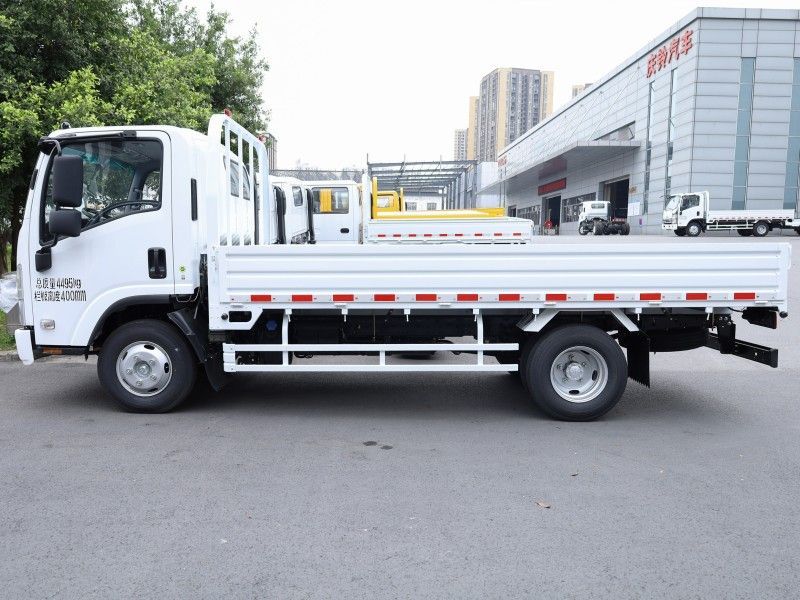

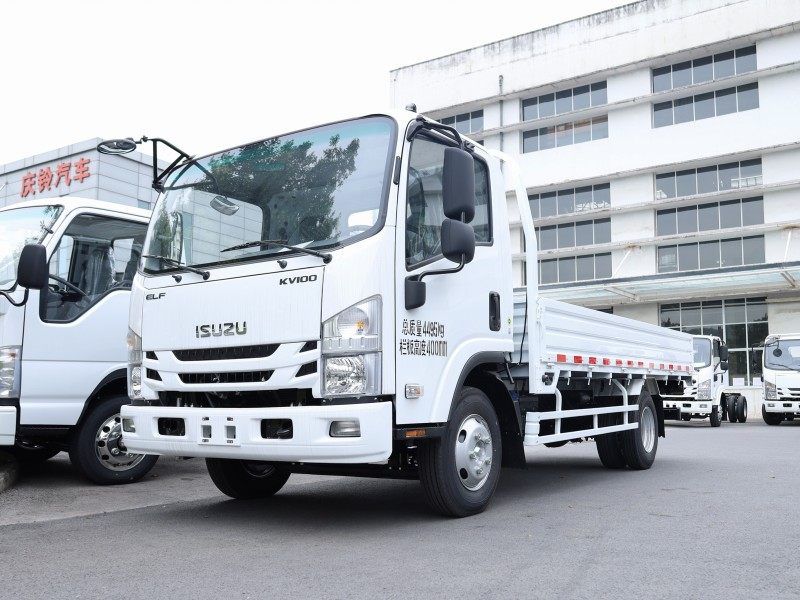

The Isuzu KV100 Flatbed Truck is powered by the 4KH1CN6LB engine (2.499L displacement, 96kW power output). It can generate a torque of 360Nm, enabling swift responsiveness whether navigating through urban traffic or undertaking highway transportation tasks. Its chassis, crafted from high-strength steel, is capable of bearing heavy loads. Moreover, the 4x2 drive configuration combined with a 5.571 axle ratio ensures stable performance even on rough and uneven roads. The 3 + 2 leaf spring suspension system strikes a balance between ride comfort and long-term durability.
| Wheelbase (mm) | 3360 | 3815 | |
| Drive Type | 4 × 2 | ||
| Weight | GVW (kg) | 7300 | 7300 |
| Curb Weight (kg) | 2805 | 2905 | |
| Pay Load (kg) | 4300 | 4200 | |
| Overall | Length (mm) | 5995 | 6840 |
| Width (mm) | 2150 | 2150 | |
| Height (mm) | 2380 | 2380 | |
| Cab | Double/Single | Single | |
| Driver & Passenger | 1+2 | ||
| Cargo Box | Length (mm) | 4205 | 4980 |
| Length (ft) | 14 | 16 | |
| Width (mm) | 2050 | 2050 | |
| Height (mm) | 380 | 380 | |
| Engine | Model | 4KH1CN6LB | |
| Type | 4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | ||
| Emission Standard | EURO VI | ||
| Displacement (L) | 2.999 | ||
| Rated Power (kw/rpm) | 88/3400 | ||
| Max. Torque (N.m/rpm) | 290/1700 | ||
| Transmission | MSB | ||

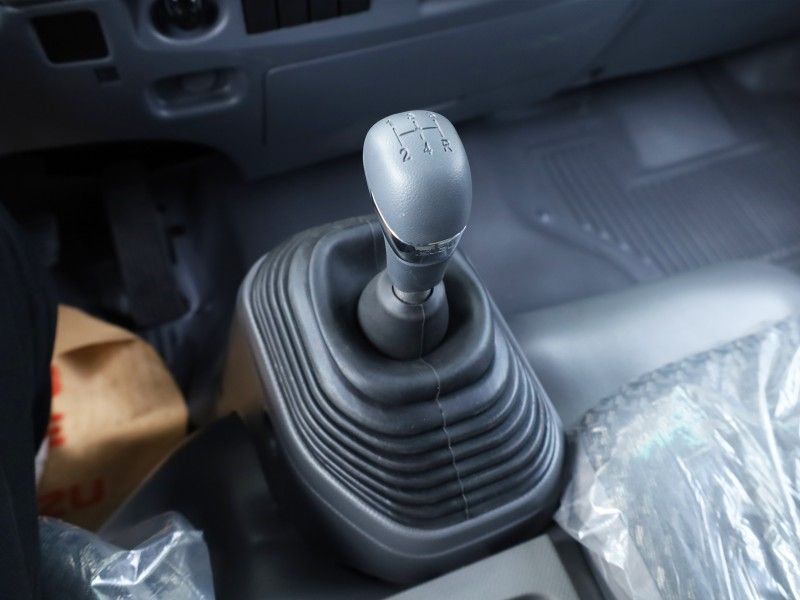

| Gear | 5 Forward + 1 Reverse | ||
| Axle Load | Front Axle (T) | 1.8 | 2.6 |
| Rear Axle (T) | 2.7 | 4.7 | |
| Max. Speed (km/h) | 98 | 105 | |
| Brake System | Air /Oil | Air Brake | |
| Standard Configurations | Tire | 7.00R16LT 14PR | 7.00R16LT 14PR |
| Power Steering | ● | ● | |

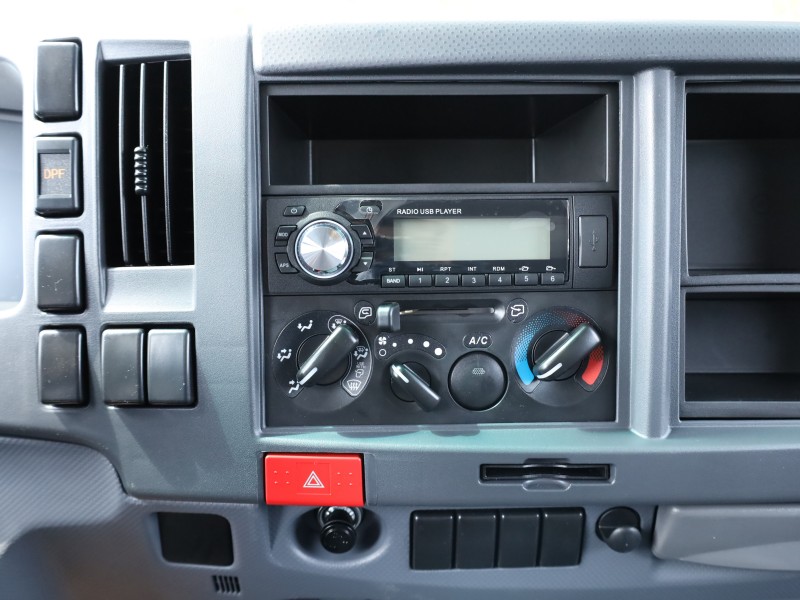

| Radio | ● | ● | |
| A/C | ● | ● | |
| ABS | ● | ● | |
| Optional Configurations | More details please contact us | ||
| Remark: 1. ● means standard configuration. ○ means the option is available. 2. All above information is for reference only, and will be updated timely without notice; 3. The listed models are part of the full products range,any special request will be available on request. 4. For the 2490mm wheelbase, it is equipped with single rear tire. | |||

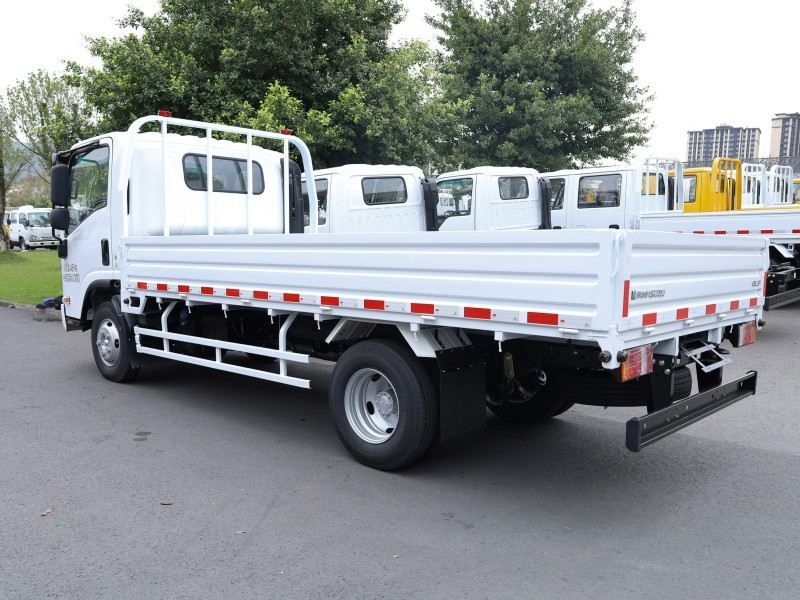

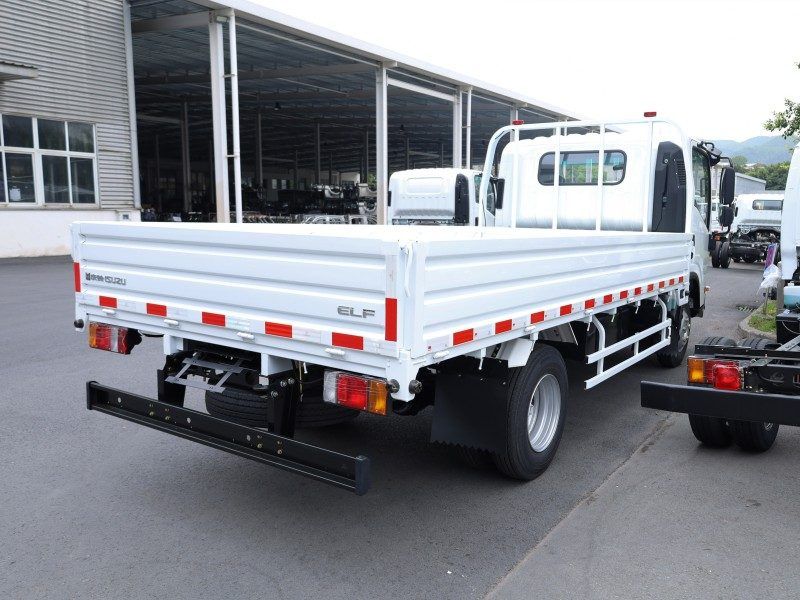

Equipped with adaptive emission technology, this truck boasts low fuel usage—making it a top pick for fleet operators focused on cutting costs. Its flatbed, measuring 4150×2100mm, offers ample space (18.7 cubic meters) to accommodate construction materials or cargo pallets with ease. Designed to excel in logistics, it comes with a 6-speed transmission for seamless gear shifts and requires little upkeep, blending practicality with efficiency.
DIMENSIONS
The Isuzu KV100 Flatbed Truck is equipped with the efficient 4KH1CN6LB engine. It generates substantial torque and comes with a variety of gear ratios, making it well - suited for different driving scenarios. The chassis, constructed from high - strength steel, guarantees remarkable load - bearing capabilities. Meanwhile, the suspension, which has been optimized, ensures stability. Featuring a roomy flatbed and low fuel usage, it serves as a perfect choice for construction work, logistics operations, and general transportation tasks, providing dependable and highly efficient performance.
| Work capacity: | 4-5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu KV100 flatbed truck |
