Best-Selling New Light Commercial Vehicle High-Quality Cabin Chassis Diesel Fuel 4x2 Drive Left-Hand Steering

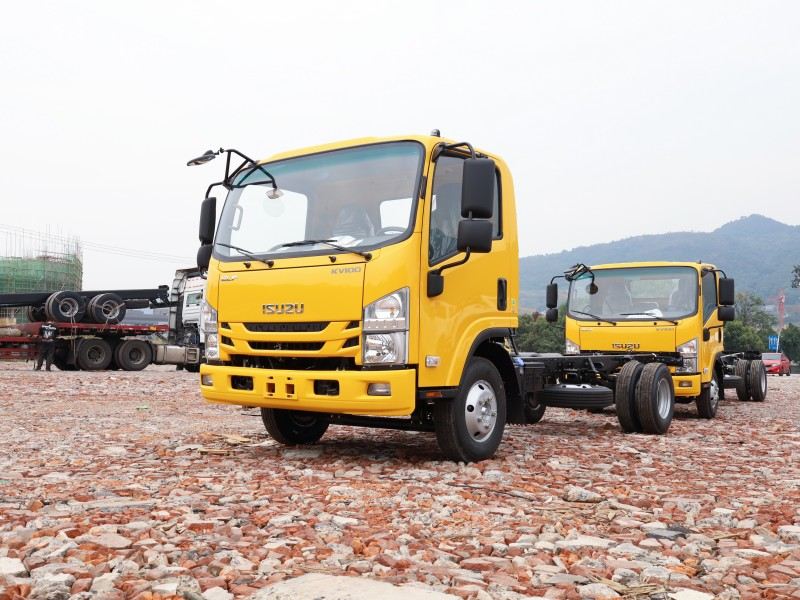

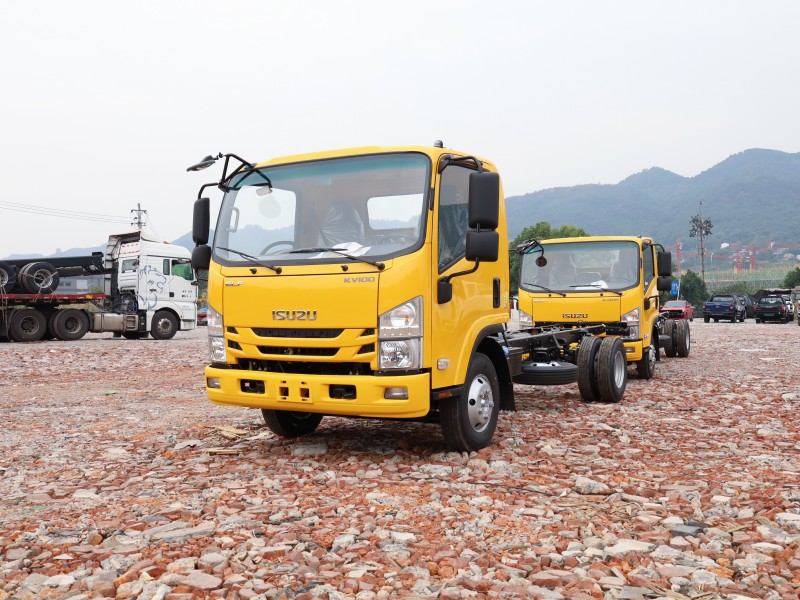

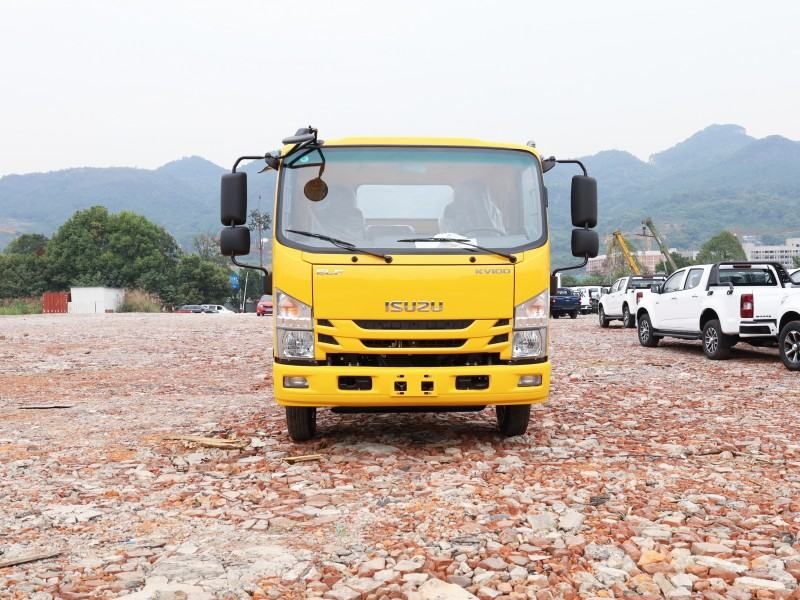

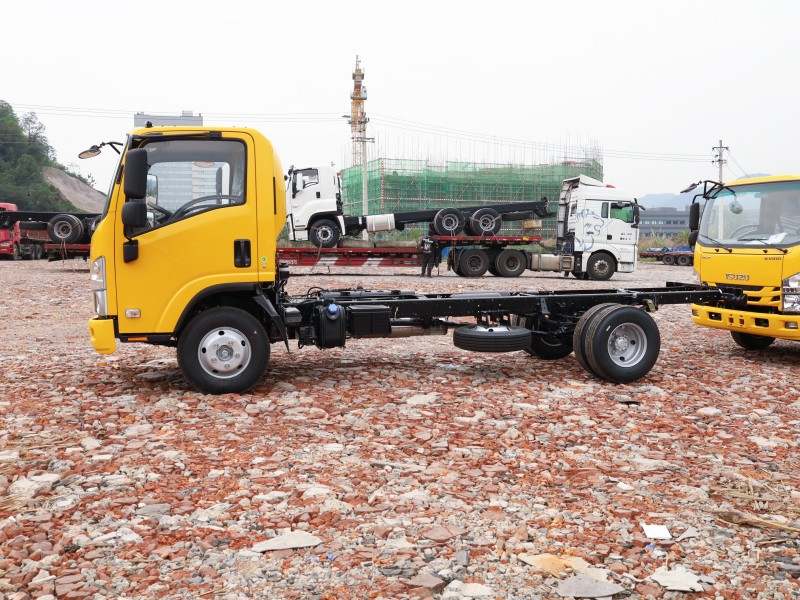

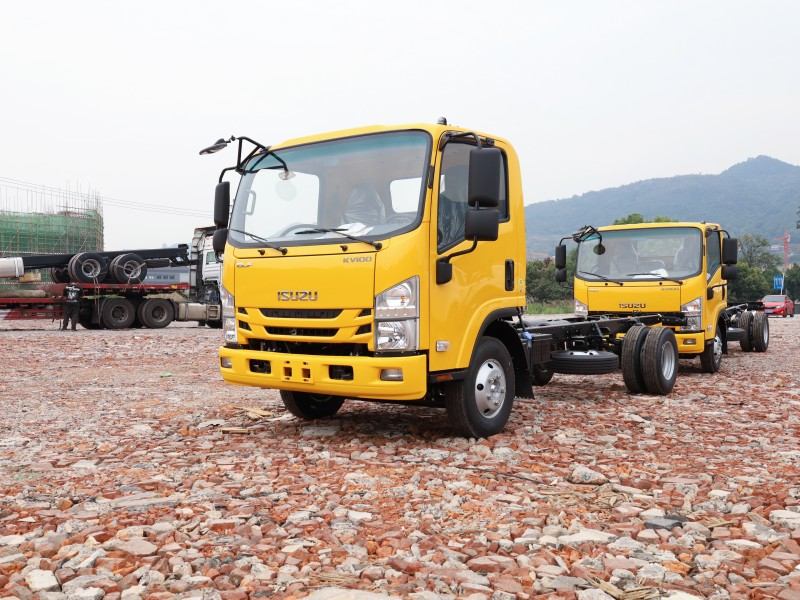

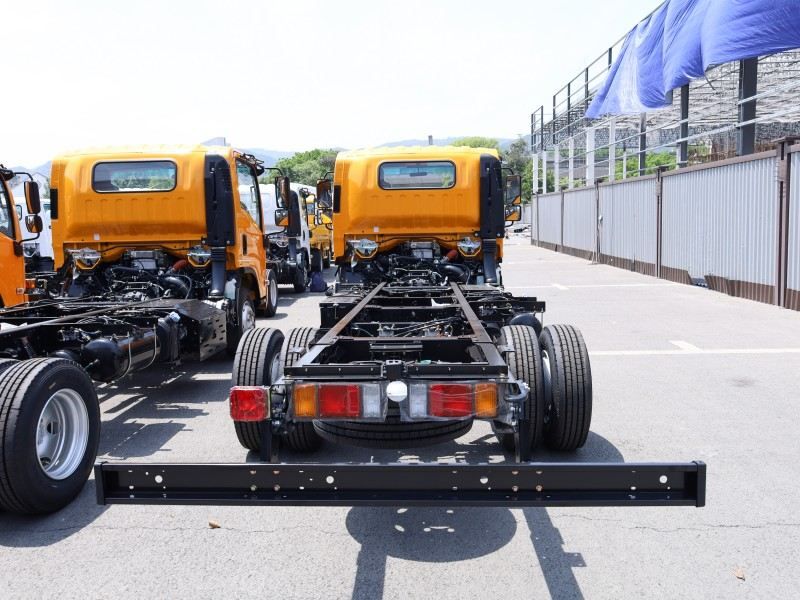

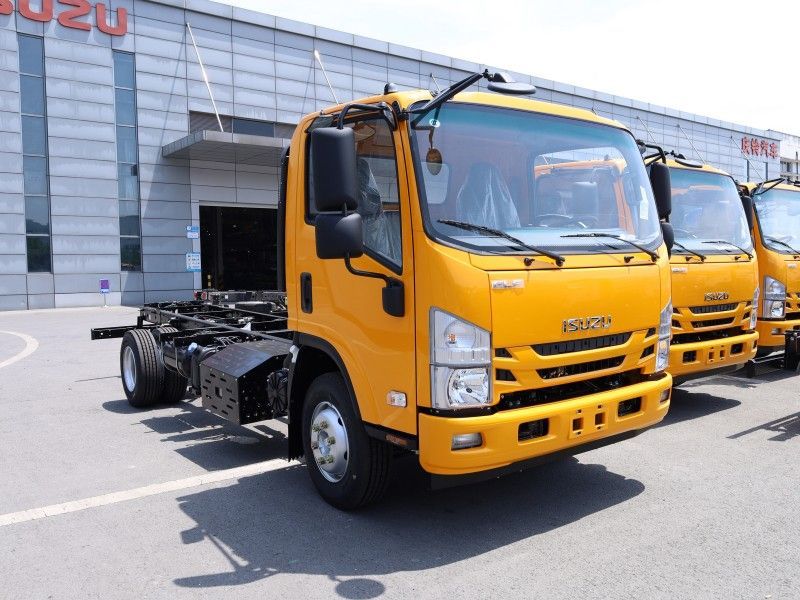

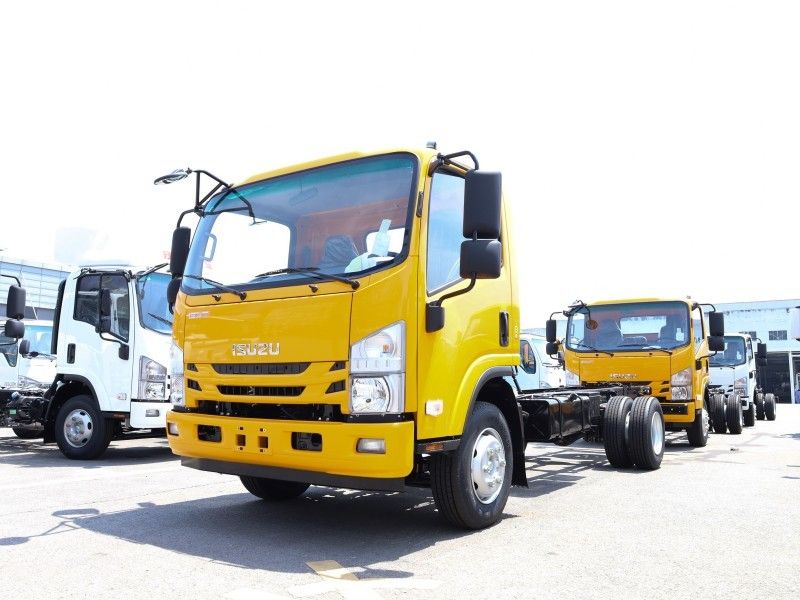

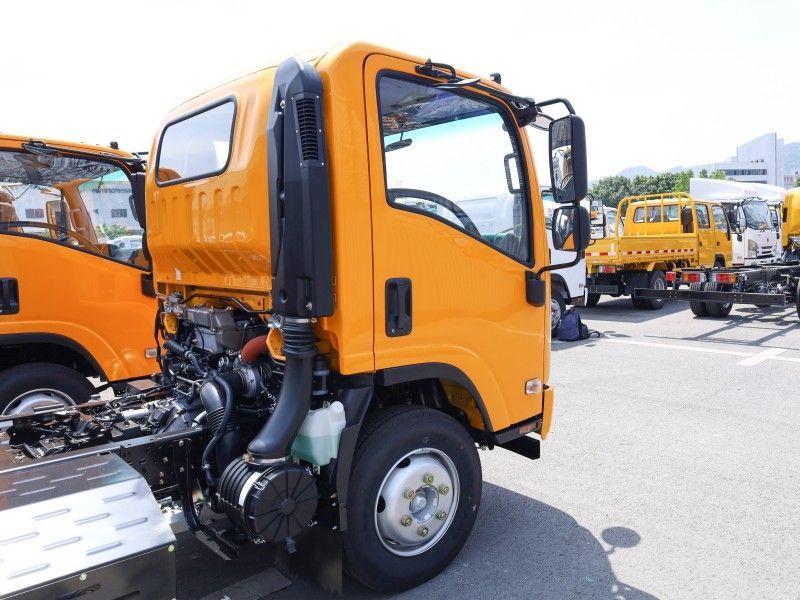

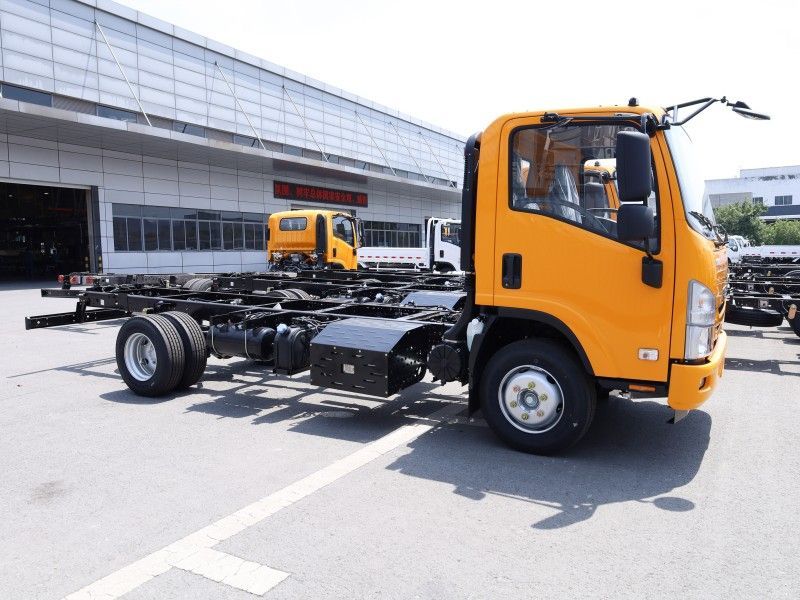

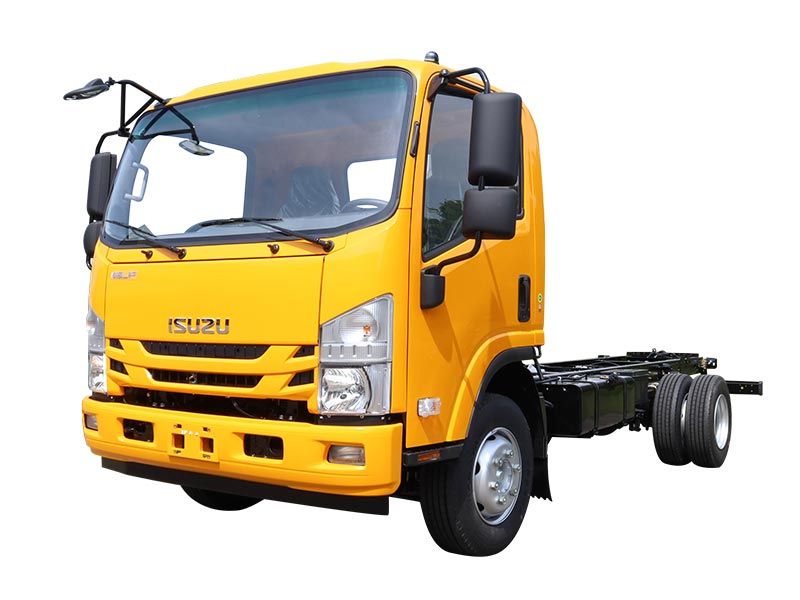

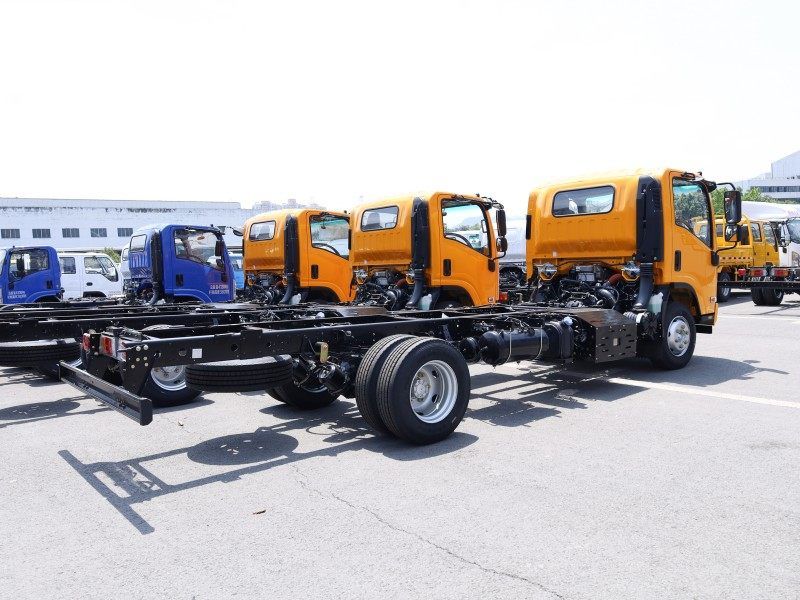

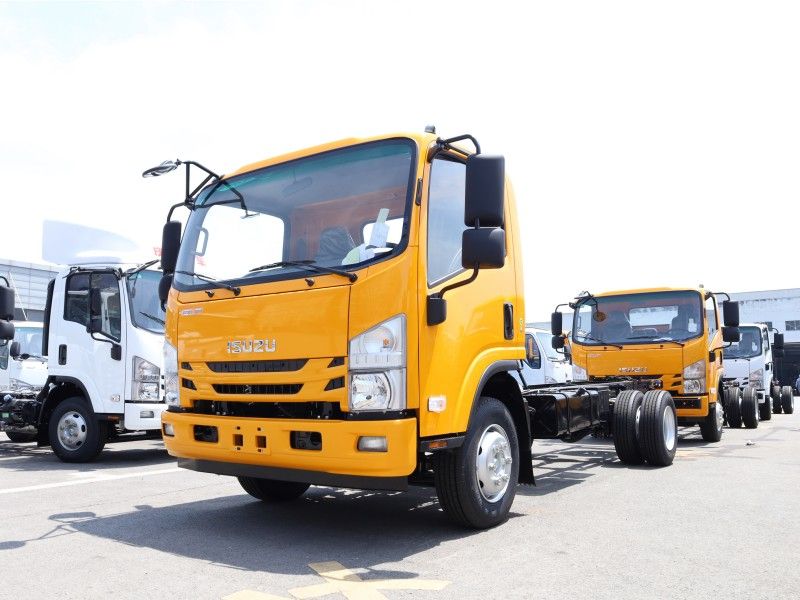

The Isuzu KV100 chassis stands out as a premium light-truck solution, powered by an efficient engine that delivers rapid power response for seamless city driving or highway cruising. Its multiple gear ratios (4.875/5.571/6.142) adapt to diverse road conditions, while the high-strength steel chassis ensures exceptional durability and heavy-load capacity. The 3+2 leaf spring suspension is optimized to balance stability and comfort, filtering vibrations on rough terrain.

General information	Chassis model	KV100 QL1043BUHAY NW57A
	Wheelbase(mm)	3360
	Drive Type	4X2
	GVW (kg)	7300
	Curb Weight (kg)	2300
	Cabin	single
	Driver and Passenger	3
Engine	Model	4KH1CN6LB
	Type	4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling.
			Emission Standard	Euro VI
			Displacement (L)	2.999
	Rated Power (kw/rpm)	88KW
	Max. Torque (N.m/rpm)	290N.m

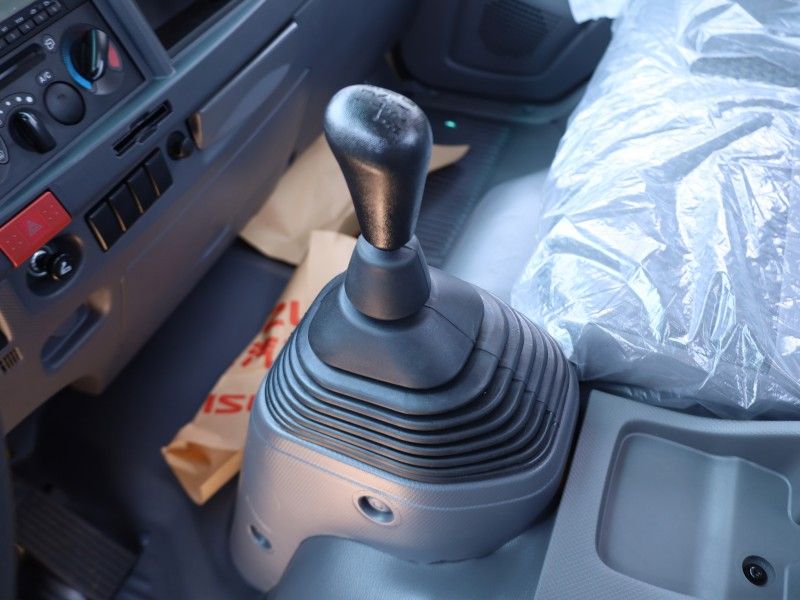

	Transmission	Model	Manual,MSB
			5 Forward + 1 Reverse
Fuel tank	Capacity	75L
	Material	carbon steel
Brake System	Service brake	Double circuit
	Brake(Oil/Air)	air brake
	Parking brake	Central drum brake
standard Configuration	Tires	7.00R16LT 14PR,7.00-16LT 14PR
	Power steering	●

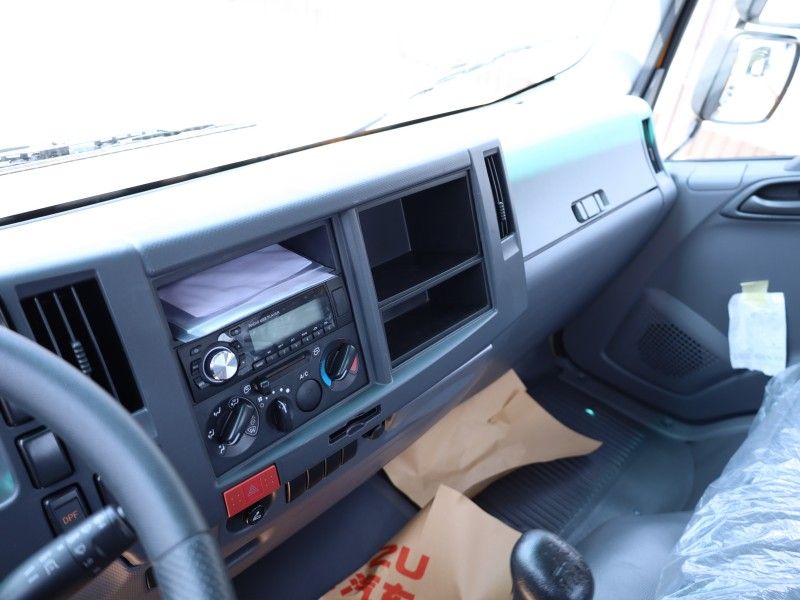

	Radio	●
	ABS	●
	A/C	●
	Tilted cabin	●
	Exhuast brake	●
Option configuration	Central lock	●
	Electric window	●
	Deflector	●

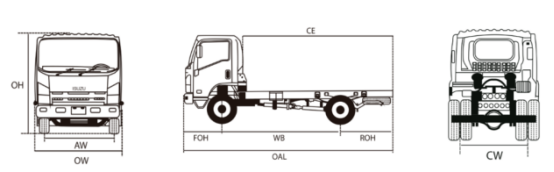

Dimensions	Length OAL  (mm)	5995
	Width  OW (mm)	2030
	Height OH (mm)	2280
	Front Tread AW (mm)	1685
	Rear Tread CW  (mm)	1685
1. ● means standard configuration.                           ○    means option configurtaion
2. All above information is for reference only, and will be updated timely without notice;
3. The listed models are part of the full products range, any special request will be available on request.

Equipped with fuel-efficient technology, the KV100 reduces operational costs through adaptive emission and thermal management systems. Its low-maintenance design minimizes downtime, ideal for fleet operations. The chassis’ wide adaptability supports various truck bodies—van, flatbed, refrigerated—catering to logistics, construction, and cold-chain transport. With a lightweight design (225kg weight reduction) and 4x2 drive, it combines agility with reliable performance for diverse commercial needs.
