Body application
SPECIFICATIONS

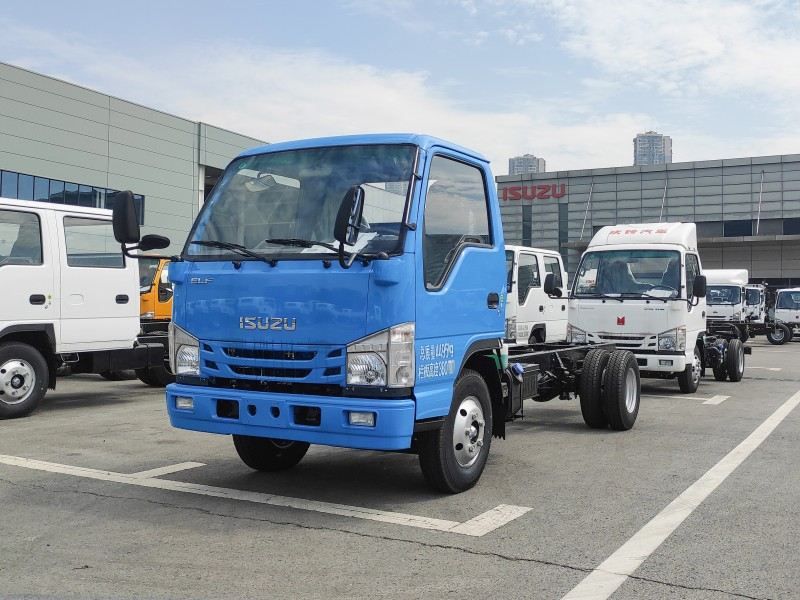

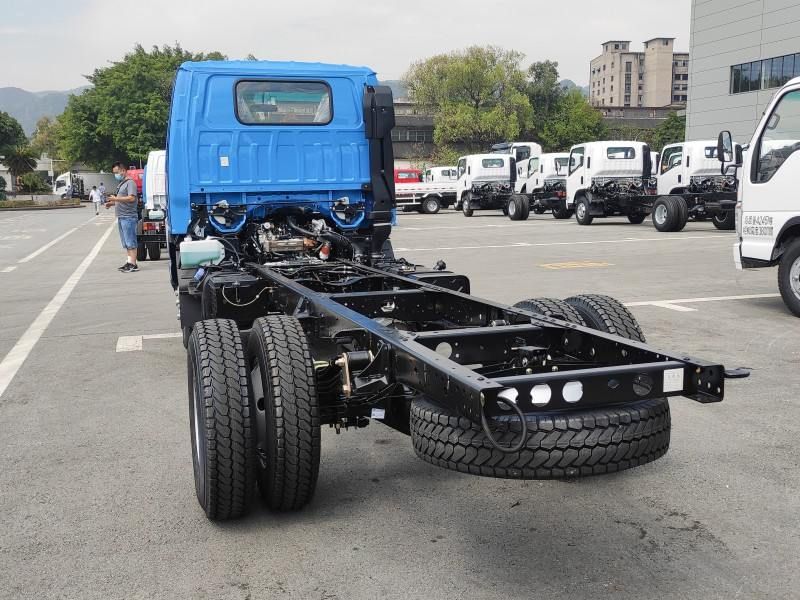

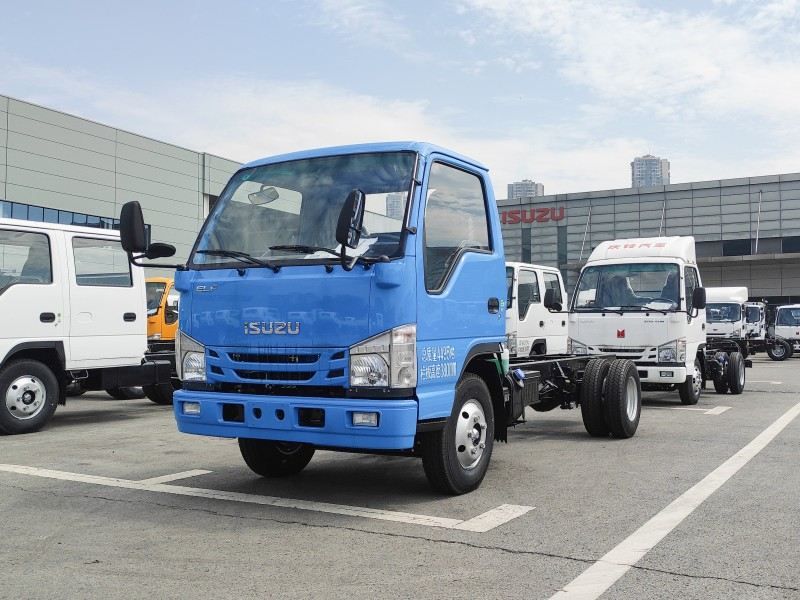

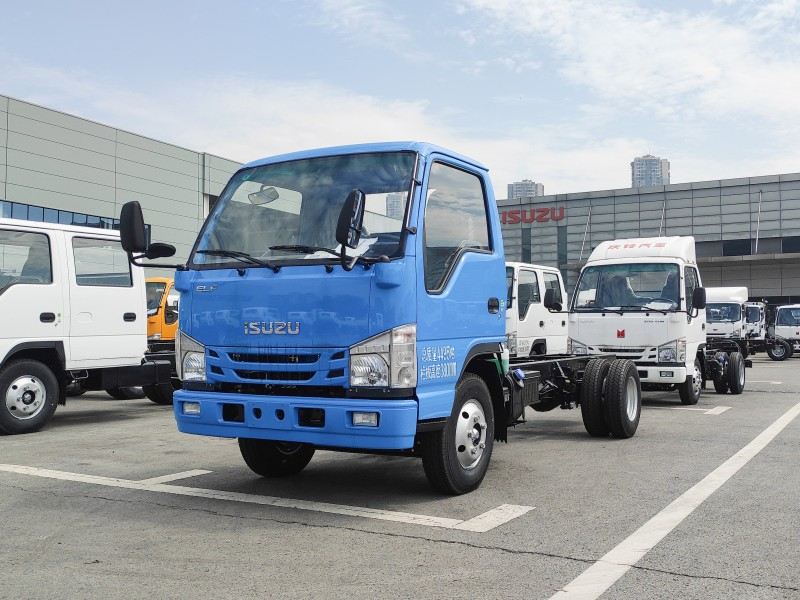

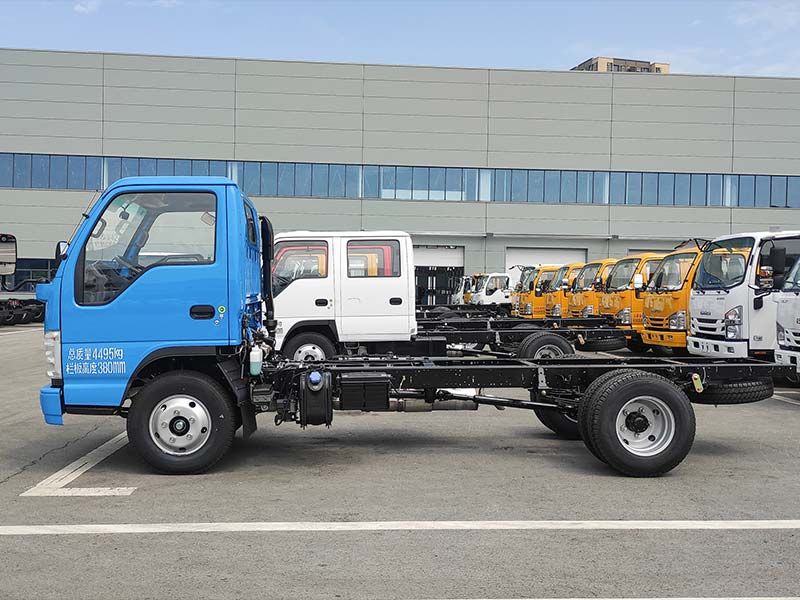

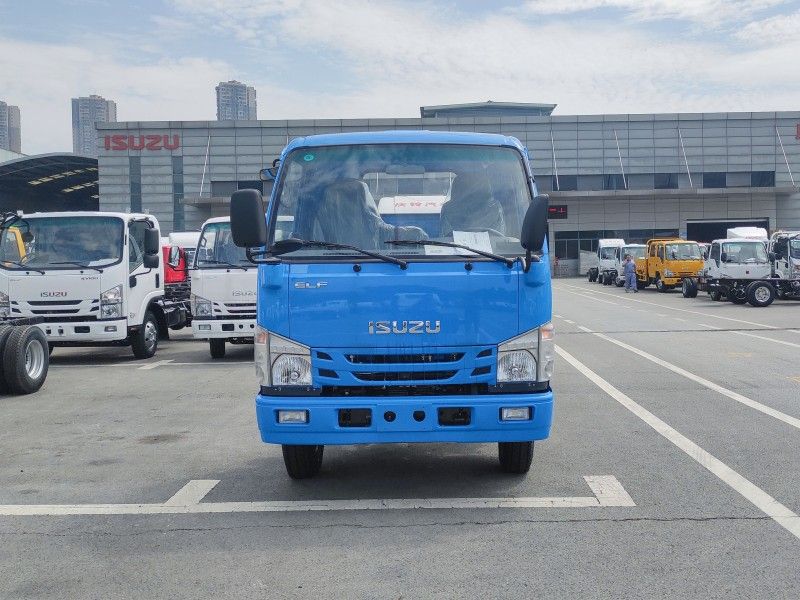

The ISUZU 100p chassis stands as a trustworthy workhorse tailored to commercial demands. Constructed to be rugged, it strikes a harmony between sturdiness and fuel efficiency, making it perfect for logistics, deliveries, and a range of other applications. Outfitted with key amenities such as power steering and ABS, it guarantees secure, seamless performance. Its flexible design can accommodate various body configurations, satisfying a wide array of business needs. Though compact, it’s robust enough to tackle daily tasks with ease. It’s ready to enhance your fleet—reliable, functional, and built to deliver results.
| Work capacity: | 2-5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |

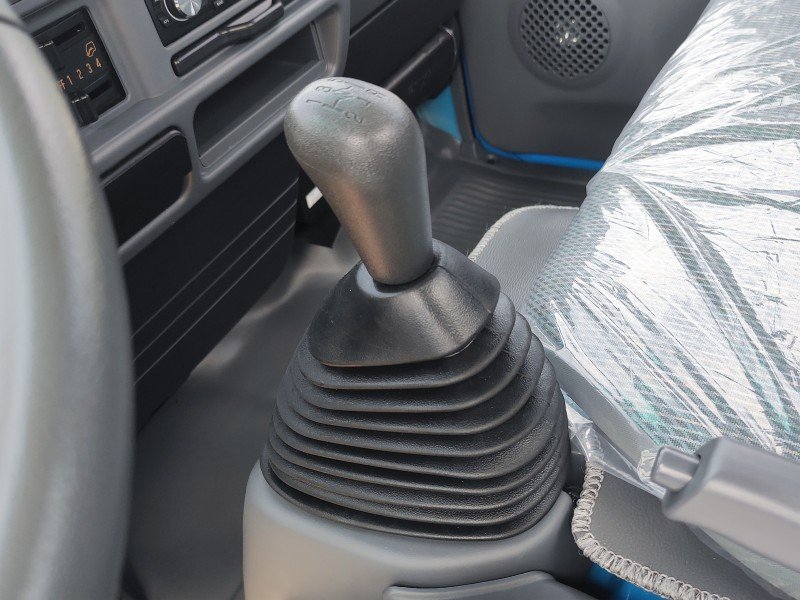

| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu 100P light truck chassis |
DIMENSIONS
The ISUZU 100p chassis distinguishes itself as a paragon of reliability, designed to thrive in challenging commercial settings. At its heart is a fuel-efficient engine that meets Euro VI standards, generating a strong 132 horsepower and 290 Newton-meters of torque—ideal for navigating busy city traffic or carrying loads up to its 8.28-ton gross vehicle weight. Mated to a seamless 5-speed manual gearbox, it achieves a balance between agility and fuel efficiency, reducing operational expenses for fleet operators. Safety is a top priority: fitted with ABS, air brakes, and a strengthened frame, it ensures steady braking even when carrying heavy cargo, while power steering boosts maneuverability in confined areas. Its 3815mm wheelbase hits a clever sweet spot—compact enough to tackle narrow urban roads yet roomy enough to support diverse body setups, from delivery vehicles to service trucks. Constructed from high-quality steel, the chassis resists rust and wear, offering long-lasting durability with little need for upkeep.
| General information | Chassis model | 100p light truck chassis | ||
| Wheelbase(mm) | 3360 | |||
| Drive Type | 4X2 | |||
| GVW (kg) | 7300 | |||
| Curb Weight (kg) | 2250 | |||
| Cabin | single | |||
| Driver and Passenger | 2 | |||
| Engine | Model | 4KH1CN6LB | ||
| Type | 4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | |||
| Emission Standard | Euro VI | |||
| Displacement (L) | 2.999 | |||
| Rated Power (kw/rpm) | 88kw | |||
| Max. Torque (N.m/rpm) | 290N.m | |||
| Transmission | Model | Manual,MSB | ||
| 5 Forward + 1 Reverse | ||||
| Brake System | Service brake | Double circuit, air drive | ||
| Brake(Oil/Air) | air brake | |||
| Parking brake | Central drum brake | |||
| standard Configuration | Tires | 7.00R16LT 14PR,7.00-16LT 14PR | ||
| Power steering |  ● | |||
| Radio | ● | |||
| ABS | ● | |||
| A/C | ● | |||
| Tilted cabin | ● | |||
| Exhuast brake | ● | |||
| Option configuration | Central lock | ○ | ||
| Electric window | ○ | |||
| Deflector | ○ | |||
| Dimensions | Length OAL (mm) | 5900 | ||
| Width OW (mm) | 1880 | |||
| Height OH (mm) | 2200 | |||
| Front Tread AW (mm) | 1504 | |||
| Rear Tread CW (mm) | 1425 | |||
| 1. ● means standard configuration. ○ means option configurtaion | ||||
| 2. All above information is for reference only, and will be updated timely without notice; | ||||
| 3. The listed models are part of the full products range, any special request will be available on request. | ||||

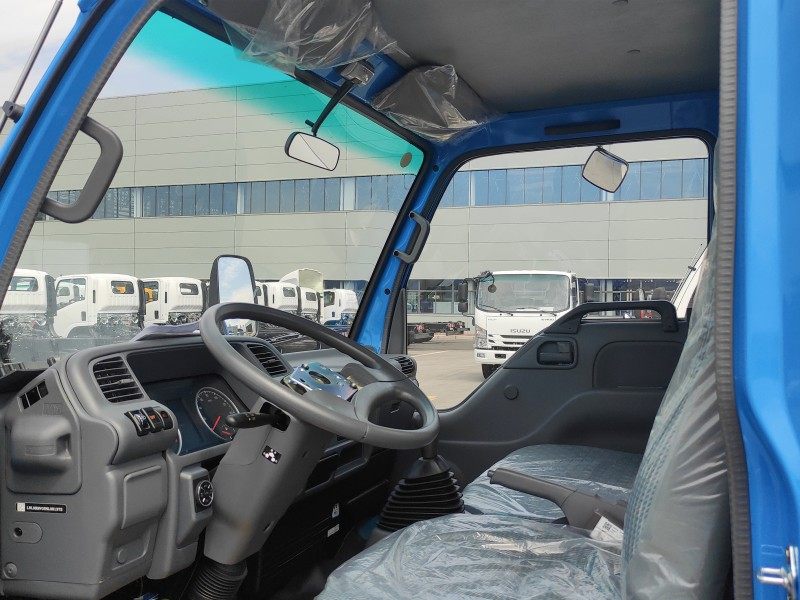

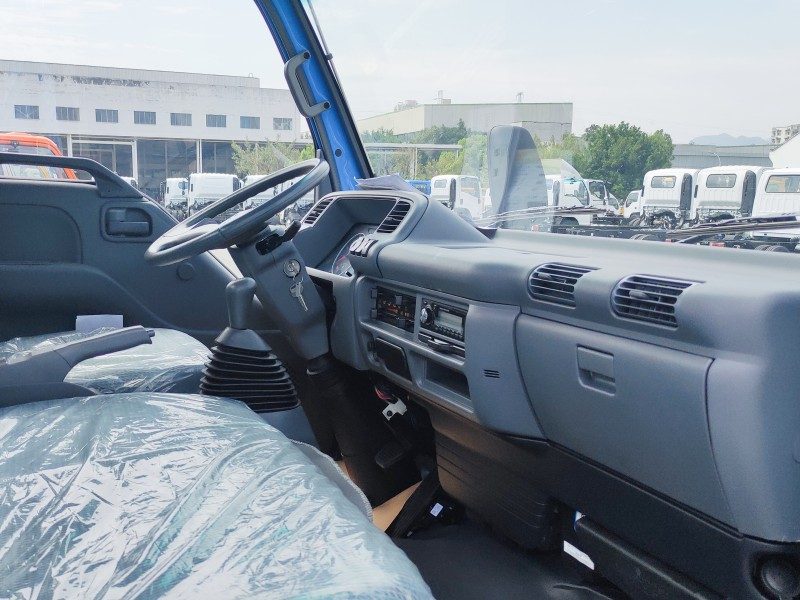

Beyond its impressive performance, the ISUZU 100p chassis places a strong emphasis on practicality and adaptability, cementing its status as a versatile option across various industries. Measuring 6950mm in length and 2130mm in width, it provides generous room for customized body installations, while its 2315mm height ensures straightforward passage under low bridges or within urban parking structures. The driver’s cabin is crafted with comfort in mind: it includes air conditioning, a tiltable design for hassle-free maintenance access, and ergonomically designed seats to ease tiredness during extended work hours. Optional add-ons such as central locking and electric windows enhance convenience, allowing the chassis to be tailored to specific operational needs. Equipped with a 100-liter fuel tank, it reduces the need for frequent refueling, extending the daily operational range. Whether configured as a refrigerated unit for perishable goods, a flatbed for construction supplies, or a cargo van for logistics operations, its flexible structure adapts effortlessly. Supported by ISUZU’s long-standing reputation for engineering excellence, this chassis is more than just a vehicle—it’s a long-term investment in efficiency, safety, and overall productivity.
