Body application
SPECIFICATIONS
Tailored for city-based logistics, the KV100 is equipped with a 4KH1CN6LB Euro 6 diesel engine (120 horsepower) that delivers 11.3 liters per 100 kilometers in fuel efficiency. With a 4.5-ton payload capacity and a 4130x2300mm cargo area, it’s well-suited for delivery services, construction work, and cold chain transportation requirements. Constructed with Isuzu’s robust chassis and outfitted with safety technologies such as ABS+EBD, it strikes a balance between strong performance and minimal maintenance needs. It also offers customizable options for stake or van bodies. This makes it a dependable ally for efficient commercial transport operations.
| Work capacity: | 5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu KV100 Light Truck Chassis |

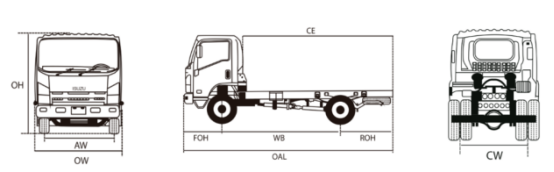

DIMENSIONS
The Isuzu KV100 Euro 6 Light Duty Truck sets a new standard for commercial efficiency, powered by a 4KH1CN6LB diesel engine (120 horsepower, 290 Newton-meters of torque). This engine not only meets the stringent Euro 6 emissions regulations but also achieves an impressive fuel efficiency of 11.3 liters per 100 kilometers. Crafted specifically for urban logistics, the truck strikes a harmonious balance between versatility and practicality, boasting a 4.5-ton payload capacity and a cargo bed measuring 4130×2300×2300mm. Thanks to its innovative "Triple Lightweight Technology," the KV100 reduces overall weight by 15% without sacrificing sturdiness—making it ideal for maximizing load capacity. Safety is a priority, with features such as ABS+EBD, lane departure warning, and a reinforced cabin ensuring secure operations. Additionally, its 5-speed manual transmission and heavy-duty chassis enable it to tackle tough terrains with confidence. Whether for e-commerce deliveries, construction work, or cold chain transportation, the KV100 blends reliability with a low total cost of ownership, making it a standout choice in commercial hauling.
| General information | Chassis model | KV100 light truck chassis | ||
| Wheelbase(mm) | 3360 | |||
| Drive Type | 4X2 | |||
| GVW (kg) | 7300 | |||
| Curb Weight (kg) | 2300 | |||
| Cabin | single | |||
| Driver and Passenger | 3 | |||
| Engine | Model | 4KH1CN6LB | ||
| Type | 4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | |||
| Emission Standard | Euro VI | |||
| Displacement (L) | 2.999 | |||
| Rated Power (kw/rpm) | 88kw | |||
| Max. Torque (N.m/rpm) | 290N.m | |||
| Transmission | Model | Manual,MSB | ||
| 5 Forward + 1 Reverse | ||||
| Brake System | Service brake | Double circuit, air drive | ||
| Brake(Oil/Air) | air brake | |||
| Parking brake | Central drum brake | |||
| standard Configuration | Tires | 7.00R16LT 14PR,7.00-16LT 14PR | ||
| Power steering |  ● | |||
| Radio | ● | |||
| ABS | ● | |||
| A/C | ● | |||
| Tilted cabin | ● | |||
| Exhuast brake | ● | |||
| Option configuration | Central lock | ● | ||
| Electric window | ● | |||
| Deflector | ● | |||
| Dimensions | Length OAL (mm) | 5995 | ||
| Width OW (mm) | 2030 | |||
| Height OH (mm) | 2280 | |||
| Front Tread AW (mm) | 1685 | |||
| Rear Tread CW (mm) | 1525 | |||
| 1. ● means standard configuration. ○ means option configurtaion | ||||
| 2. All above information is for reference only, and will be updated timely without notice; | ||||
| 3. The listed models are part of the full products range, any special request will be available on request. | ||||
Crafted to be a flexible workhorse, the Isuzu KV100 Euro 6 serves a wide range of industries—from last-mile delivery fleets to the transport of construction materials. Its open fence-style cargo bed allows for fast loading and unloading, while customizable options (such as refrigerated vans and stake bodies) let it adapt to specific operational needs. Boasting an engine lifespan of 1 million kilometers and low maintenance demands, it has become a reliable pick for fleet managers. Built on Isuzu’s 35+ years of technical expertise, the KV100 incorporates modern amenities like an LCD dashboard, automatic air conditioning, and smart connectivity features to help reduce driver fatigue. With proven success in real-world settings—including Vietnam’s logistics networks and Algeria’s construction sector—it consistently demonstrates its capabilities. Reach out to us today for a customized solution.
